| Product Type | Gigabit Fiber Optic Switch |
| Ports | 8 x RJ45 ports (10/100/1000 Mbps), 2 x SC optical ports (1310/1550nm wavelengths) |
| Switching Method | Store-and-forward switching mode supports reliable data forwarding |
| Power over Ethernet (PoE) | Supported on RJ45 ports (details depend on configuration) |
| Input Power | 48V 1A or 52V 2A power supply |
| Operating Temperature | -20°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| Supported Standards | IEEE 802.3 (Ethernet MAC), IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3x (1000BASE-TX) |
| Data Transfer Rate | Full duplex and half duplex for Fast Ethernet |
| Network Media Compatibility | – 10Base-T: Category 3 (Cat3) or above UTP/STP cables (up to 100m) |
| – 100Base-TX: Category 5 (Cat5) or above UTP/STP cables (up to 100m) | |
| – 1000Base-TX: Category 6 (Cat6) or above UTP/STP cables (up to 100m) | |
| Default System Mode | Optical Transceiver Mode |
| Optional Features | Built-in crash restart function (auto restart if no data for 2 minutes) |
| Physical Dimensions | 199 mm (L) x 88 mm (W) x 25 mm (H) |
| Weight | 0.4 kg |

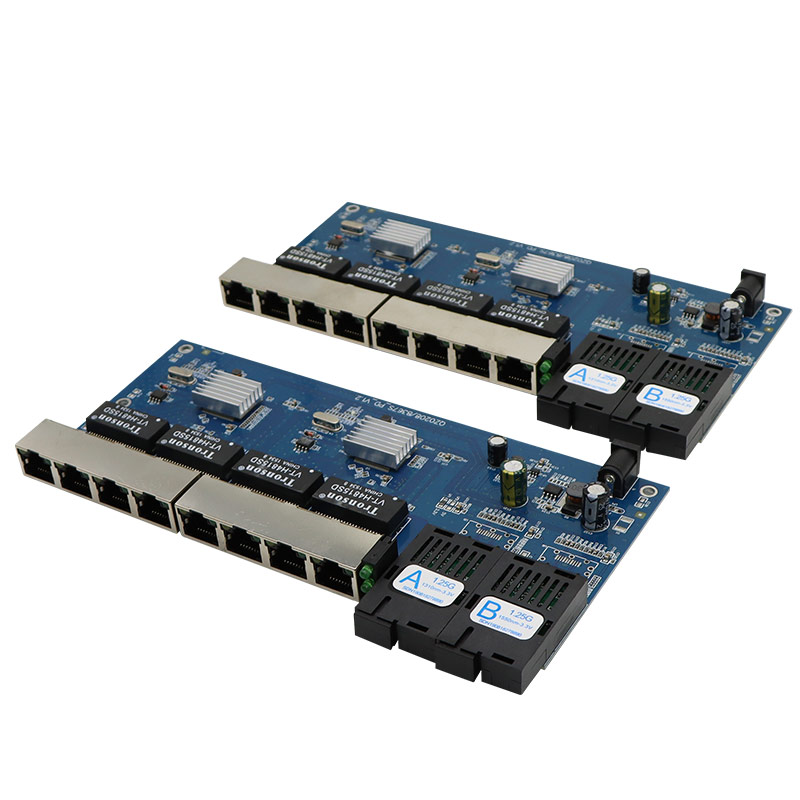

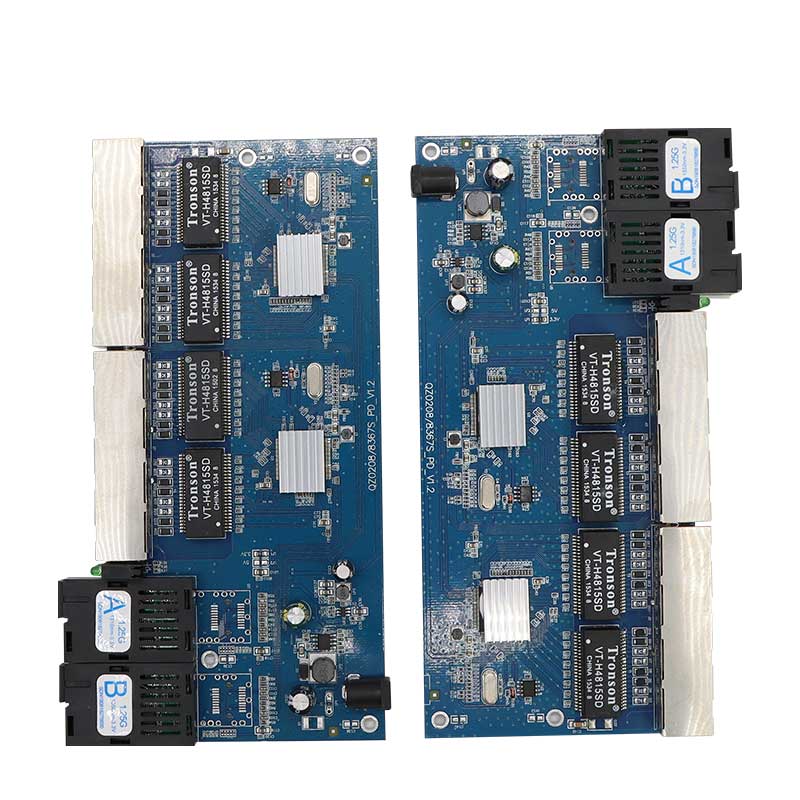

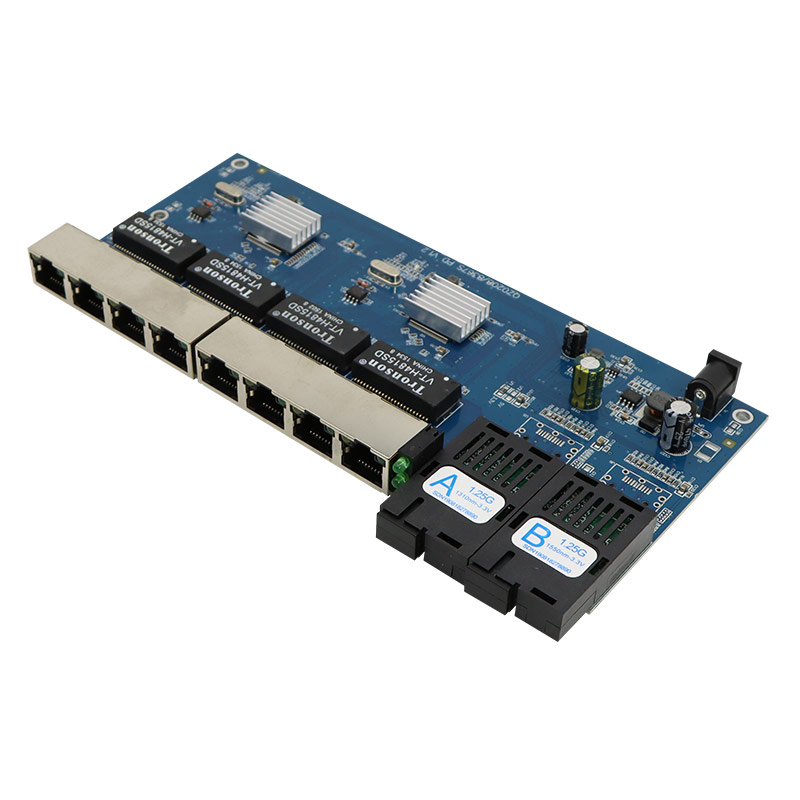

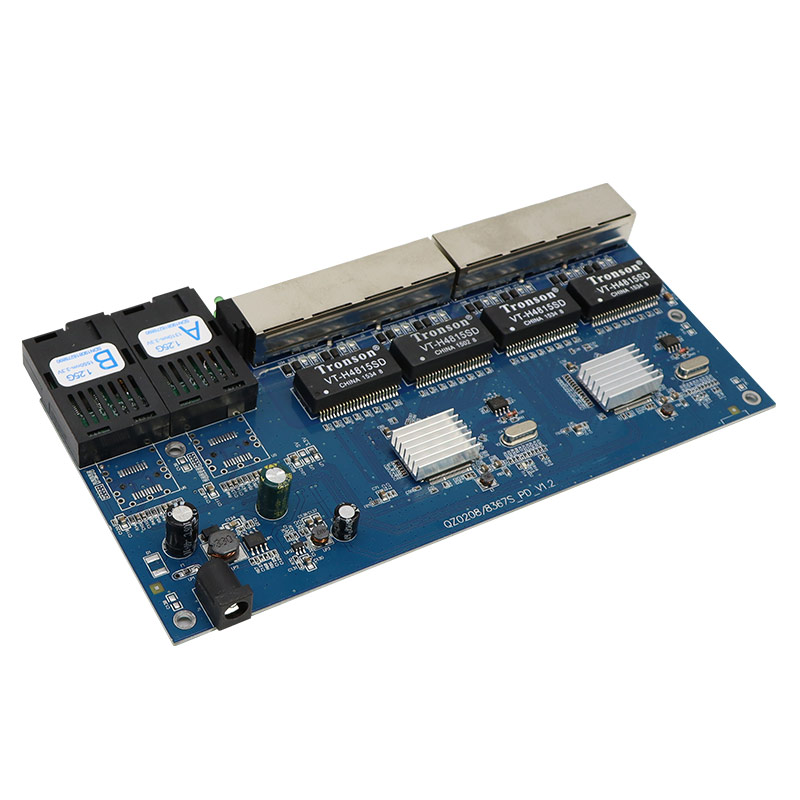

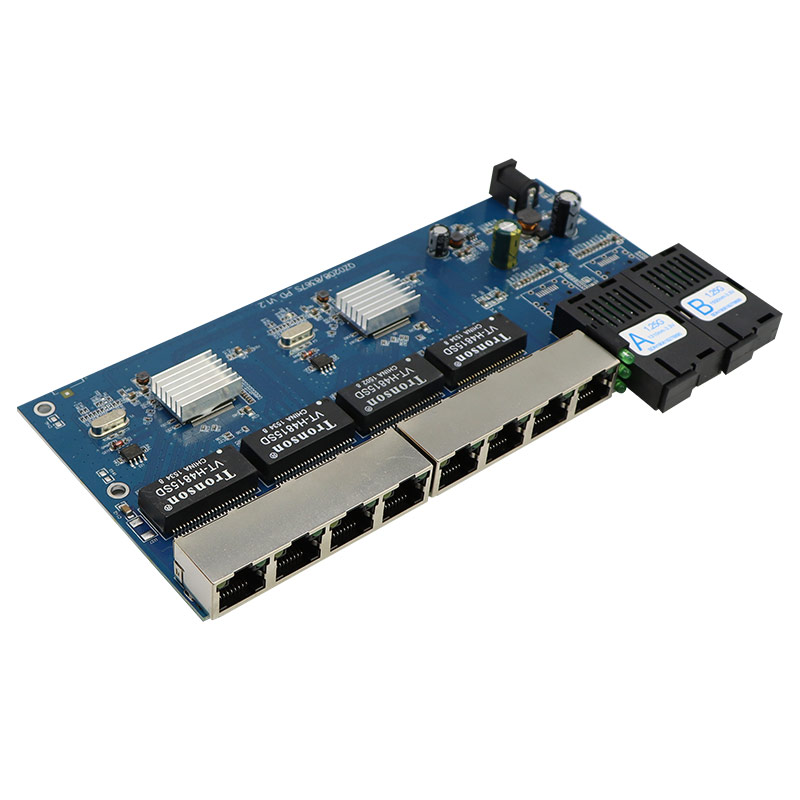

Gigabit Fiber Optic Switch with 8 RJ45 Ports, PoE, 1310/1550nm, PCBA Board
- Gigabit Ethernet Ports: 8 RJ45 ports for high-speed 10/100/1000 Mbps data operation.
- Optical Fiber Network: 2 x SC optical ports (1310/1550nm) included for long-distance fiber optic connections.
- PoE Support: Power over Ethernet offers simple installation with a single cable for data and power giving flexibility in device placement.
- Store-and-Forward Switching: Frame and packet loss rarely occur, ensuring reliability in data forwarding.
- Ideal Operating Conditions: Operates in normal temps from -20 to 75 °C and from 10%-90% RH humidity making it comfortable for the environment wherever it is installed.
- Energy Efficient: Compatible with the IEEE 802.3 standards and is energy efficient.
- Typical Footprint: The switch’s dimension is a Small form factor (199mm x 88mm x 25mm) making it easy to install and weigh only 0.4kg.
- Auto-Restart: The built-in crash restart feature makes this switch even more stable.
- High Backplane Bandwidth: The switch has an 11.2 Gbps backplane bandwidth as well as a 16K MAC address table that will allow smooth switching and forwarding to multiple switches or devices.
