| Product Name | G8 High Precision Cutting Tool Fiber Cleaver |
| Model | G8 |
| Fiber Fixture | 3-in-1 Fixture |
| Applicable Fiber Type | Silica fiber (pigtail, patch cord, single core) |
| Applicable Bare Fiber Diameter | 125 μm |
| Coating Diameter | 0.25 mm & 0.9 mm |
| Fiber Cleave Length | 7–16 mm (0.25 mm), 5.2 mm (0.9 mm) |
| Cutting Angle | ≤0.5° |
| Blade Material | Tungsten steel |
| Blade Life | 48,000 cleaves |
| Blade Size | Φ22 mm × 2 mm |
| Blade Replacement | Manual, tool-free |
| Blade Height Adjustment | Yes |
| Fixture Snap | Yes |
| Stainless Steel Rubber Pad | Yes, upper and lower |
| Debug Tool | Included |
| Off-Cut Collector | Integrated trash bin |
| Operation Modes | Manual cleaving, slide guide auto return |
| Product Size | 68 mm (W) × 68 mm (D) × 54 mm (H) |
| Product Weight | Approx. 255 g |
| Cladding Diameter | 125 μm |
| Cover Opener | Yes |
| Cover Clip | Yes |
| Blade Putter | Yes |

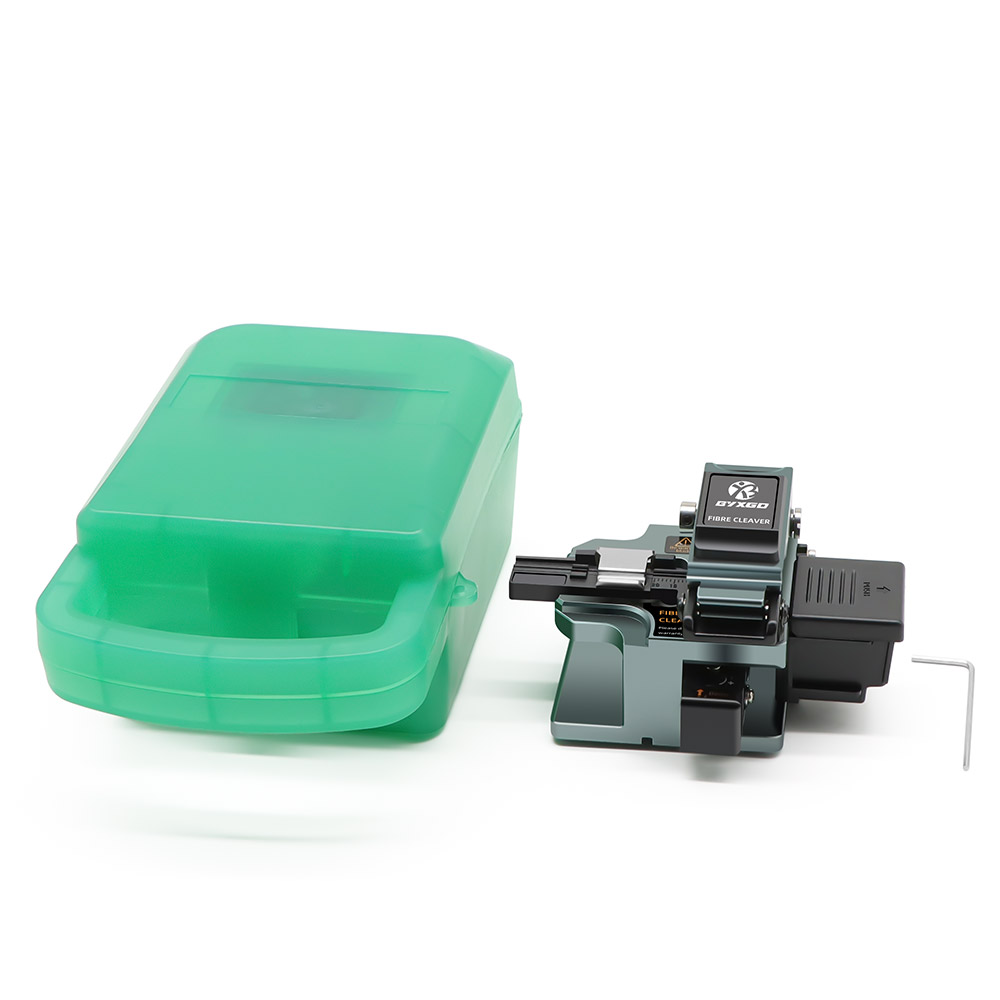

| Accessories Included | User manual, test report, certificate, packing bag, box |
| Optional Accessories | L-shape screwdriver, three-in-one fiber holder, trash box |
| Storage Temperature | -10°C to 50°C |
| Storage Humidity | 0–95% RH |
| Operating Altitude | 0–5000 m |
| Operating Humidity | <95% RH |
| Maximum Wind Speed | 15 m/s |
| Safety Features | Blade guard, stable fixture, anti-slip base |
| Maintenance | Easy daily cleaning, replaceable blade, cleanable pads |

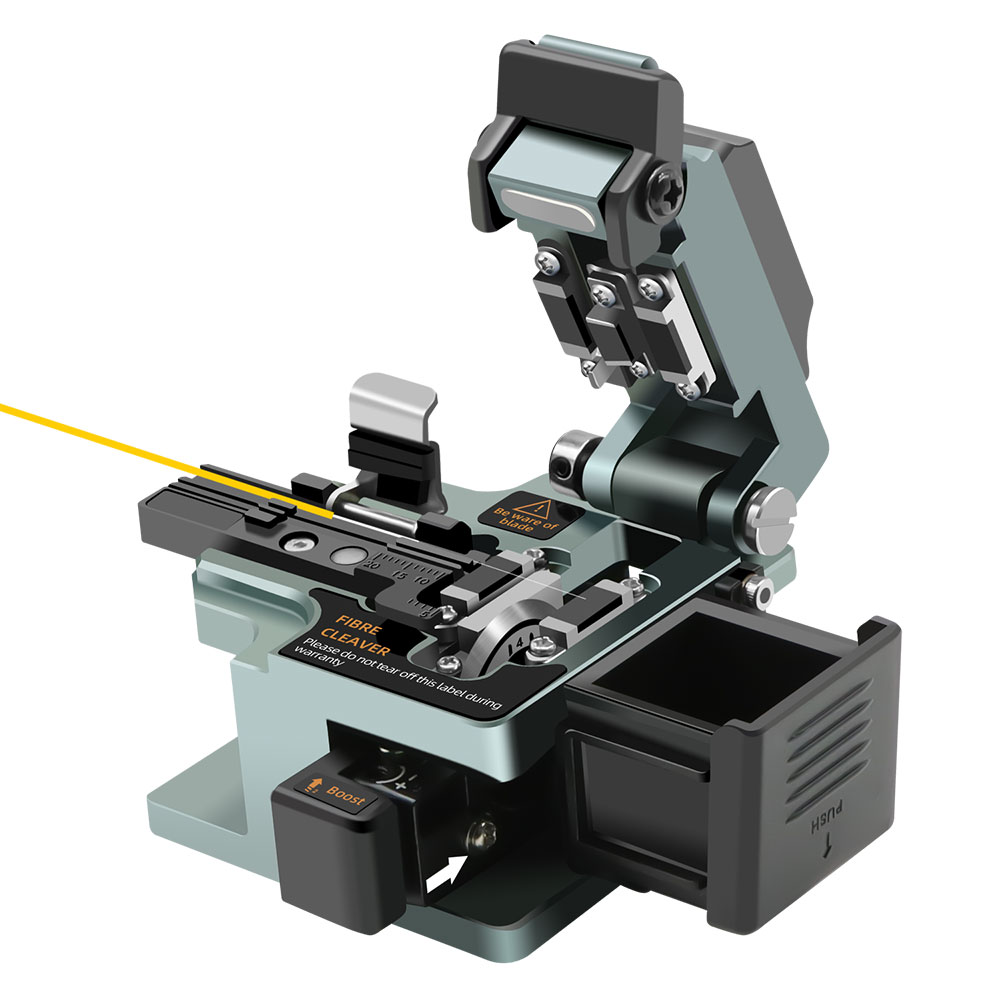

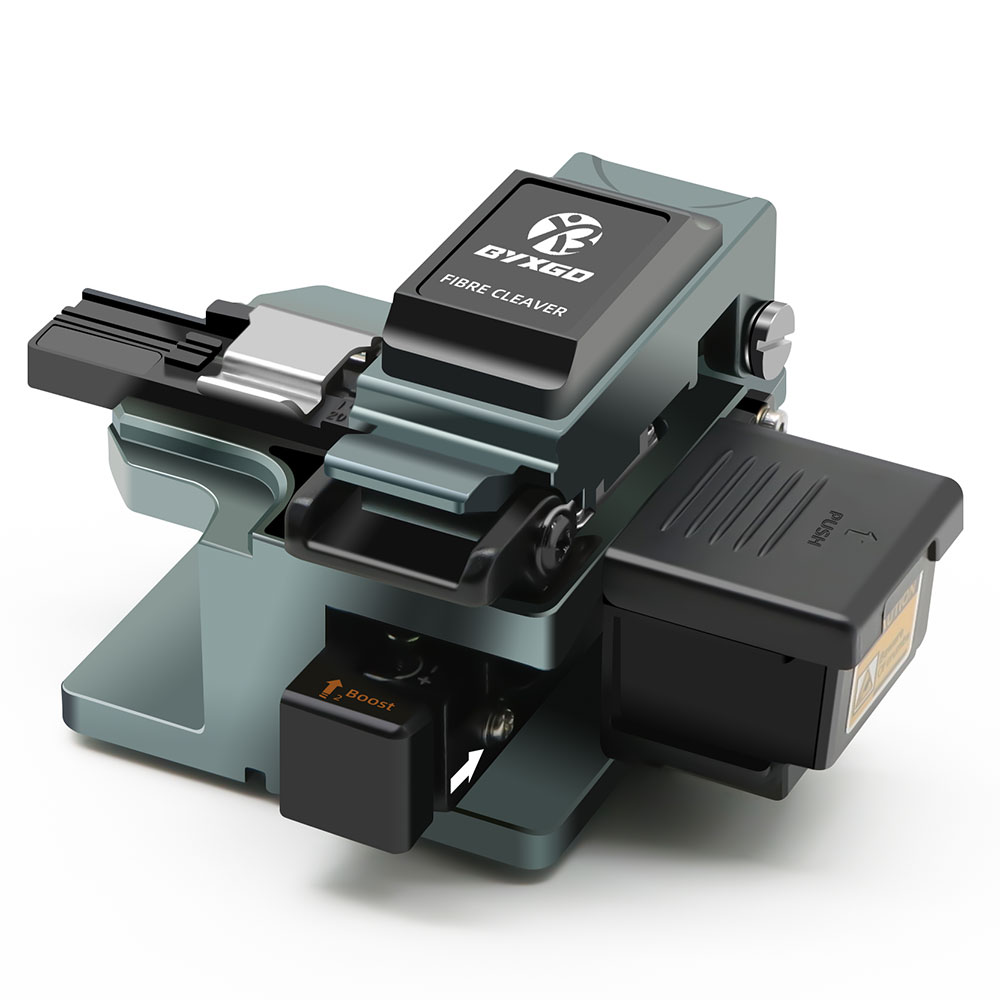

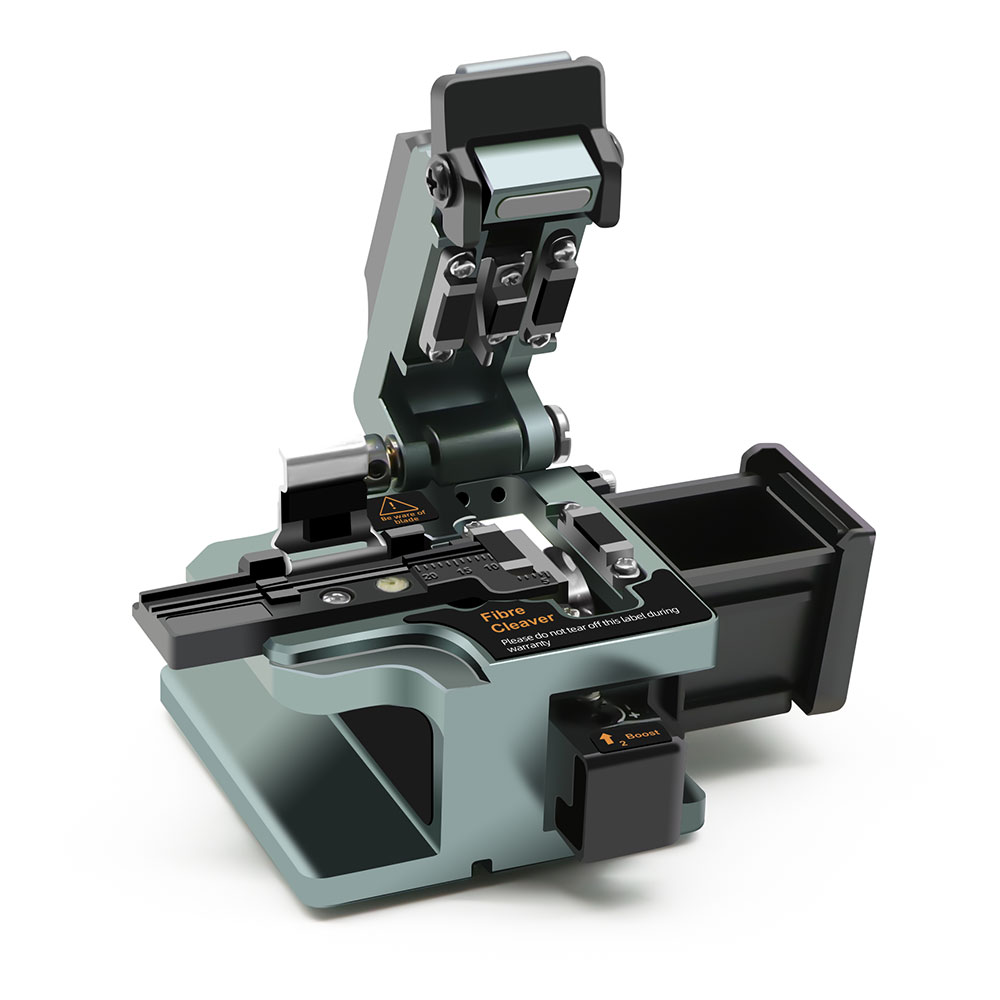

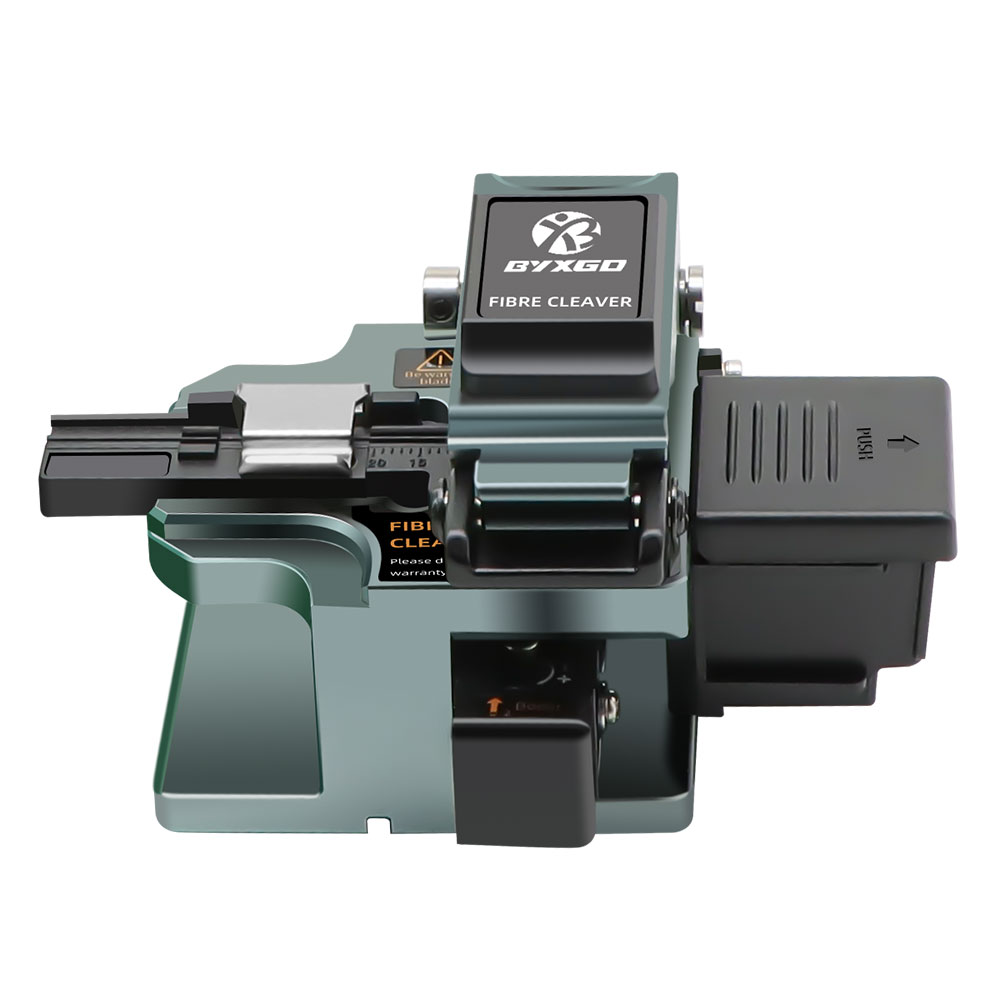

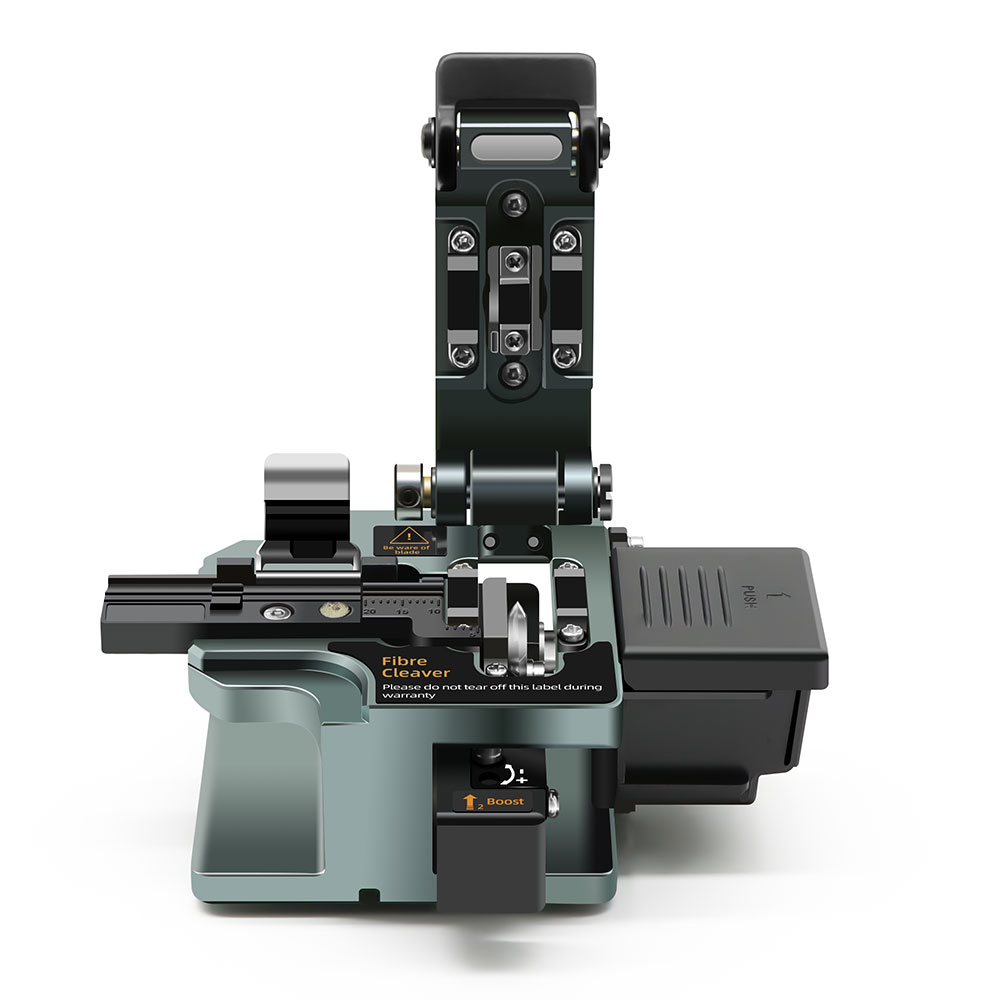

G8 High Precision Cutting Tool Fiber Cleaver For Precise <0.5° Cutting Angle & Multi-Fiber
High Precision Cutting Tool: Provides a cutting angle of ≤0.5° for smooth, clean fiber ends giving you the best results for splicing.
3-in-1 Clamp: Fits 0.25mm and 0.9mm coated fibers and can be used in single core, pigtail, and patch cord applications.
Longevity of the Blade: Tungsten steel blade will last for up to 48,000 cleaves to minimize blade changes.
Adjustable Cutting Length: Allows lengths to be measured as short as 9–16mm for 0.25mm fibers and 5.2mm for 0.9mm fibers, accommodating a variety of projects.
Lightweight and Compact: Weighs 255g and compact in size of length 68mm x width 68mm x height 54mm. Ideal for fieldwork or carrying to different work sites.
Stable Fiber Holding: Fiber is kept stable in place by stainless steel and rubber pads with no slippage.
Easy Blade Change: A simple user process makes changing the blades easy and saves time during projects.
Off-Cut Collection: Off-cut bin keeps fiber offcuts in a tidy condition and keeps work safe.
Debugging Tool: Tool is included for fine-tuning and maintenance.
Manual/Auto Return Slide: Enhances and makes the process more efficient for repetitive processing.
Compatibility: Perfect combination of silica fiber, pigtails, and single core fibers makes it a versatile choice for fiber optic-related jobs.
