Product Name | Automatic Optical Fiber Cutter |
Model | G6 |
Blade Material | Tungsten Steel |
Blade Life | 48,000 cuts |
Cutting Angle | ≤0.5° |
Cutting Length (0.25mm) | 9–16mm |
Cutting Length (0.9mm) | 5.2mm |
Coating Diameter | 0.25mm, 0.9mm |
Cladding Diameter | 125μm |
Fiber Type Compatibility | Pigtail, Single Core |
Fiber Optic Clamps | 3-in-1 clamp system |
Application | Hot melt and cold weld |
Product Weight | 280g |
Product Size | 63 × 65 × 60mm |
Cutting Table | Magnetic fixation + rubber pad |
Slide Rail Material | Stainless steel |
Pressure Pad | High-strength rubber |
Magnetic Clamps | Yes |
Stability Features | Stable fiber holding, precise cutting |
Portability | Compact and lightweight design |
Operation | Simple, user-friendly |
Maintenance | Low maintenance, easy to clean |
Durability | Rust-resistant, wear-resistant materials |
Safety Features | Secure clamping, minimizes fiber breakage |
Fusion Loss | Minimal, due to precise cutting angle |
Suitable Environments | Indoor and outdoor, all weather |
Color | Black (as shown in images) |

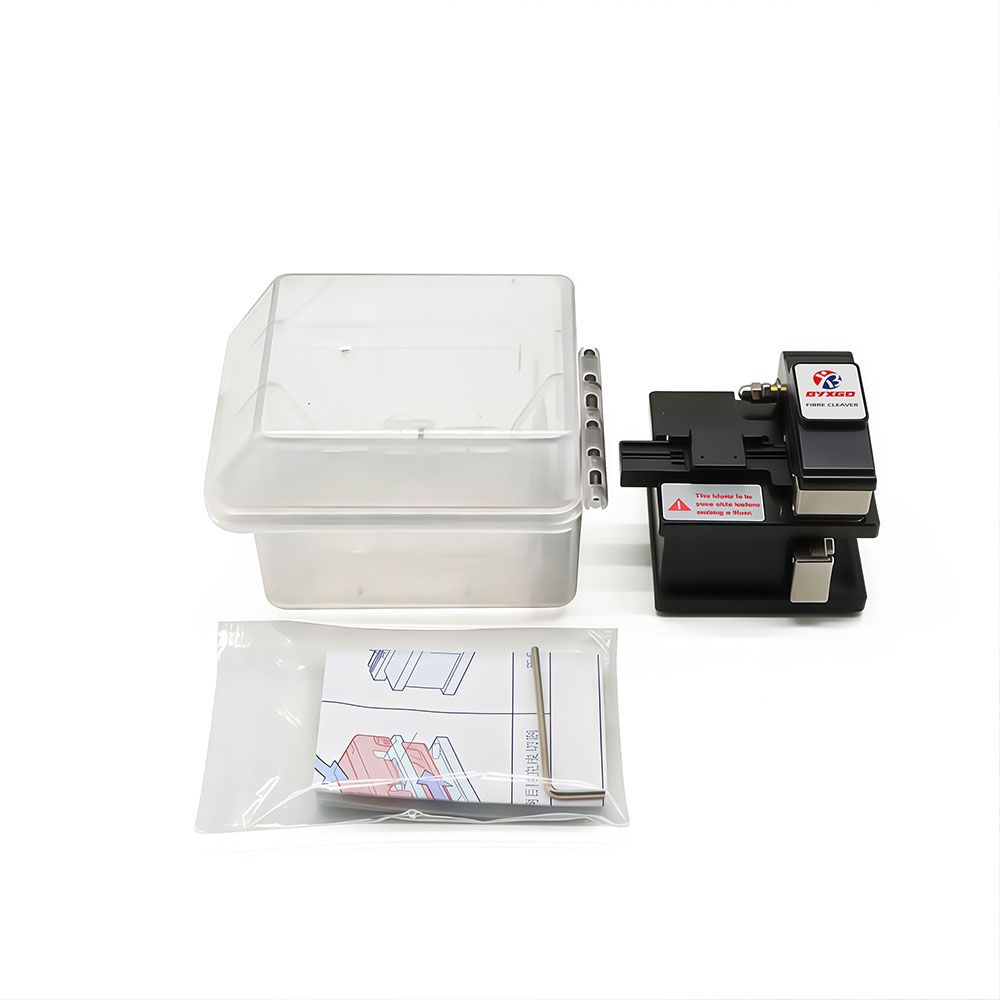

Package Includes | Fiber cleaver, user manual (other accessories vary) |

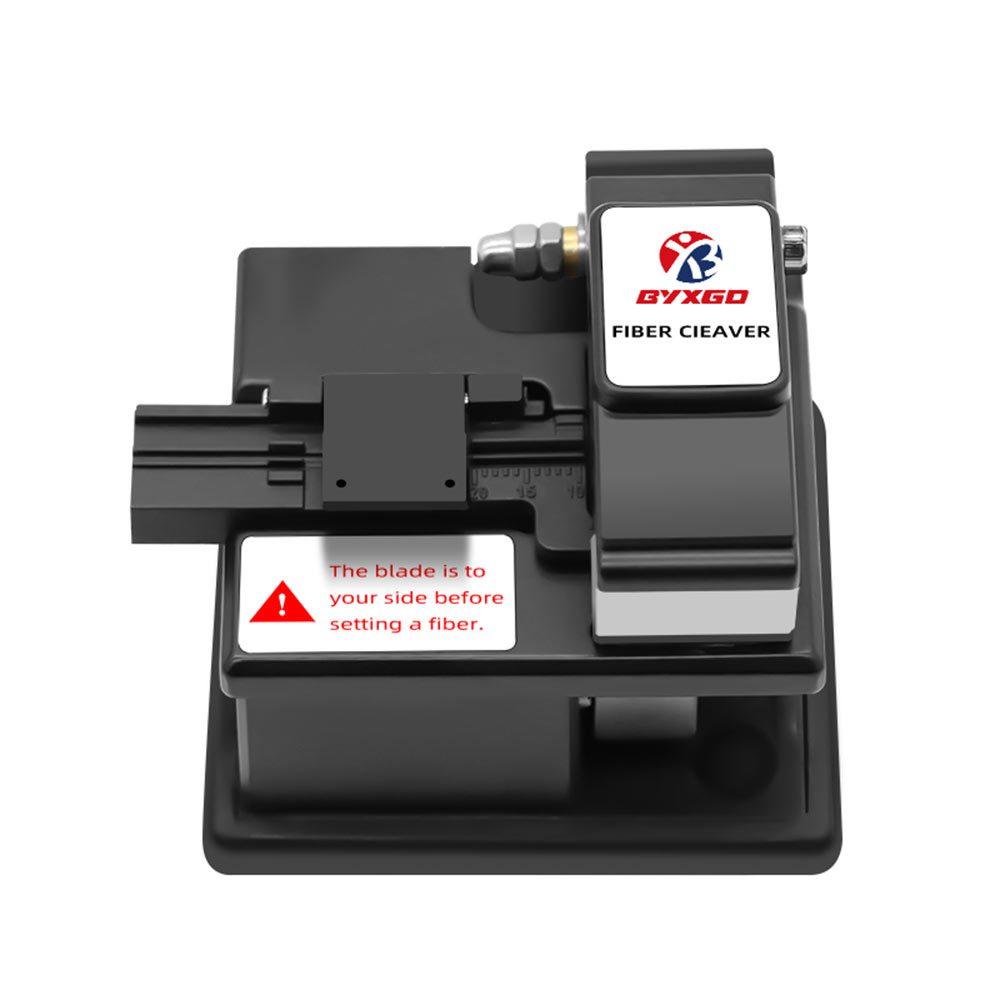

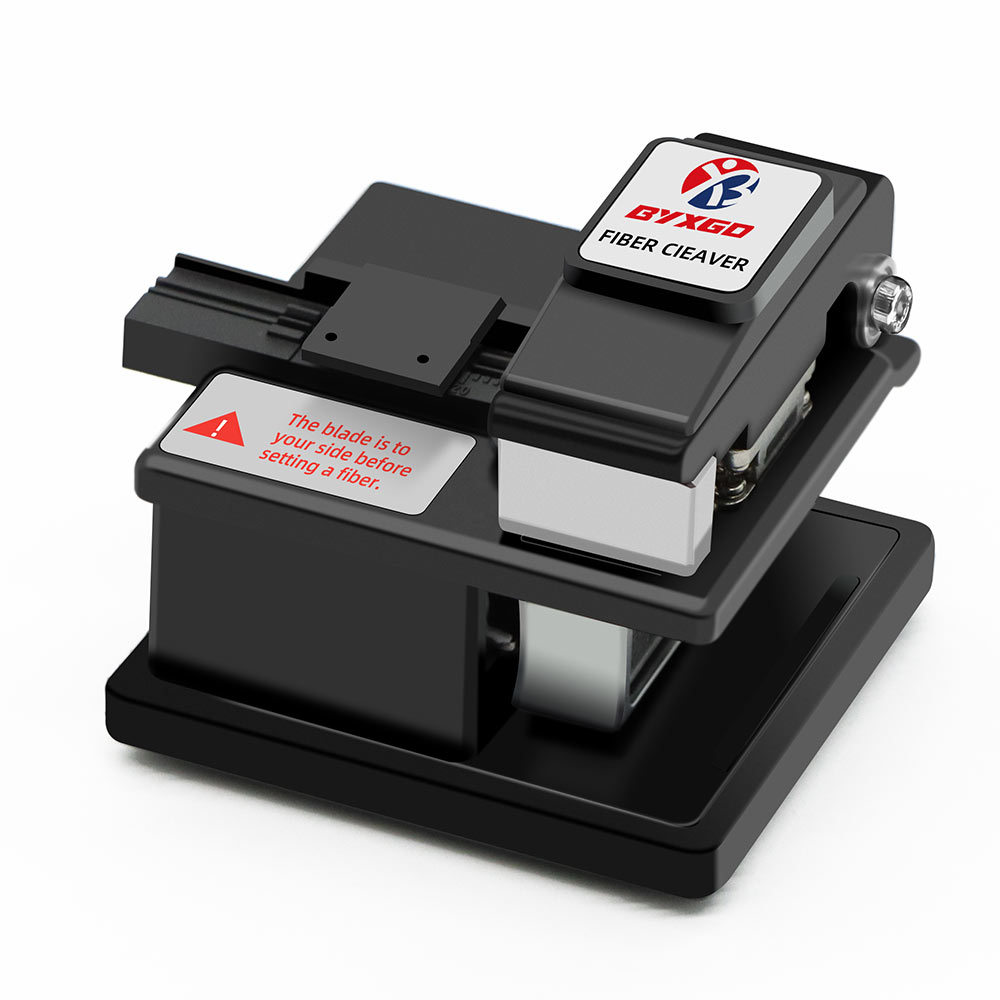

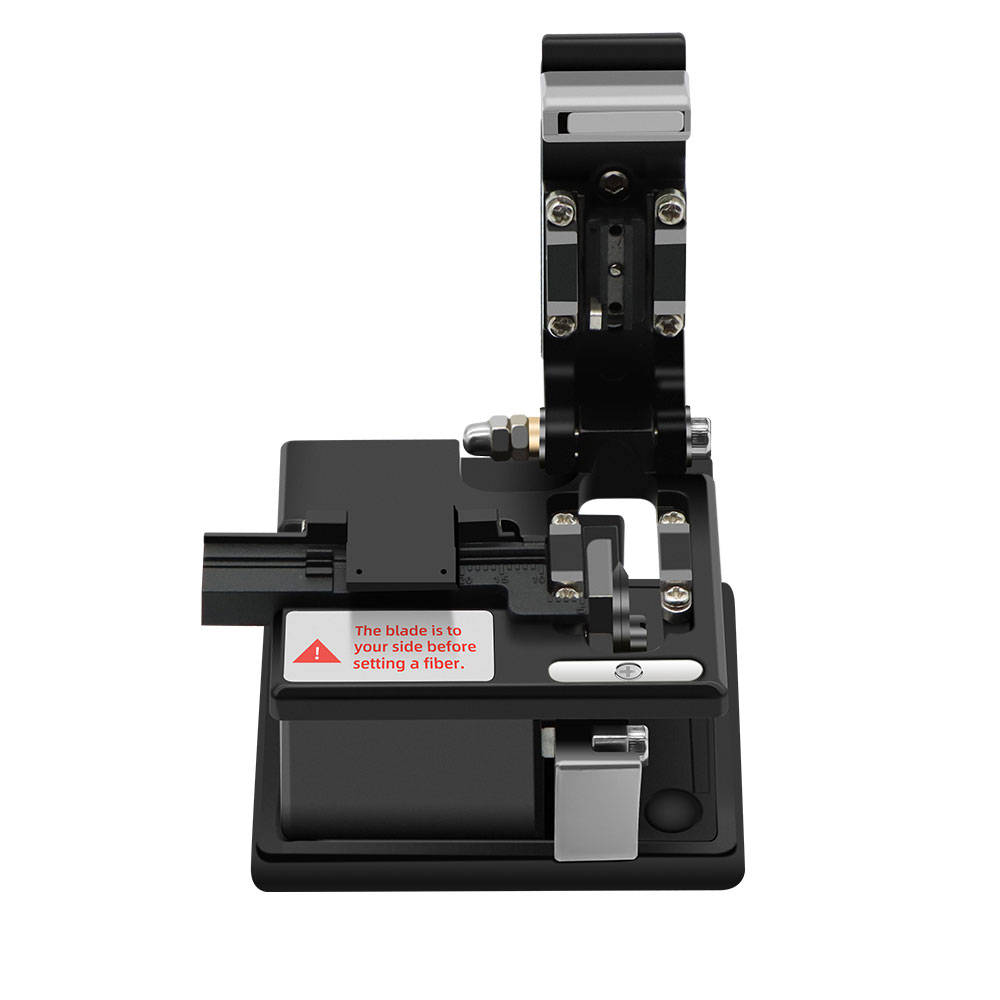

G6 Fiber Optic Cable Cleaver Tool with Durable Blade Life for Hot Melt and Cold Joints
Highest Precision Cutting: Angles not exceeding ≤0.5° reliably yield flat and clean fiber ends, while limiting fusion loss.
Hot/Cold Weld Flexibility: The cleaver is compatible with both hot melt and cold joints, making it easy to keep your options open when making installations.
Exceptional Blade Life: The tungsten steel blade is rated for up to 48,000 cuts, so you won’t be changing blades as often, saving on maintenance costs.
Versatile 3-in-1 Clamp: The clamp allows you to clamp pigtails, single cores, or blend multiple fiber types all with one clamping mechanism for versatile field use.
A Stable Cutting Table: The cutting table uses magnetic fixation and high strength rubber to ensure stability of all fibers, allowing you to get a precise cut through every time.
Strong Construction: The stainless steel slide rail and pressure pad is rust and wear resistant, even in continuous use.
Compact & Lightweight: With a weight of 280g and size of 63×65×60mm, this fiber cutting tool is portable and compact for field use.
Adjustable Cutting Length: Adjustable to offer support for 9–16mm (φ0.25) and 5.2mm (φ0.9) configurations when you are ready to cut.
User-friendly: Simple to set up, align, and cut clean fiber in one operation.
Safety First: The clamping design will keep the fiber still, while keeping your hands safe from the blade.
