| Product Model | G5 3-in-1 Fiber Optic Light Meter |
| Functions | Optical Power Meter, LED Lighting, RJ45 Cable Tester |
| Supported Wavelengths (nm) | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 |
| Power Measurement Range | includes -70 to +6 dBm, -70 to +10 dBm, -50 to +26 dBm ranges |
| Optical Power Units | dBm, dB, µW |
| Fiber Connector Compatibility | FC, SC, ST |
| RJ45 Cable Tester Functions | Continuity, Open Circuit, Miswiring Detection |
| LED Lighting | Built-in LED flashlight for dark environment illumination |
| Power Supply Options | Rechargeable lithium battery or 2 x dry batteries |
| USB Charging | Supported (charging cable compatible with computer, power bank, or charger) |
| Display | Backlit LCD with selectable backlight modes |
| Button Features | Physical tactile buttons with sound feedback and concave design for easy operation |
| Data Storage | Stores up to 20 test records with cyclic overwrite |
| Calibration | DIY self-calibration mode with factory reset option |
| Automatic Power Off | Auto shutdown after 10 minutes of inactivity; standby mode available |
| Wavelength Memory | Remembers last wavelength setting after power off |
| Frequency Detection Mode | Real-time fiber transmission frequency detection (Hz) |
| Backlight Modes | Smart auto backlight and manual off mode |
| Operating Temperature Range | Not explicitly stated in attachment |
| Housing | Rubber-coated for shock resistance and enhanced grip |
| Dimensions | Compact and portable (exact dimensions not specified in attachment) |
| Weight | Not specified |
| Reference Value Setting | Allows setting current measurement as reference for relative power measurement |
| Interface for Operation | Multiple keys: Power, Unit, Light, Wavelength, Reference, LED |
| LED Frequency Identification | Long press LED key to toggle frequency detection mode |
| RJ45 Test Mode Activation | Long press Unit key for 3 seconds to enter/exit RJ45 cable test mode |
| Power Management | Advanced power management technology for energy saving |
Hot

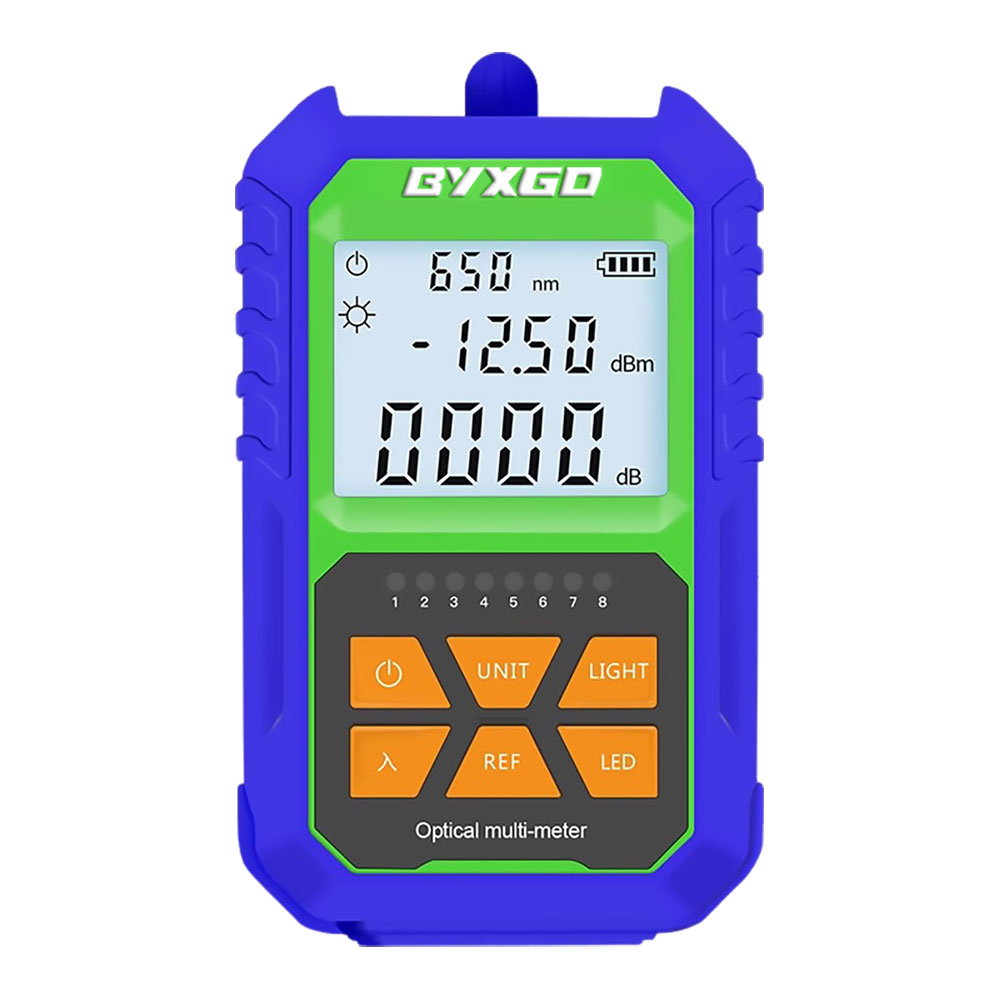

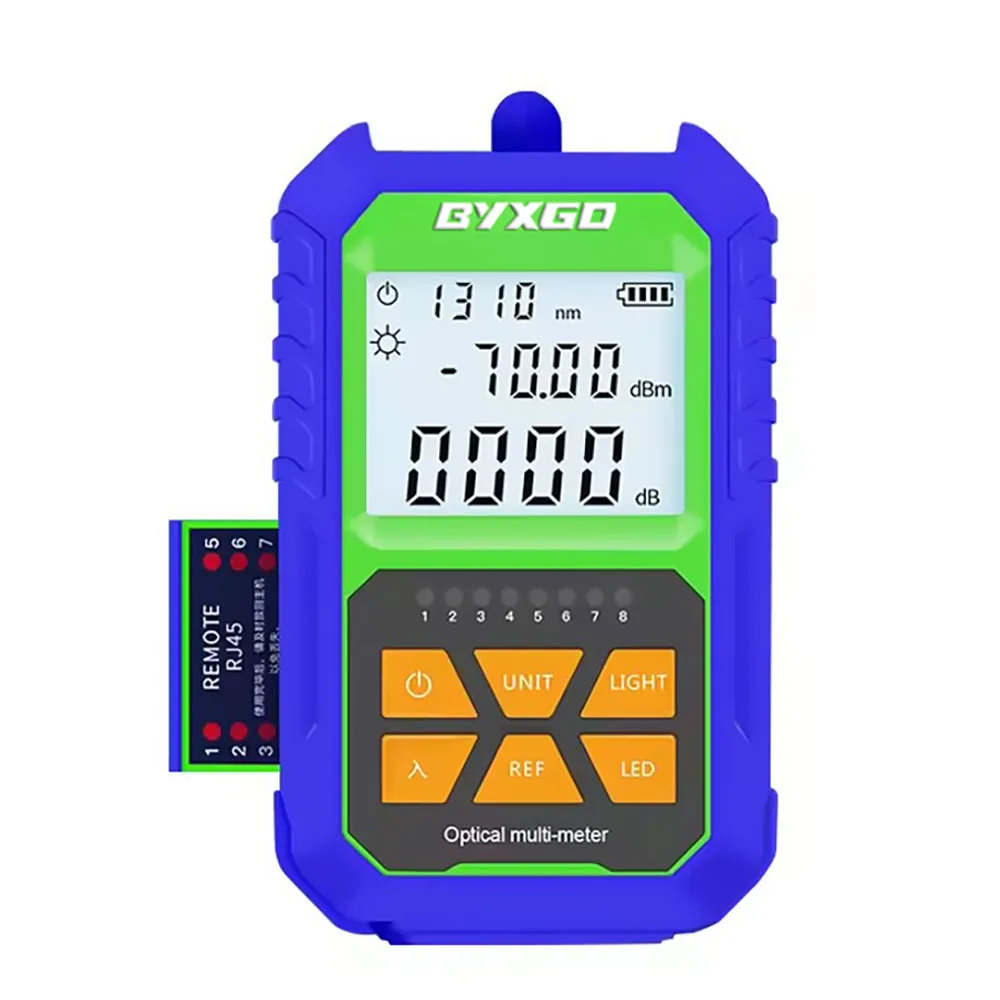

G5 3-in-1 Fiber Optic Light Meter: Power Meter, LED lighting, Fiber to RJ45 Cable Tester with 9 Wavelengths
- 3-in-1 Multi-Function Combination that combines optical power meter, LED lighting, and RJ45 cable tester into one compact tool.
- Supports 9 wavelengths: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, and 1625 nm.
- Power measurement ranges: -70 to +6 dBm, -70 to +10 dBm, and -50 to +26 dBm.
- Built-in bright LED flashlight to illuminate when working in a low-light area.
- Dual power supply options: rechargeable lithium battery or replaceable dry batteries with USB charging.
- Simple and easy to read and operate user interface with tactile buttons, sound, and backlit display.
- Records last 20 tests in memory with optional recall and review ability.
- DIY self-calibration that can tweak measurement parameters for improvement.

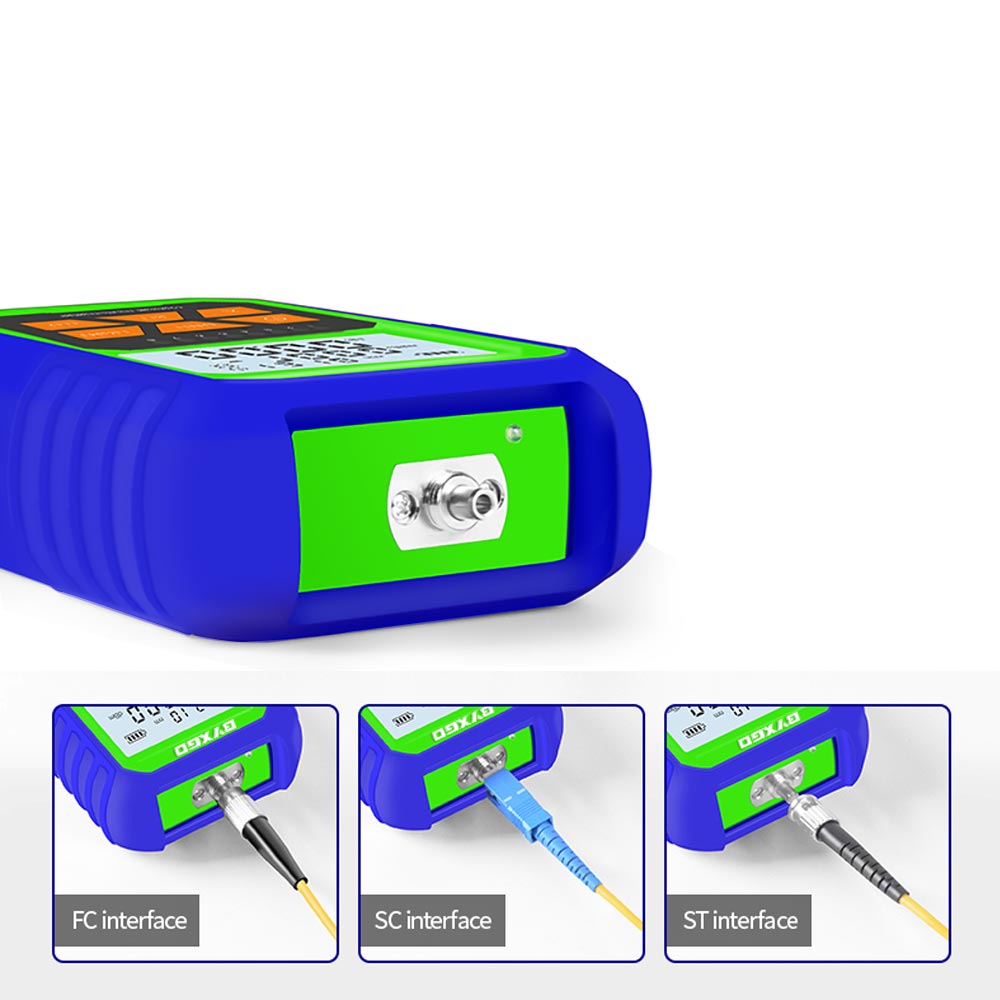

- Compatible with FC, SC, and ST fiber connectors.
- Smart power management that features automatic shut-off and selectable backlight options prior to shutdown.
- Rugged exterior rubber coating and gripping replaces for field use.

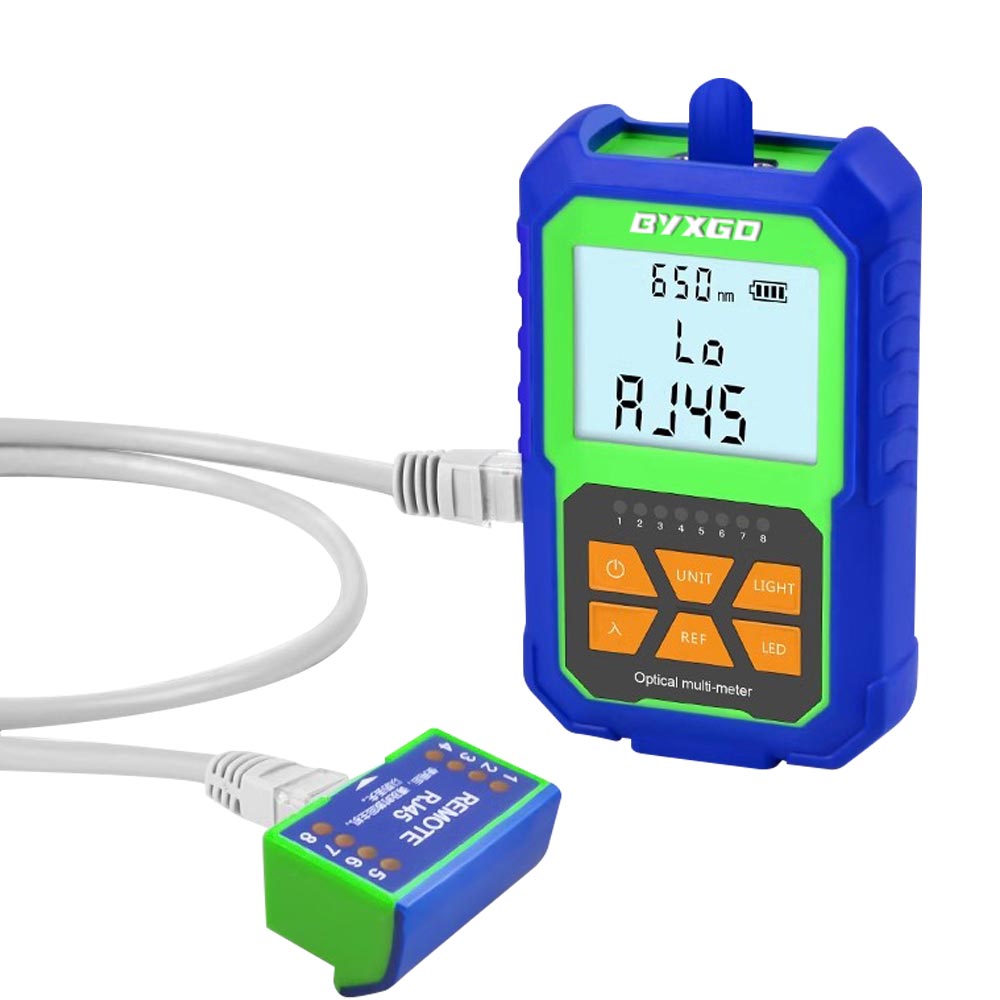

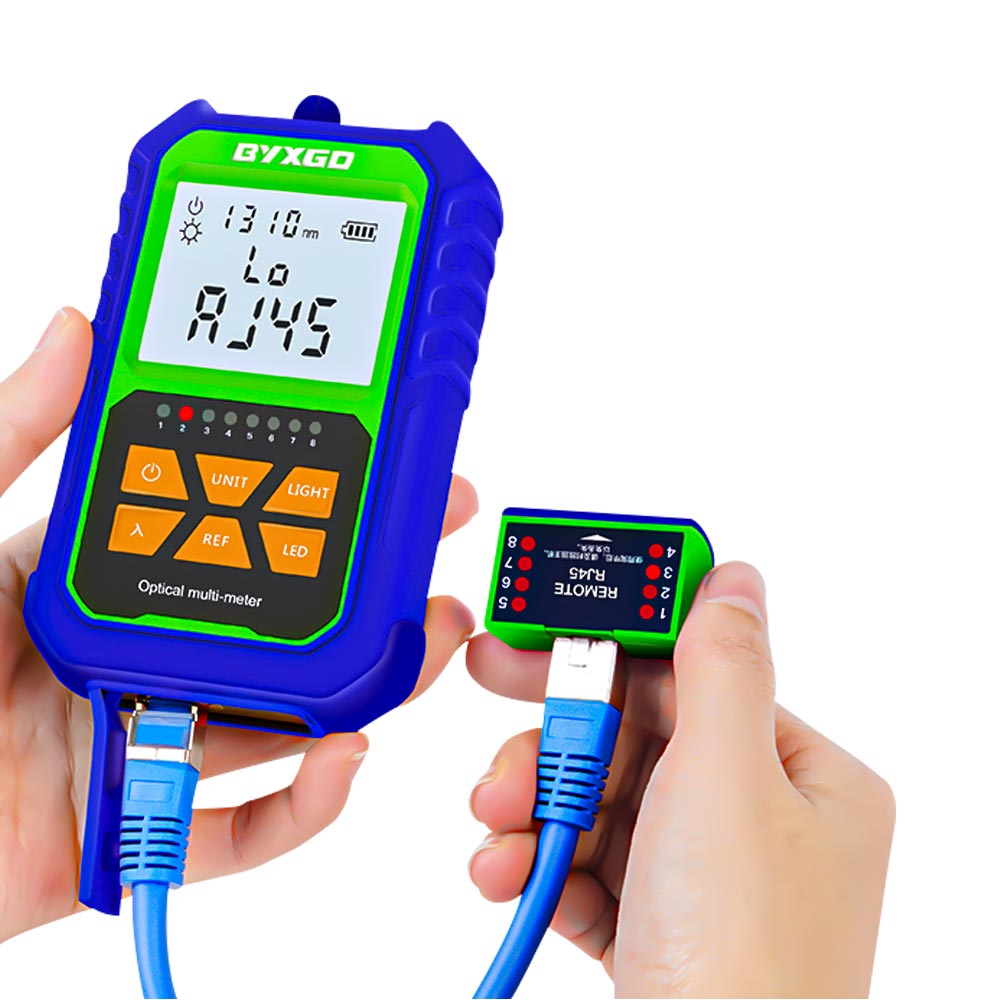

- RJ45 Cable Tester tests for continuity, open circuit, and miswiring of Ethernet cables.
- Great for FTTH, CATV, and telecom field use.
