| Product Name | G11 Mini Fiber Optical Power Meter |
| Wavelength Range | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 nm |
| Measurement Ranges | -70 to +6 dBm / -70 to +10 dBm / -50 to +26 dBm |
| Measurement Accuracy | ±5% |
| Detector Type | InGaAs |
| Connector Types | FC, SC, ST (interchangeable) |
| Display | Backlit LCD |
| Display Resolution | Linear: 0.1%, Logarithmic: 0.01 dBm |
| Calibration Mode | User calibration supported |
| Power Supply | Rechargeable lithium battery, 350-400 mAh |
| Charging Voltage | 5 V USB |
| Charging Time | ≤ 3 hours |
| Operating Current | ≤ 25 mA |
| Quiescent Current | ≤ 18 µA |
| Dimensions | 172 × 40 × 28 mm |
| Weight | Approx. 85 g |
| Frequency Identification | 0, 270, 1000, 2000 Hz |
| Wavelength Memory | Automatic recall of last wavelength |
| Auxiliary Lighting | LED flashlight |
| Material | ABS plastic with soft silicone protective shell |
| Operating Temperature | 10°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Auto Backlight | Yes, auto off after 60 seconds inactivity |
| Factory Reset | Supported via key combination |
| Power Resolution | 0.001 dB |
| Shock Resistance | Silicone shell for impact protection |

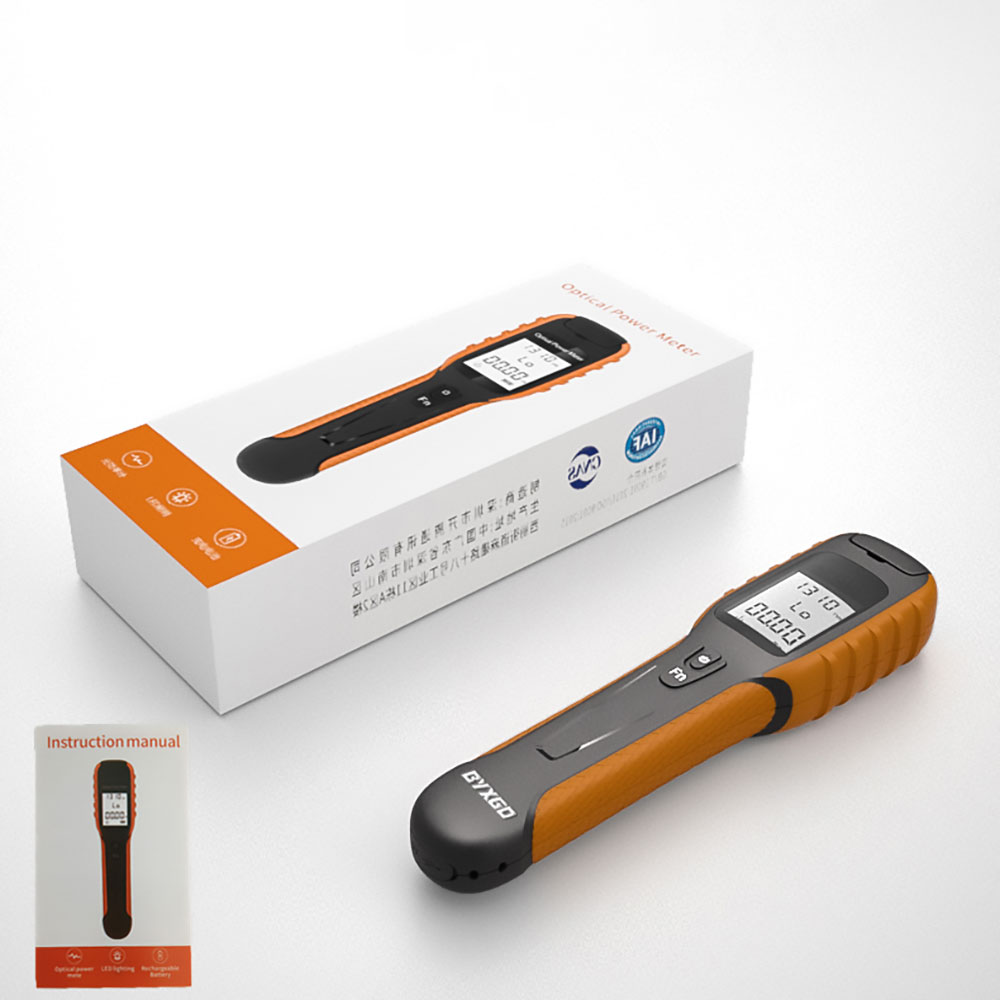

| Packaging Contents | G11 main unit, data cable, lanyard, manual, warranty card |
Hot

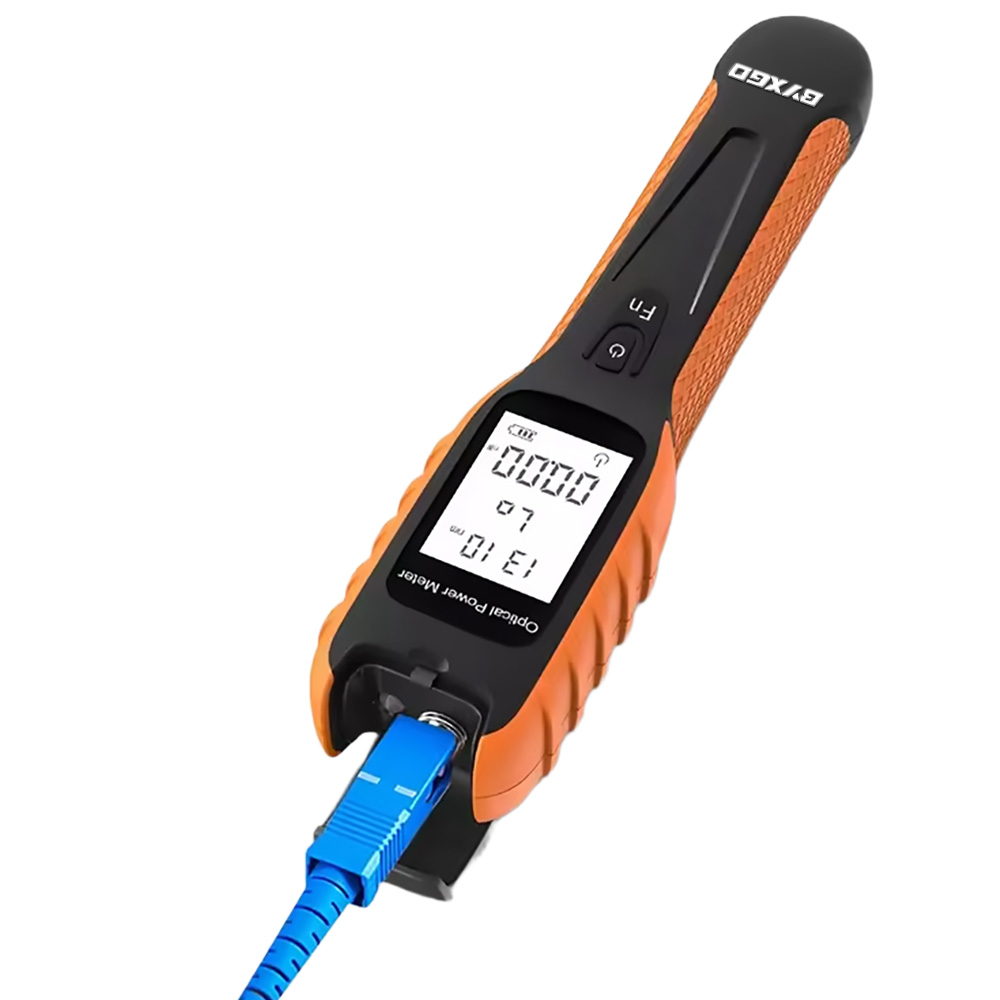

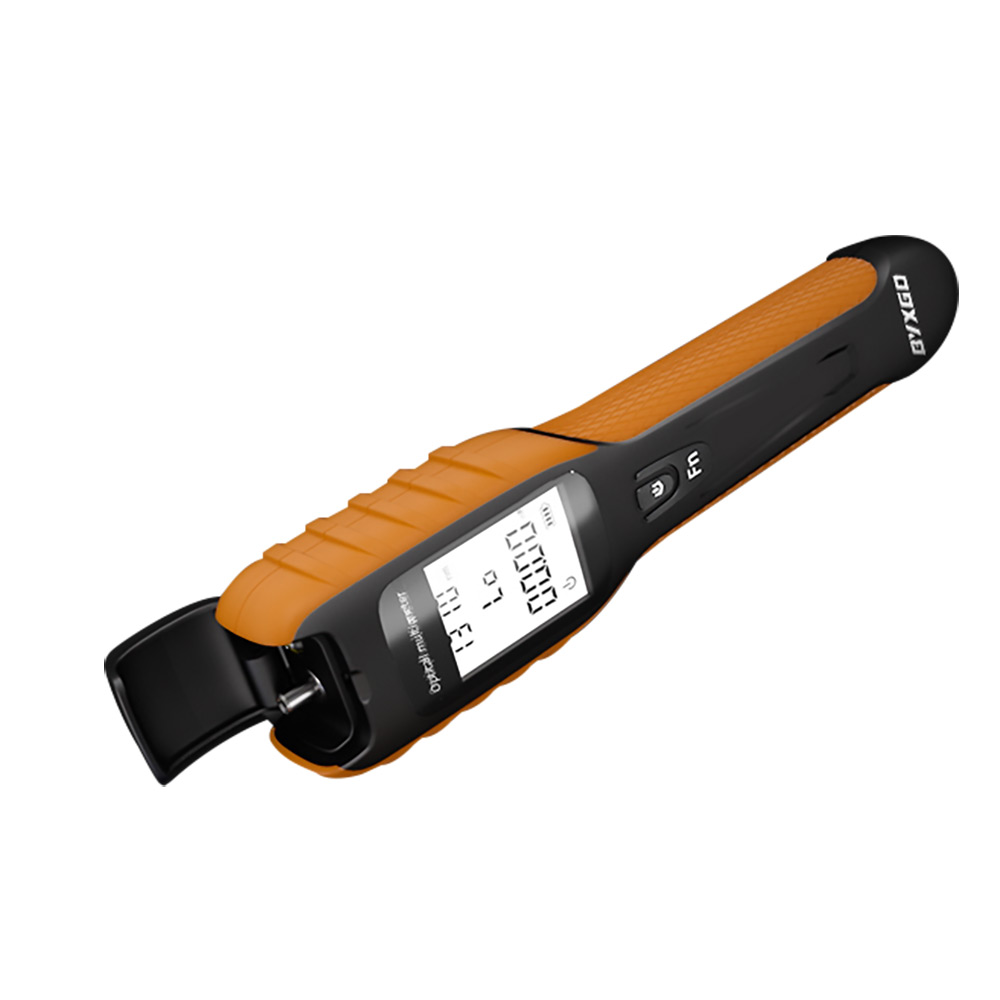

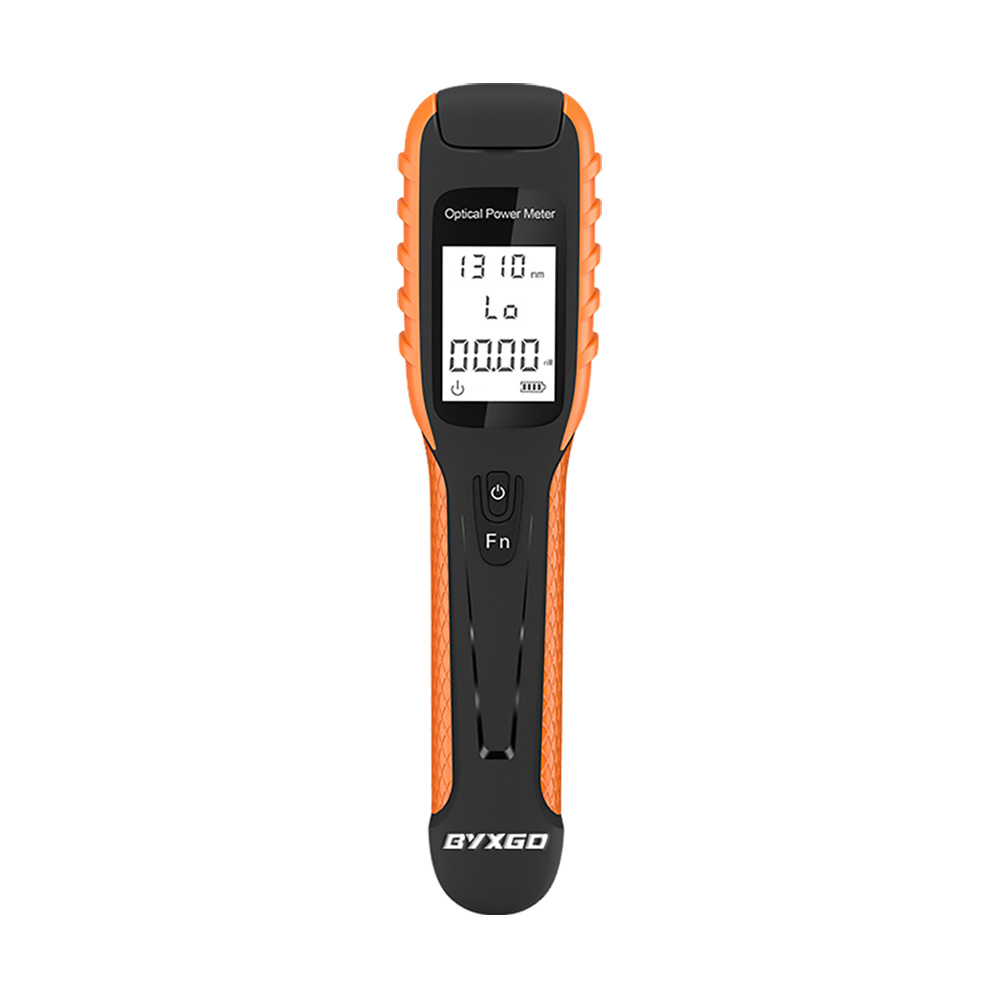

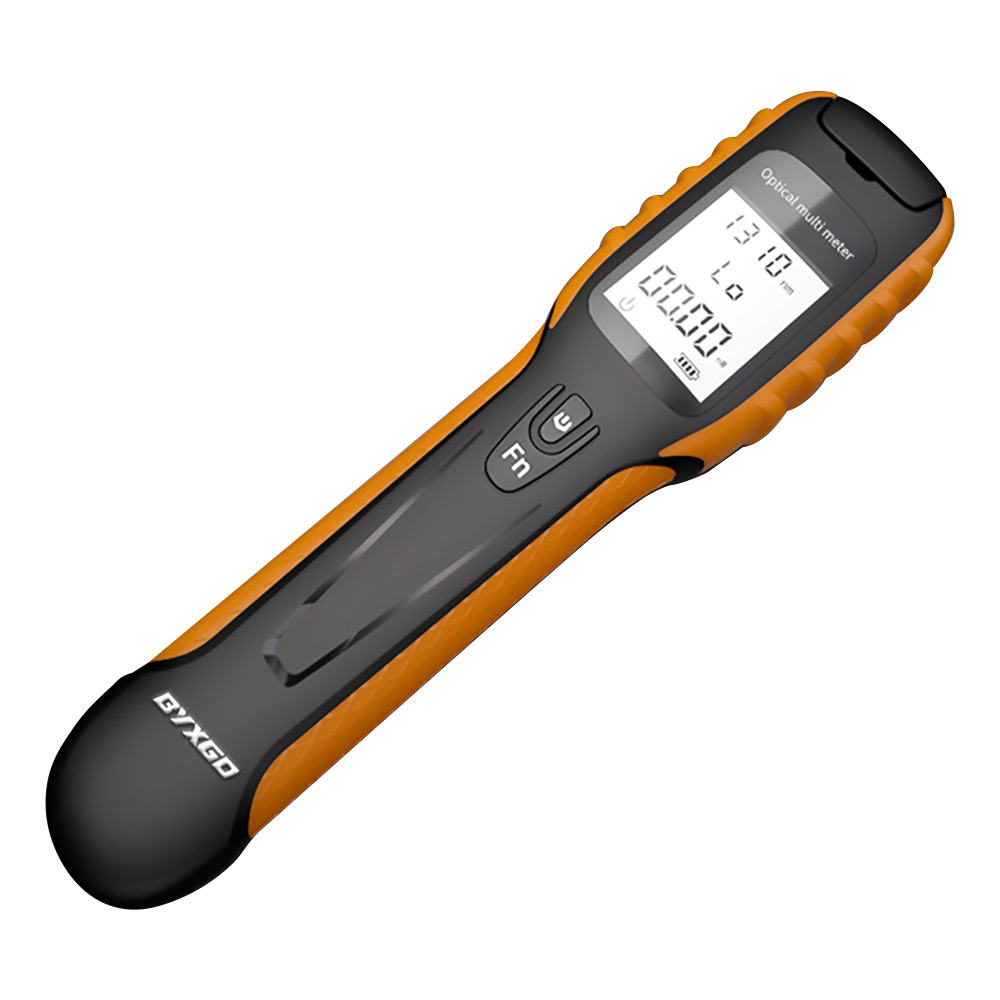

G11 Mini Fiber Optical Power Meter -70 to +10dBm with FC/SC/ST Connector for 5G Testing, Rechargeable
- Wide Wavelength Support: 9 wavelengths supported including new 5G-specified wavelengths (850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 nm). With easy switching by one key.
- High Measurement Accuracy: Proprietary algorithm chip reduces error to as low as ±0.02 dB. Measurements can be done very quickly and accurately.
- Broad Measurement Range: Measures optical power from -70 to +6 dBm / -70 to +10 dBm / -50 to +26 dBm. Versatile enough for all fiber optic measuring needs.
- Universal Connector Compatibility: Compatible with FC, SC, and ST connectors. Supports all types of fiber connection.
- Rechargeable & Portable: Comes with a 350mAh lithium battery. Just plug into power bank, computer, or car charger via USB to charge.
- User Calibration Mode: User can calibrate with checkpoints set using a simple key combination for more accurate measuring.
- Bright Backlit Display: Bright high-definition backlight display provides perfect visibility of data no matter what the lighting is.
- Durable Design: Constructed from high strength ABS plastic and soft silicone for shock protection and a comfortable grip.
- Additional Functionalities: Auxiliary LED lighting, wavelength memory, frequency identification, and automatic wavelength recall.
- Low Power Consumption: Static Current ≤18µA, Working Current ≤25mA – battery consumption is as low as possible.
