| Model | G10 |
| Product Type | High Precision Fiber Optic Cutter / Cleaver |
| Cleaving Method | One-Step Manual Operation |
| Supported Fiber Types | Single-Core Optical Fiber |
| Applicable Fiber Diameter | Coating: 0.25 mm, 0.9 mm, 3.0 mm; Bare: 125 μm |
| Cleaved Fiber Length (0.25 mm) | 5–16 mm |
| Cleaved Fiber Length (0.9 mm) | 10–16 mm |
| Dimension | 90 mm (W) x 65 mm (D) x 55 mm (H) |
| Weight | 200 g |
| Cleaving Angle | ≤0.5° |
| Blade Service Life | 50,000 times |
| Body Material | Aviation-grade aluminum alloy, CNC machined |
| Scrap Collector | Built-in fiber scrap box |
| Clamp Slot | 3-in-1 (0.25 mm, 0.9 mm, 3.0 mm) |
| Slide Rail | High quality SUS304 stainless steel |
| Gasket | Imported rubber gasket |
| Cutting Angle Stabilization | Yes |
| Precision Cutting | Yes |
| Automatic Blade Height Adjustment | Yes |
| One-Step Press Cutting | Yes |
| Structural Precision | Yes |
| Wear and Drop Resistance | Yes |
| Long and Stable Life | Yes |

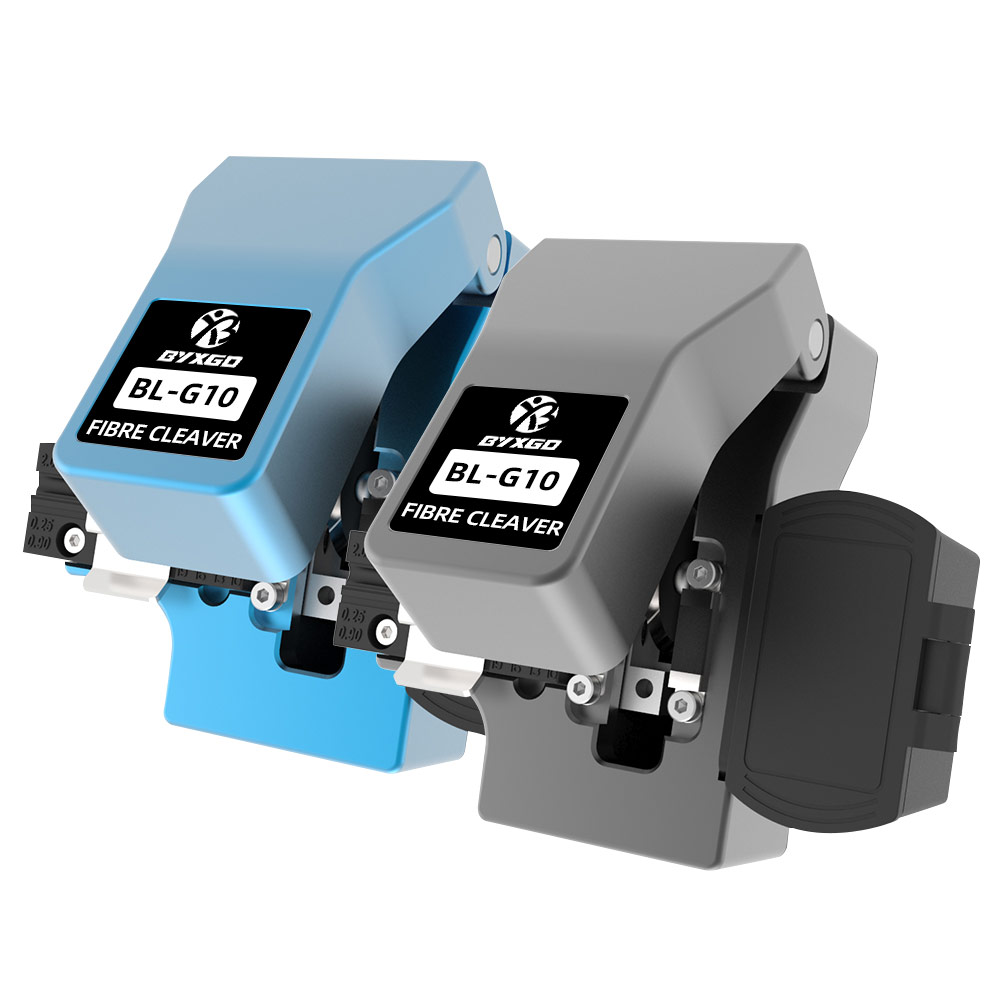

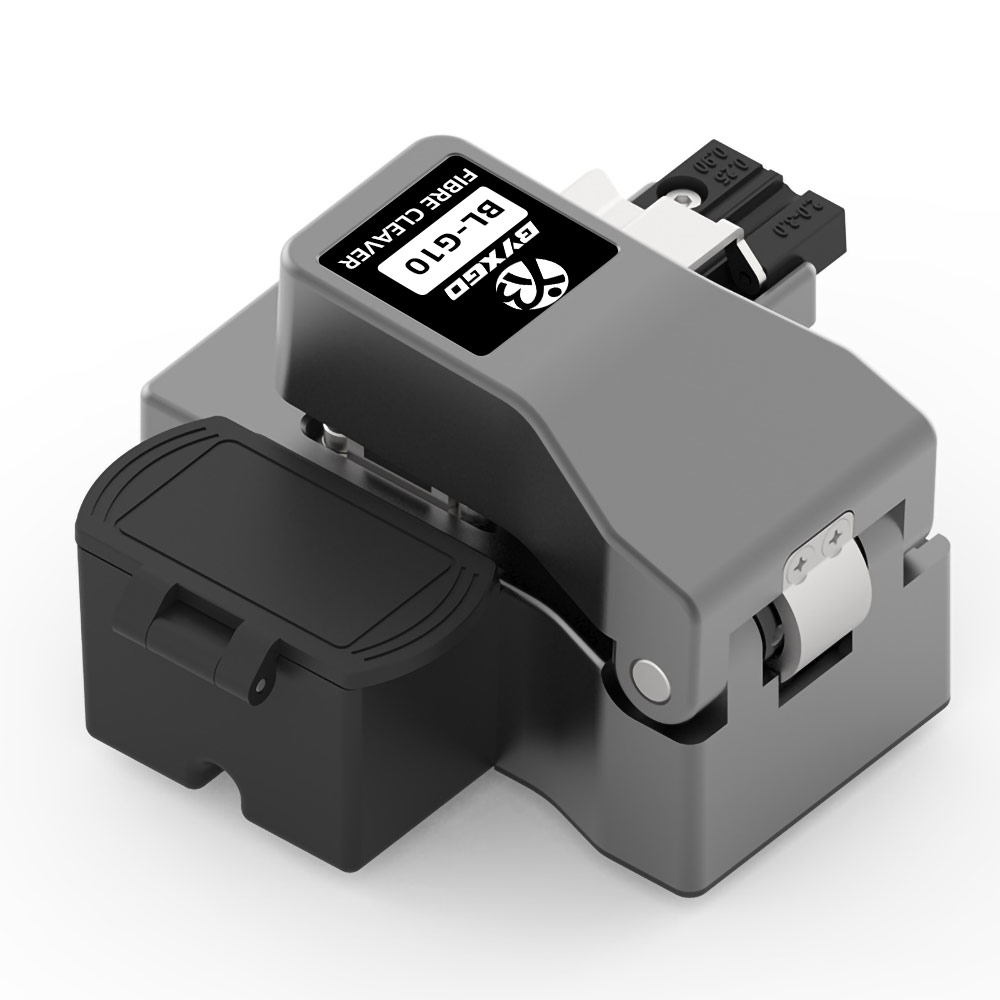

G10 High Precision Fiber Optic Cutter Tool for One-Step Fusion Splicing of Single and Ribbon Fiber
- One-step operation for quick, easy fiber cleaving.
- 3-in-1 clamp slot which can work with 0.25mm, 0.9mm, and 3.0mm single-core optical fibers.
- High precision tungsten steel blade delivers a smooth and stable cut.
- Cleaving angle stabilization ensures cleave angle ≤0.5°.
- Automatically adjusts blade height for long-term cutting precision.
- Made of aviation-grade aluminum alloy, CNC machined to ensure structural precision, durable and wear-resistant.
- Trash container box for waste fiber.
- High Quality SUS304 slide rails and imported rubber gasket allow smooth and precise operation.
- Lightweight and compact (200g, 90x65x55mm) for field and lab use.
- Blade lasts up to 50,000 cleaves before needing to be replaced.
