| Product Name | G10 Fiber Optic Light Meter |
| Model | G10 |
| Product Size | 125 × 34 × 17 mm |
| Product Weight | 52 g |
| Material | ABS plastic, smooth hand feel |
| Standard Wavelengths | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 nm |
| Measurement Range | -70 to +6 dBm / -70 to +10 dBm / -50 to +26 dBm |
| Detector Type | InGaAs photodiode |
| Display Resolution | Linear: 0.1% ; Logarithmic: 0.01 dBm |
| Measurement Uncertainty | ±5% |
| Frequency Identification | 0 Hz, 270 Hz, 1000 Hz, 2000 Hz |
| Battery Type | Built-in polymer lithium battery |
| Battery Capacity | 400 mAh |
| Battery Life | ≥ 20 hours continuous use |
| Charging Method | USB direct charge |
| Charging Voltage/Current | 5 V / ≤ 500 mA |
| Charging Time | ≤ 3 hours |
| Auto Power Off Time | 10 minutes |
| Interface Type | Universal 2.5 mm interface |
| Compatible Connectors | SC, FC, ST |
| Data Storage Capacity | Up to 40 measurement records |
| Data Storage Functions | Store, recall, clear data |
| Calibration Mode | Manual user calibration available |
| Protective Cover | Innovative pop-up protective cover for optical port |
| LED Illumination | Built-in LED flashlight for dark environment use |
| Display Modes | Supports linear and logarithmic display modes |
| Unit Switching | Switchable between nW, dBm, and dB |
| Wavelength Memory | Automatically saves last used wavelength on power off |
| Operation Buttons | Power, unit switch, wavelength switch, data storage, calibration, LED control |
| Packaging Size | 148 × 56 × 35 mm |
G10 Fiber Optic Light Meter with 9 Wavelengths for FTTH, FTTX and 5G Networks
Compact & Lightweight: Measuring 125×34×17mm and weighing only 52g, it can be easily held or transported.
Multi-Wavelength Function: 9 different wavelengths (850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 nm) to meet needs for different fiber optic applications.
High Accuracy: ± 5% uncertainty with InGaAs detector, high resolution (0.01 dBm logarithmic).

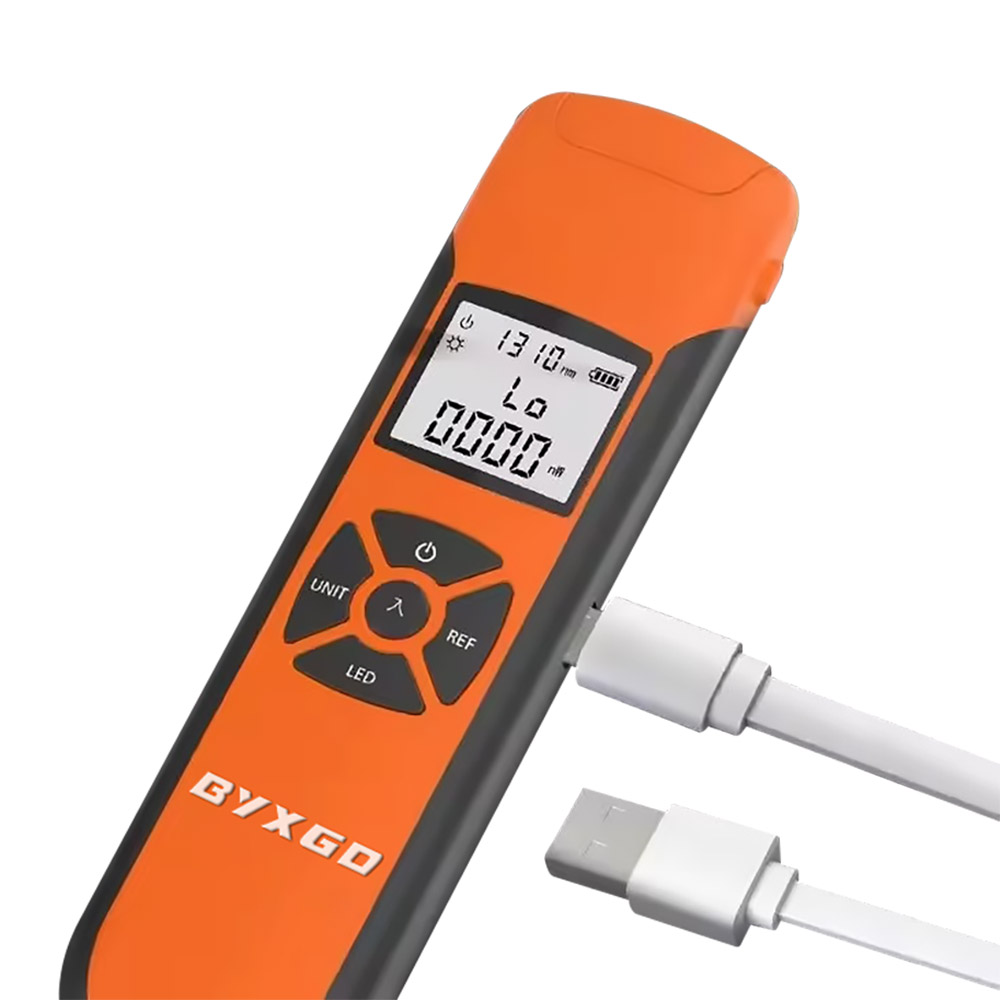

Long Lasting Battery: 400mAh built-in polymer lithium battery can last more than 20 hours continuously. The battery can be USB rechargeable within 3 hours.

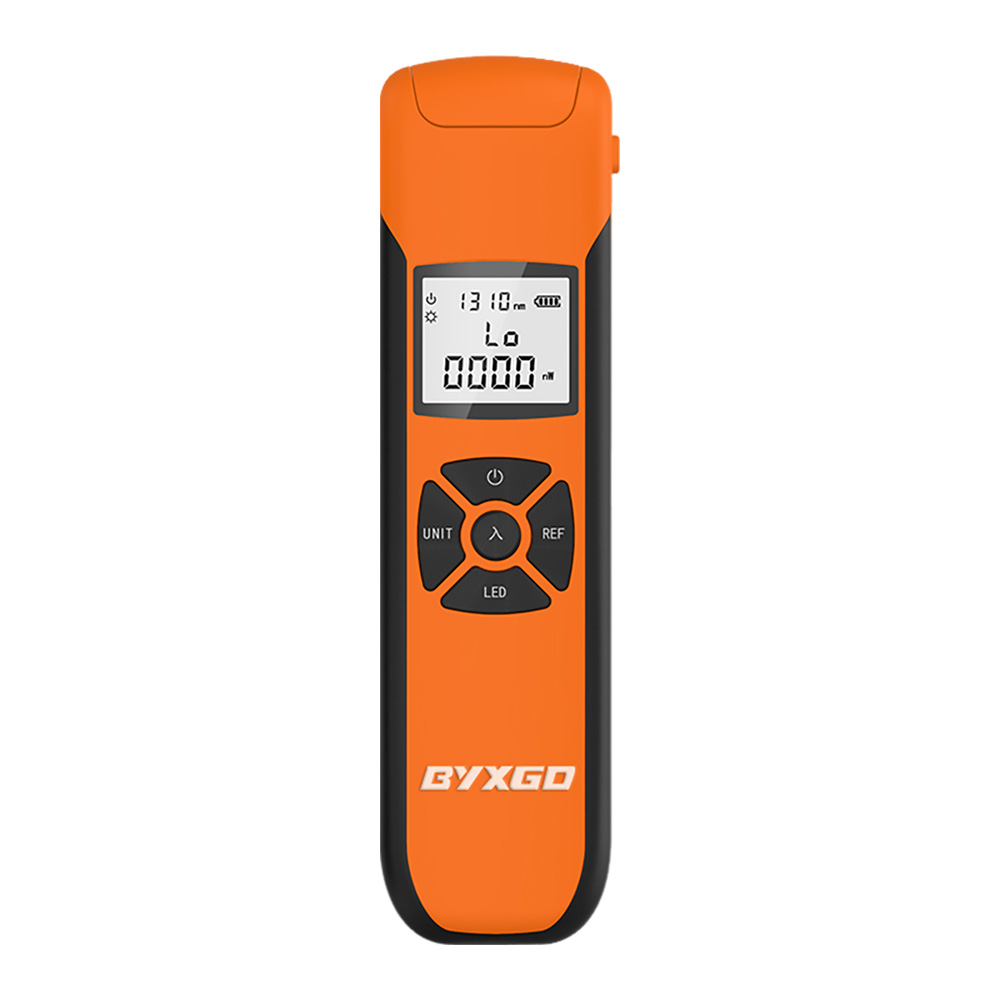

Easy to Read: Digital display is large and easy to read while using linear (0.1%) or logarithmic modes. The unit can be switched through (nW, dBm, dB) as well and has auto wavelength modes.

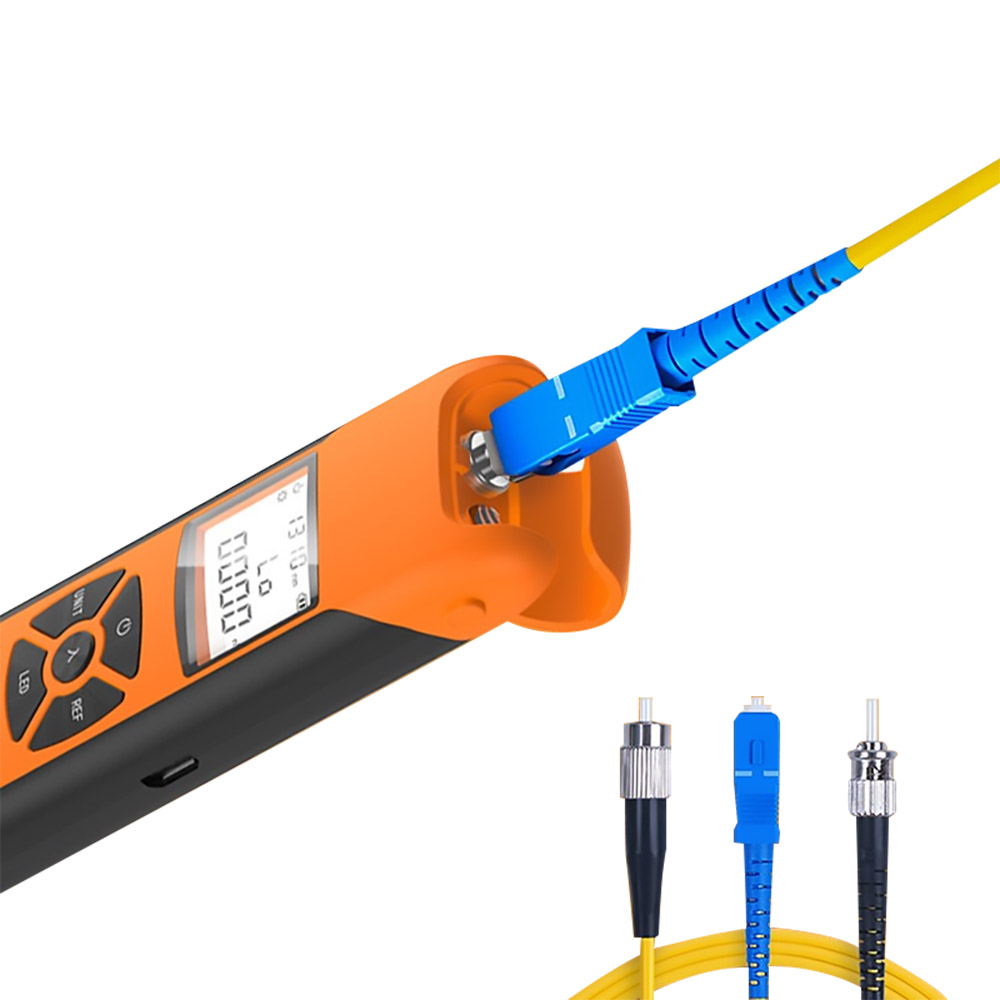

Universal Connector: The connector is a 2.5mm interface in order for SC, FC, and ST to plug and play immediately.
LED Light: An integrated LED flashlight, for when one has to work in the dark or low light situations.
Data Storage: 40 records saved in memory, can recall or delete data.
Manual Calibration: Self-calibration allows the user to obtain accurate measurements.
Protection: A new pop-up type of protective cover, for the optical port in order to prevent any damage and provide convenience.
Auto Power Off: Powers off automatically after 10 minutes.
