| Model | G1 Optical Power Meter |
| Power Measurement Range | -70 to +6 dBm / -70 to +10 dBm / -50 to +26 dBm |
| Wavelength Range | 800 ~ 1700 nm |
| Calibrated Wavelengths | 850, 980,1270, 1300, 1310, 1490, 1550, 1577, 1625 nm |
| Connector Types | FC, SC, ST (Interchangeable) |
| Detector Type | InGaAs |
| Display Type | LCD |
| Measurement Units | dBm, mW, μW |
| Accuracy | ±0.2 dB |
| Resolution | 0.01 dB |
| Power Supply | 2 x AA Batteries |
| Battery Life | Up to 20 hours |
| Auto Power Off | Yes |
| Reference Value Setting | Yes |
| Data Hold Function | Yes |
| Backlight | Yes |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | <90% |
| Weight | 160g |
| Dimensions | 113 x 60 x 33 mm |
| Application | FTTH, CATV, Fiber Network Maintenance |
| Adapter Compatibility | Universal 2.5mm (FC/SC/ST) |
| Warranty | 1 Year |
| Certifications | CE, RoHS |
| Housing Material | ABS Plastic |
| Low Battery Indicator | Yes |
| Zero Setting Function | Yes |
| Storage Function | No |
-33%
G1 Optical Power Meter -70~+10dBm 800-1700nm | FC SC ST Fiber Connector | FTTH CATV Adapter
Wide Measurement Range: Accurately measures optical power from -70 to +6 dBm / -70 to +10 dBm / -50 to +26 dBm, so that the OPM can be used in applications where the optical power level differs widely.
Broad Wavelength Range: Wavelength range of 800-1700 nm to be used across almost any fiber optic network.

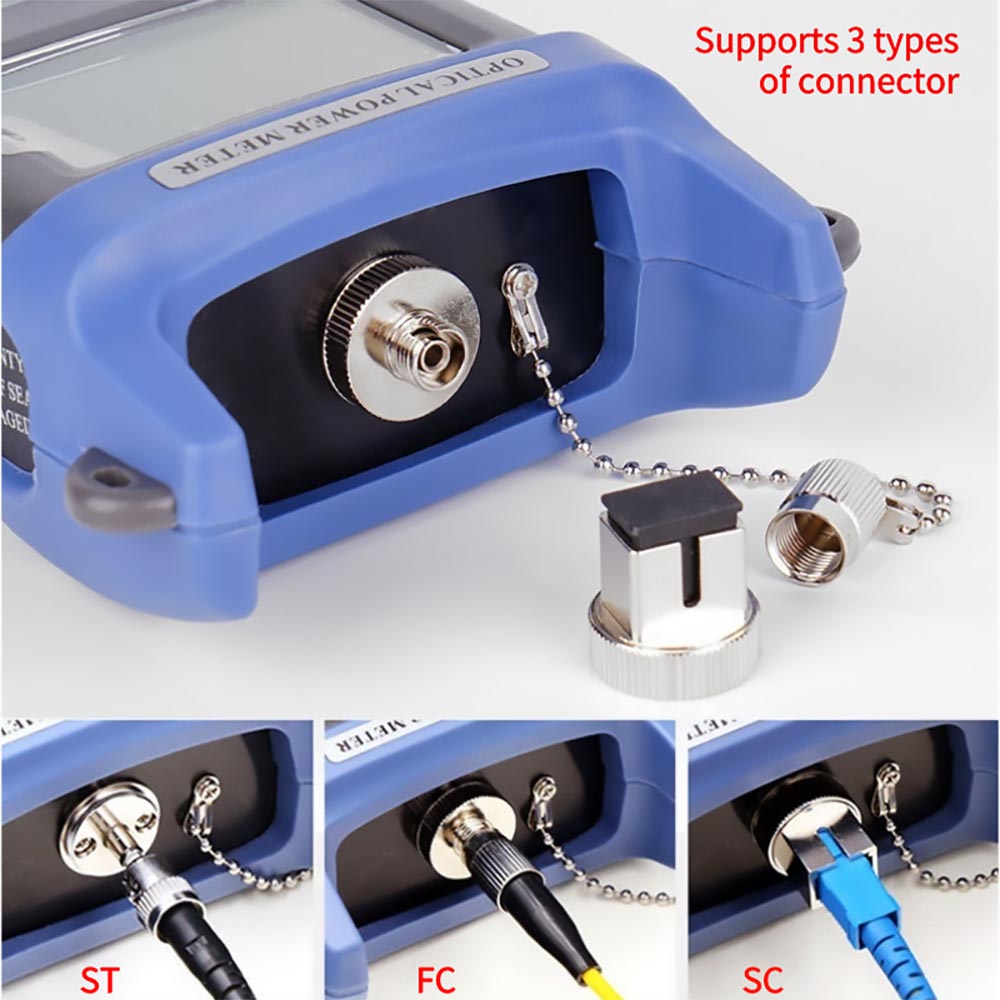

Universal Connectors: Compatible with FC, SC, and ST fiber connectors, so that you can use the OPM with other fiber optic systems.
PON Compatible: Can test FTTH and CATV networks in PON (Passive Optical Network) environments.
High Accuracy: Delivers true, reliable, and precise readings for single-mode and multi-mode fibers.
User-Friendly Display: LCD display with backlight for easy reading in any environment.
Portable Design: Lightweight and compact design for field work and on-site maintenance.
Long Battery Life: Can be used for a long time before the need for recharge, as it is designed for fiber optic test applications.
Auto Power Off: Built-in energy saver will extend the battery’s life expectancy for the OPM.
Durable Construction: Built for use in a variety of situations, ensuring longevity.
