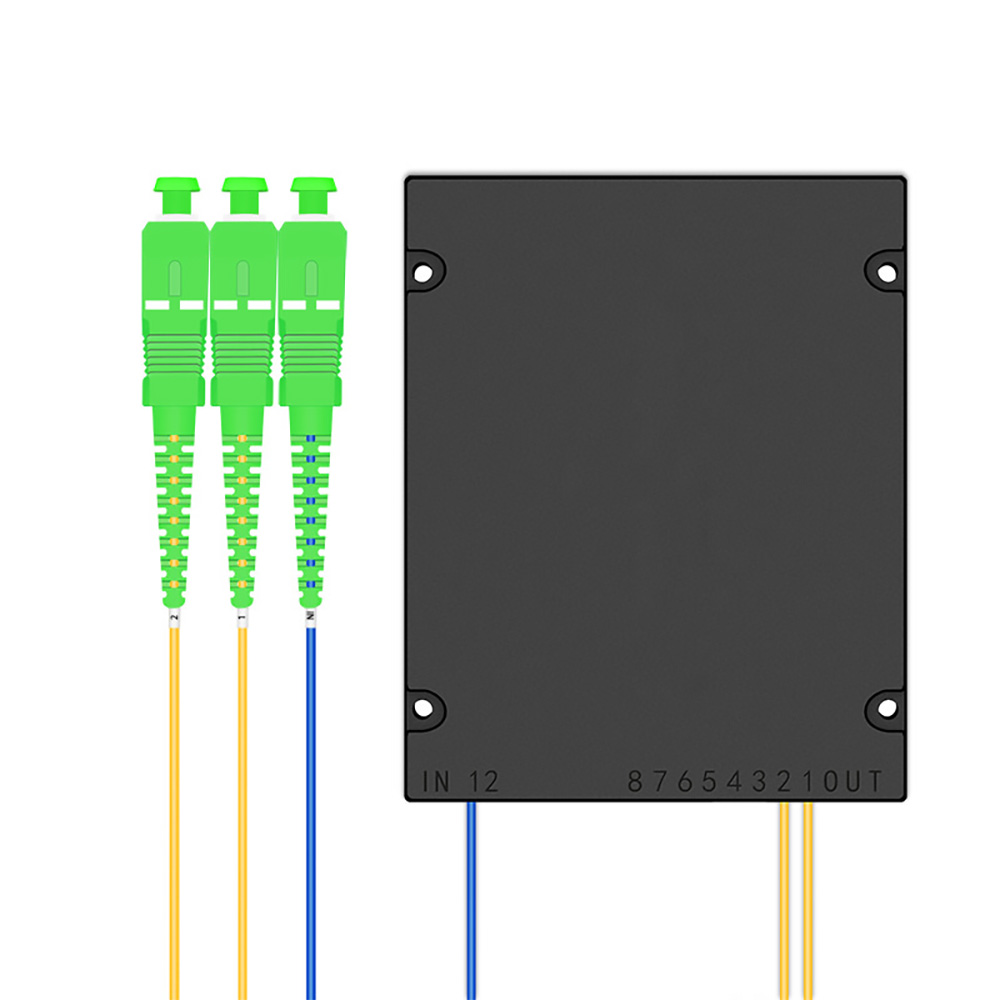

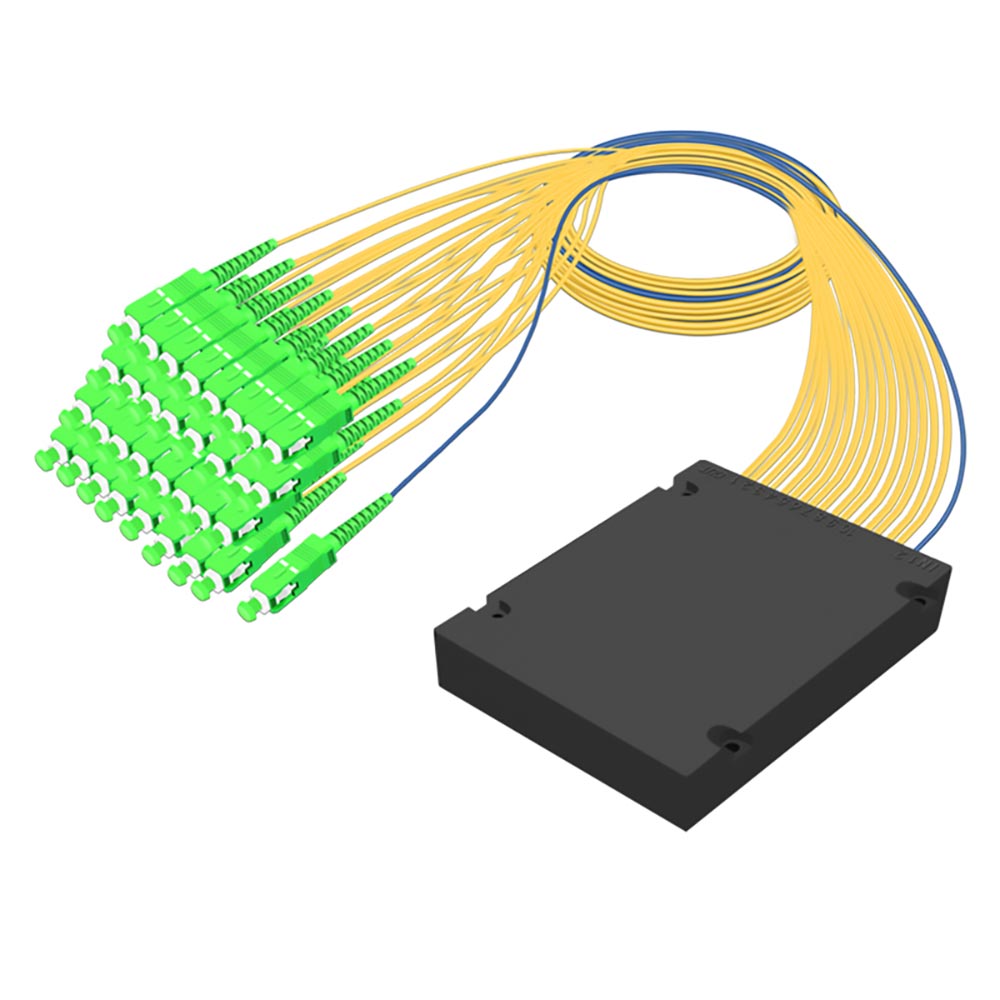

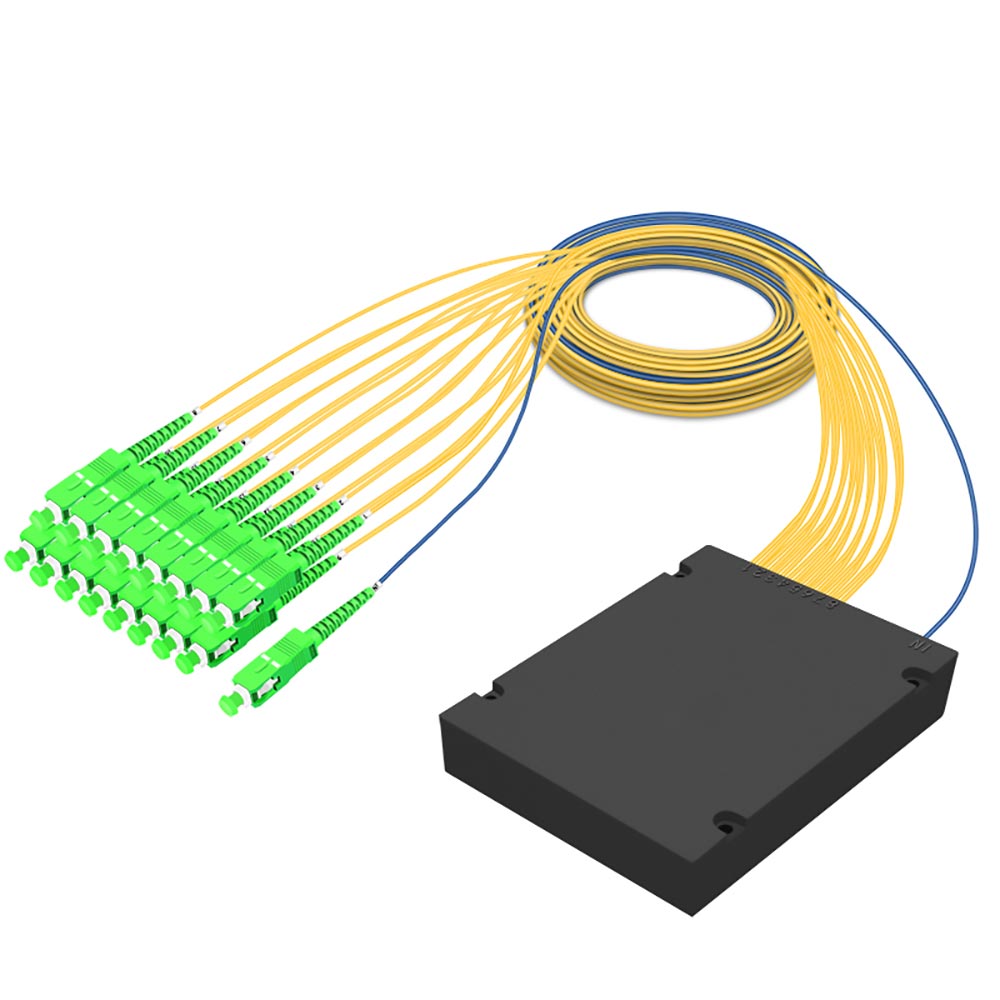

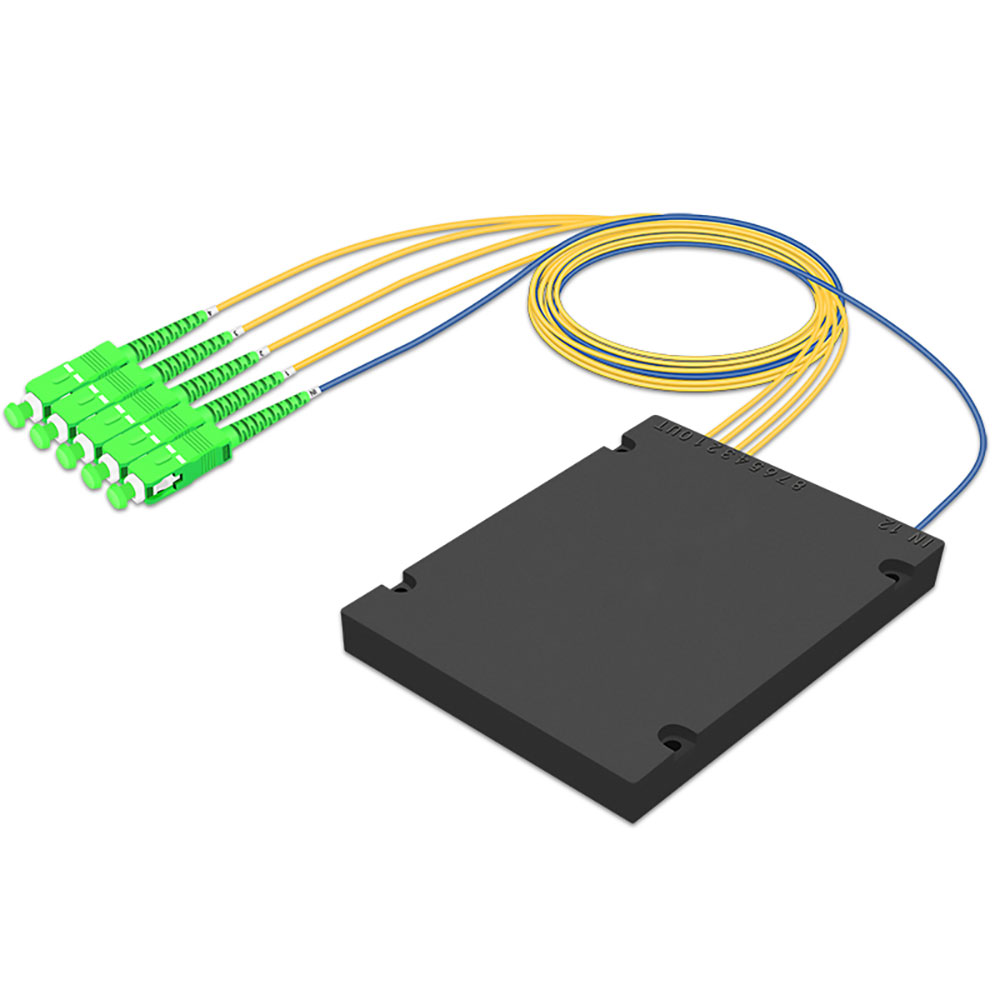

FTTH SC/APC PLC Splitter ABS Box – 1xN, 2xN Fiber PLC Options

Robust ABS Housing: A strong ABS plastic casing to ensure strong protection of optical components and cables and reliability in various environments.
Multiple Split Configurations: Offered in a 1×N or 2×N split in configurations from 1×2 to 1×64 to meet router needs.
High Optical Performance: The low insertion loss of ≤17 dB, low polarization dependent loss (PDL) of ≤0.3 dB, high return loss of ≥50 dB for effective optical signal send and split.
Excellent Signal Distribution: Channel-to-channel signal loss uniformity of ≤1.6 dB to balance optical power send to each output port.
Wide Operating Wavelength: The operating wavelength range of 1260 nm to 1650 nm to accommodate different types of optical communication systems FTTH, GPON, and PON.
Overall Stability: State-of-the-art/high environmental tolerance allows an operating temperature range typically from -40°C to 85°C to meet Telcordia GR-1209 and GR-1221 specifications for long term reliability.
Easy Installation: Labor-saving design with input/output ports clearly marked and limited dimension designs to accommodate flexible installation in a fiber distribution box, cabinets, or rack units.
Standard SC/APC Connector: Factory assembled using singlemode G.657A1 fibers with connectors SC/APC, with low back reflection and highly effective optical cleaning for use with existing fiber-based network infrastructure.
Versatile Application: Ideal for FTTH, FTTX, PON, or another passive optical network application for optical management.

Description

FTTH SC/APC PLC Splitter ABS Box Parameter	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength (nm)	1260–1650 (C+L band)
Fiber Type	Singlemode G.657A (or customized)
Insertion Loss (dB)	3.8–4.0	6.8–7.2	10.0–10.5	13.3–13.8	16.5–17.0	20.0–21.0	24.0–25.0
Loss Uniformity (dB)	≤0.4	≤0.5	≤0.8	≤1.0	≤1.3	≤2.0	≤2.5
Return Loss (dB)	≥55	≥55	≥55	≥55	≥55	≥50	≥50
Polarization Dependent Loss (PDL) (dB)	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.35	≤0.35
Directivity (dB)	≥55
Wavelength Dependent Loss (dB)	≤0.3	≤0.3	≤0.3	≤0.5	≤0.5	≤0.5	≤0.5
Temperature Dependent Loss (dB)	≤0.4	≤0.4	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85
ABS Box Dimensions (mm)	100×80×10	120×80×18	140×115×18	150×130×25	180×140×30	200×160×35	220×180×40
Input Fiber Diameter	0.9 mm / 2.0 mm / 3.0 mm (customizable)
Output Fiber Diameter	0.9 mm / 2.0 mm / 3.0 mm (customizable)
Pigtail Length	Standard 1.0 to 1.5 meters
Connector Type	SC/APC (standard), other connectors optional (FC/APC, LC/APC)
Housing Material	High-quality ABS plastic for impact resistance and environmental protection
Applications	FTTH, FTTX, PON, GPON, EPON, CATV, LAN/WAN networks

Port Configuration	Input Fiber Type	Input Fiber Length	Output Fiber Type	Output Fiber Length	Input Connector	Output Connector
1×2	250 μm	0.5 m	Same as input fiber type options	Same as input fiber length options	None	None
1×4	2.0 mm	1.0 m			FC/UPC	FC/UPC
1×8	3.0mm	1.5 m			FC/APC	FC/APC
1×16	0.9mm Transparent	2.0 m			SC/UPC	SC/UPC
1×32	0.9mm Transparent				SC/APC	SC/APC
1×64	0.9mm white				LC/UPC	LC/UPC
1×128	0.9mm white
2×2	0.9mm white				LC/APC	LC/APC
