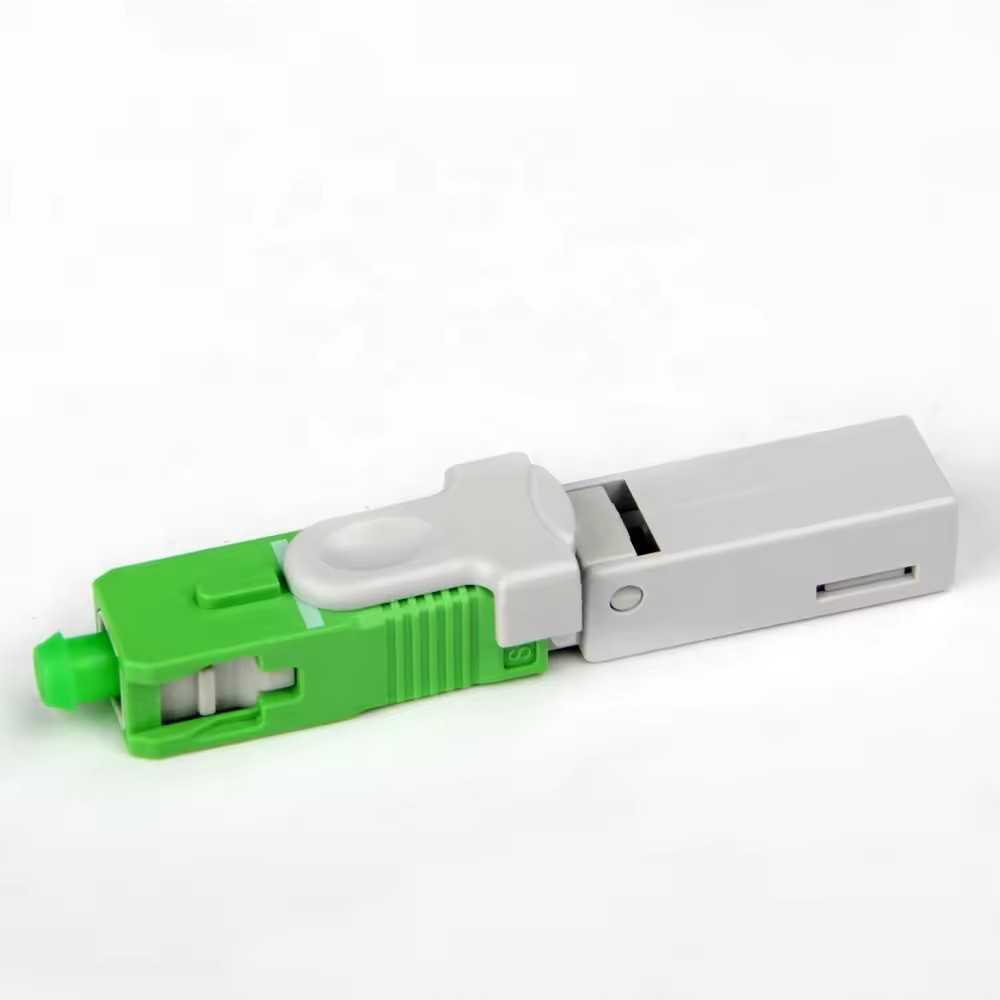

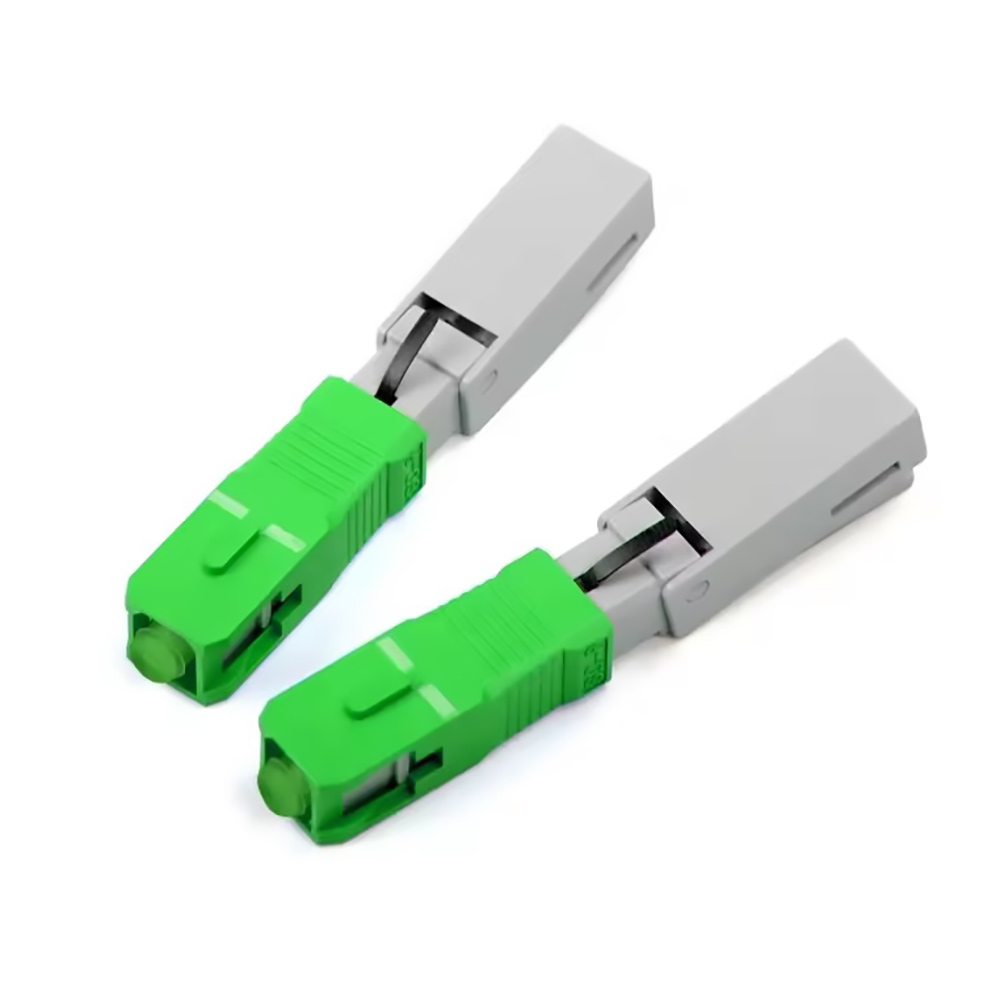

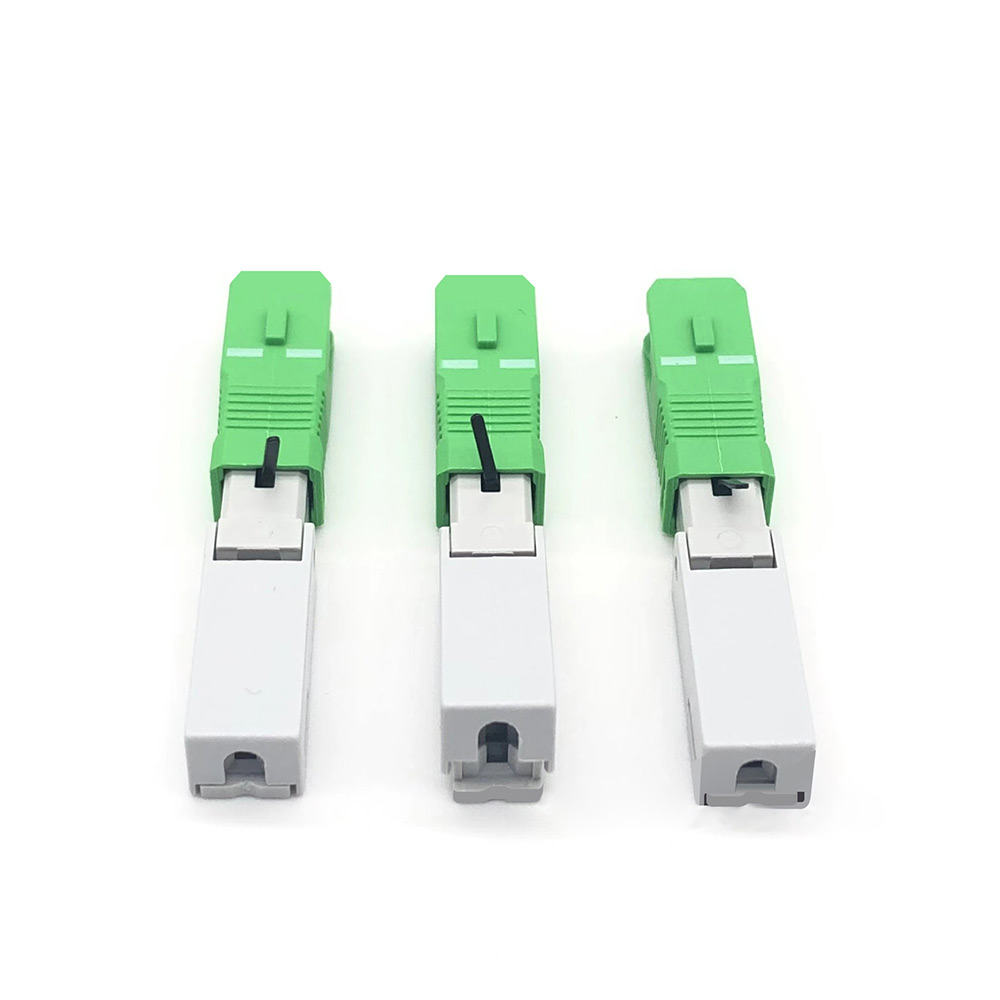

FTTH SC/APC Fiber Optic Fast Connector, 10 Pcs/Blister Box, OEM Available

Quick Field Assembly: Facilitates quick on-site termination without requiring polishing or epoxy and installation time of under 2 minutes.
Pre-Polished Ceramic Ferrule: Guarantees precise fiber alignment and offers low insertion loss (≤0.3 dB) along with high return loss (≥55 dB).

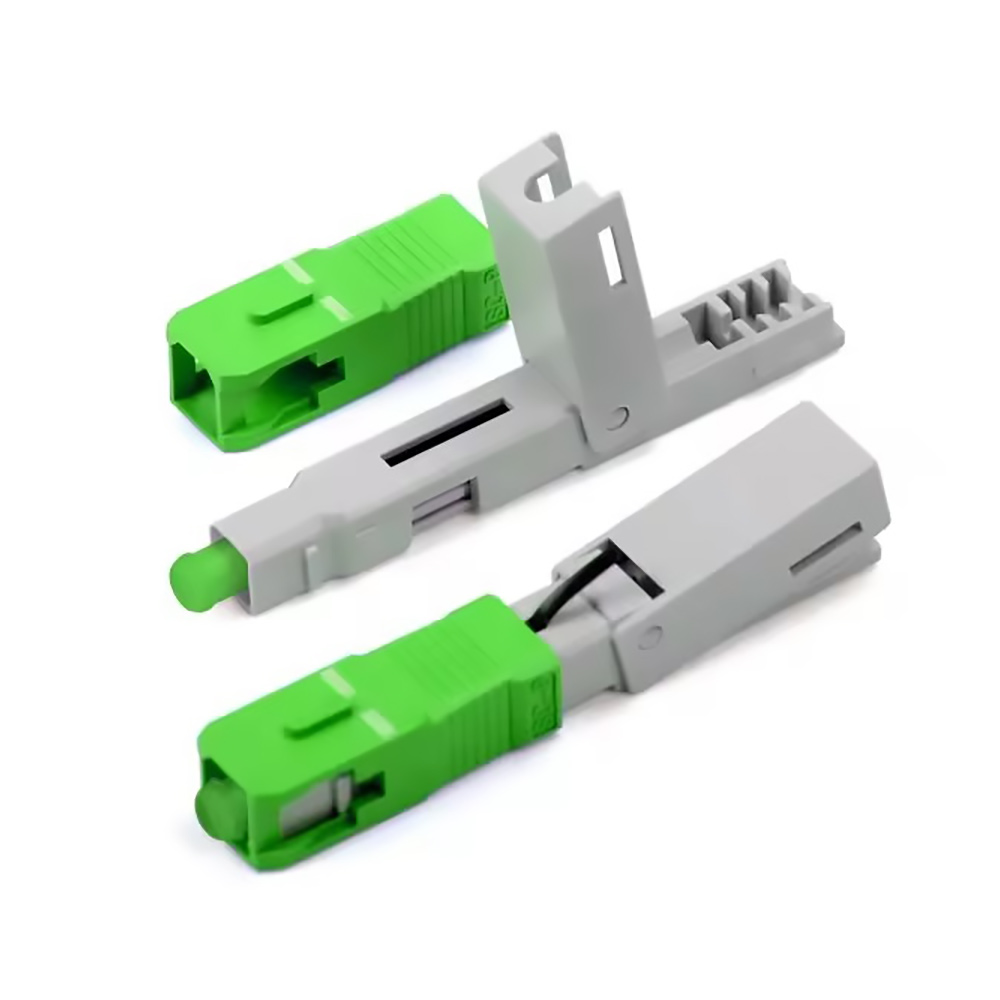

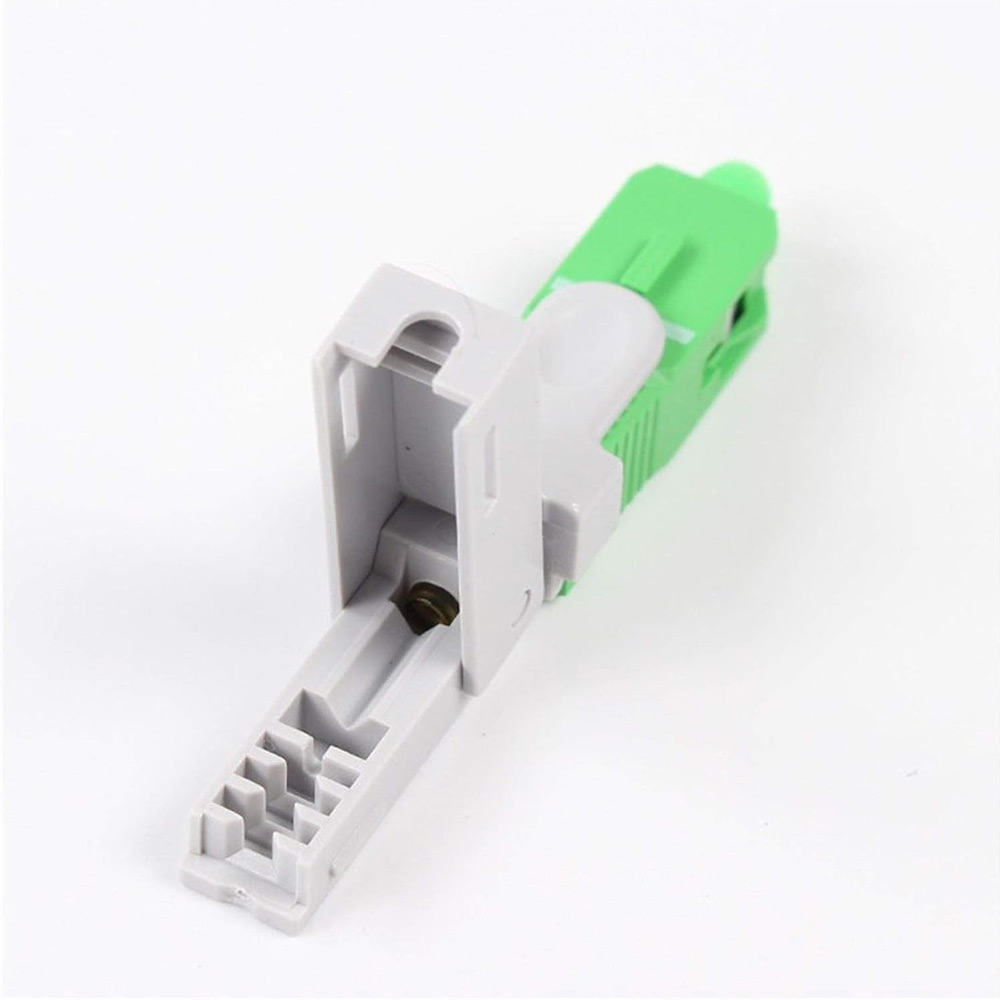

Mechanical Splice Technology: Patented design with a factory mounted fiber stub to make a stable and repeatable connection.
Single-Mode Fiber Compatible: Designed for 9/125μm fiber, suitable for ranges from ITU-T G.652D to G.657A.
Durable and Reliable: Offers high tensile strength (>50N) and mechanical durability (over 500 cycles) for serious long-term performance.
No Special Tools Needed: Only a fiber stripper and fiber cleaver required. No more expensive and complicated splicing equipment.
OEM/ODM: Branding and custom packaging options to meet your business needs.

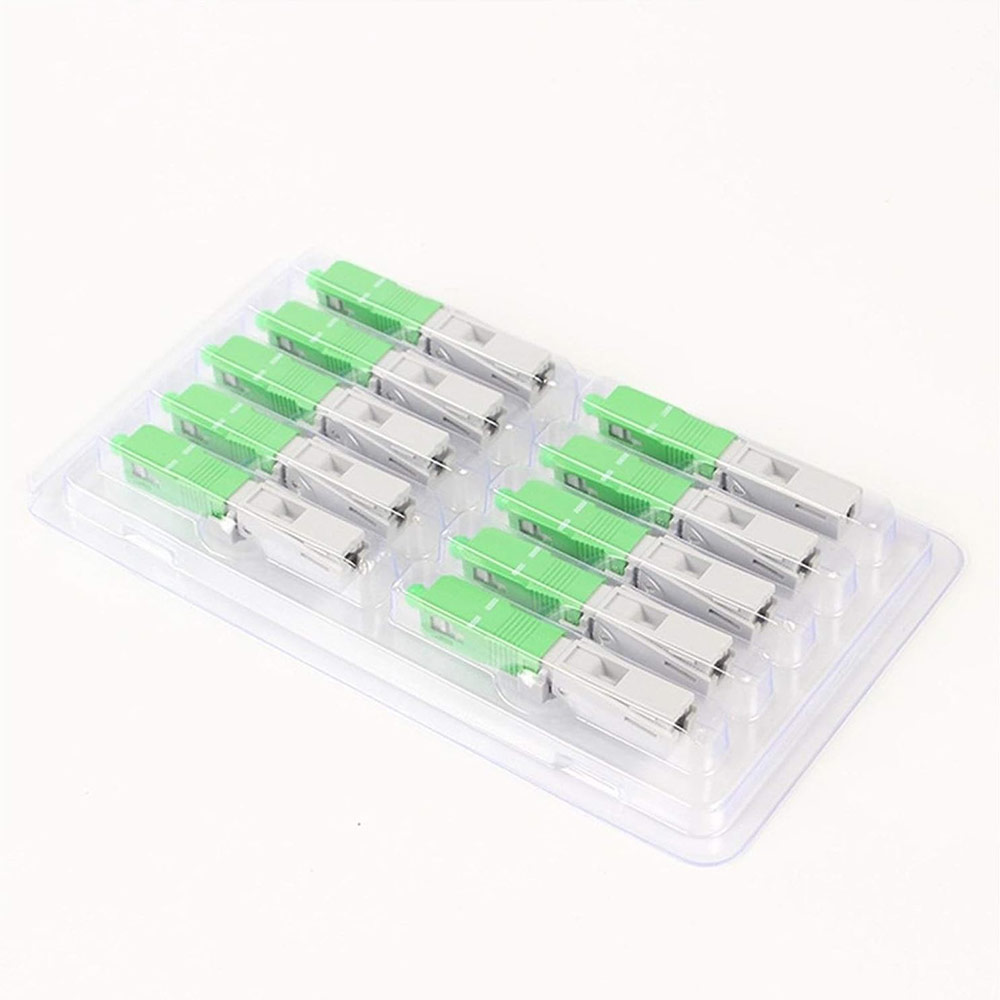

Compact Packaging: Comes in a blister box of 10 for easy transport and storage.
Great Application: Designed for FTTH, FTTx, Telecoms and Data Centre deployment.

Product Name	FTTH SC/APC Fiber Optic Fast Connector
Package Quantity	10 pieces per blister box
Connector Type	SC/APC
Color	Green
Fiber Mode	Single-mode (9/125μm)
Polish Type	APC (8-degree angled end-face)
Ferrule Material	Zirconia ceramic, pre-polished
Cable Compatibility	0.9mm, 2.0mm, 3.0mm, 2.0×3.0mm drop cables
Insertion Loss	Typical ≤0.3dB, Maximum ≤0.5dB
Return Loss	≥55dB (some models up to ≥60dB)
Tensile Strength	≥30N to ≥50N
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Mechanical Durability	≥500 to 1000 mating cycles
Installation Time	Less than 1-2 minutes
Connector Length	50-52mm
Fiber Standards	G652D/G657A/G657B compatible
Industry Standards	IEC 61754-4, TIA 604-3-B (FOCIS-3), YD/T 2341.1-2011
Environmental Compliance	RoHS, REACH compliant
Installation Method	Mechanical splice, no epoxy or polishing required
Tools Required	Fiber stripper and cleaver only
Reusability	Can be reused 5+ times
Applications	FTTH, FTTx, LAN, WAN, data centers, telecom networks
OEM Service	Custom packaging and branding available
Quality Control	100% factory tested before shipment
