| Fiber to RJ45 Media Converter Category | Parameter | Specification |
|---|---|---|
| Network Standards | IEEE Compliance | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX/FX |
| Flow Control | IEEE 802.3x Flow Control & Back Pressure | |
| Quality of Service | IEEE 802.1p QoS Support | |
| Spanning Tree | IEEE 802.1d Spanning Tree Protocol | |
| Ethernet Ports | Connector Type | RJ45 Female |
| Port Count | 4 Ports | |
| Data Rate | 10/100 Mbps Auto-Negotiation | |
| Duplex Mode | Full/Half Duplex Auto-Detection | |
| Cable Type | UTP Category 5e or Higher | |
| Transmission Distance | 100 meters maximum | |
| Fiber Optic Ports | Connector Type | SC Female |
| Port Count | 2 Ports | |
| Data Rate | 155 Mbps Full Duplex | |
| Fiber Type | Single-Mode/Multi-Mode Support | |
| Wavelength Options | 850nm/1310nm/1490nm/1550nm | |
| Default Configuration | 1x 1310nm A-Side + 1x 1550nm B-Side | |
| Custom Options | 2x 1550nm B-Side or 2x 1310nm A-Side | |
| Transmission Distance | Up to 40km (Single-Mode) | |
| Performance | Processing Method | Store and Forward |
| MAC Address Table | 8K Entries | |
| Buffer Memory | 1 Mbit | |
| Maximum Frame Size | 1518 Bytes (Jumbo Packet Support) | |
| Switching Bandwidth | 5.6 Gbps | |
| Latency | <150 microseconds | |
| MTBF Rating | 100,000 Hours | |
| Power Requirements | Input Voltage | AC 100V-240V, 50/60Hz |
| Operating Voltage | DC 5V | |
| Power Consumption | 1.5W – 2.5W | |
| Power Connector | DC Socket | |
| Power Type | External Power Adapter | |
| Environmental | Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C | |
| Relative Humidity | 5% – 90% (Non-Condensing) | |
| Physical | Dimensions | 215mm × 107mm × 26mm |
| Weight | 0.6 kg | |
| Form Factor | PCBA Board Design | |
| Mounting | Desktop/Rack Mountable | |
| Features | LED Indicators | Power, Link, Activity Status per Port |
| Configuration | Plug-and-Play Operation | |
| Heat Management | Built-in Heat Sink | |
| Customization | OEM/ODM Support Available | |
| Warranty | Coverage Period | 1 Year Manufacturer Warranty |

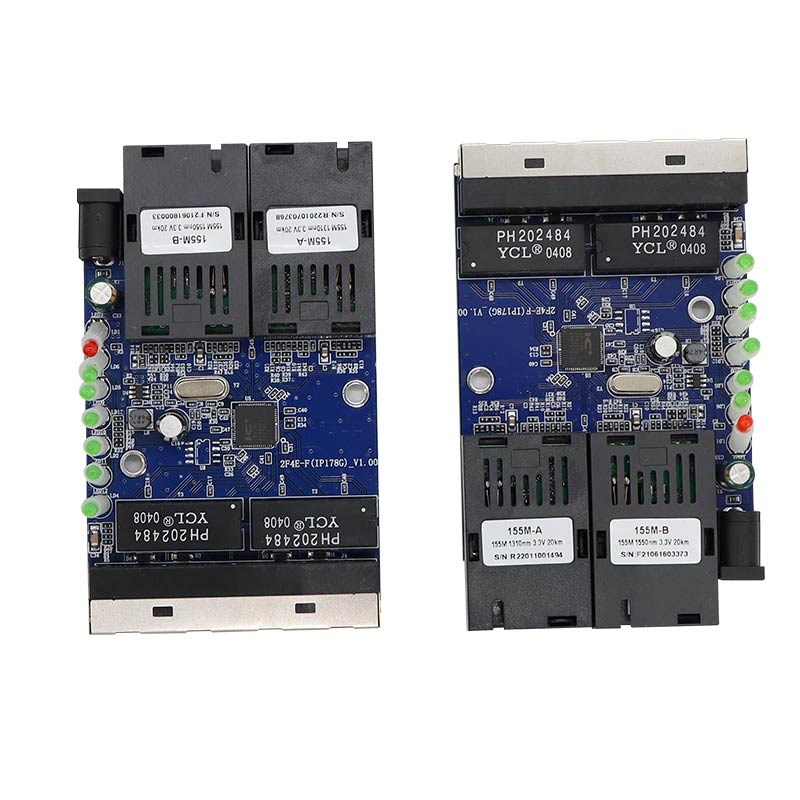

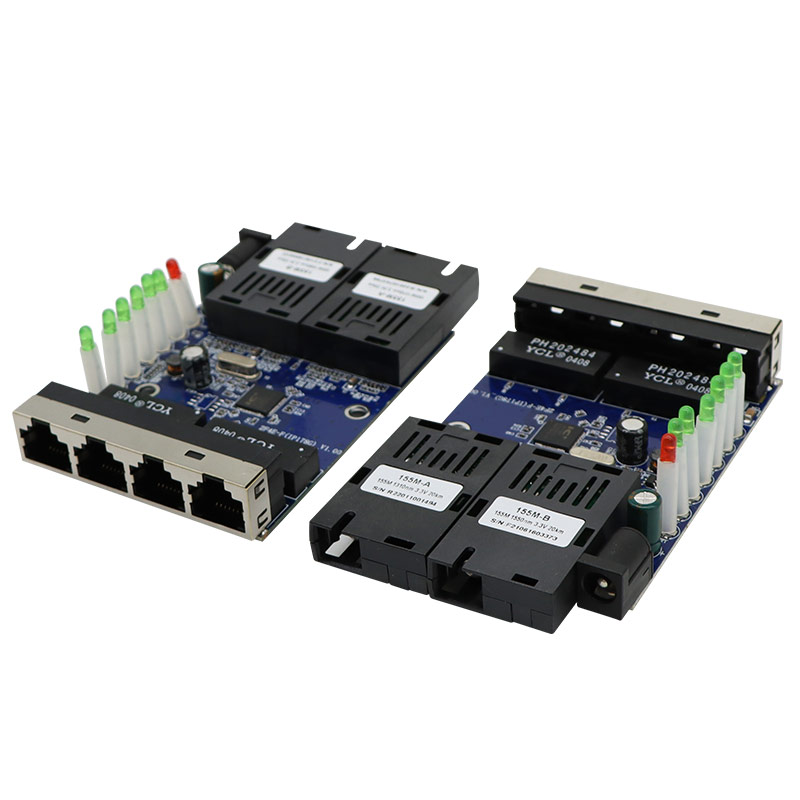

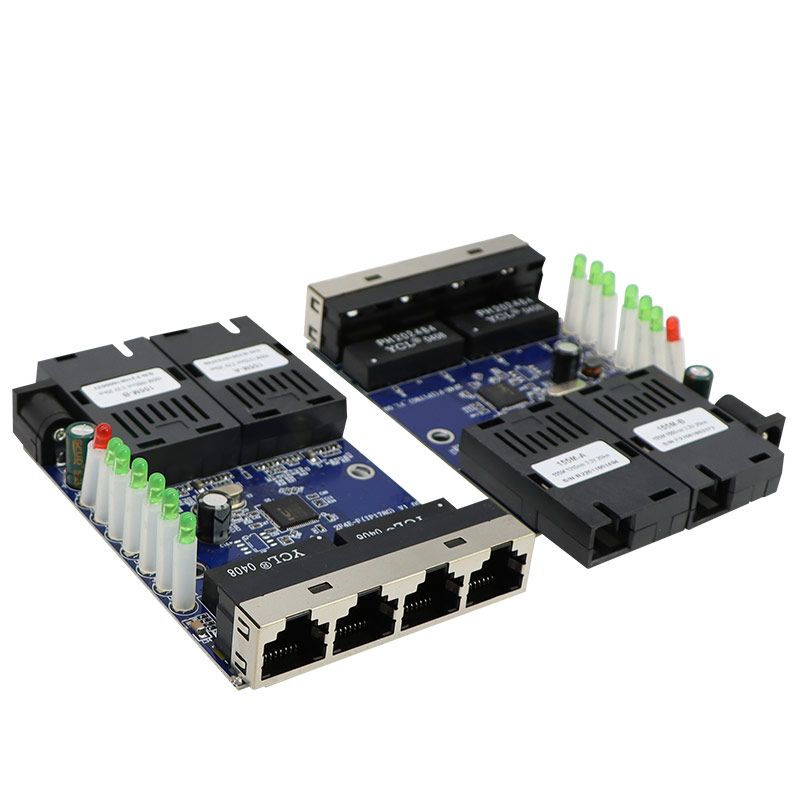

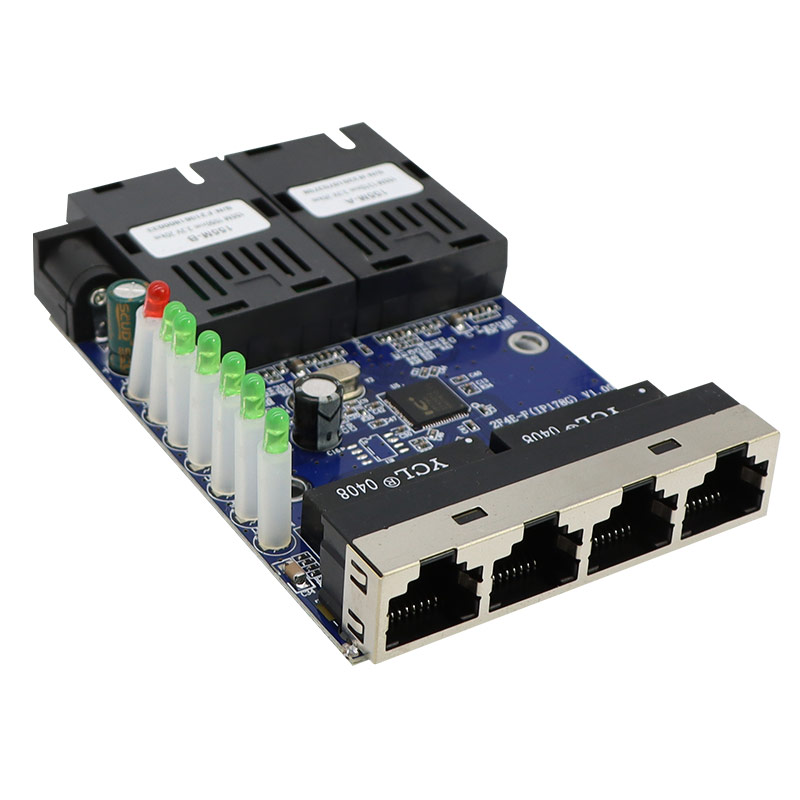

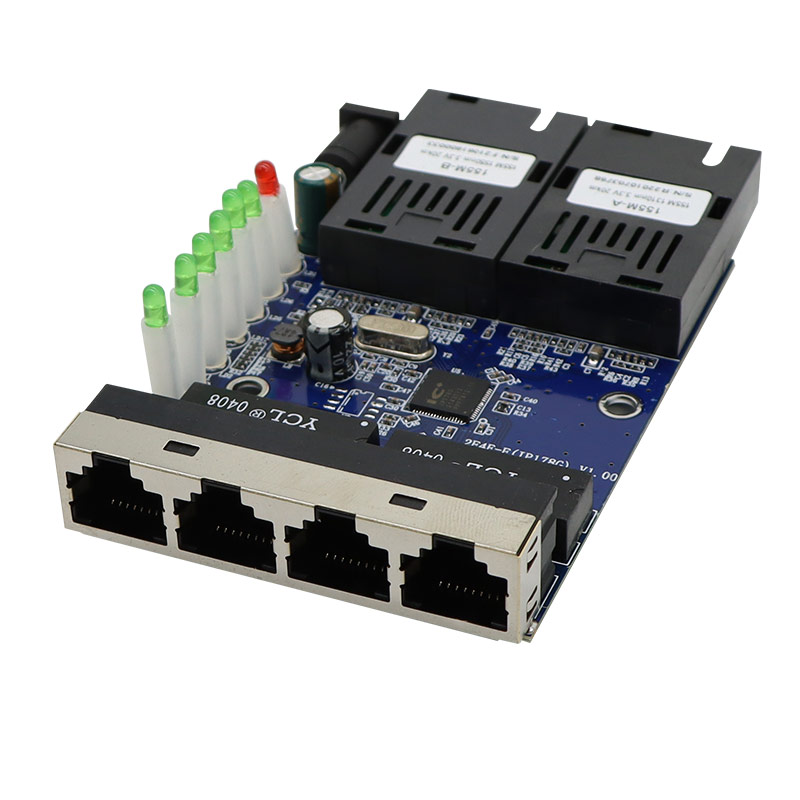

Fiber to RJ45 Media Converter Optical Switch PCBA Board 10/100Mbps – 2 Fiber Ports, 4 RJ45 Ports
- Dual Port Configuration – 2 SC Fiber Ports with 4 RJ45 Ethernet Ports for expandable network configuration
- Auto-Negotiation Technology – Detects 10/100Mbps speeds, and auto-configures full/half duplex mode
- Extended Transmission Distance – Capable of up to 20km distance over single mode fiber connections
- Multiple Wavelength Options – Default 1310nm/1550nm modules, can offer custom wavelengths
- IEEE Standards Compliance – Full compliance with 802.3, 802.3u, 802.3x flow control
- Plug-and-Play Operation – No configuration required for instantaneous network deployment
- Low Power Consumption – Energy-efficient design with built-in heat dissipation for continuous operation
- Industrial-Grade Reliability – Rated for 100,000 hours MTBF for long term use
- Complete LED Monitoring – Includes power, link and data; functional LED monitoring and status
Price range: $13.00 through $28.00
