| Split Ratio Configurations | Mini Fiber PLC Splitter SC/UPC Connector: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 1×128 |
| Operating Wavelength Range | 1260 nm – 1650 nm (covers O, E, S, C, L bands) |
| Insertion Loss (Typical) | 1×2: ≤ 3.6 dB 1×4: ≤ 7.2 dB 1×8: ≤ 10.5 dB 1×16: ≤ 14.5 dB 1×32: ≤ 18.5 dB 1×64: ≤ 22.0 dB 1×128: ≤ 23.0 dB |
| Insertion Loss (Max) | Typically 0.3 dB higher than typical values to cover manufacturing tolerance |
| Uniformity (Max Difference) | 1×2: ≤ 0.5 dB 1×4: ≤ 1.0 dB 1×8: ≤ 1.5 dB 1×16: ≤ 2.0 dB 1×32: ≤ 2.5 dB 1×64: ≤ 3.0 dB 1×128: ≤ 3.5 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.3 dB |
| Return Loss (RL) | ≥ 50 dB (UPC polish) |
| Directivity | ≥ 55 dB |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Connector Type | SC/UPC with high precision ceramic ferrule |
| Fiber Type | Single-mode fiber (SMF-28 compatible) |
| Mechanical Durability | ≥ 1000 mating cycles |
| Packaging Options | Bare fiber, ABS module, LGX cassette, mini module |
| Fiber Length | Standard 1 meter input/output fiber (custom lengths available) |
| Compliance Standards | Telcordia GR-1209 (Generic Requirements for Passive Optical Components) Telcordia GR-1221 (Reliability and Environmental Tests) |
| Environmental Protection | RoHS compliant, halogen-free materials |
| Application | PON, FTTH, FTTB, CATV, LAN, optical signal distribution |
| Insertion Loss Repeatability | ≤ 0.1 dB |
| Storage Humidity | 95% RH (non-condensing) |

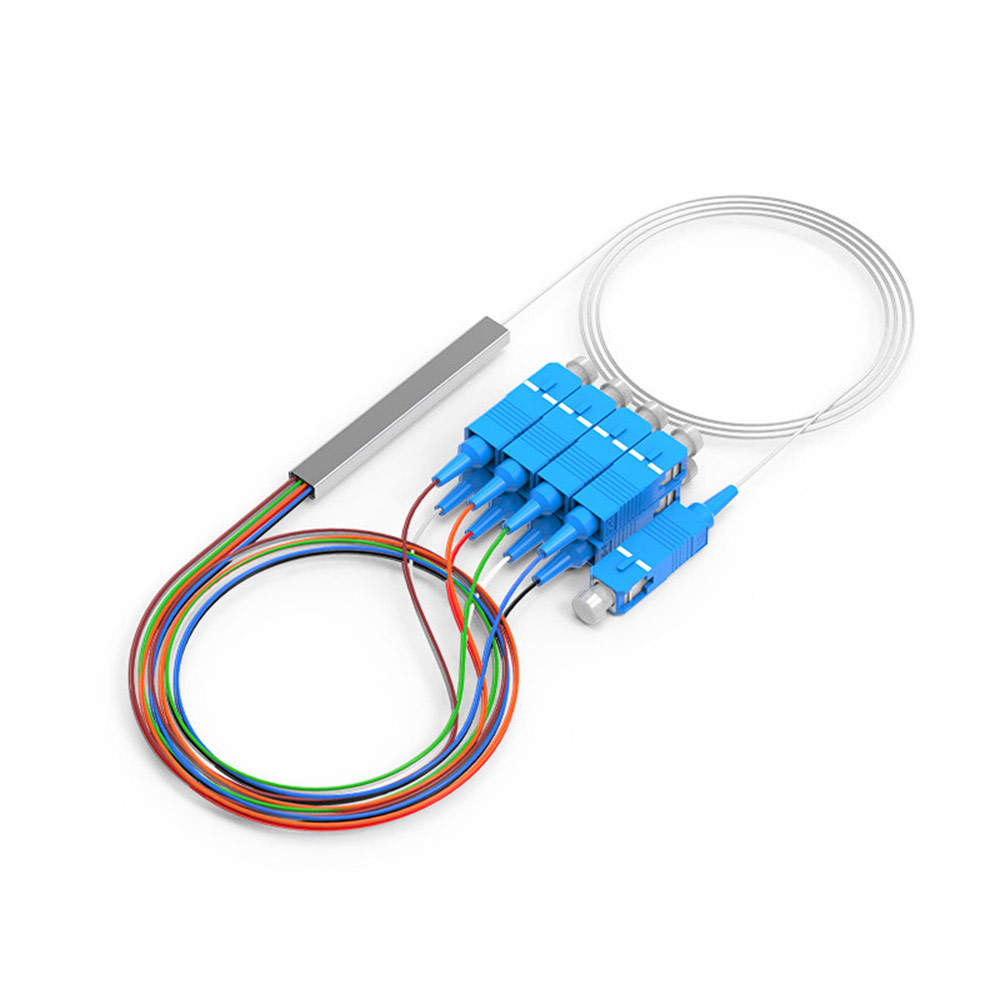

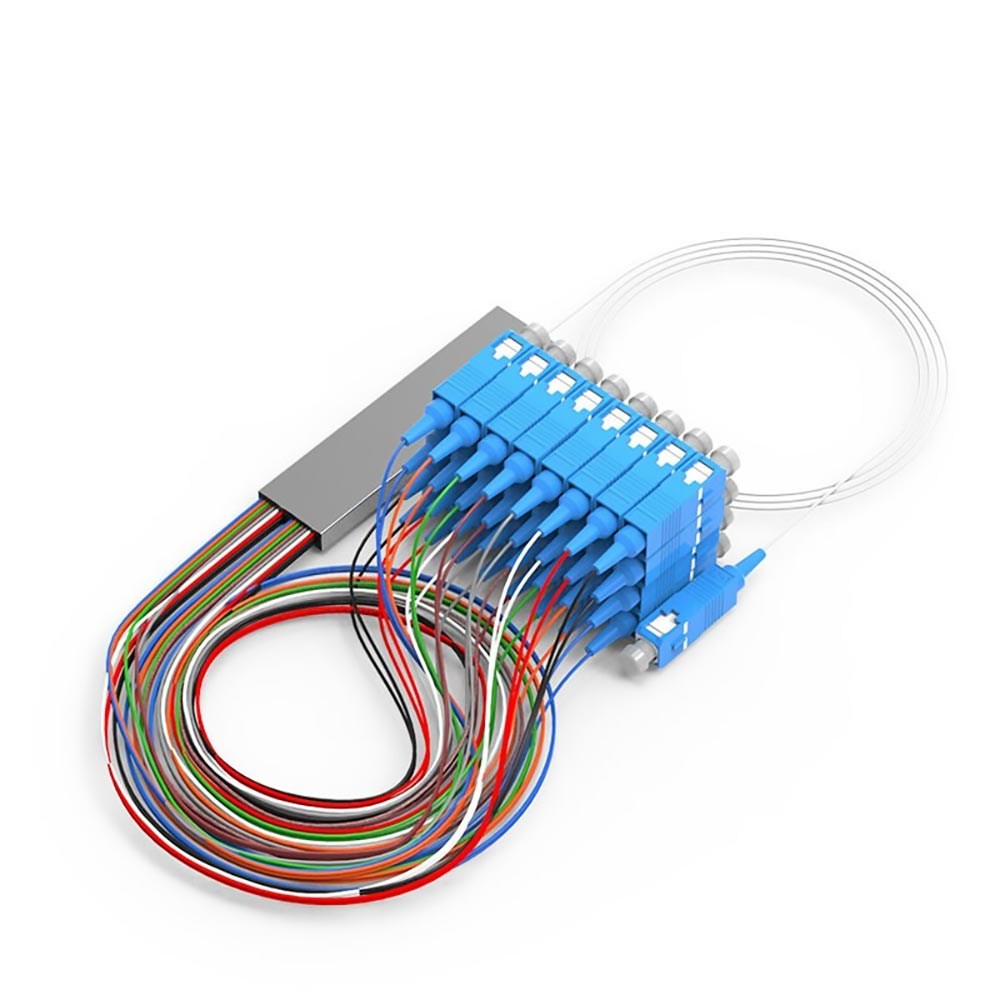

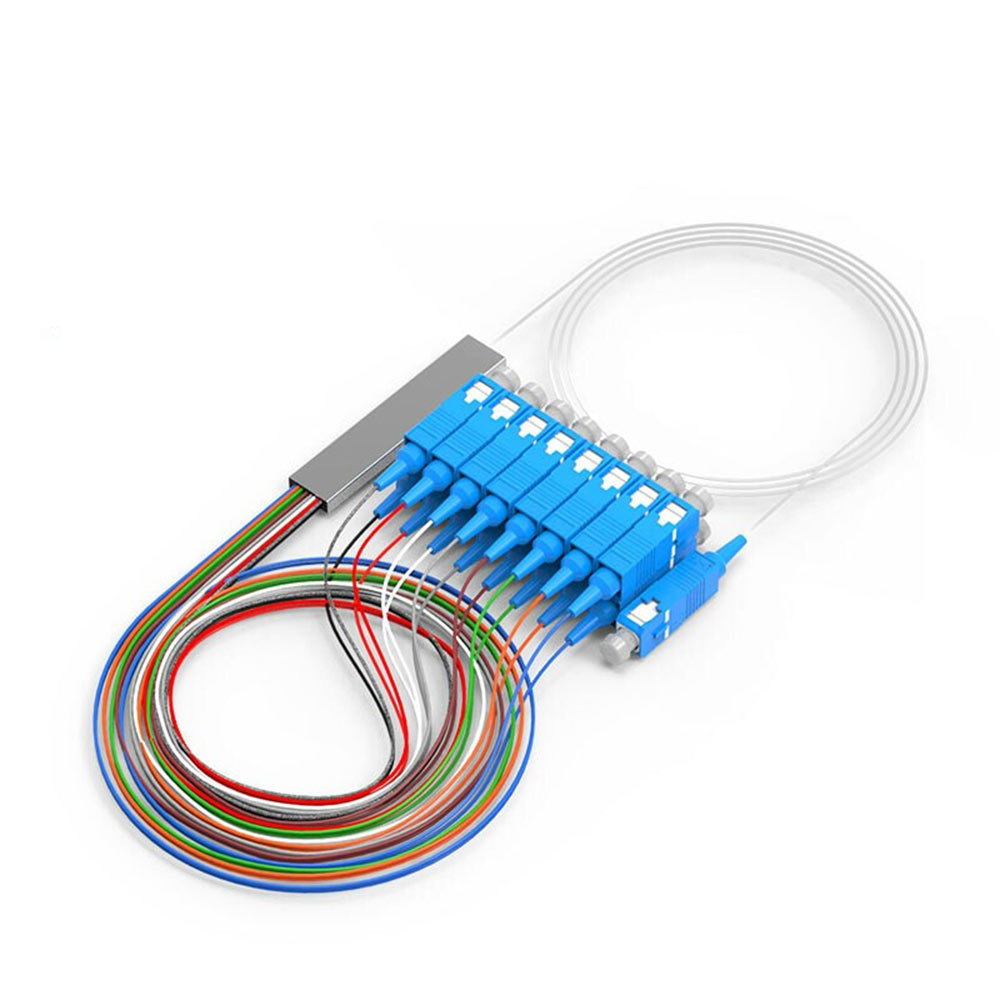

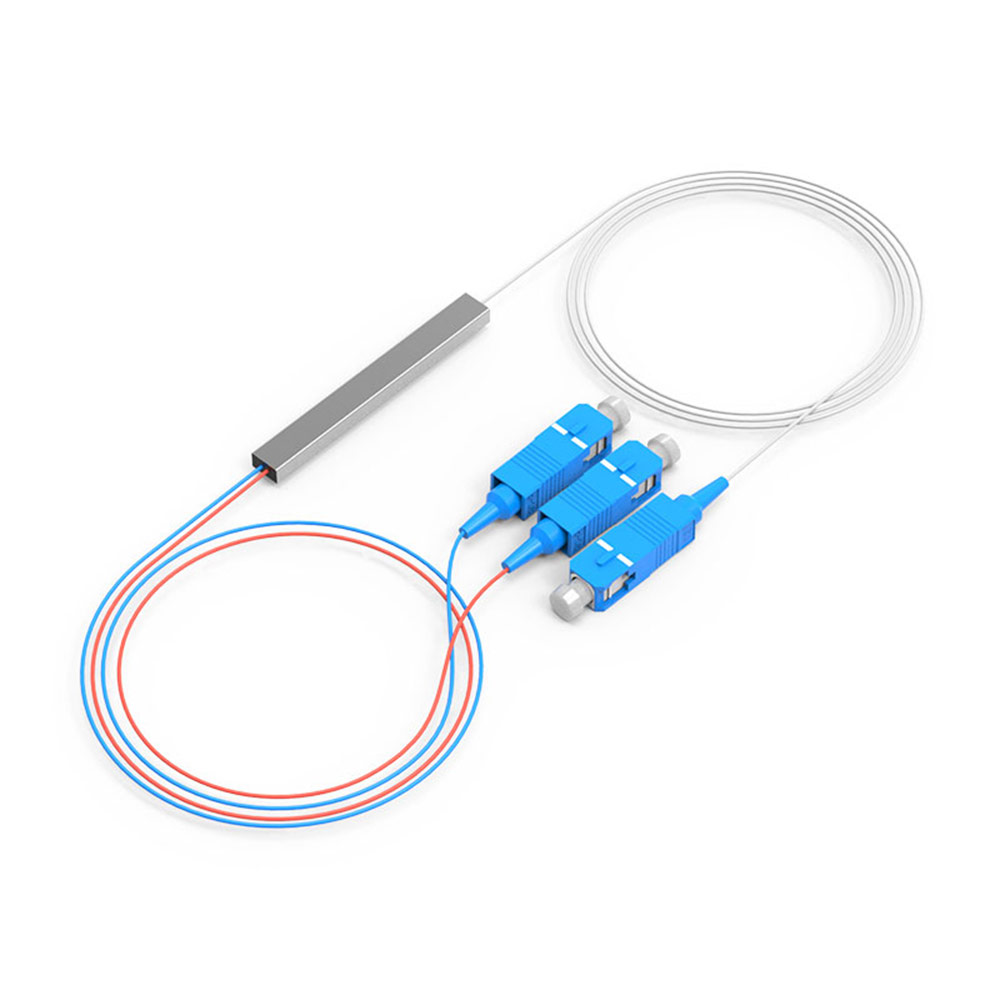

Mini Fiber PLC Splitter SC/UPC Connector, 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 1×128 Configurations
- The broad range of wavelengths supported (1260-1650 nm) makes the device interoperable for a variety of telecom applications.
- The low insertion loss of the device minimizes signal loss, thus giving you confidence in signal performance.
- The uniformity in power splitting means you will get the same amount of power at the output port for every input port.
- The low polarization dependent loss (PDL ≤ 0.3 dB) means you will have very little variation in your signal.
- High return loss (≥50 dB) and directivity (≥55 dB) minimizes signal reflection and disturbance.

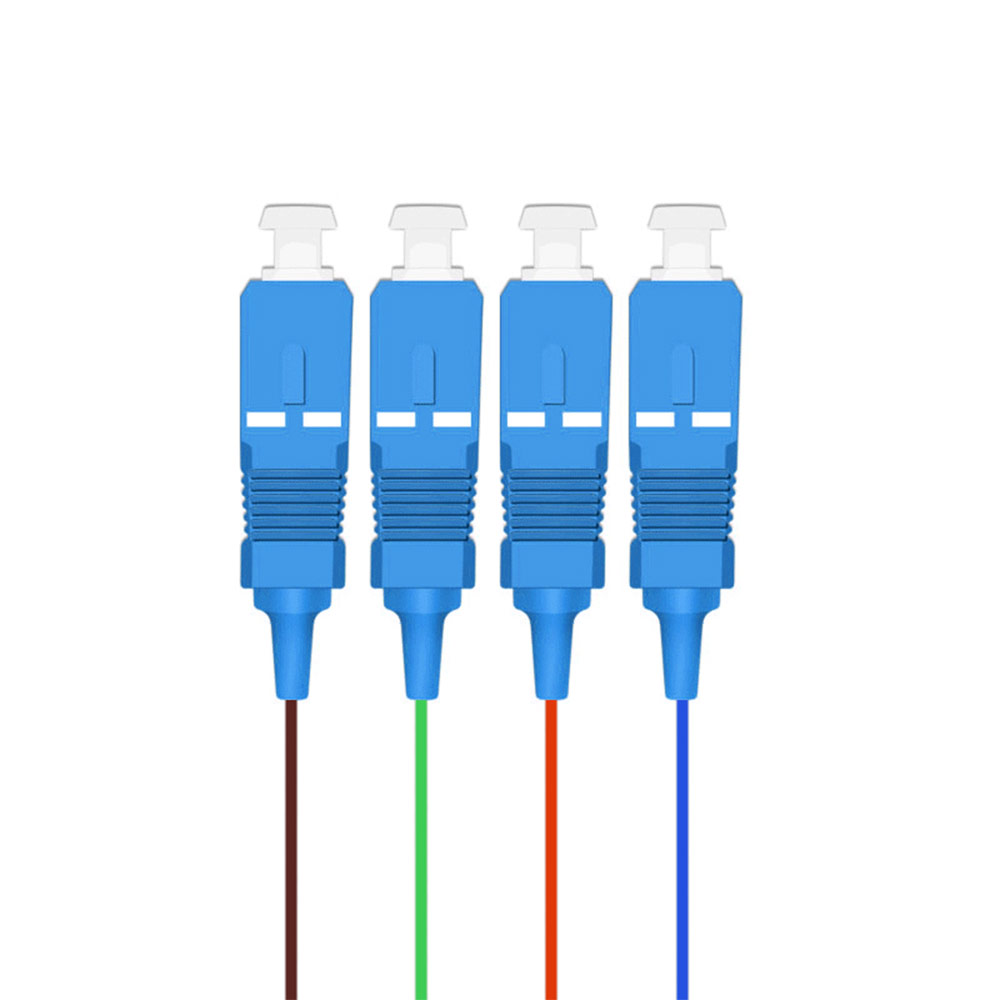

- The standard SC/UPC connector is fitted with precision ceramic ferrules to be low loss and secure.
- Compact and robust design is suitable across different environments and installation.
- The operating temperature is wide (-40 ºC to 85 ºC) for outdoor and indoor reliability.
- Telecom grade service and reliability are standard (Telcordia GR-1209 and GR-1221 compliance).
