| Product Type | Planar Lightwave Circuit (PLC) Fiber Optic Splitter |
| Connector Type | SC/APC (Angled Physical Contact); other connectors (LC, FC, ST) available upon request |
| Supported Split Ratios | 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 |
| Fiber Type | Singlemode ITU-T G.657A1 Bend-Insensitive Fiber; compatible with SMF-28e and custom fiber types |
| Operating Wavelength Range | 1260 nm to 1650 nm |
| Insertion Loss (Typical) | 1×2: ≤3.8 dB 1×4: ≤7.3 dB 1×8: ≤10.5 dB 1×16: ≤13.6 dB 1×32: ≤16.6 dB 1×64: ≤21 dB |
| Insertion Loss (Maximum) | Typical value +0.5 dB tolerance |
| Wavelength Dependent Loss | ≤0.3 dB (typical variation across wavelength range) |
| Uniformity | 1×2, 1×4: ≤0.6 dB 1×8: ≤0.8 dB 1×16: ≤1.2 dB 1×32: ≤1.3 dB 1×64: ≤1.5 dB |
| Return Loss | SC/APC: ≥55 dB (low back reflection) SC/UPC (optional): ≥50 dB |
| Directivity | ≥55 dB |
| Polarization Dependent Loss (PDL) | ≤0.3 dB (≤0.2 dB for smaller split ratios) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Mini Steel Tube (Aluminum casing option available) or ABS Box |
| Fiber Diameter | 0.9 mm or 2.0 mm Loose Tube Fiber |
| Cable Length (Pigtail) | Standard 1 m or 1.5 m; customizable from 0.5 m to 2 m |
| Compliance & Standards | Telcordia GR-1209, GR-1221; RoHS; CE |
| Product Dimensions | Mini Steel Tube: approx. 60 x 12 x 4 mm ABS Box: varies by model |
| Packaging | Individual anti-static packaging with protective box |
| Additional Features | Blockless design option available for compact installation High environmental stability for indoor/outdoor use |
| Applications | FTTx, GPON, EPON, CATV, LAN, optical signal distribution, and other fiber optic network deployments |
Hot

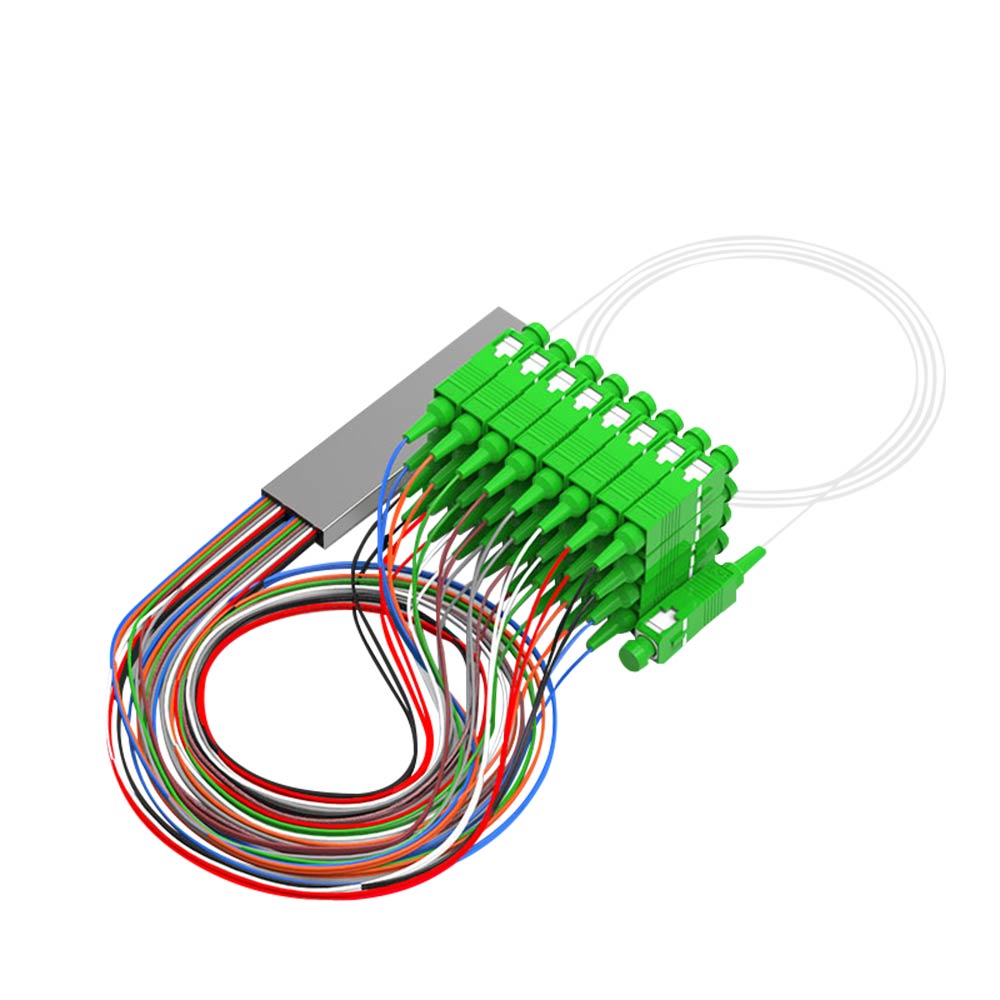

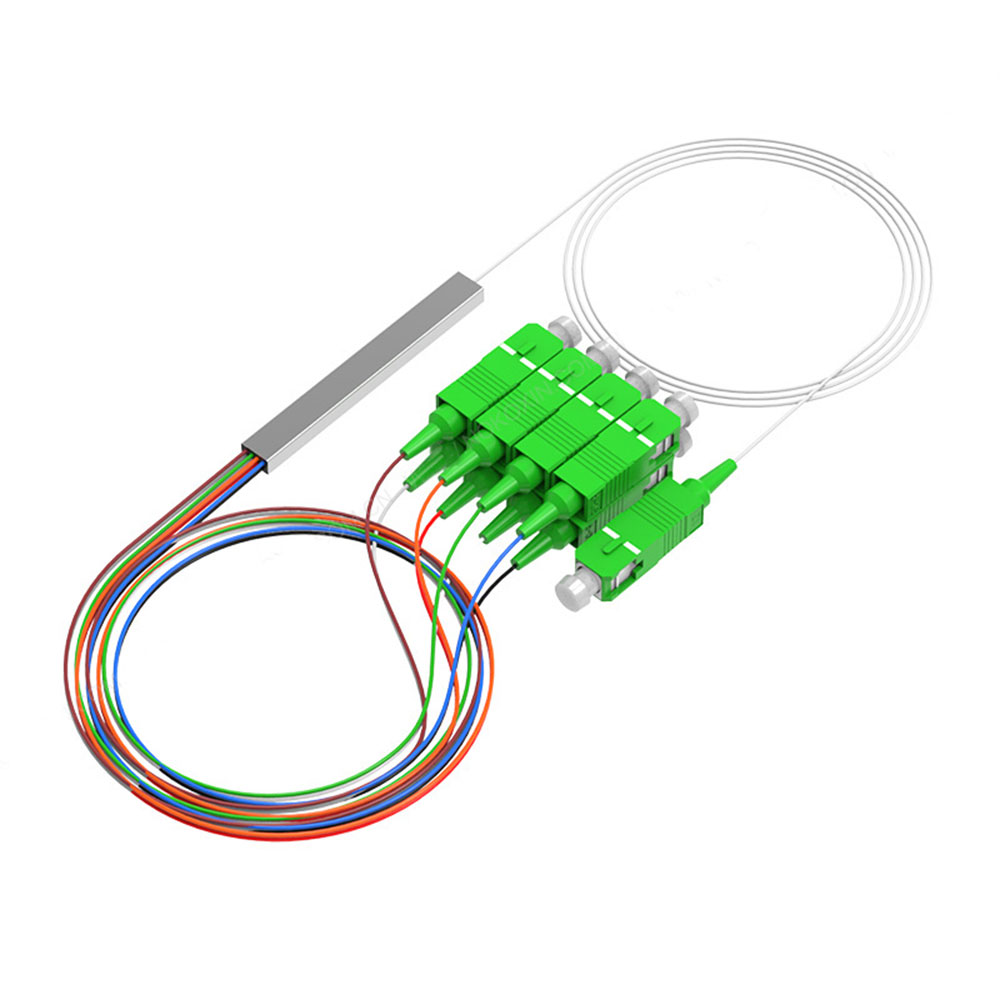

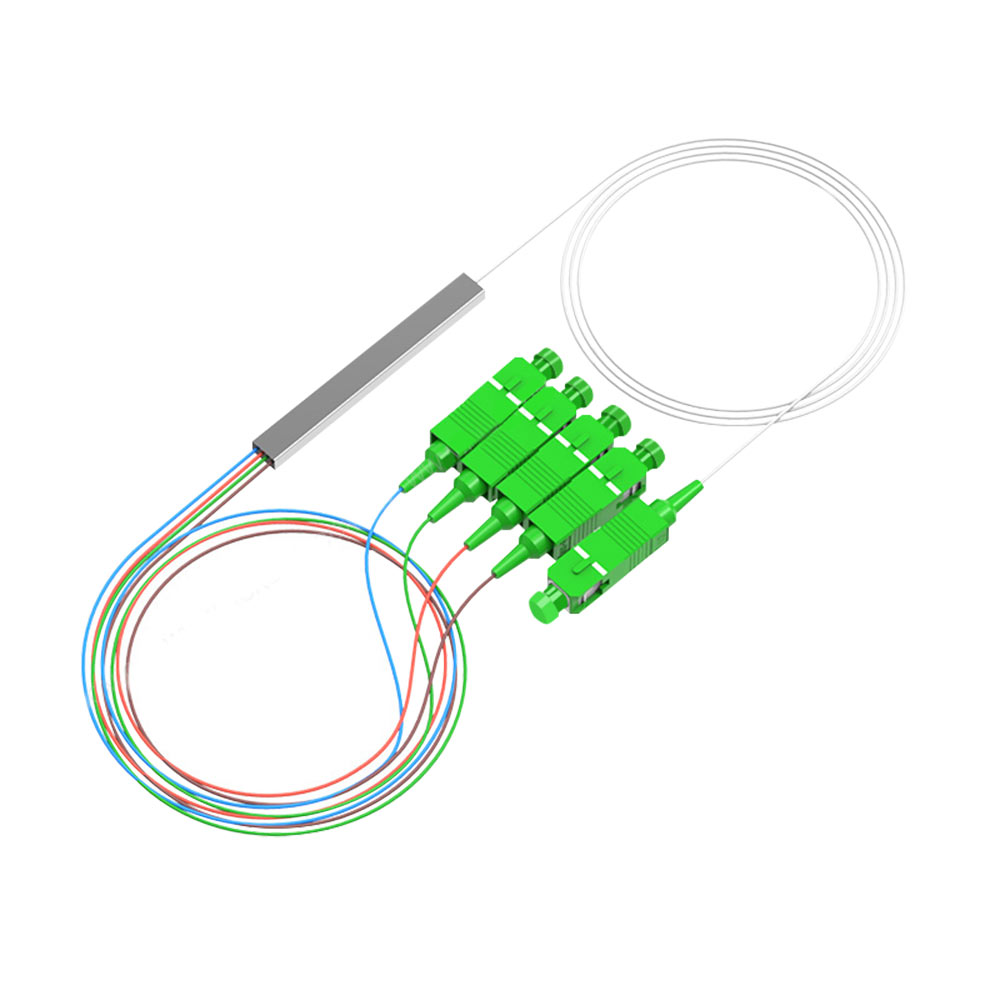

Mini Fiber Optic PLC Splitter SC/APC Connector, 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 Configurations
- Employs planar lightwave circuit (PLC) technology for accurate and uniform optical signal splitting.

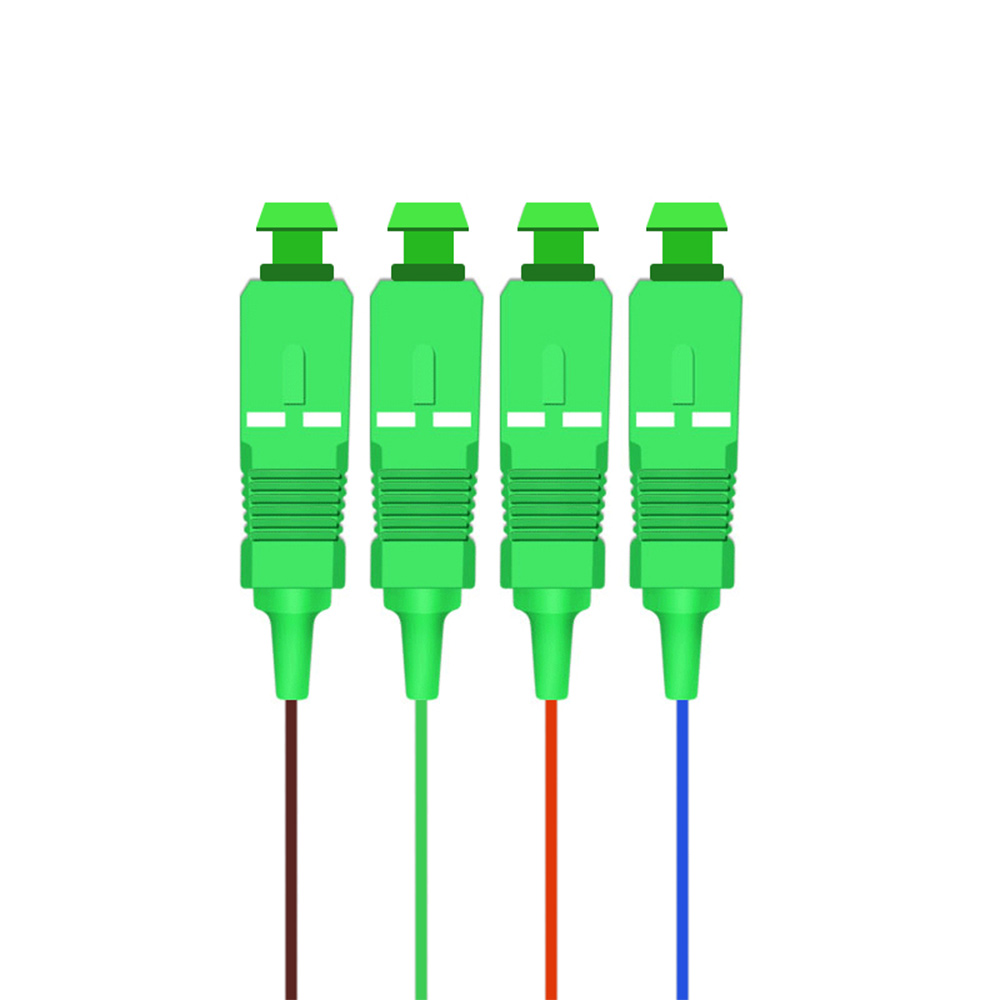

- Features SC/APC connectors provide excellent reverse reflection and return loss ≥55 dB.
- Exhibits low insertion loss at all split ratios maximizing the signal and performance of the network.
- Compatible with ITU-T G.657A1 singlemode, bend insensitive fiber for increased robustness.
- Operates across a wide wavelength range 1260 -1650 nm for a variety of telecom applications.
- Packed in a compact and rugged steel tube or ABS housing to protect fiber against environmental strain.
- Suitable for outdoor and indoor installations with operating temperature of -40 °C to +85 °C which is a very wide tolerance.
- Telcordia GR-1209 and GR-1221 compliance assures long term stability.
- Ideal for deploying FTTH/FTTP, GPON, EPON, CATV and other optical networks.
