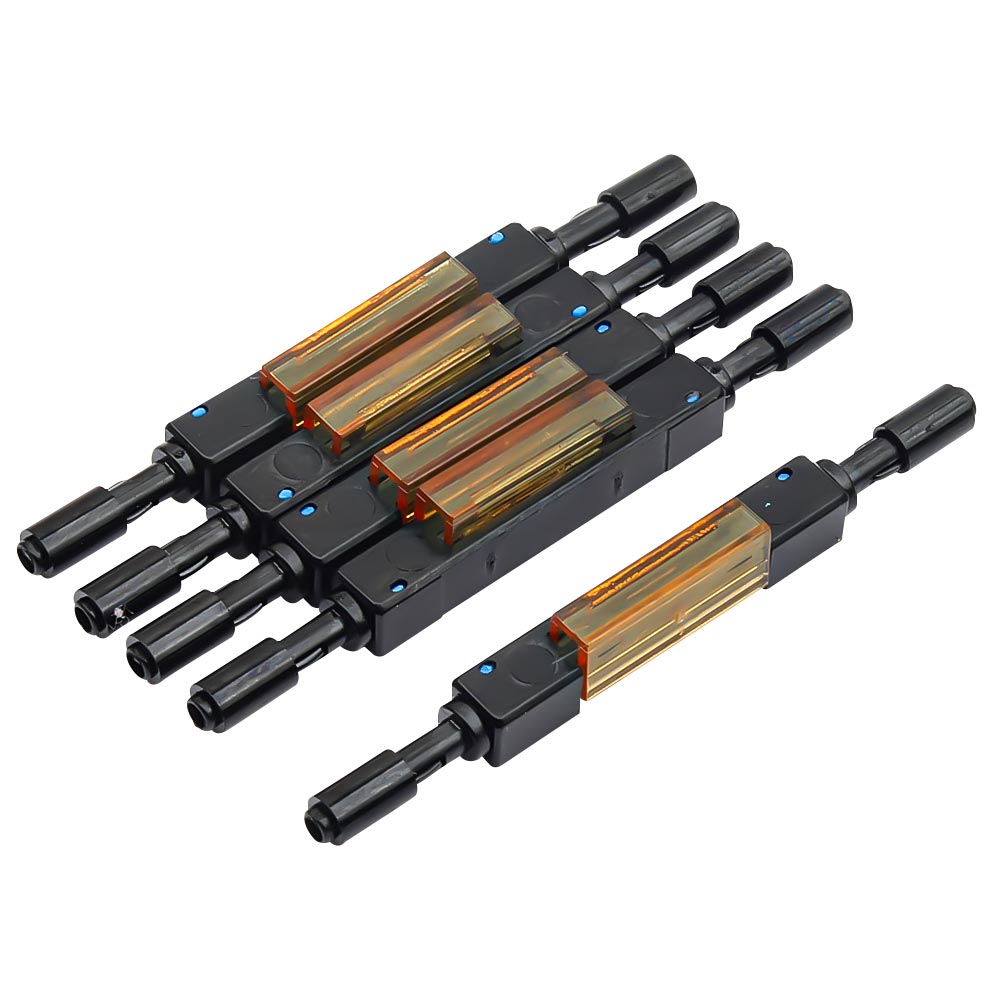

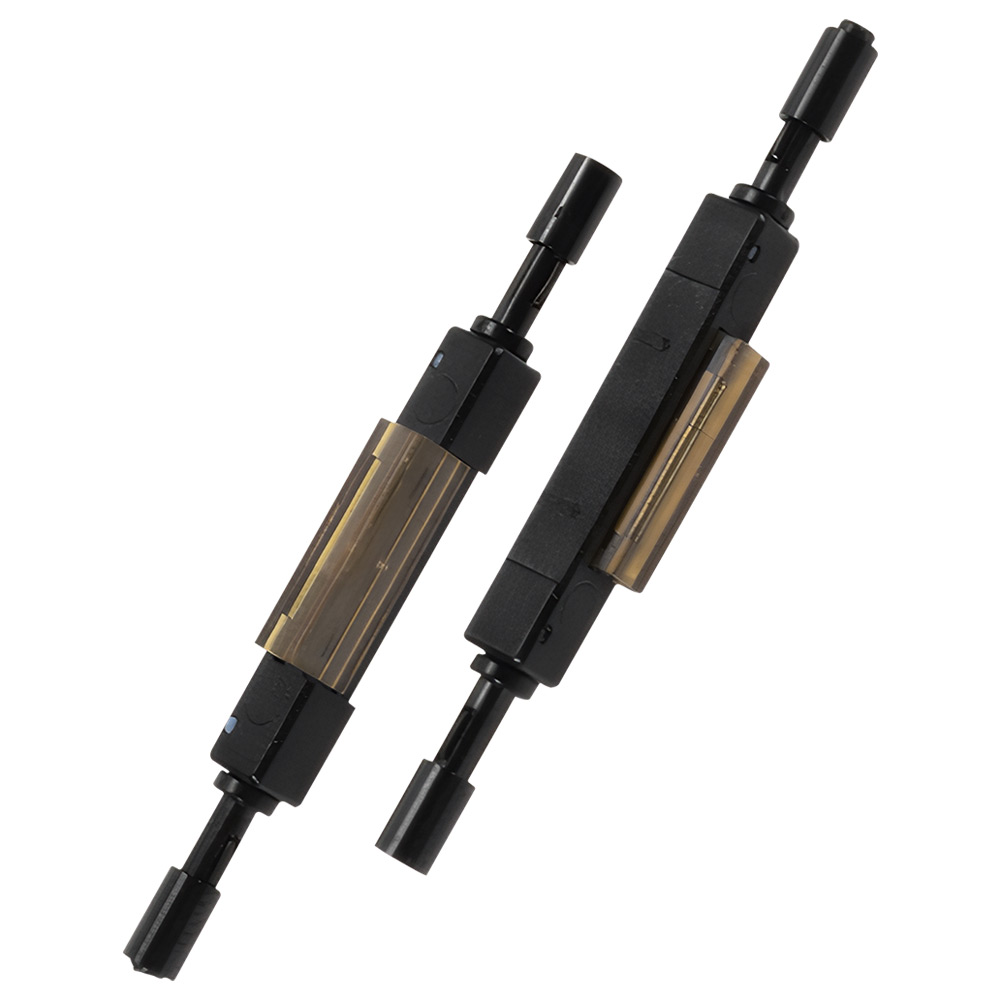

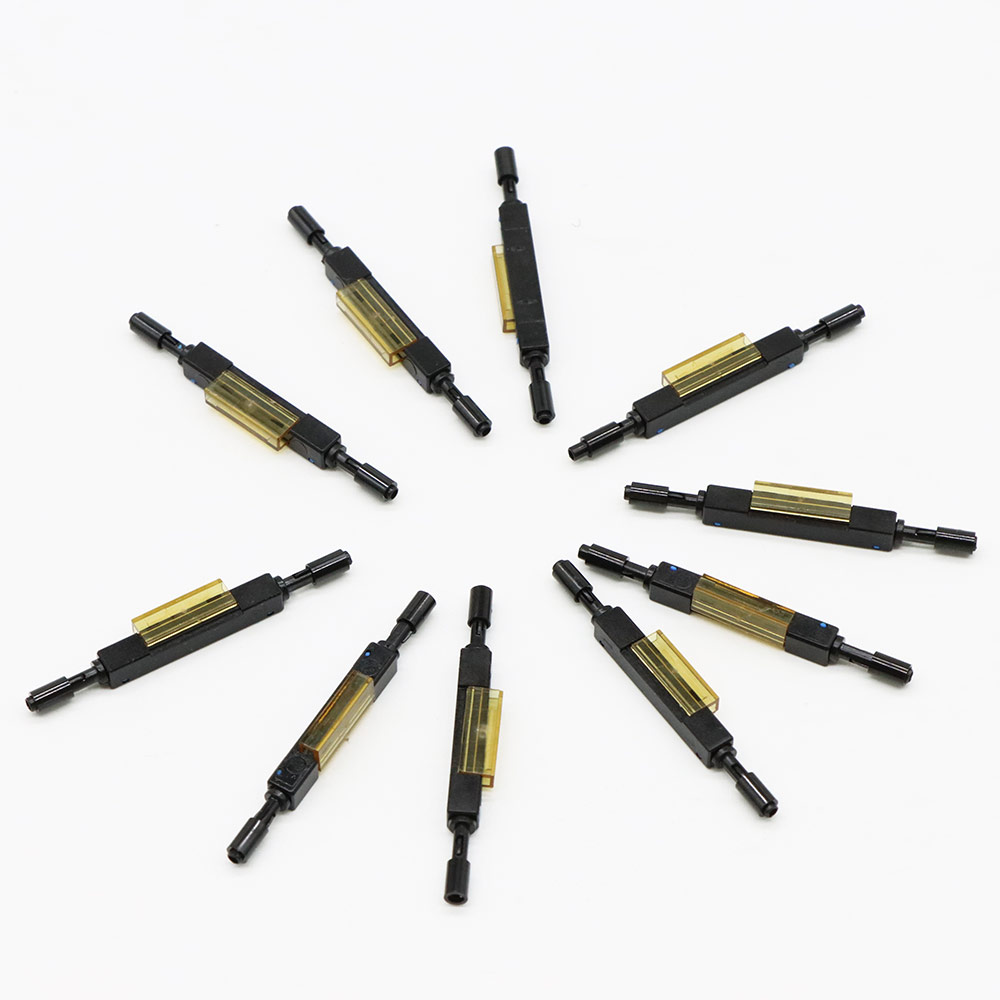

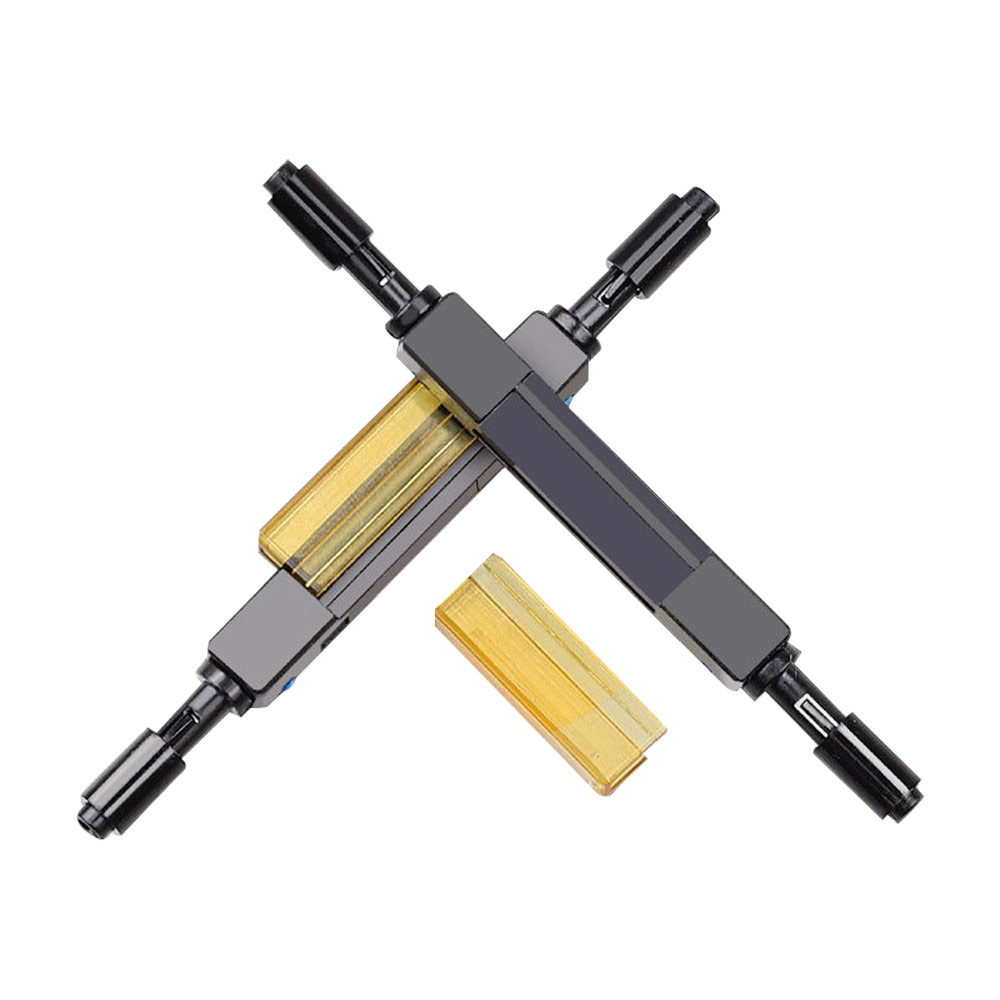

The 925B Fiber Optic Mechanical Splice is designed for precise and dependable fiber optic connections in Wireless LAN, Bluetooth, Wired LAN and IP network applications. Its solid metal V-groove construction provides reliable fiber connection and low signal loss. The unique box-structure core allows for improved sealing and weather resistance to prevent liquid leakage and provide toughness.
The connector supports both 250µm bare fibers and 900µm tight buffer fibers, making field termination simple and quick, without the need for epoxy or polishing. The user friendly design is easy to install, with step-by-step instructions and convenient maintenance, as it provides high installation success rate within a short time and fast repair. The compact size and high tensile strength is ideal for patch panel, FTTH outlet, and network restoration solutions for quick network repairs.
The economical solution will greatly reduce installation time and cable management in the field. Moreover, it will provide excellent optical performance, with low insertion loss and high return loss according to current industry’s needs for quality modern fiber optic networks.
| Product Name | 925B Fiber Optic Mechanical Splice |
| Material | Plastic |
| Color | Black |
| Applicable Optical Cable | 250µm bare fiber / 900µm tight buffer fiber |
| Metal V-Groove Design | Ensures precise and stable fiber connection |
| Core Structure | Box design with good sealing and weather resistance |
| Insertion Loss (Average) | < 0.2 dB |
| Insertion Loss (Maximum) | < 0.5 dB |
| Return Loss (Average) | > 45 dB |
| Return Loss (Minimum) | > 40 dB |
| Tensile Strength (250µm) | > 2N (measured over 30 seconds) |
| Tensile Strength (900µm) | > 4N (measured over 30 seconds) |
| Repeated Assembly | Can be reassembled > 3 times |
| Operating Temperature Range | -40°C to +85°C |
| Size (L x W x H) | 45 x 5 x 5 mm |
| Compatible Cable Types | 3.1 x 2.0 mm drop cable; 3.0 / 2.0 / 0.9 mm cables |
| Optical Fiber Diameter | 125 µm (compliant with ITU-T G.657A & G.657B standards) |
| Tight Buffer Diameter | 250 µm |
| Fiber Mode | Single mode |
| Operation Time | About 10 seconds (excluding fiber cutting) |
| Typical Insertion Loss | ≤ 0.3 dB (at 1310 nm & 1550 nm) |
| Typical Return Loss | ≥ 45 dB |
| Fastening Strength (Naked Fiber) | ≥ 5N |
| Tight Clamping Force | ≥ 8N |
| Tensile Strength (Overall) | ≥ 50N |
| Suitable Environment | Indoor and outdoor use with strong weather resistance |

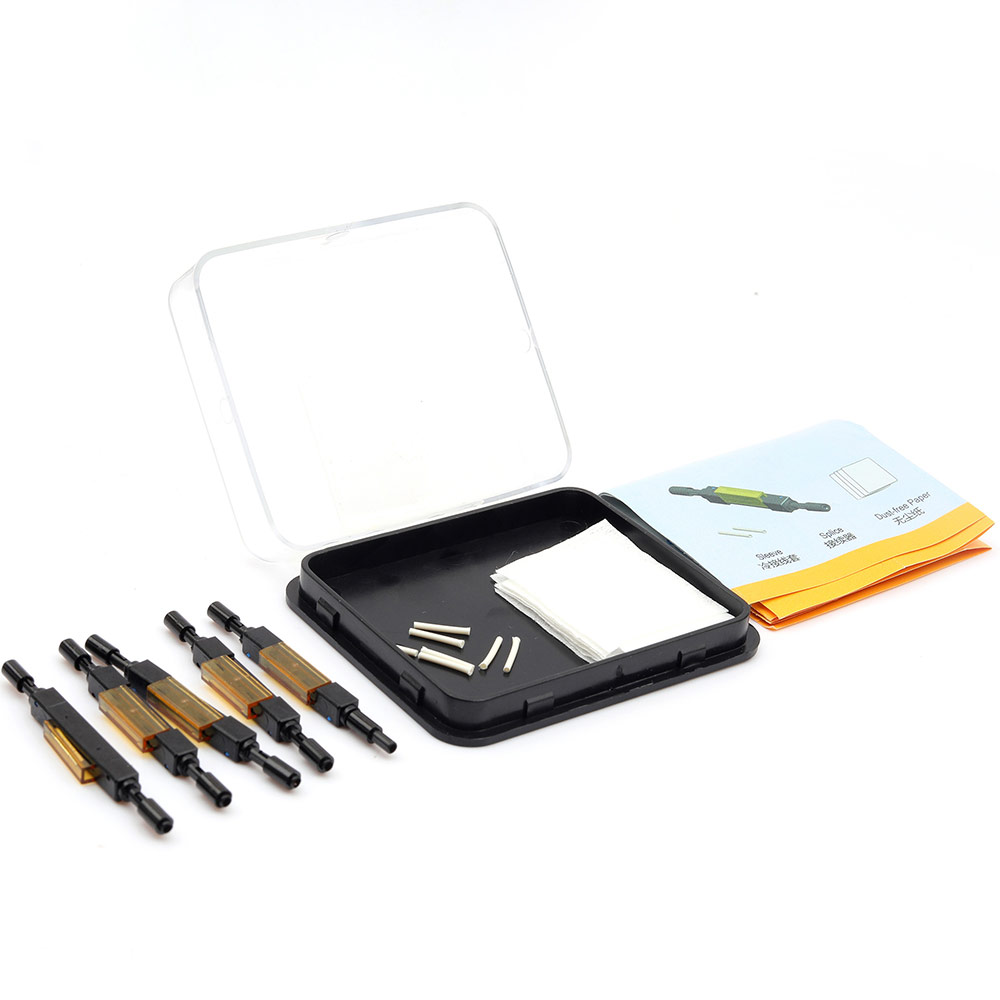

| Package Contents | 5 connectors, 6 dust-free papers, 1 instruction manual, 1 box, 10 line pipes (250 size) |
