| Model | Fiber Optic Inspection Probe |
| Dimensions (Probe) | 139 × 48 × 48 mm |
| Weight (Probe) | 100 g |
| Magnification | 200X / 400X |
| Field of View (FOV) | 606 μm × 454 μm (200X); 432 μm × 324 μm (400X) |
| Resolution | <1 μm |
| Light Source | Blue light LED |
| Display Size | 3.5 inch TFT LCD |
| Battery Capacity | 4000 mAh rechargeable lithium battery |
| Battery Life | >7 hours continuous use |
| Charging Time | USB charging, approximately 4 hours |
| Storage | Supports TF card up to 32GB |
| Image/Video Format | 640 × 480 JPEG / MPEG |
| Supported Connectors | SC, FC, ST, LC UPC (male/female) (standard) |
| Optional Connectors | SC APC male and female |
| Protective Cover | Removable silicone cover for shock absorption |
| Included Accessories | Tool kit, main unit, lanyard, accessory box, USB cable, TF card, card reader, connector adapters (SC female, LC female, SC/FC/ST UPC male, LC UPC male, optional SC APC male/female) |

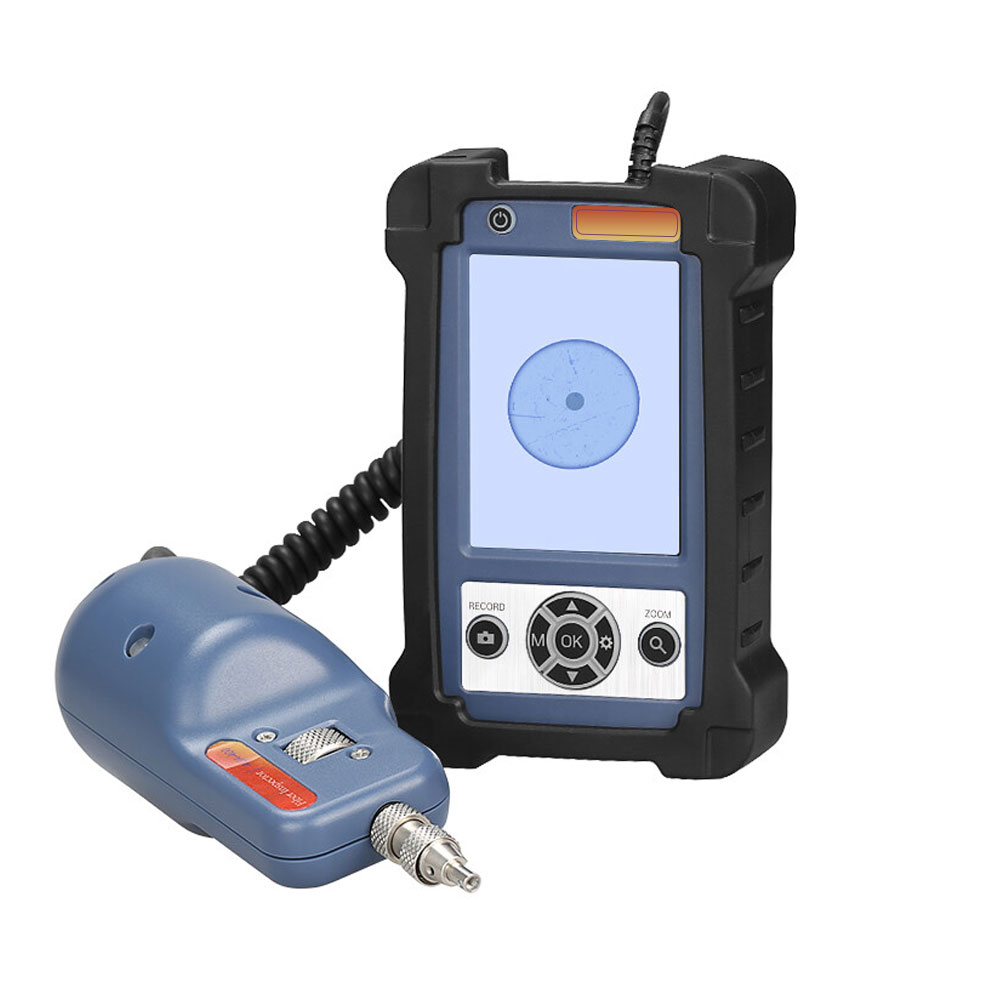

Fiber Optic Inspection Probe – 400x Microscope, SC/FC/ST/LC Connectors, TF Card Storage for Data Playback
- High Magnification: Provides two magnification options: 200X and 400X with a viewing area of 606μm × 454μm (200X) and 432μm × 324μm at 400X for zooming in on fiber endface defects.

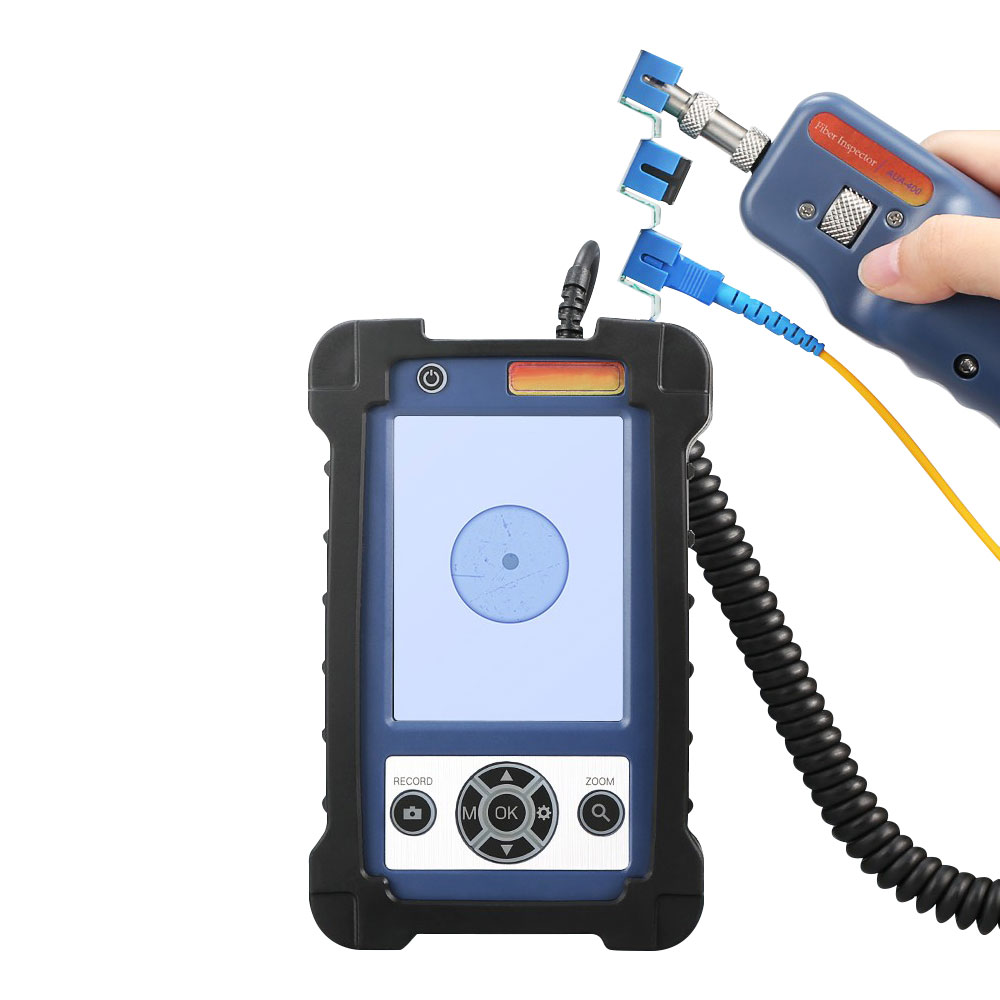

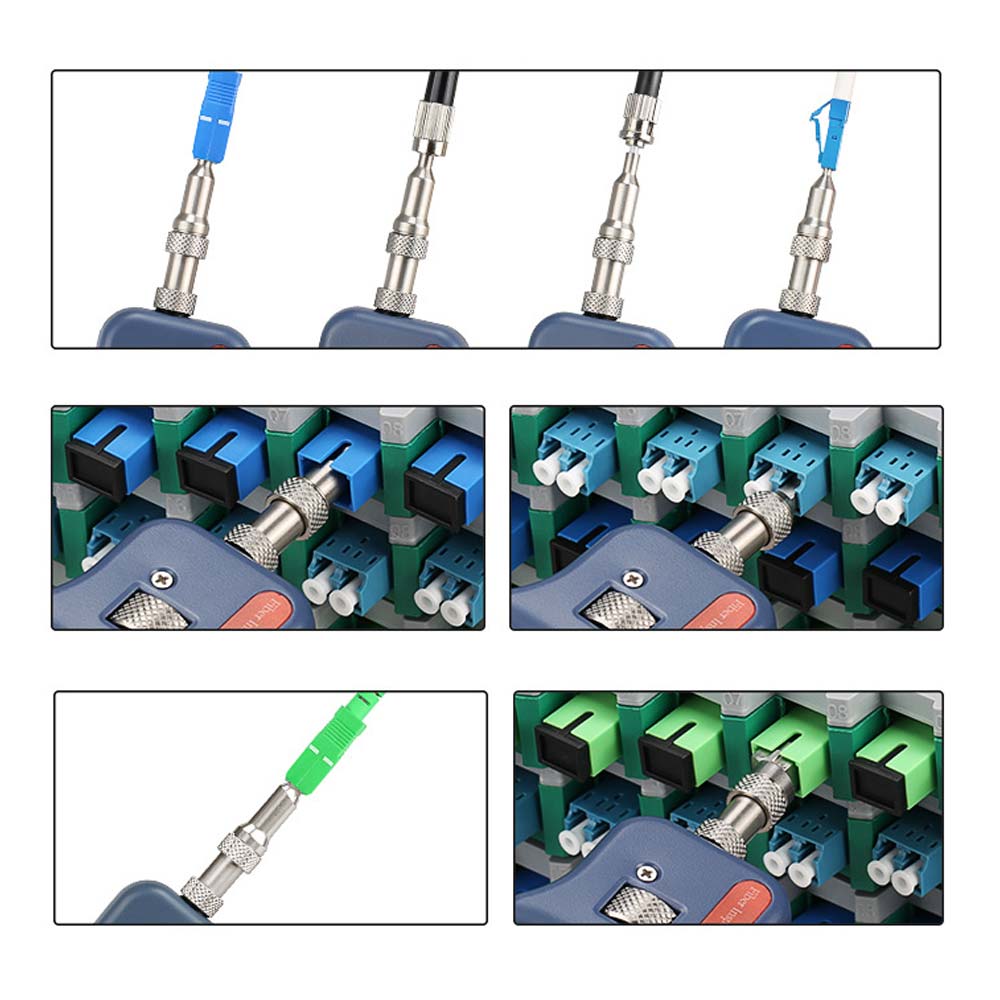

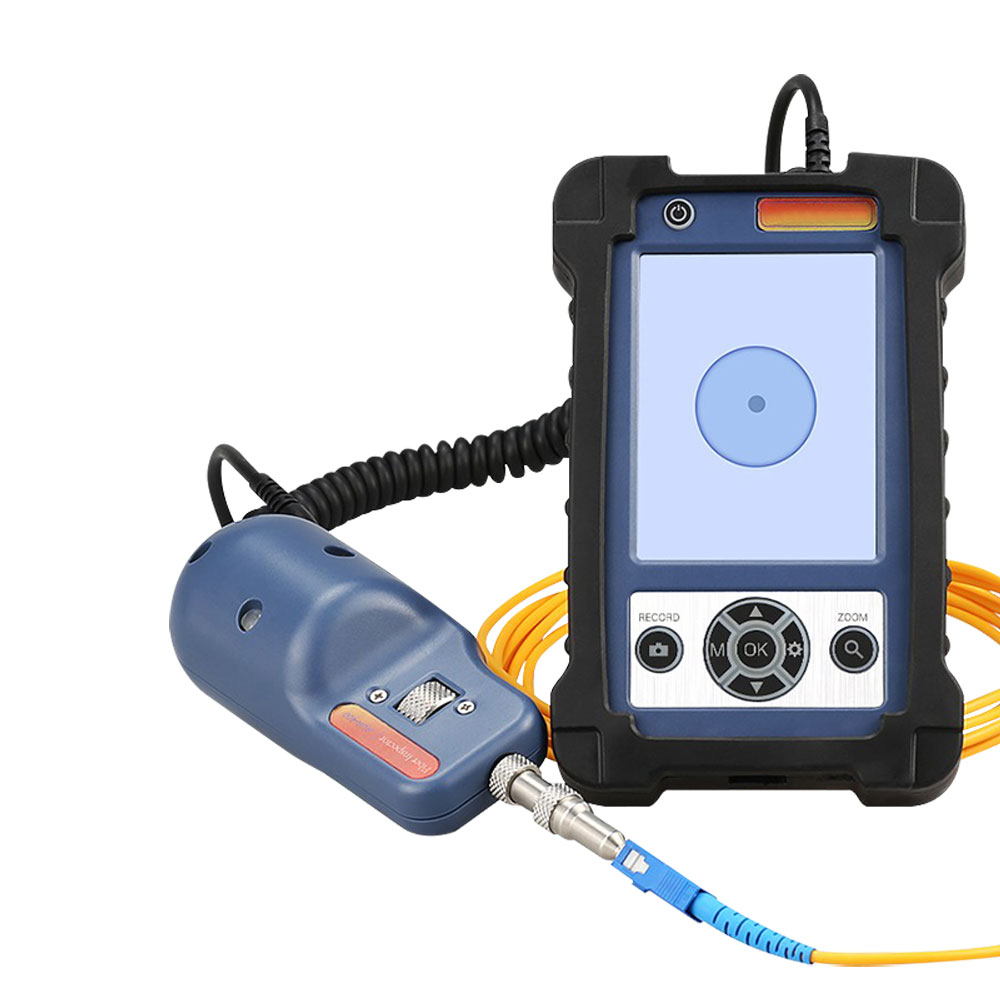

- Works with Multiple Connectors: Compatible with standard UPC connectors (SC, FC, ST, LC (male & female)), as well as an optional APC SC connector for versatility.
- Bright 3.5-Inch TFT LCD Display: Clear 3.5-inch screen for real-time inspection and easy viewing.
- Accurate Resolution: Detects to better than 1μm, providing accurate determination of defects on the fiber endface.
- Long Battery Life: Rechargeable 4000mAh lithium battery lasts a minimum of 7 hours of continuous use after 4 hours of charging and has the option of charging via a USB port.
- Recording and Playback: Real-time recording option and saves images/videos as 640×480 JPEG/MPEG formats onto a TF card (32GB max) for file management.

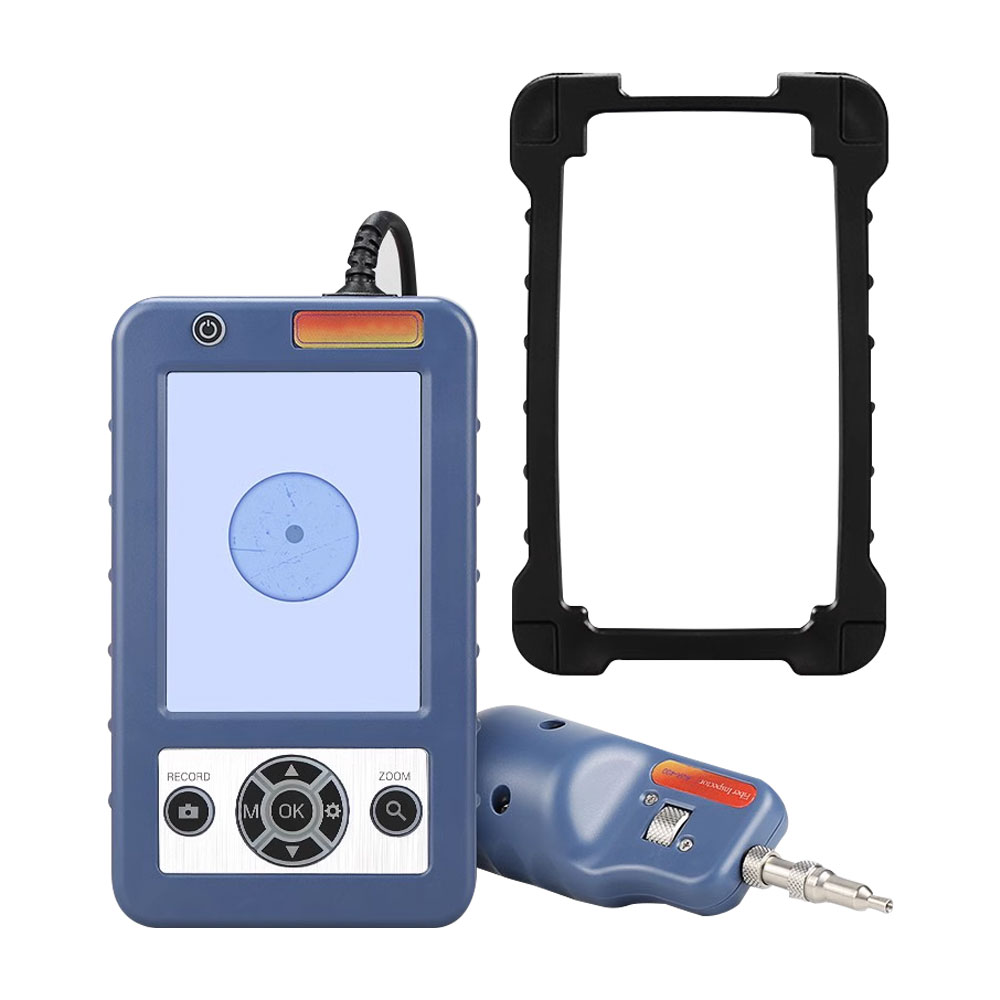

- Durable: Removable silicone cover to help reduce damage caused by drops, hits and general bumps and prolong the life of the device.
- Lightweight and Portable: Thin and lightweight, compact (139×48×48 mm) and weighs only 100g, the device can be held comfortably, or can be taken out into the field easily.

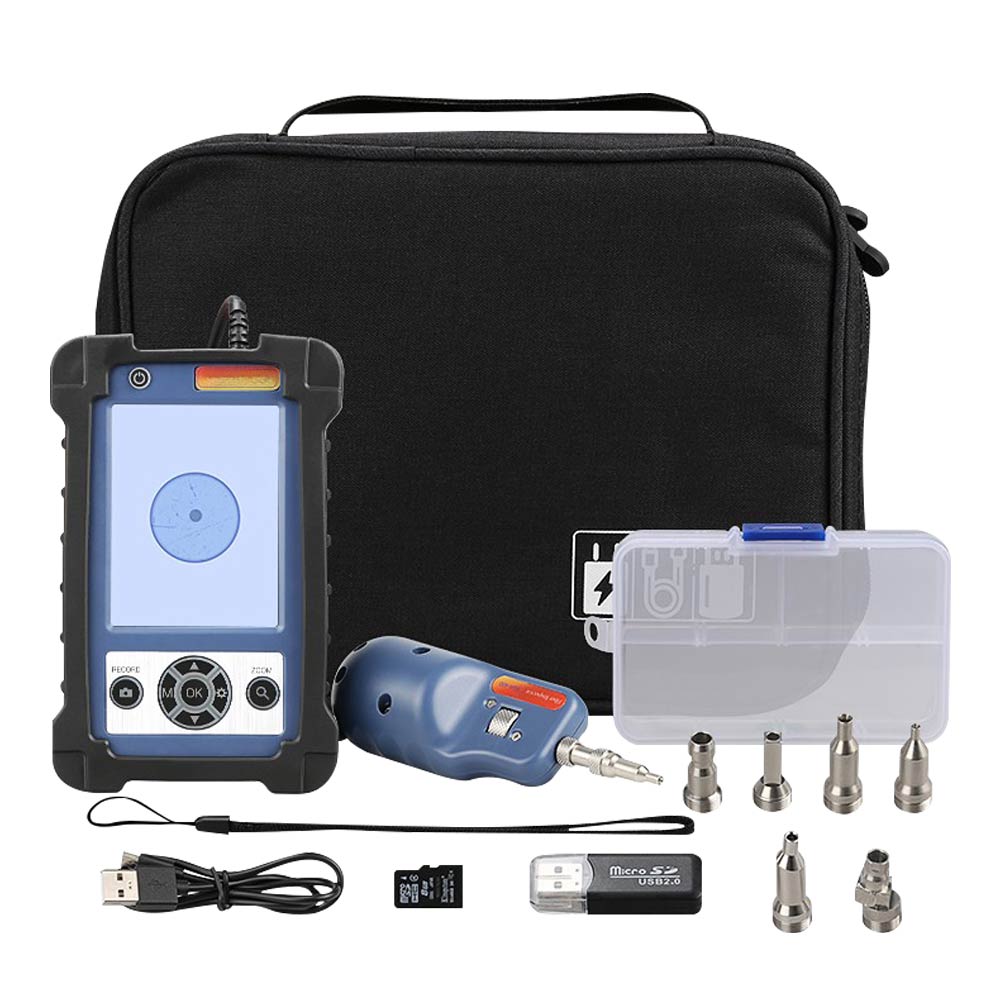

- Complete Accessory Pack: Comes with adaptors for all connector types, a USB cable, a TF card with reader, a lanyard and a case to carry it all into the field for full use.
