| Model | G2 Fiber Optic Cable Tester |
| Function | Optical Power Meter, Cable Tester |
| Supported Wavelengths | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 nm |
| Wavelength Range | 800–1700 nm |
| Measurement Range | -70 to +6 dBm / -70 to +10 dBm / -50 to +26 dBm |
| Measurement Accuracy | ±5% |
| Detector Type | InGaAs |
| Standard Interfaces | FC, SC, ST (Universal 2.5mm) |
| Display Type | LCD |
| Display Resolution | 0.01 dBm |
| Calibration | User self-calibration supported |
| Auto Power Off | Yes |
| Backlight | Yes (on/off selectable) |
| Power Supply | Rechargeable lithium battery (3.7V) / USB |
| Battery Capacity | 900mAh (typical) |
| Battery Life | Up to 20 hours continuous use |
| Charging Interface | Micro USB |
| Visual Fault Locator | Optional, 2mW/5mW/10mW (varies by listing) |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Dimensions | 40 x 17 x 125 mm |
| Weight | 87g |
| Detection Area | 300μm |
| Body Material | ABS Plastic |
| Application | FTTH, CATV, Data Center, Telecom, Maintenance |
| Certification | CE, RoHS |
-29%

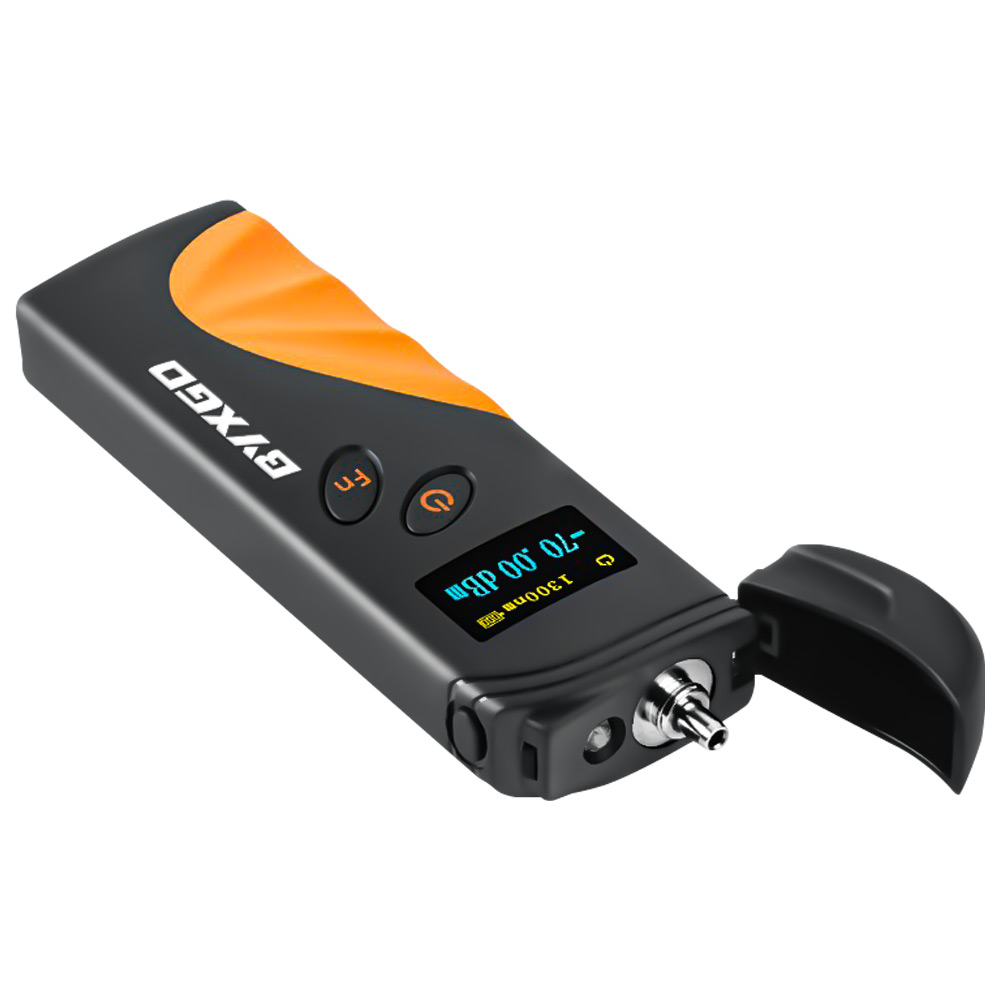

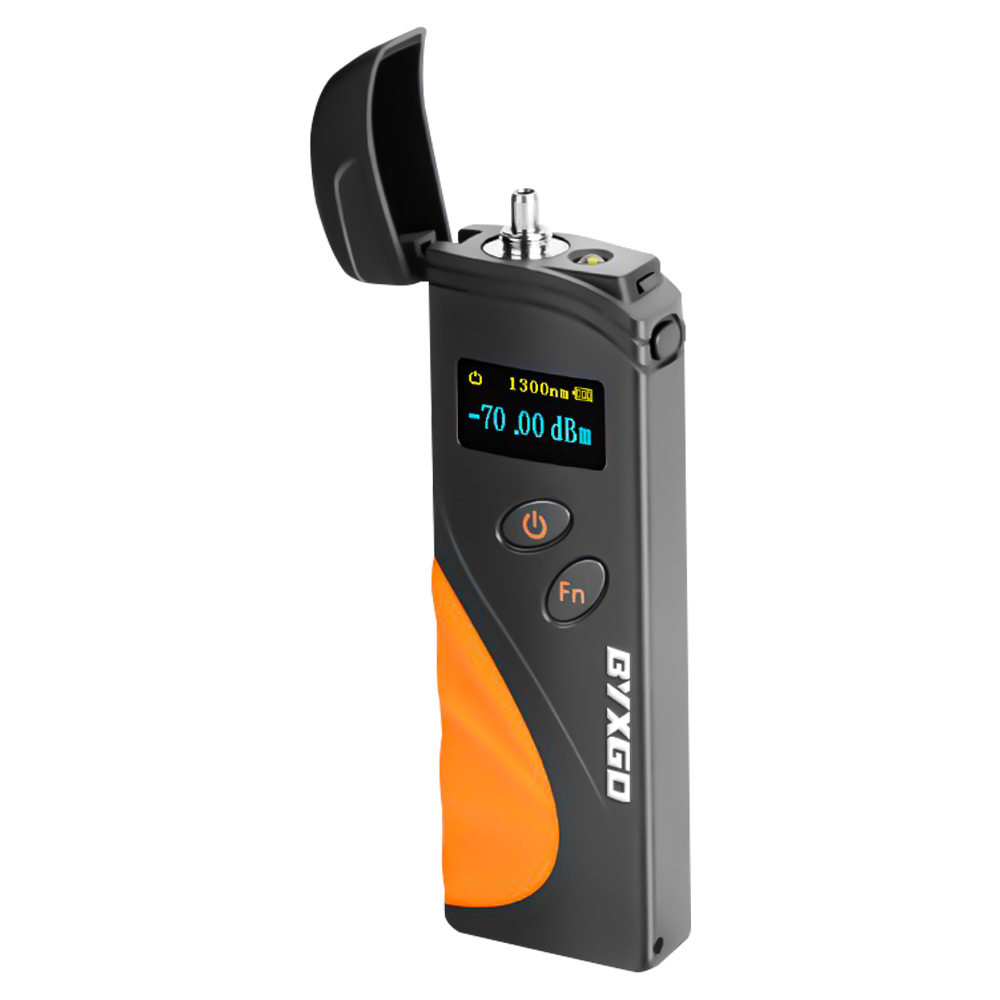

G2 Fiber Optic Cable Tester FTTH Optical Power Meter 9 Wavelengths -70 ~ +10 dBm FC SC ST Interfaces Rechargeable
Wide Measurement Range: This product measures optical power within a wide range of -70 to +6 dBm / -70 to +10 dBm / -50 to +26 dBm.
9 Wavelengths Supported: Accurate measurements cover wavelengths of 850/980/1300/1310/1490/1550/1625 nm.

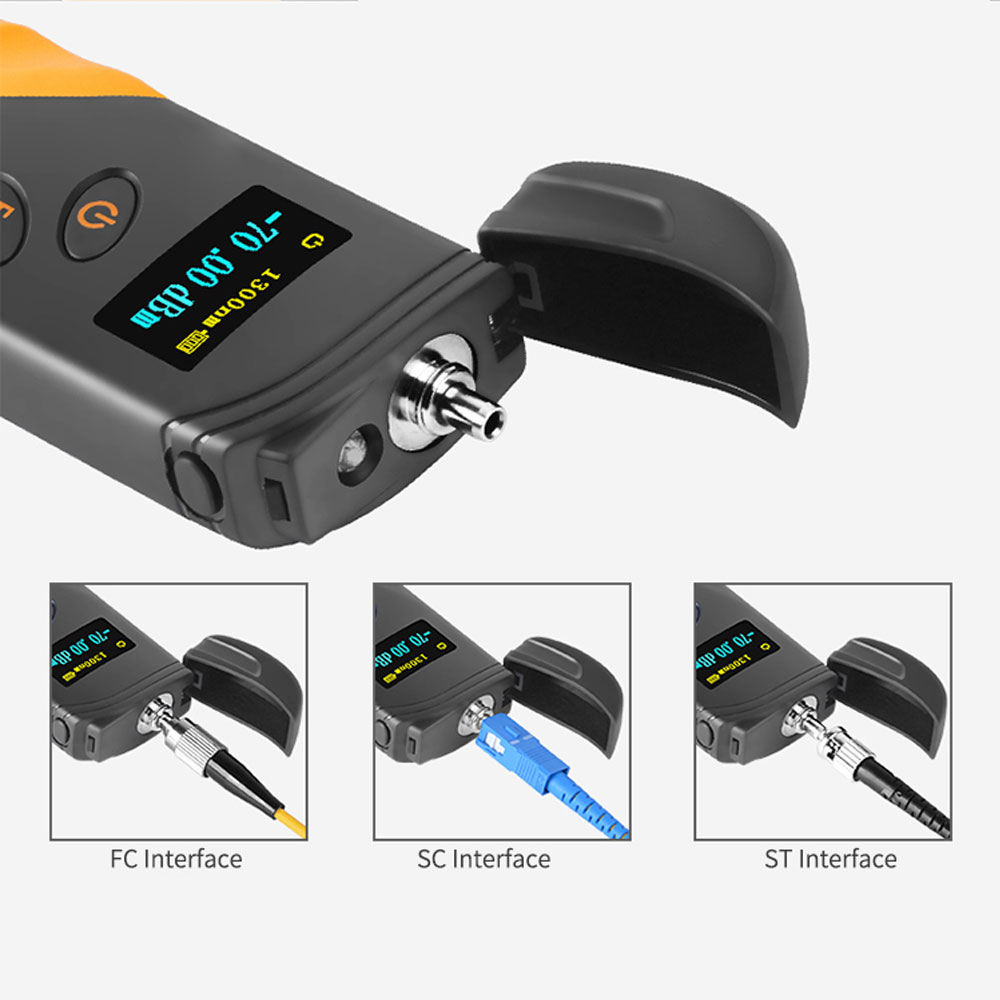

Multiple Interfaces: The equipment operates with FC, SC, or ST, whatever is acceptable per end to end test.

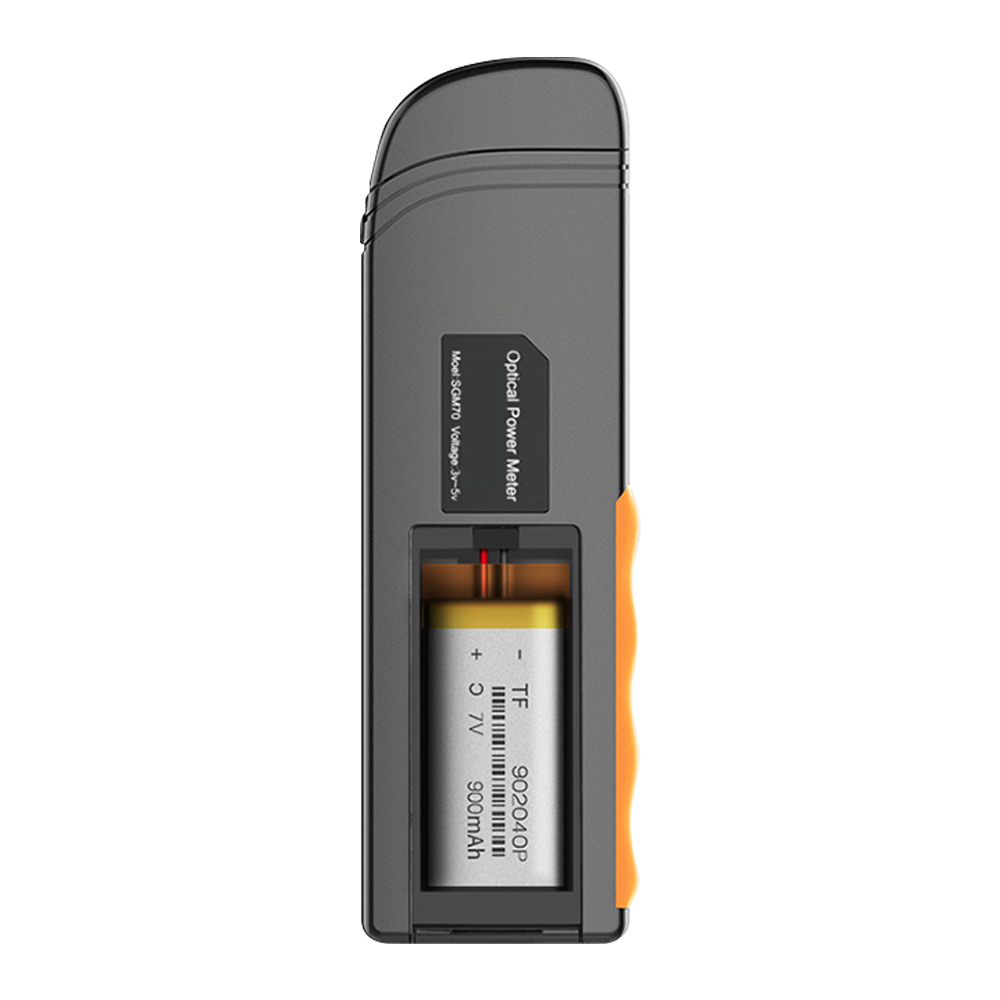

Rechargeable Battery: Rechargeable battery that is eco-friendly and can operate for a long time before needing to be recharged.

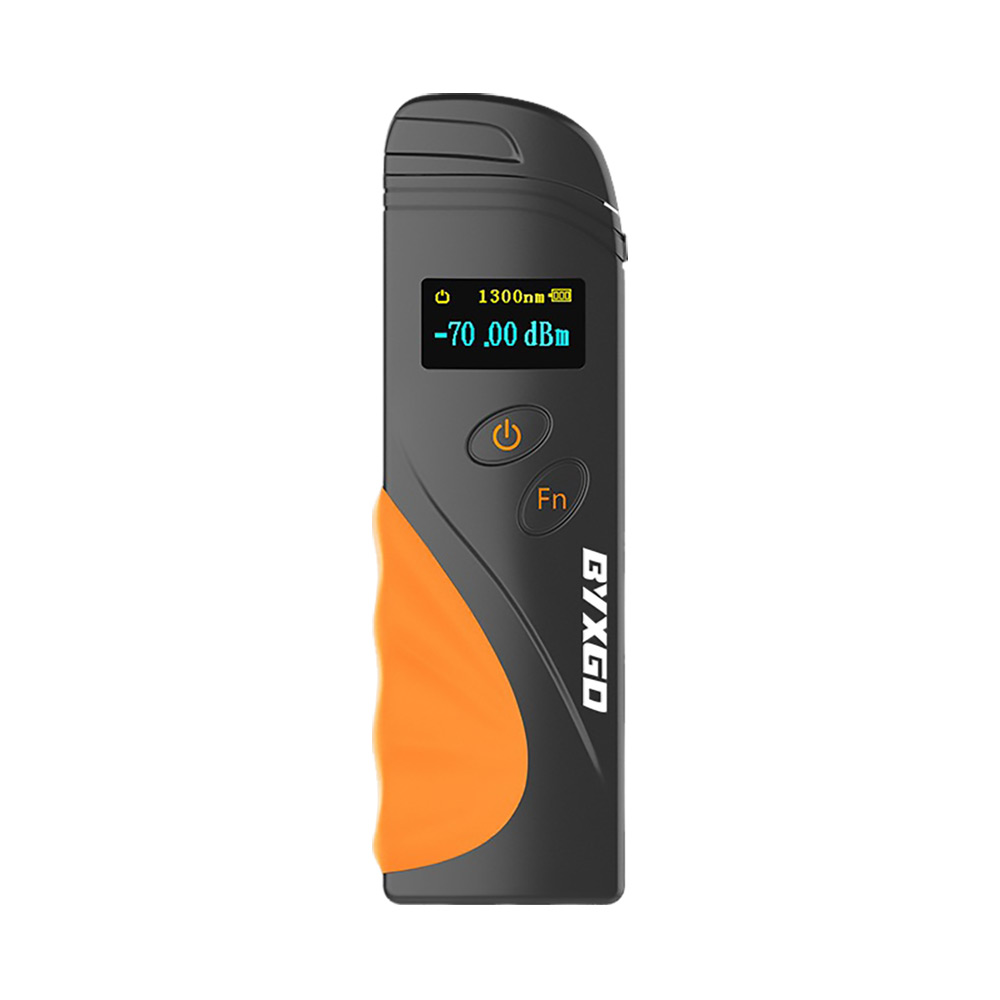

OLED Hi-Def Display: High-definition OLED display allows for clear, easy-to-read data.
Strong Light Flashlight: The product includes a flashlight for easy visibility when testing in dark areas.
Factory OEM/ODM: If ordering in bulk, custom branding and other features can be configured.
Portable and Compact: The product is very lightweight and portable to be used in the field and during on-site testing.
Easy Operation: Our product has very easy and simple controls to allow for fast and easy testing.
Durable: The equipment is designed to withstand time and can be used in rugged environments.
FTTH Ready: The equipment is ideal for FTTH installs, maintenance, and troubleshooting.
Power Off Automatically: Needs no manual shut-off and will conserve battery.
Price range: $20.00 through $28.00
