| Product Type | Fiber Optic Adapter FC/ST Hybrid Simplex (Female to Female) |
| Connector Type | FC Female to ST Female |
| Fiber Mode | Singlemode and Multimode Compatible |
| Body Material | High-strength Zinc Alloy |
| Alignment Sleeve | Precision Zirconia Ceramic |
| Body Style | Simplex |
| Insertion Loss | ≤0.2dB |
| Repeatability | <0.1dB |
| Mating Durability | ≥1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Interchangeability | ≤0.2dB |
| Dust Cap | Included for both ends |
| Flange | Yes |
| Application | Telecom, CATV, LAN, ODF cabling, optical testing equipment, fiber optic transmission |
| Compliance | RoHS Compliant, Industry Standard |
| Dimensions | Length: 28.5mm, Width: 9mm |

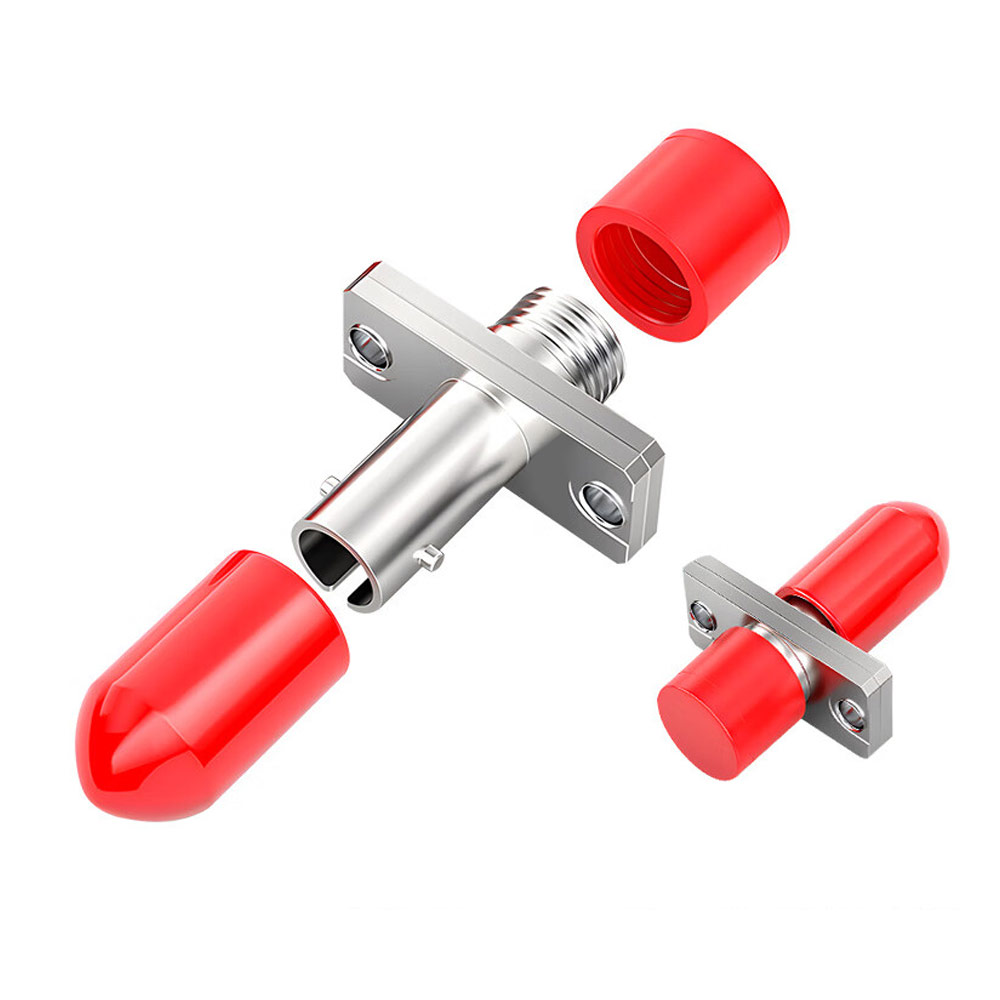

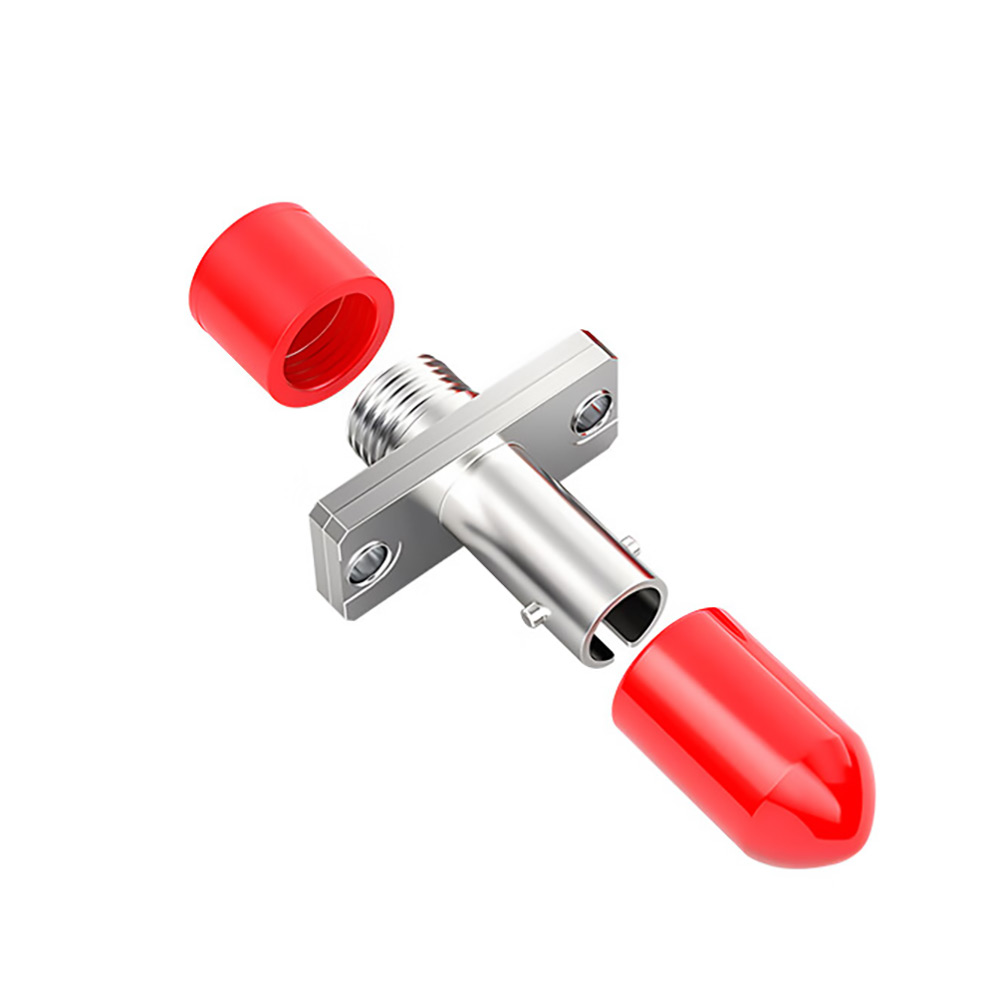

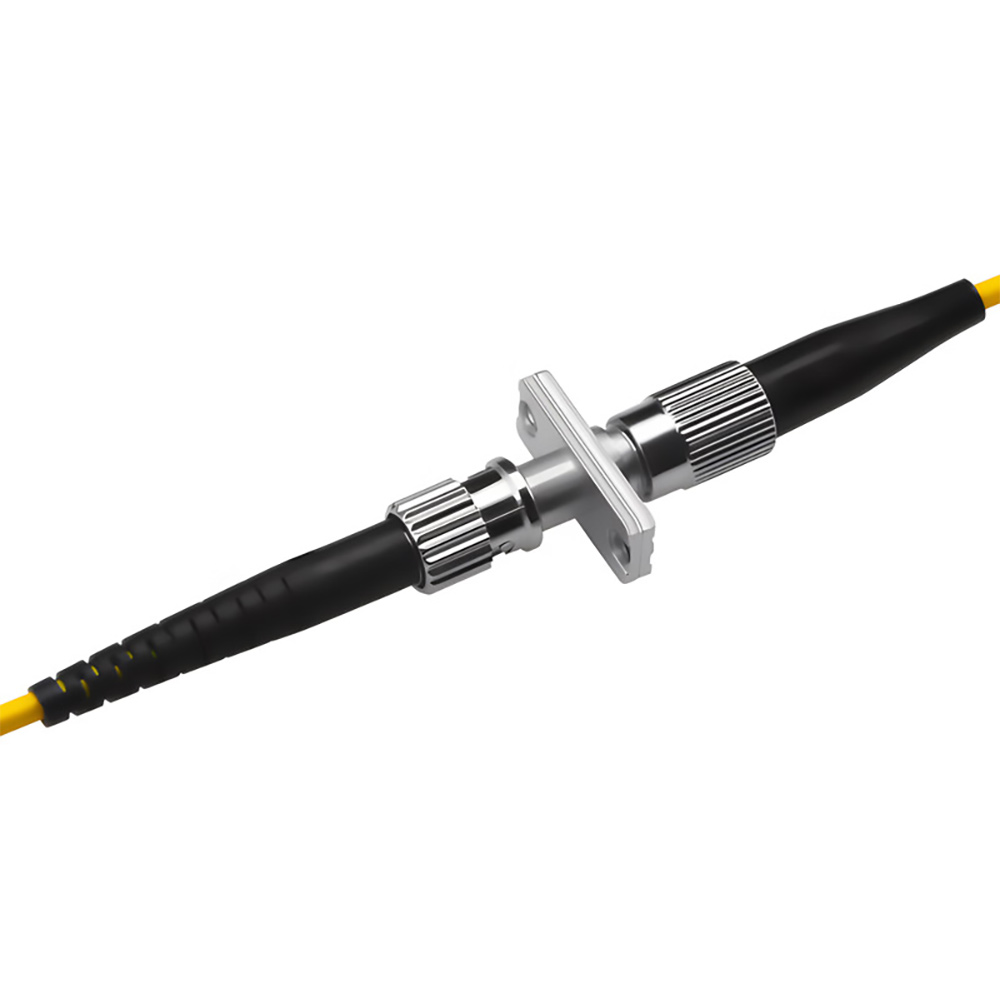

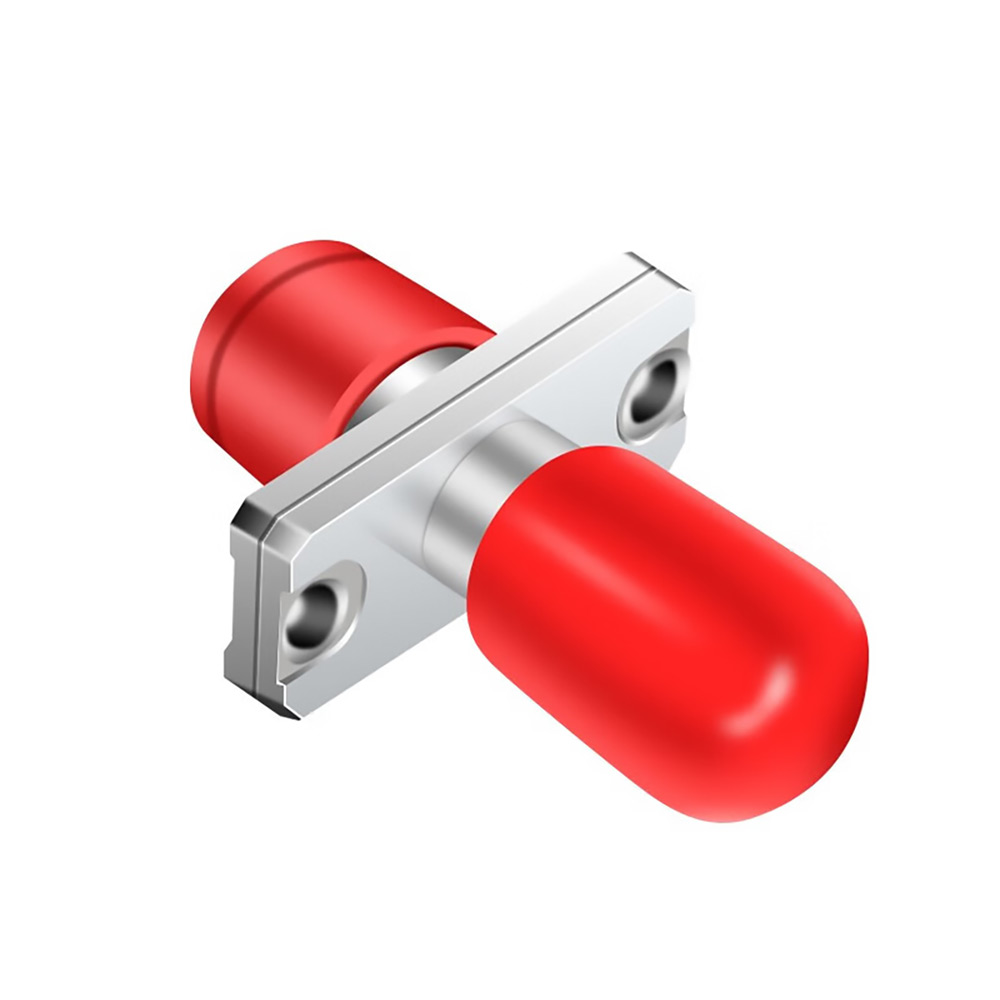

Fiber Optic Adapter FC/ST Hybrid Simplex Female to Female Adapter
- Hybrid Compatibility: Connects FC and ST interfaces, supporting the use of both single-mode and multimode fiber in a variety of deployment scenarios.
- Simplex Design: This Female-to-Female design ensures a secure, stable and simple fiber optic connection.
- High Strength Zinc Alloy Housing: The strong zinc alloy body offers protection and increased longevity.
- Ceramic Sleeve: Low insertion loss and good repeatability through precision-designed ceramic alignment sleeve.
- Low Insertion Loss: Insertion loss ≤ 0.2 dB limits signal attenuation while allowing a high quality transmission.
- Wide Operating Temperature: Capable for temperature use range -25°C to +70°C, for indoor and moderate outdoor applications.
- Dust Cap Protection: Equipped with dust caps, to maintain connection performance and mitigate contamination.
- High Repeatability: Rated for ≥1000 mating cycles while continuing to deliver consistent optical performance.
- Universal Application: For areas including, but not limited to, fiber optic communication systems, CATV, LAN, ODF cabling and fiber optic tester instruments.
- Easy Installation: The compact, user-friendly design allows for fast, tool-free installation or integration into a current setup.
Price range: $0.60 through $3.00
