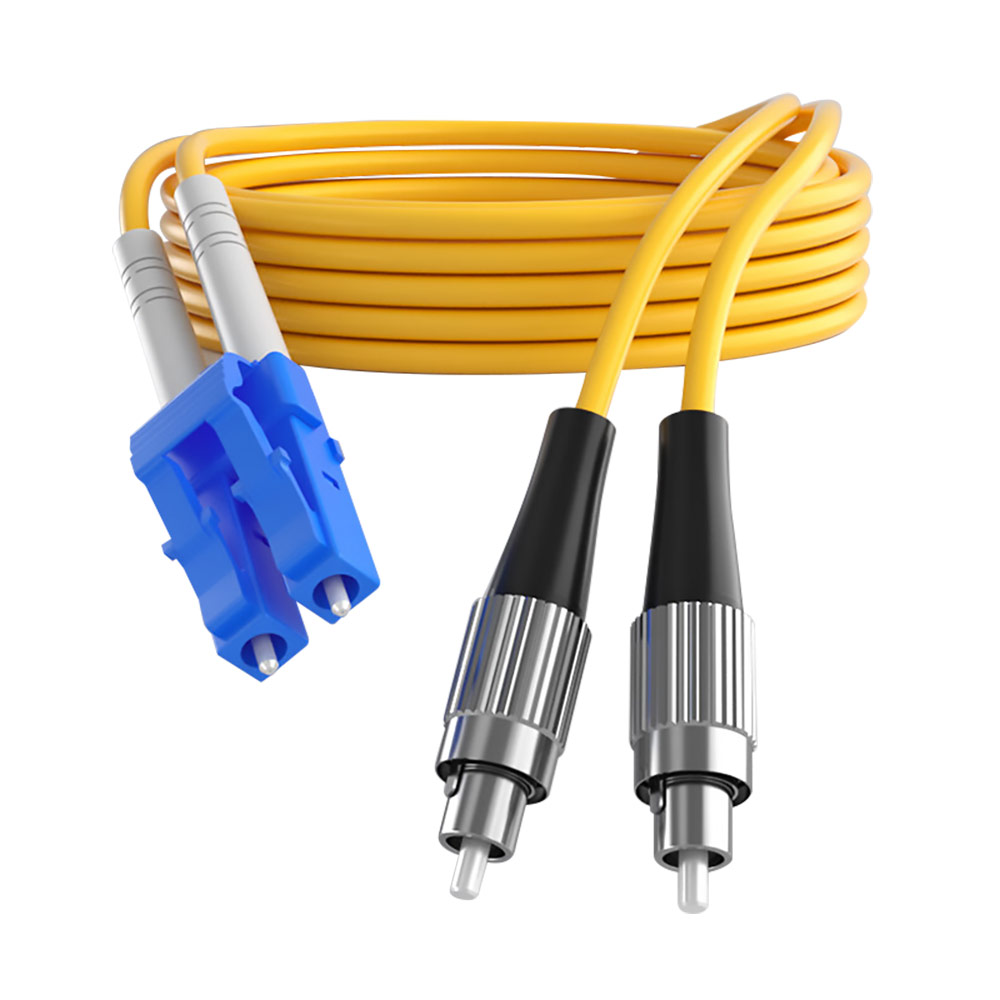

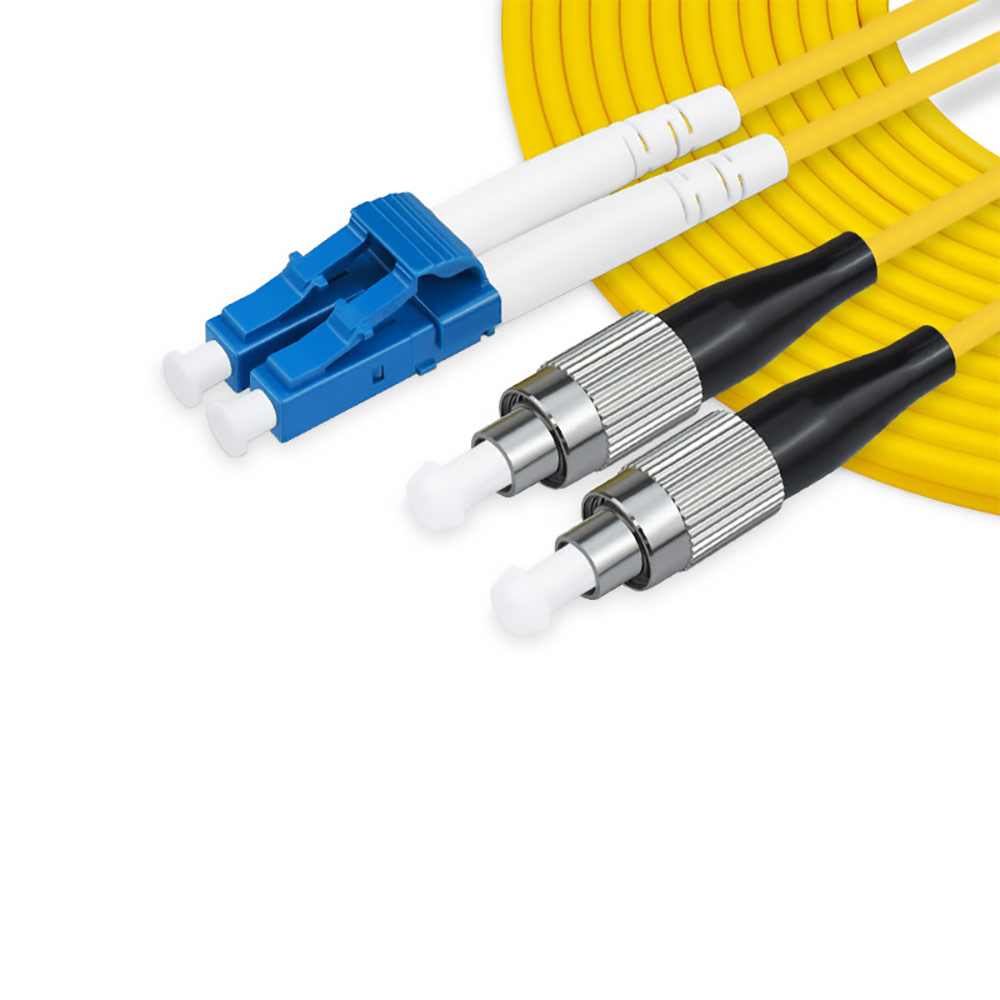

FC/UPC to LC/UPC Fiber Optic Patch Cable, Singlemode OS2, Duplex, 9/125μm, PVC

  • Fiber cables come in lengths from 1m up to 15m with the option for a custom length depending on your installation challenge.
  • Support different connector combinations other than just FC to LC, such as LC to SC, LC to ST, SC to SC, SC to ST, and ST to ST connectors, broadening installation capabilities.
  • FC connector: 9.8mm x 19.6mm x 59mm and LC connector with duplex clip: 10.75mm x 12.5mm x 50mm provide ease of installation in constrained spaces.
  • The default PVC jacket is durable and safe; options are available for different flammability ratings to comply with local regulations.

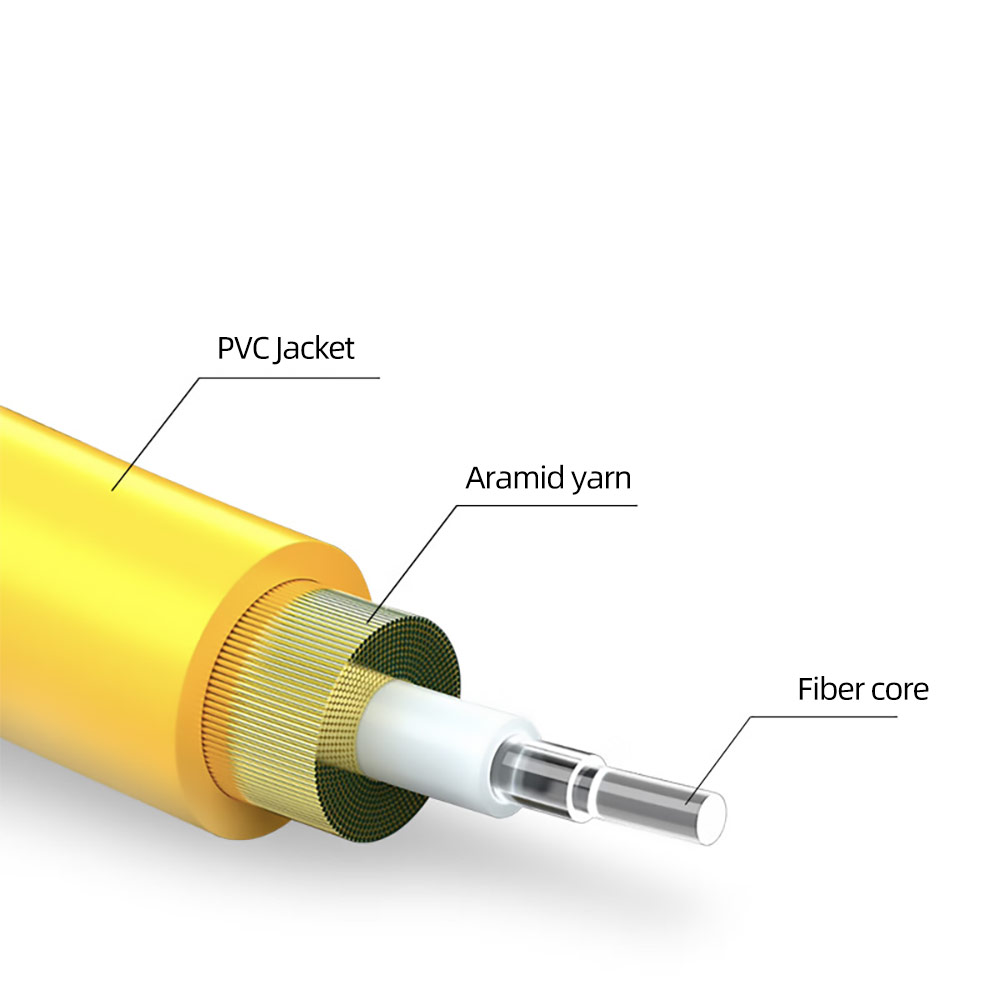

  • The fiber cable is made with high-quality 9/125μm OS2 singlemode fiber for low attenuation and bonding over long distances.

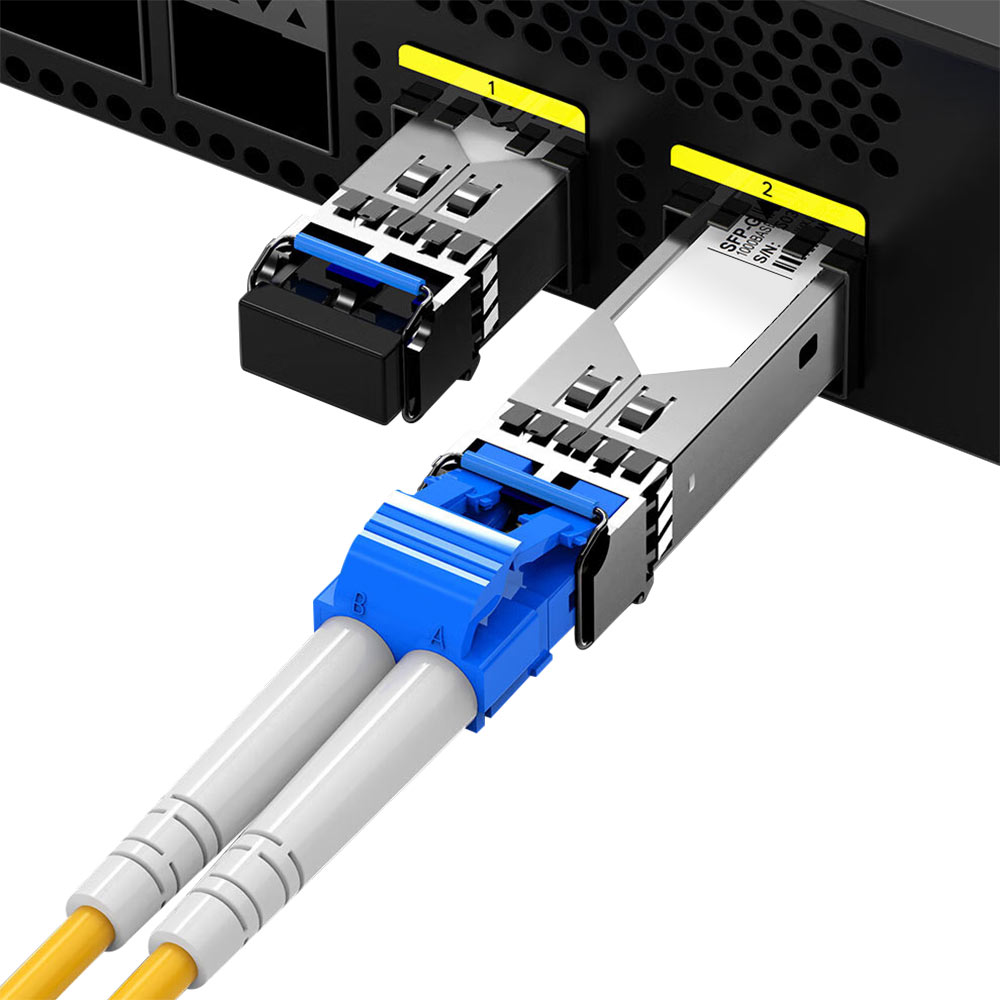

  • Duplex configuration enables simultaneous bidirectional data transmission and is well suited for high-speed networks.
  • Each fiber optic cable is tested 100% for insertion loss and return loss to maintain consistent, reliable optical performance.
  • Each cable is serialized for identification and traceability.
  • Bend-insensitive fiber reduces signal loss when routing tight bends or complex routing and installations.

Description

SpecificationDetails
Fiber TypeSinglemode OS2, 9/125μm

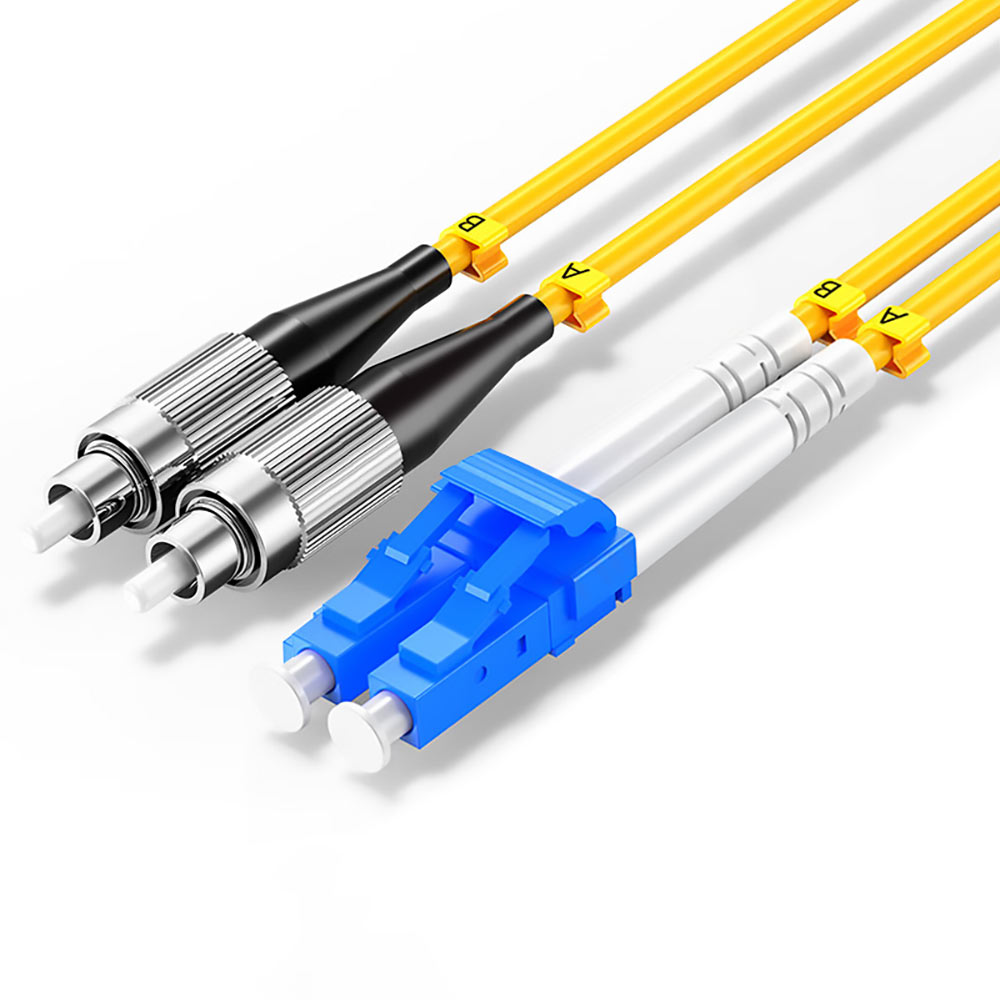

Cable ConfigurationDuplex FC/UPC to LC/UPC Fiber Optic Patch Cable
Connector AFC/UPC (9.8mm Height x 19.6mm Width x 59mm Depth)
Connector BLC/UPC Duplex (10.75mm Height x 12.5mm Width x 50mm Depth with duplex clip)
Typical Insertion Loss0.30 dB
Maximum Insertion Loss0.50 dB
Typical Return Loss-55 dB
Jacket MaterialPVC (default), OFNR flame-retardant option available
Cable DiameterStandard 2.0mm; custom diameters available
Length Options1m (3ft), 2m (7ft), 3m (10ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft); custom lengths available
Connector Types AvailableLC to LC, LC to SC, LC to ST, SC to SC, SC to ST, ST to ST, FC to LC
Testing100% tested for insertion loss, return loss, and optical performance
IdentificationUnique serial number and label with part number and length for traceability
Mechanical PropertiesExcellent mechanical strength and durability
Environmental ResistancePVC jacket protects against moisture, abrasion, and general wear
ApplicationsIdeal for telecom, data centers, and high-speed network infrastructure
Maintenance TipsClean connectors before mating to prevent signal loss caused by dust and contamination
