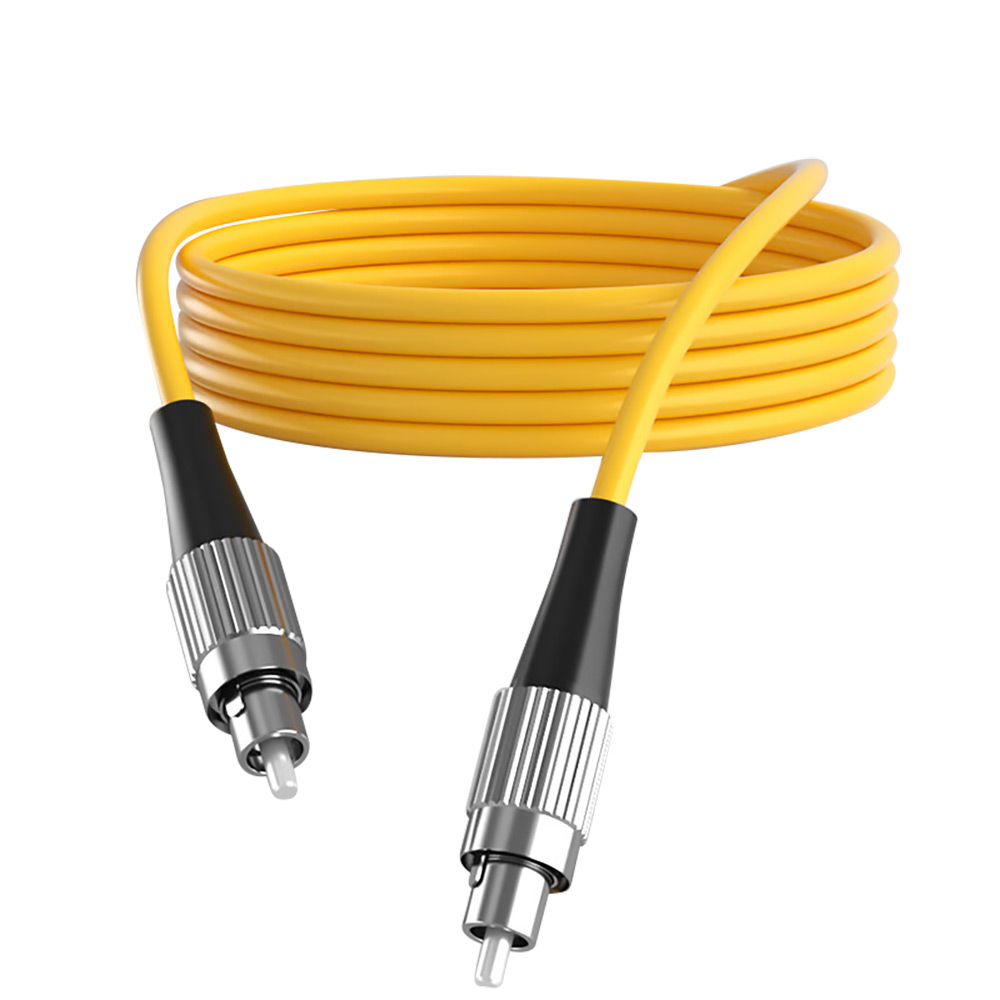

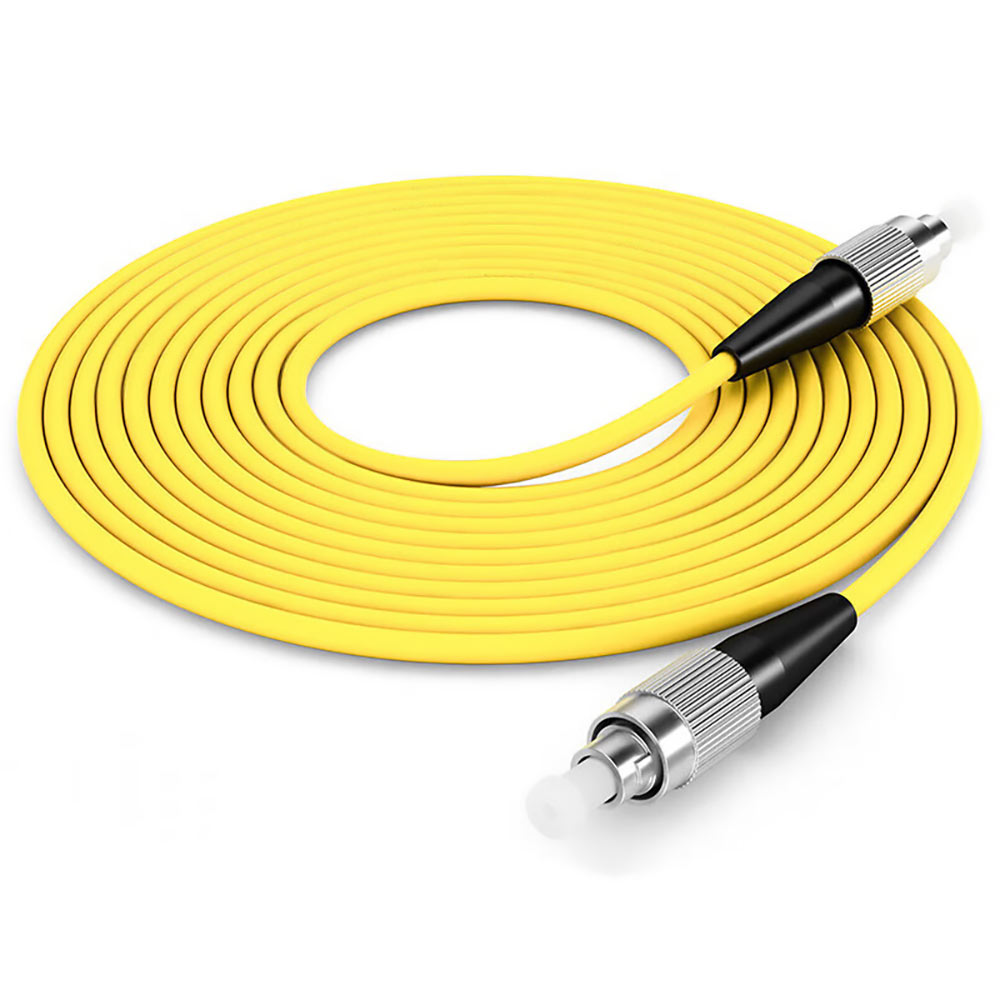

FC UPC Simplex to FC UPC Simplex Fiber Patch Cable, Single Mode, 9/125μm, LSZH, 2.0mm Tight-Buffered, Yellow

Dependable FC UPC Connectors: Ensure a high quality connection with low signal loss.
Single mode 9/125μm, for long distance transmission with outstanding signal fidelity.
Heavy duty outer jacket: Provides superior resistance to environmental and most abrasion, extending the service life.
2.0 mm tight-buffered cable: Provides high flexibility & durability for easy installation and handling.
Yellow outer jacket: Lets you identify single mode fiber cables quickly and easily.
Custom lengths available: 100 meters is standard but can be customized per project.
Wide compatibility: Ideal for FC FC fiber patch cord applications in telecom, data centers and enterprise networks.
Quick & easy to install: Constructed for easy handling and quicker deployment.

Product Name	FC UPC Simplex to FC UPC Simplex Fiber Patch Cable
Fiber Type	Single Mode (OS2)
Core/Cladding Diameter	9/125 μm

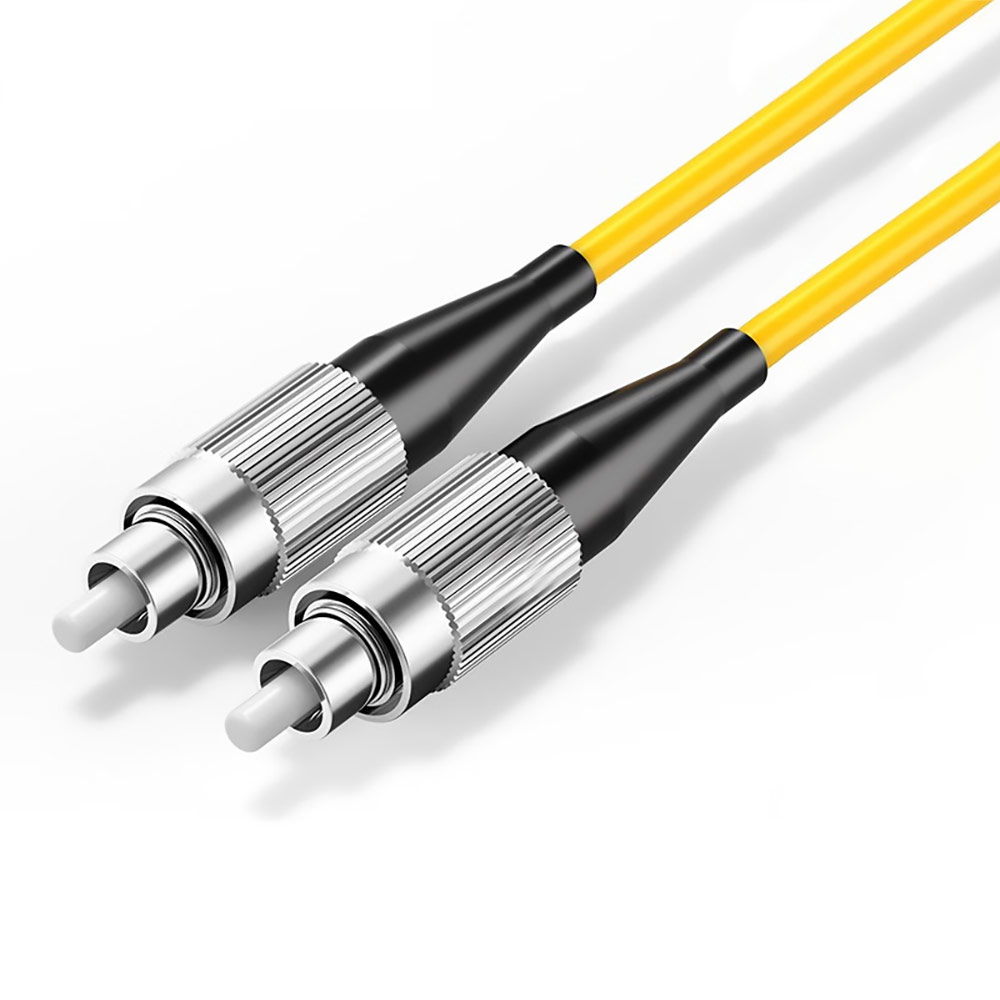

Connector Type	FC UPC (Ultra Physical Contact)
Polish Type	UPC (Ultra Physical Contact)

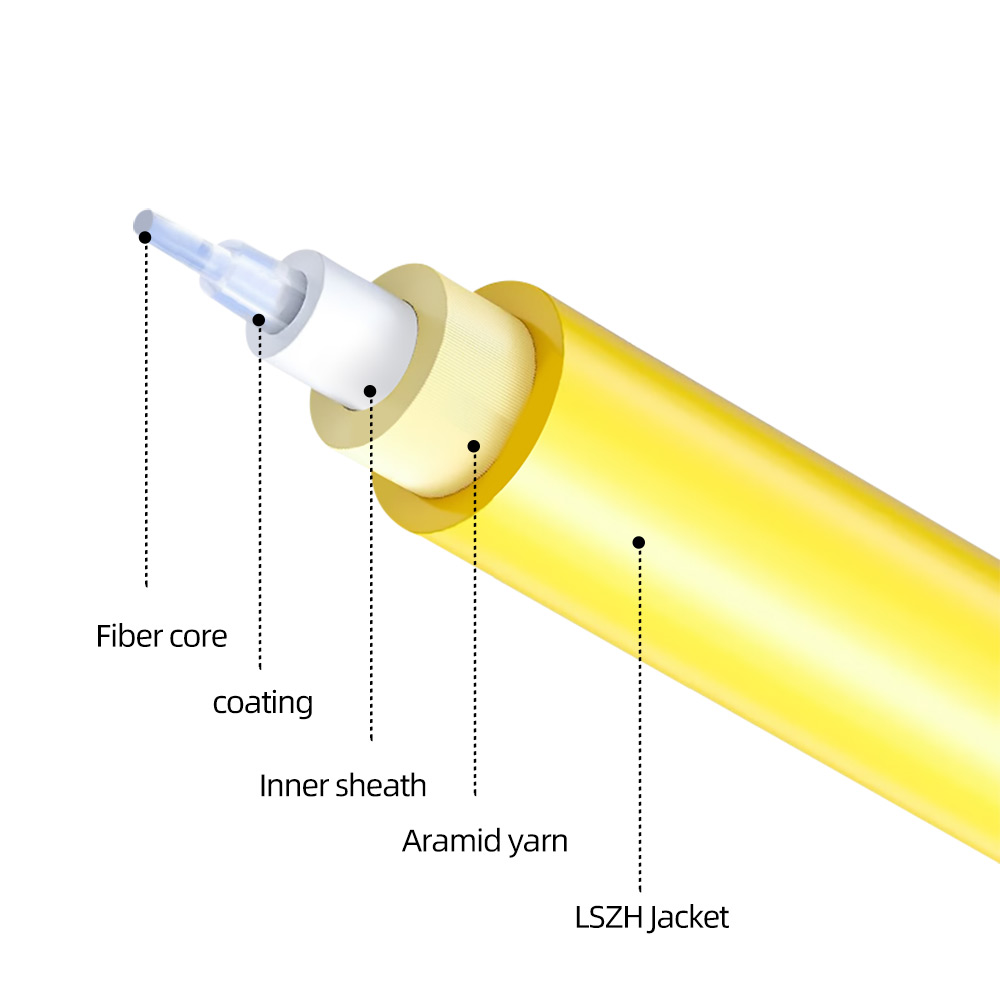

Cable Structure	2.0mm Tight-Buffered Fiber Patch Cord
Cable Jacket Material	LSZH (Low Smoke Zero Halogen)
Cable Jacket Color	Yellow (Standard for Single Mode Fiber Patch Cords)
Insertion Loss	≤ 0.3 dB (Typical)
Return Loss	≥ 50 dB
Operating Temperature Range	-40°C to +75°C
Storage Temperature Range	-40°C to +85°C
Minimum Bend Radius	30 mm
Cable Tensile Strength	≥ 100 N
Cable Flame Rating	LSZH (Flame Retardant and Low Smoke Emission)
Length Options	Standard 100 meters; customizable lengths available for fiber patch cord to fit project needs
Application	Ideal for telecom, data centers, enterprise networks, and optical fiber communication systems
Compliance & Standards	Meets TIA/EIA, IEC, and Telcordia GR-326 standards
Compatibility	Compatible with all FC FC fiber patch cord systems
Packaging	Individually tested and packaged to ensure quality and performance
