| Product Type | FC-FC Fiber Optic Adapter, Simplex, Large D-Type Flange |
| Housing Material | Nickel-plated brass |
| Sleeve Material | Zirconia ceramic |
| Flange Type | Large D-Type flange with screw holes |
| Insertion Loss | ≤ 0.20 dB |
| Return Loss | ≥ 50 dB (UPC polish) |
| Durability | Over 500 mating cycles |
| Operating Temperature | -40°C to +75°C |
| Connector Compatibility | FC connectors |
| Key Width | 2.0 mm ± 0.02 mm |
| Application | Telecommunications, CATV, LAN, Metro networks, industrial use |
| Mounting Style | Panel or rack mounting |
| Compliance | IEC, GR-326 |
Hot

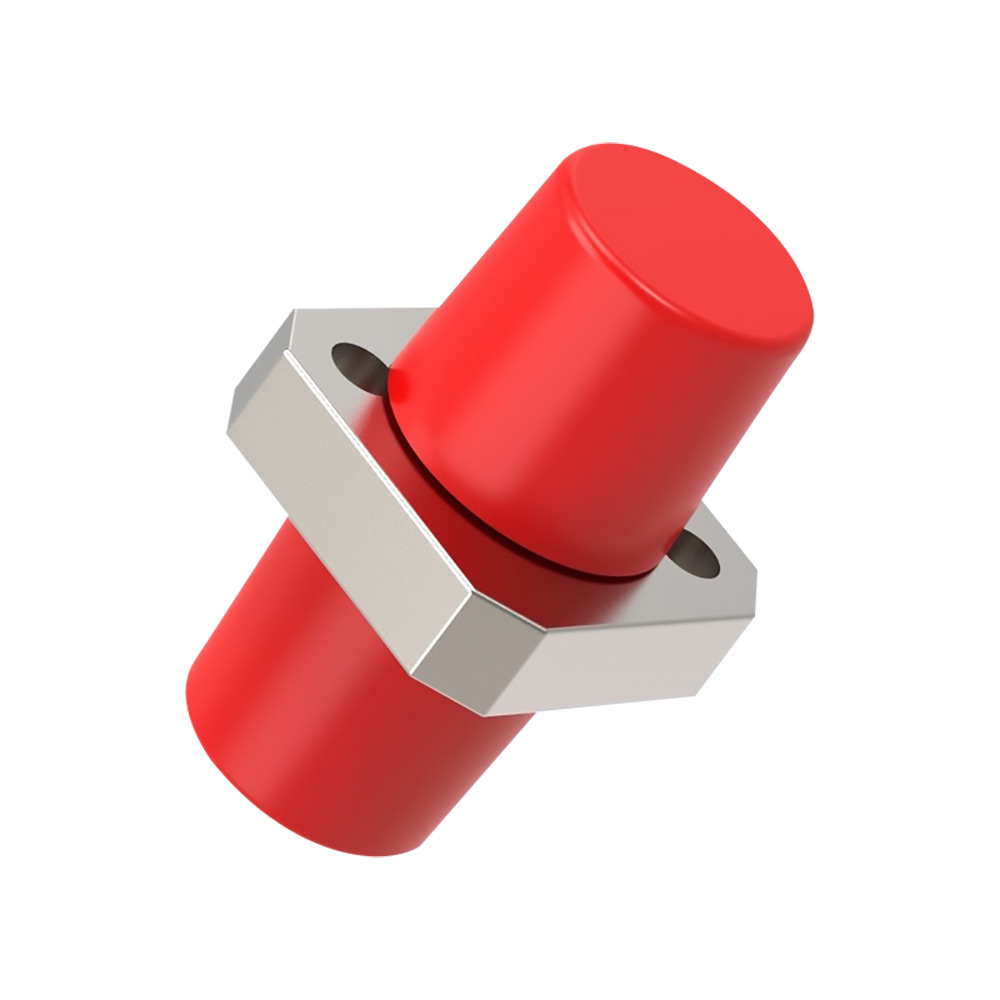

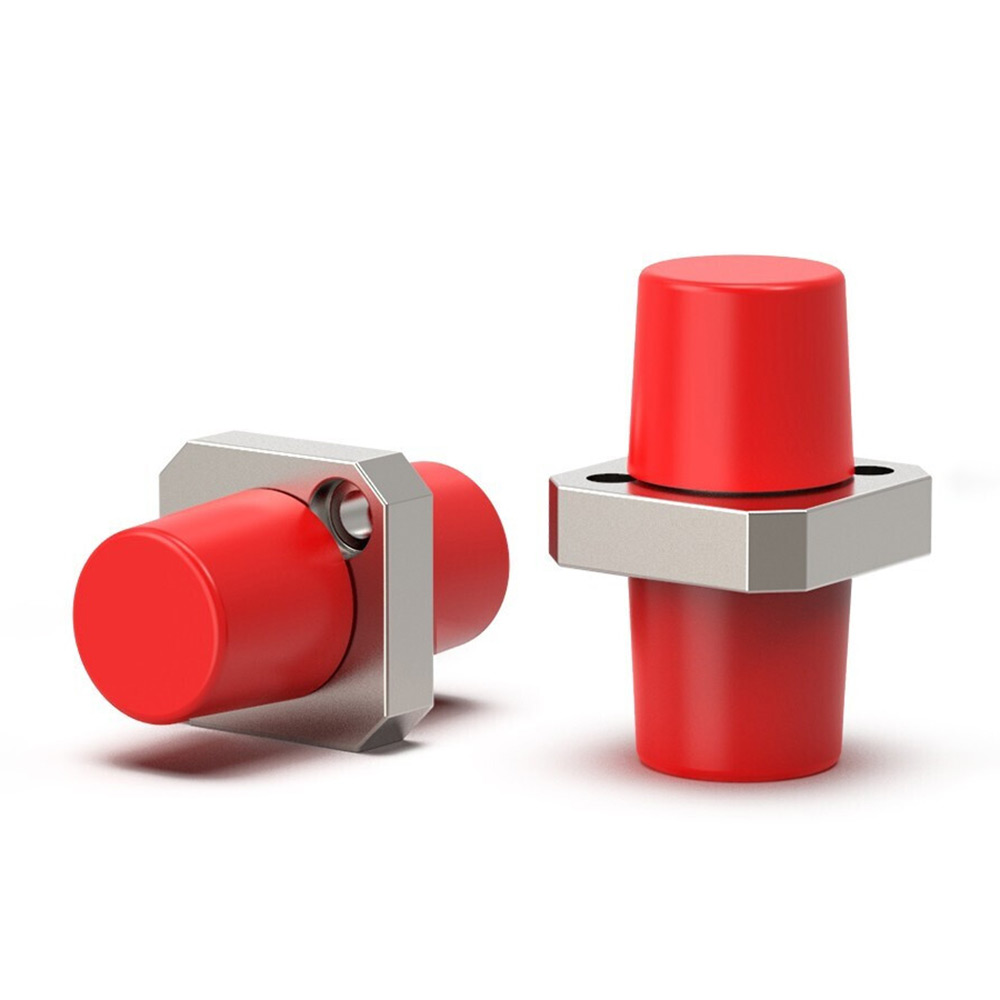

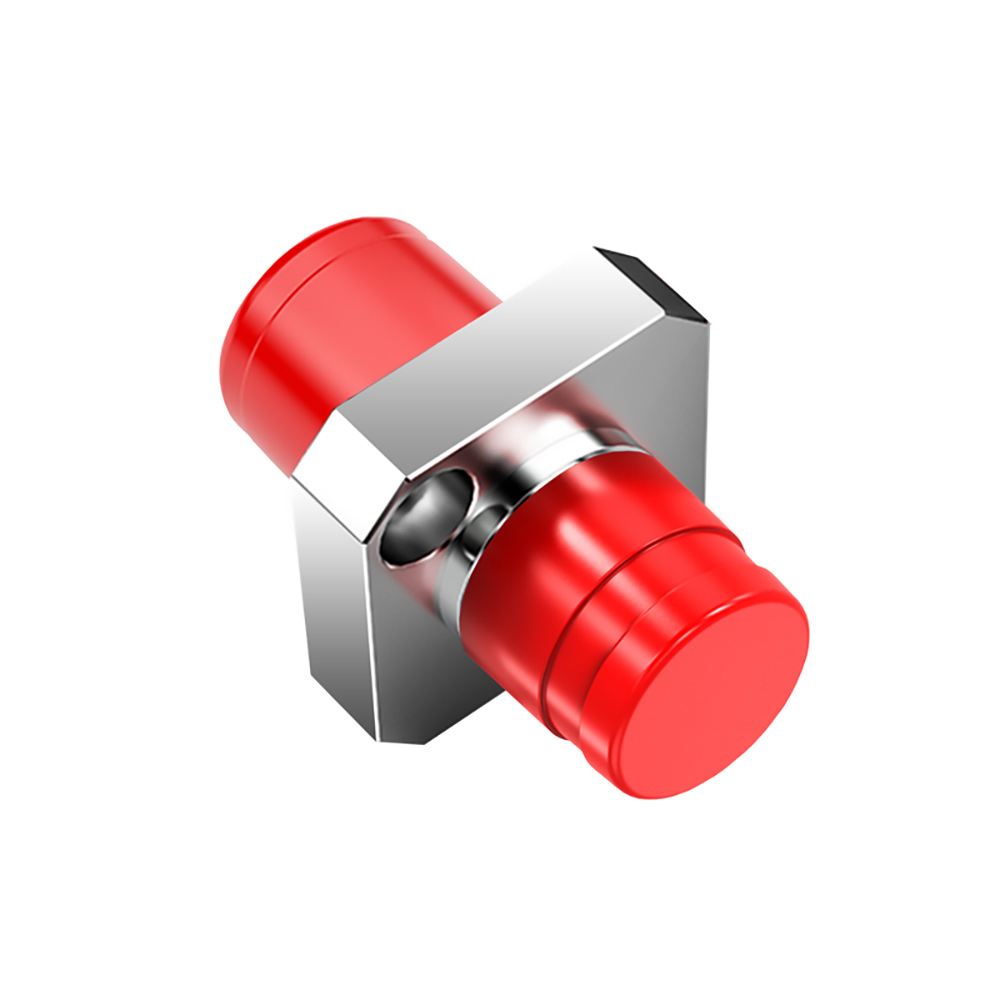

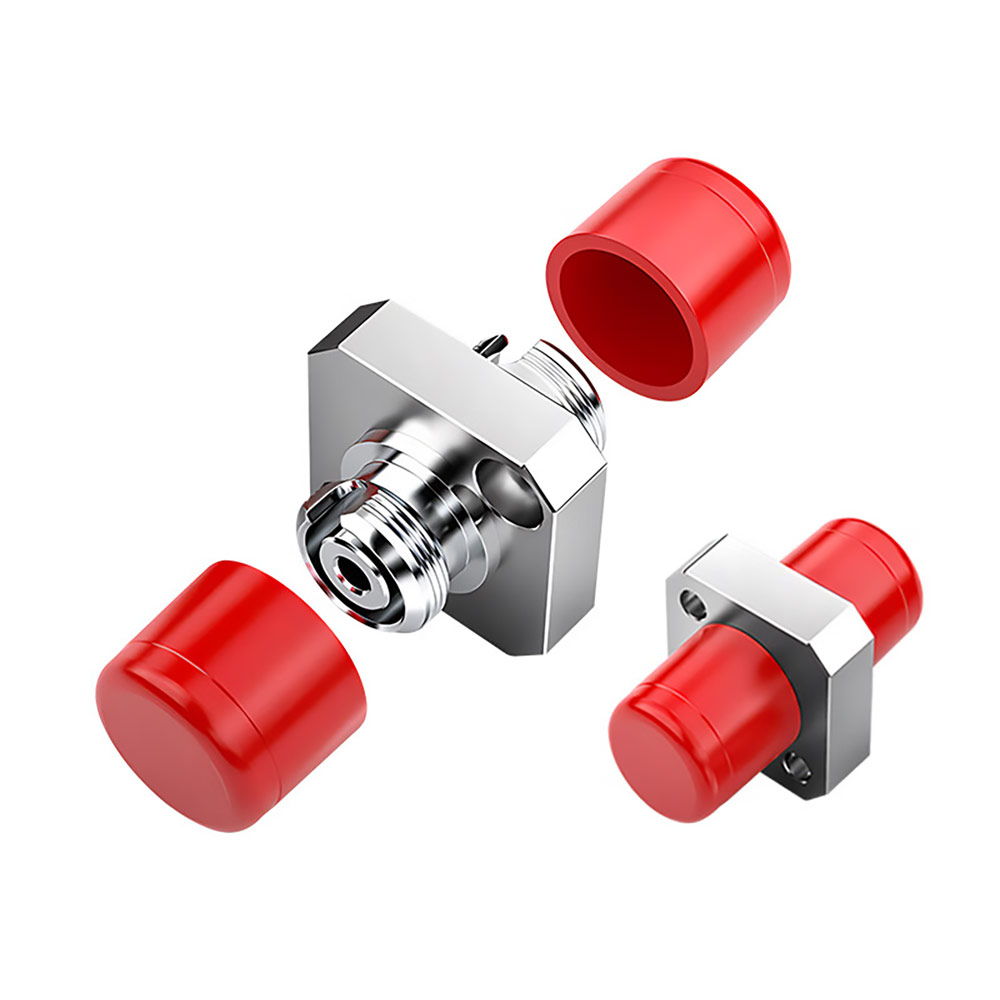

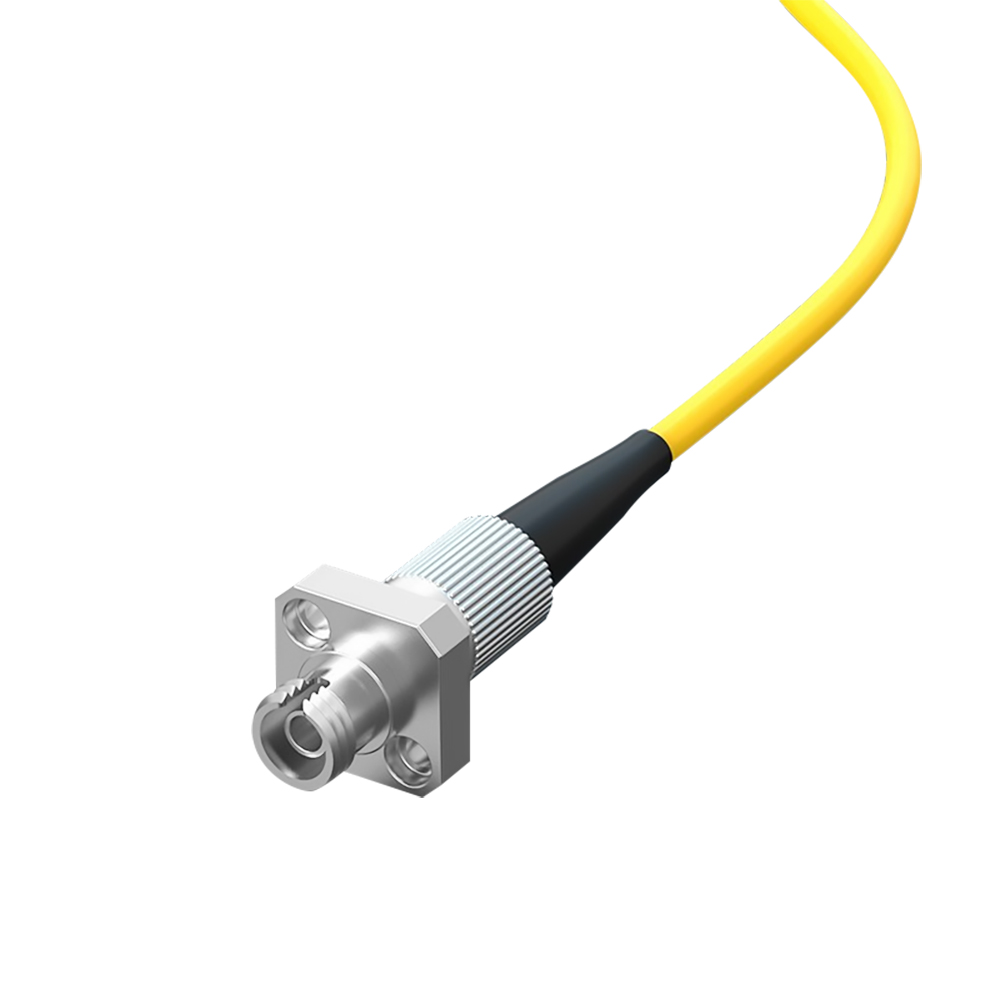

FC-FC Fiber Optic Adapter Simplex Large D-Type Flange Connector
- Durable Nickel Plated Brass Housing: Guarantees resistance to corrosion and mechanical strength.
- Simplex design: Allows for easy and reliable fiber optic connections with only a single fiber.
- Large D-type flange: Provides a secure mounting option with screw holes for the greatest stability when the connector is installed on a panel.
- Zirconia ceramic sleeve: Provides the lowest possible edge reflection for fiber alignment.
- Low insertion loss: Guarantees signal integrity with very little signal loss.
- High return loss: Ensures signal reflection is minimized helping optimal network performance.
- Wide operating temperature: Operates in a range from -40°C to +75°C with reliability.
- Highly durable design: Provides dependable performance after over 500 mating cycles.
- Industry standard compliant: Promotes compatibility and interoperability with FC connectors.
Price range: $0.60 through $4.00
