| Parameter | Specification |
|---|---|
| Model | FBT Fiber Optic Splitter Small Box |
| Configuration Options | 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 1×128 |
| Input Types | 1×N or 2×N |
| Split Ratio Range | 50:50 to 80:20 (customizable) |
| Operating Wavelength | 1310nm, 1490nm, 1550nm |
| Fiber Type | Single-mode fiber (SMF) |
| Insertion Loss | Low insertion loss; varies by split ratio (e.g., ~3.5 dB for 1×8) |
| Return Loss | ≥ 50 dB |
| Polarization Dependent Loss | ≤ 0.10 – 0.20 dB |
| Directivity | ≥ 55 dB to ≥ 60 dB |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | ABS Plastic Box |
| Connector Type | FC/UPC |
| Compliance Standards | Telcordia GR-1209, GR-1221; IEC 60793-2-10; RoHS compliant |
| Applications | FTTH, FTTx, GPON, CATV, LAN, WAN, Metro Networks |
| Environmental Protection | Suitable for indoor and outdoor installation |

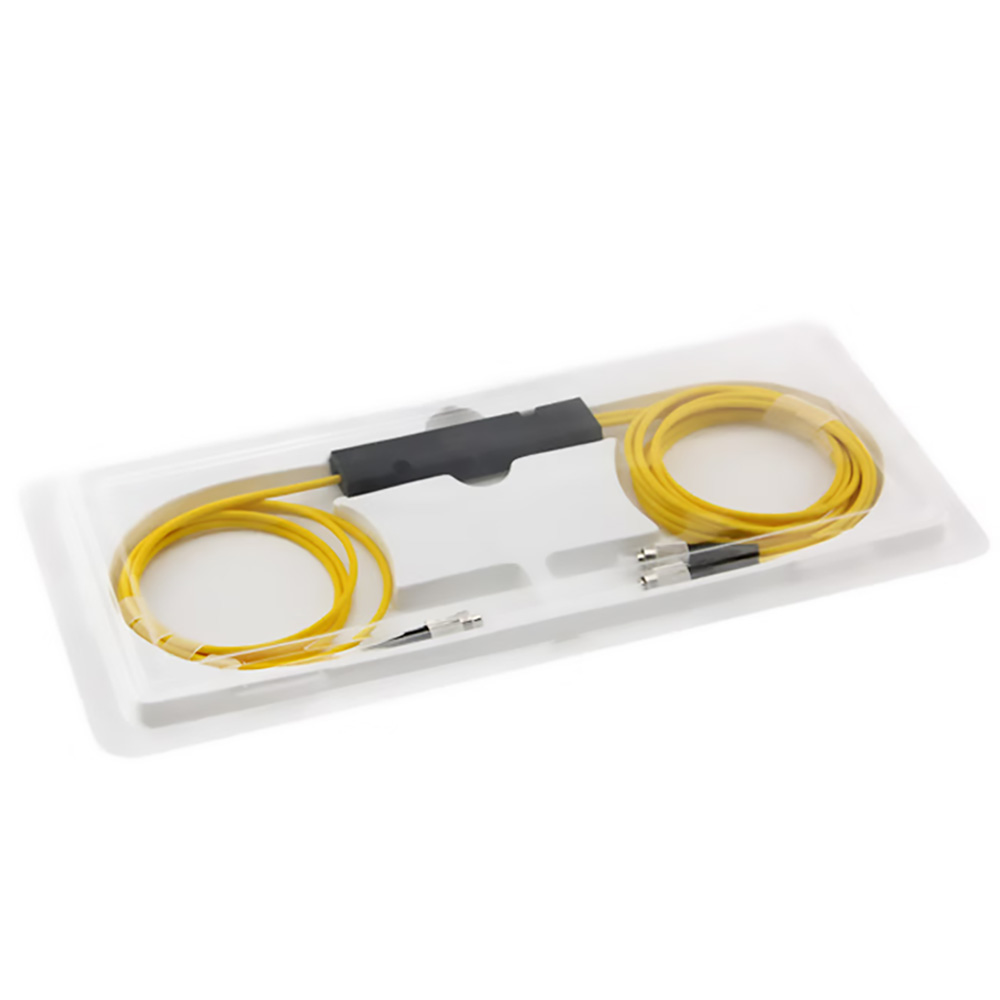

| Packaging Options | Customizable packaging based on customer requirements |
| Dimensions | Compact small box design for easy installation |

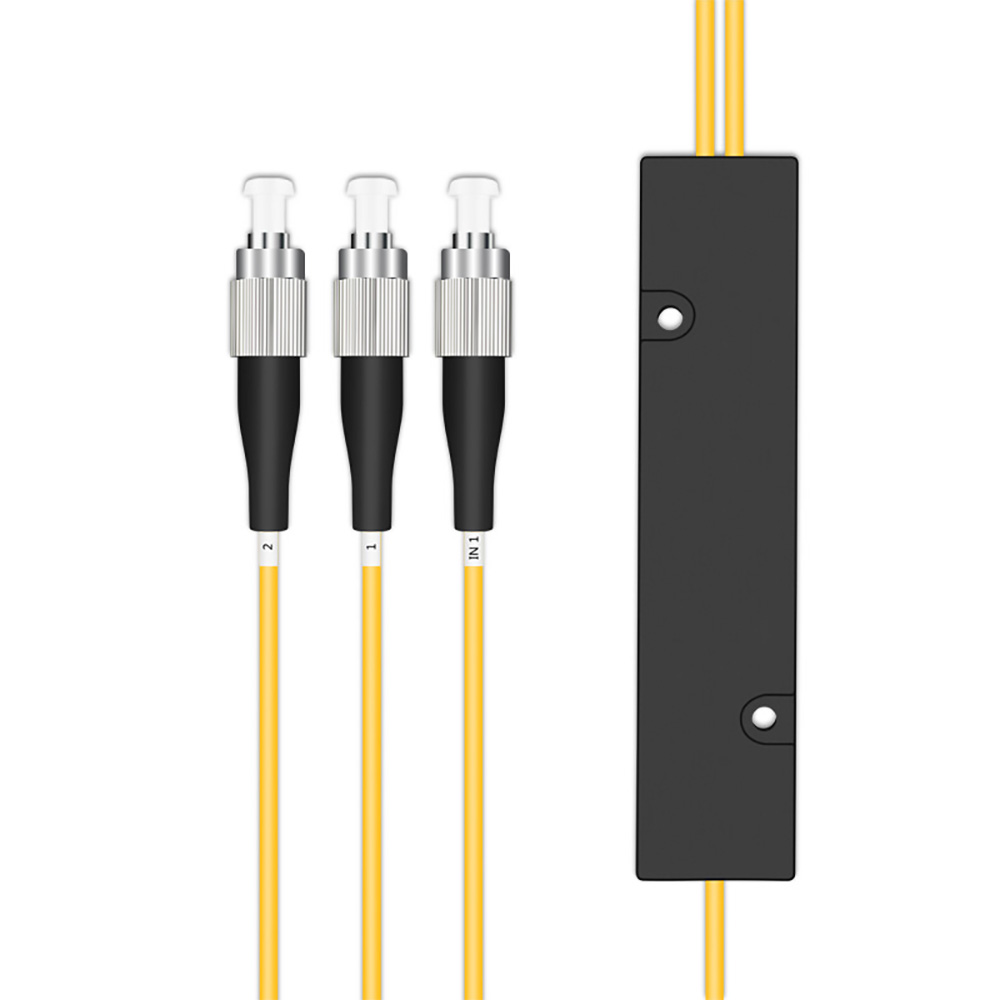

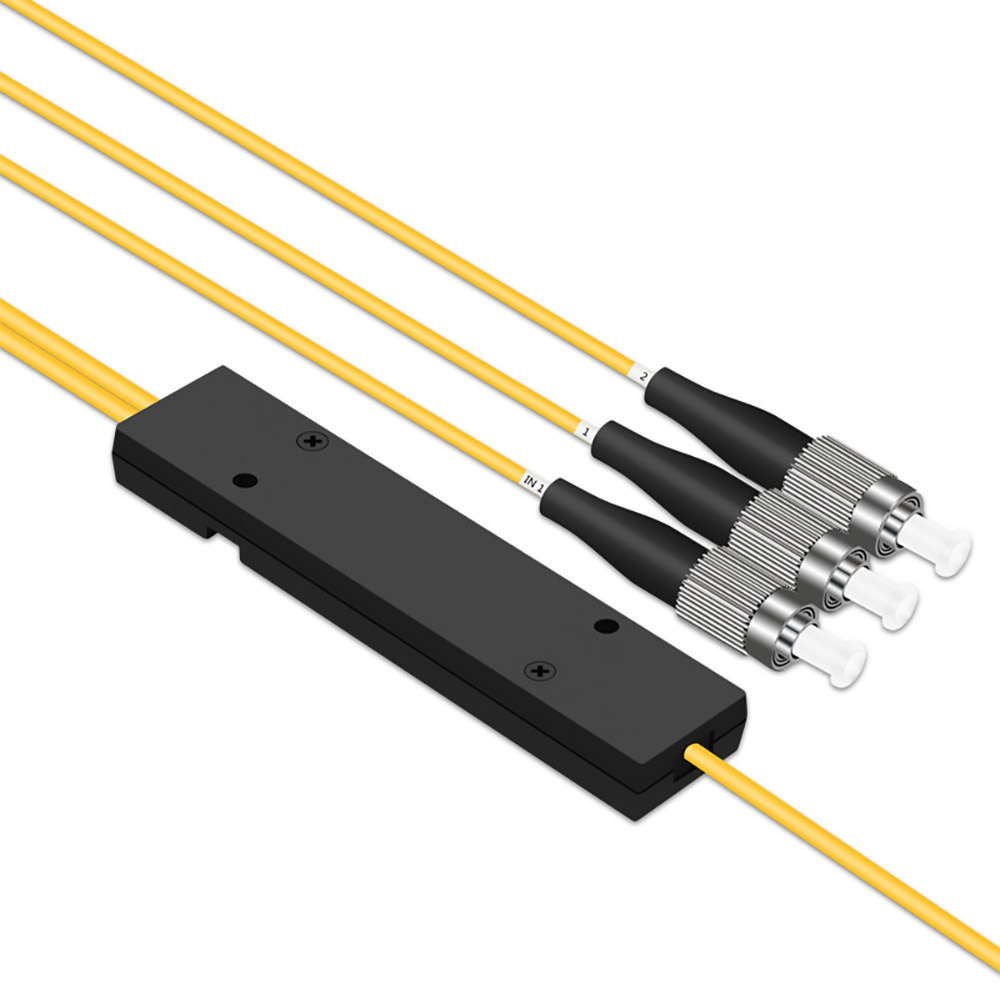

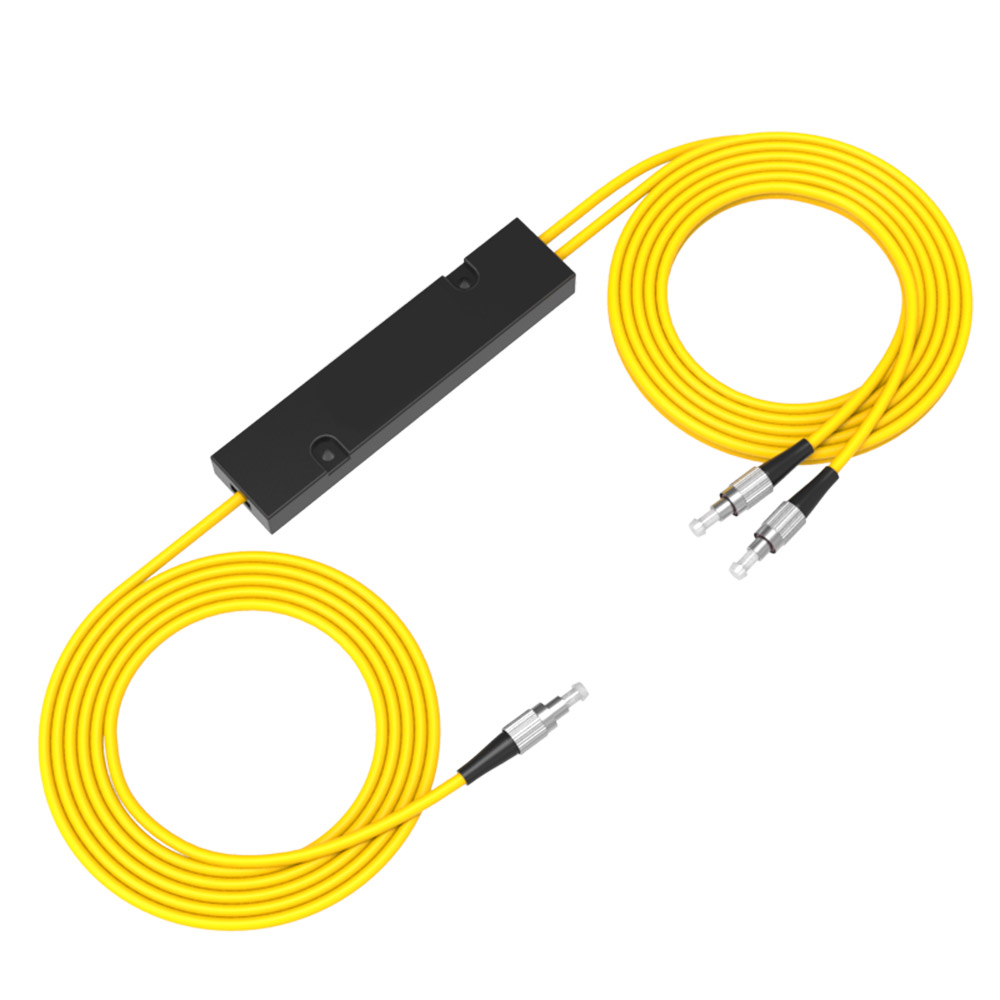

FBT Fiber Optic Splitter Small Box – 1xN & 2xN Options
- Flexible Split Ratios: Supports adjustable split ratios ranging from 50:50 to 80:20 for different possible network configurations, such as 1×2, 1×4, 1×8 or 2×N configurations.
- Broad Wavelength Range: Provides effective performance over standard single-mode fiber wavelength (1310nm, 1490nm, 1550nm) for compatibility with standard telecom or CATV systems.
- Cost Effective Technology: Made with mature fused biconical taper (FBT) technology and readily available materials, offering an economic optical split option.

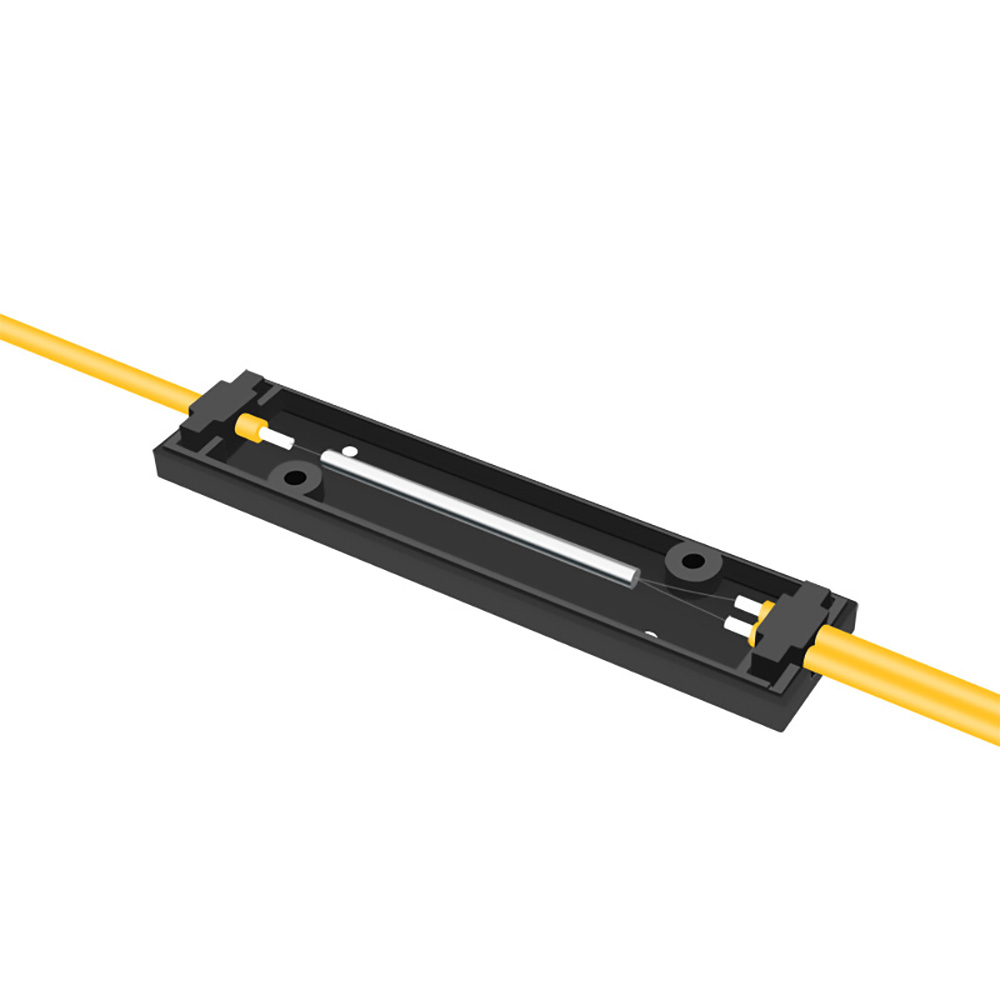

- Compact & Rugged ABS Housing: Housed in a small ABS box to protect the internal components and provide ease of field installation and improved mechanical stability.
- Low Insertion Loss: Provides a high level of efficiency to minimize signal loss providing an efficient power split with typical low excess loss.
- High Reliability: Quality fiber optic passive component suitable for FTTx, GPON, LAN and WAN applications with little drift over time meeting Telcordia and IEC specifications.
- Flexible Input Types: Can be offered in a 1×N or 2×N input type with a single input fiber or dual input fiber type for various network designs.
- Environmental Stability: Can be used indoors or outdoors while maintaining stable temperature, humidity, etc.
- Asymmetric Splitting Feature: Supports un-equal power split for custom active fiber optic network design requiring non uniform power distribution.
