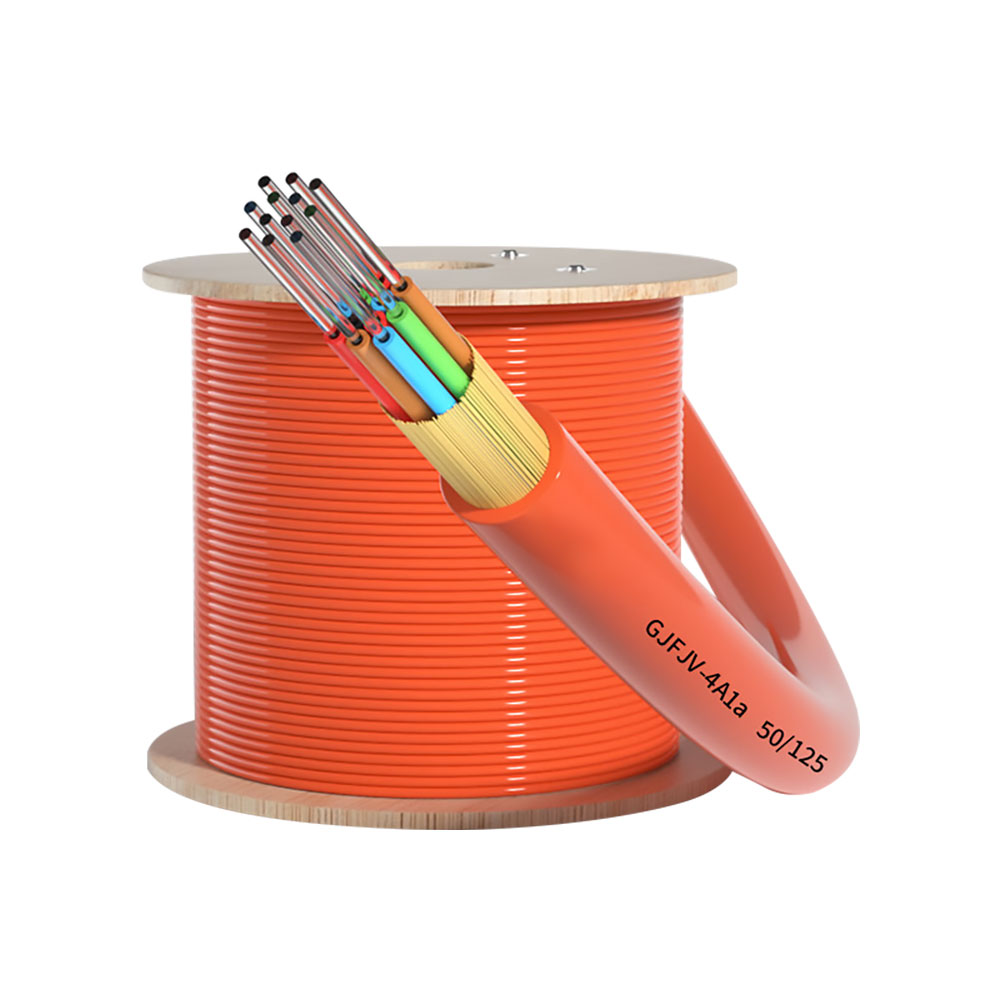

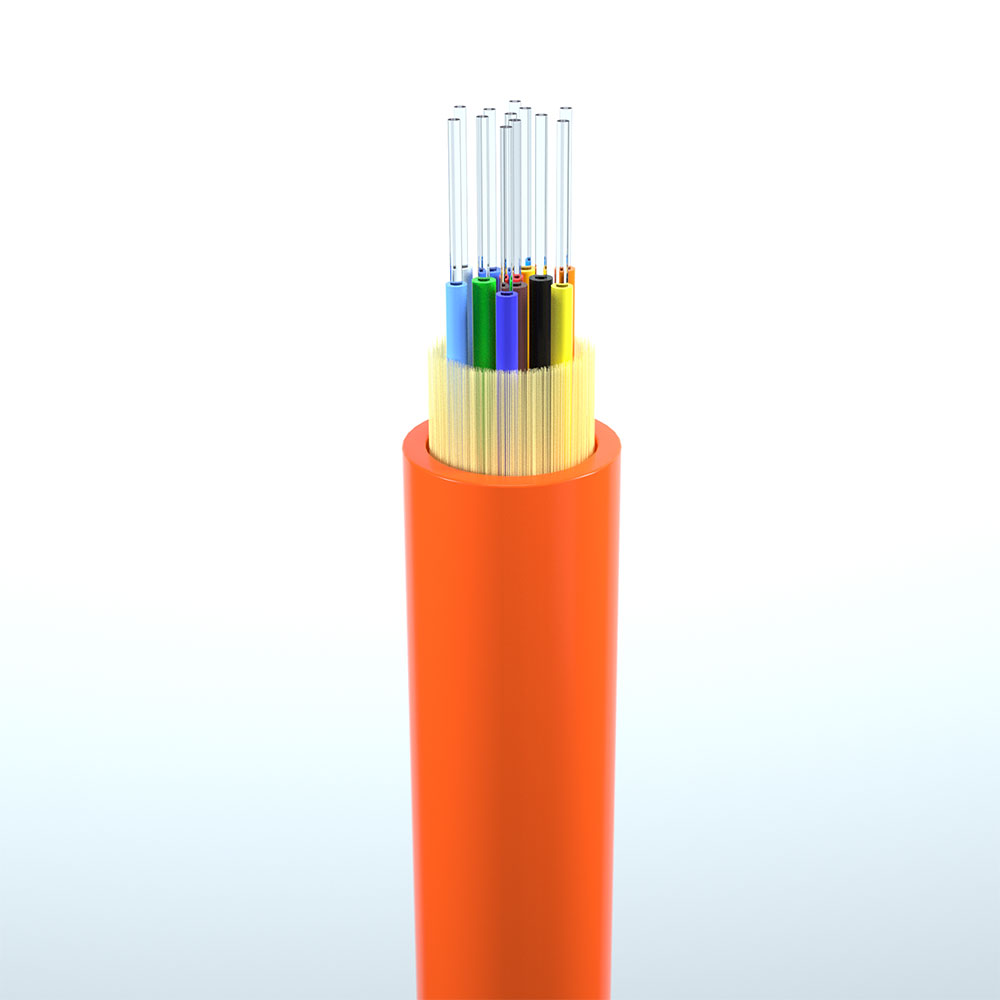

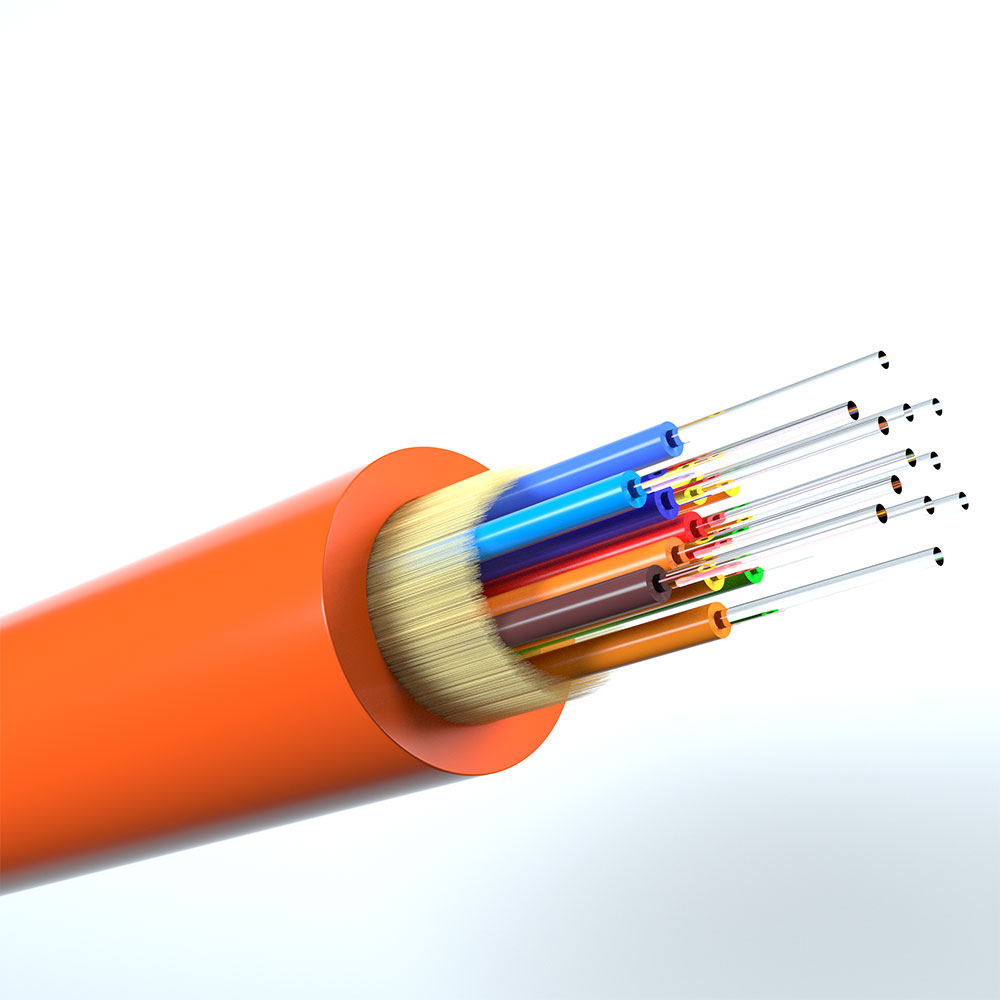

| Product Name | Duplex OM2 Fiber Optic Cable 50/125µm, Multimode, Indoor, Riser (OFNR/LSZH) |
| Fiber Type | OM2 Multimode |

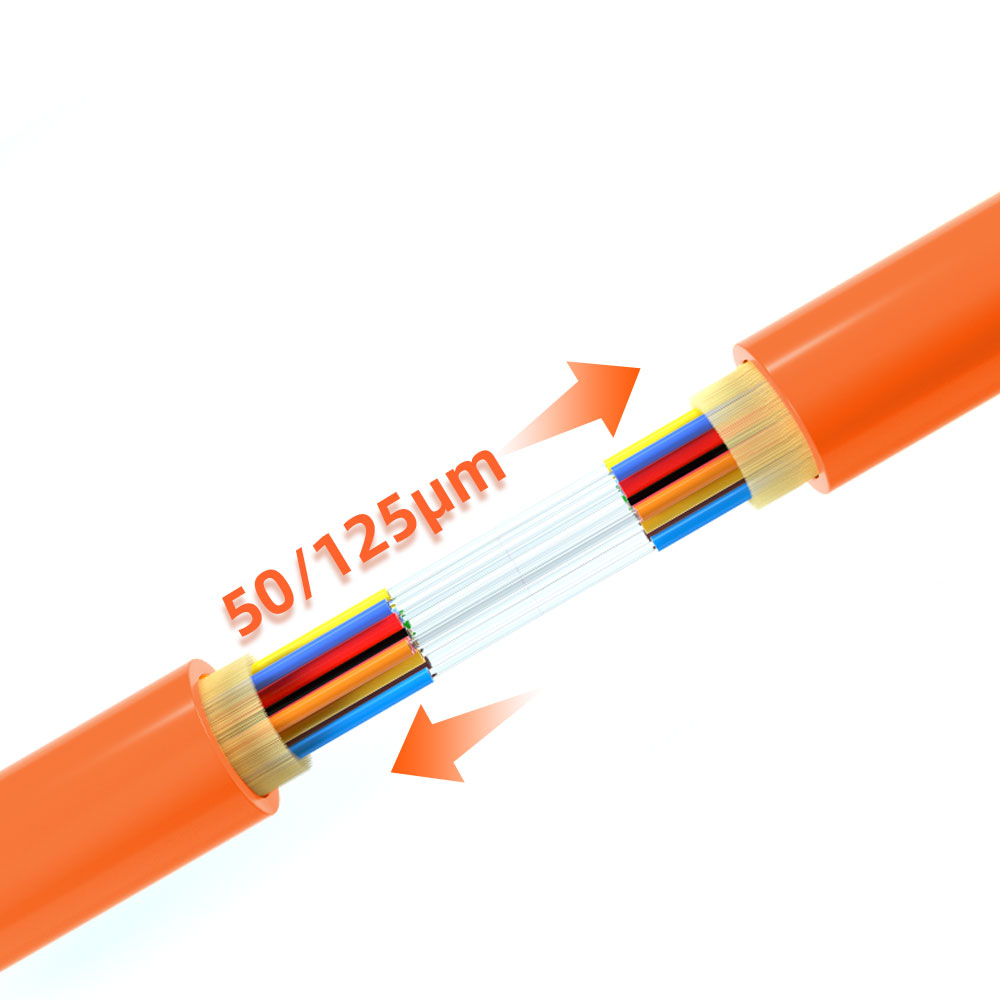

| Core/Cladding Diameter | 50/125µm |
| Fiber Count | 4, 6, 8, 12, 24 fibers (options) |
| Cable Structure | Duplex |

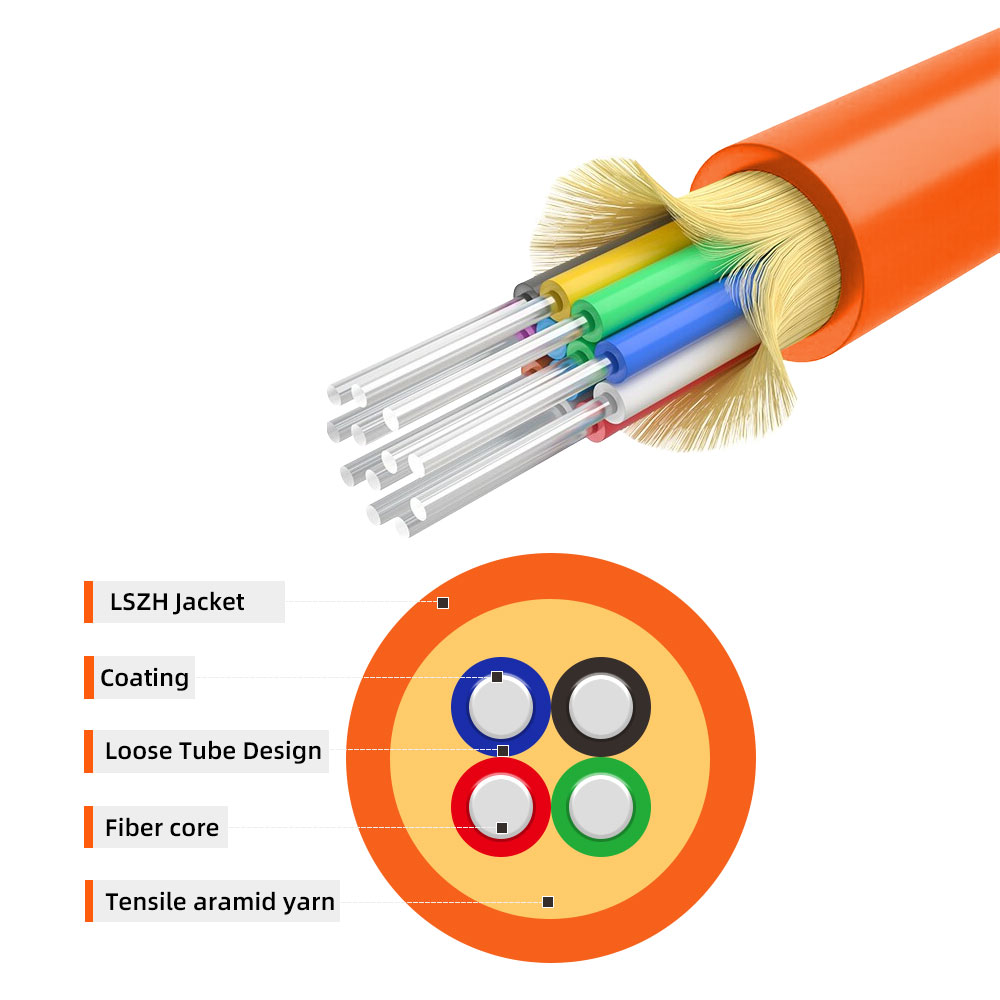

| Jacket Material | OFNR (Riser Rated) / LSZH (Low Smoke Zero Halogen) |
| Outer Jacket Color | Orange |
| Operating Wavelength | 850nm / 1300nm |
| Maximum Data Rate | 1Gbps (up to 550m at 850nm) |
| Insertion Loss | ≤0.3dB (typical, per connector) |
| Return Loss | ≥20dB |
| Minimum Bend Radius | 10x cable outer diameter (installation) |
| Cable Diameter | Typically 2.0mm or 3.0mm per core (varies by configuration) |
| Flame Rating | OFNR: Riser rated / LSZH: Low smoke, halogen-free |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Standards Compliance | ISO/IEC 11801, TIA/EIA-568, RoHS, IEC 60793-2-10 |
| Application | Indoor backbone, horizontal cabling, patch cords, data centers, telecom |
| Connector Options | SC, LC, ST, MTP/MPO (customizable) |
Hot
Duplex OM2 Fiber Optic Cable 50/125µm, Multimode, Indoor, Riser (OFNR/LSZH), 4/6/8/12/24 Fibers
- Reliable Gigabit Performance: Designed for fast and reliable data transfer speeds of 1Gbps over short to medium distances.
- Multiple Fiber Counts: Choose 4, 6, 8, 12 or 24 fibers, enabling you to have precise support for your current or future networking requirements.
- Duplex Design: Allows for two-way communication over the same channel, improving efficiency on the network.
- OFNR/LSZH Jacket: This jacket allows you to run the cable safely in any riser space, being low smoke and zero halogen to reduce toxic production.
- Easy Routing: Lightweight and flexible enough to allow easy cable management in tight indoor environments.
- Reliable Performance: A 50/125µm multimode core delivers dependable signals for consistent quality and minimal return loss.
- Color Coded for Easy Identification: The orange jacket and easy identification labels make for quick installation.
- Broad Compatibility: A great solution for the entire range of common multimode applications.
- Cost-effective: A value option to help you upgrade your legacy systems while taking advantage of lower multi-fiber network costs.
- Durable: Constructed of durable materials to resist bending and daily wear and provide long-lasting fiber optic cable.
