CWDM vs DWDM Optical Modules: A Guide to Wavelength Division Multiplexing Technology and Selection

Wavelength Division Multiplexing (WDM) technology is revolutionizing optical networks by transmitting a number of separate signals, or channels, over a single optical fiber using different wavelengths. This not only allows for an exponential increase in the capacity of the fiber, but it also allows for the increased capacity to be deployed to meet rapidly growing demand for data transmission without needing to run new cable. Although WDM is a general term, there are two predominant WDM types – Coarse Wavelength Division Multiplexing (CWDM) and Dense Wavelength Division Multiplexing (DWDM). Each of these two types has pros and cons to consider which are suited to different applications. Understanding the differences and their appropriate applications allows for the components of a fiber system including CWDM SFP and DWDM SFP optical modules to be selected and allows the fiber system to scale effectively.

If you think of your fiber infrastructure as a highway which has a single lane, traffic will become constrained as more bandwidth is demanded. You can think of WDM from the perspective of “colors” of light, or wavelengths, that will allow the highway to have multiple lanes while data flows maximally and physical expansion has not taken place. CWDM and DWDM modules allow for this type of multiplexing of data, but they differ in channel density, reach, and cost. Understanding these differences will help you determine what technology is best for your network requirements.

Why Choose WDM? Solving Fiber Capacity and Long-Distance Transmission Challenges

Fiber capacity limitations and deployment costs are obstacles to the continued growth of networks around the globe. Installing new optical fibers requires large capital budgets, time, administrative requirements, and construction disruption. Network operators and procurement teams, in particular, often find themselves in a struggle between expanding capacity and maximizing their existing assets.

Wavelength division multiplexing (WDM) modules provide an effective alternative by allowing multiple optical channels to be transmitted simultaneously over a single strand of fiber—each channel being assigned its own distinct wavelength in the fiber’s optical spectrum. WDM allows for more efficient use of the potential capacity of the fiber and does not rely on additional expensive builds.

Networks can efficiently expand capacity, eliminate bottlenecks, and help save costs by utilizing CWDM SFPs and DWDM SFPs. The wider channel spacing offered by CWDM helps to keep the module less complex for installations, making it a good choice for networks where cost and simplicity matter. DWDM packs more channels due to the narrow channel spacing, making it a better choice for backbone networks or long-haul transmissions. Both of these technologies can help maximize fiber resources to minimize the overall cost of leased fiber or trenching in today’s market.

In addition to significantly cutting capital and operational costs, the solutions can provide flexibility for network design and operation. Rather than installing new fibers, operators can expand capacity by adding or repurposing wavelengths to existing WDM modules.

In conclusion, wavelength division multiplexing and CWDM and DWDM optical transceivers directly accomplish two of the most important tasks: extending transmission distances and enhancing fiber capacity limits, giving networks the transceiver options they need to accomplish more with less money.

CWDM vs DWDM Analysis: Why it Matters, Performance, Cost

The difference between CWDM and DWDM is how widely they space wavelengths apart. The channel spacing will affect the number of channels available, how far the signal will travel, and the overall complexity of the system.

Channel Spacing and Count

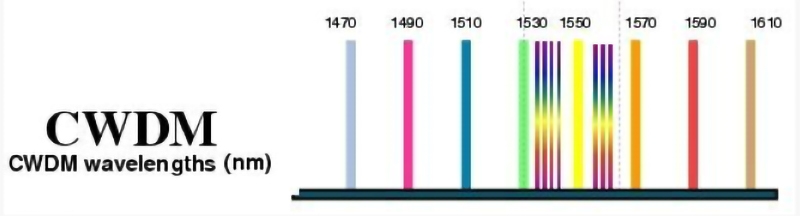

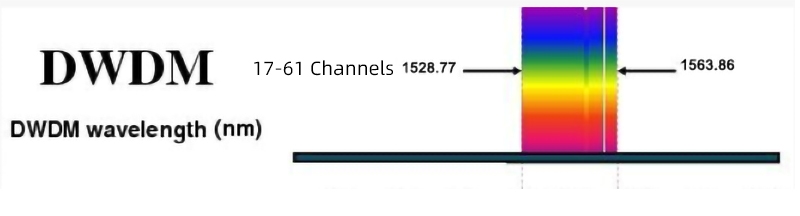

CWDM channels are spaced roughly 20nm apart, creating the potential of having a total of up to 18 separate wavelengths in the fiber space. This increased channel spacing will reduce the risk of crosstalk in the system and provide a cost savings for the system; however, this will also limit the total number of channels in the system. DWDM, on the other hand, places the wavelengths much closer together with approximately 0.8nm spacing, which provides support for upwards of 96 channels and potentially more. The smaller channel spacing allows the opportunity to maximize the operation of the fiber but requires better components and calibration.

Distance of Transmission

CWDM is suited for deployment in metro and access networks where the distance is normally under 80 km. CWDM normally does not require amplification, which in turn reduces the overall complexity and cost of the system for the distance. DWDM systems can operate well beyond the 80 km distance and typically use optical amplifiers (such as EDFAs) and dispersion compensators (DCMs) to operate at those distances. DWDM systems create the potential for transcontinental and long-haul backbone applications.

Cost Analysis

10G CWDM SFP+ modules and CWDM modules in general are typically cheaper due to the somewhat simpler CWDM design, less tuning required, and cost of manufacturing. DWDM optical fiber transceivers require tighter tolerances, higher quality lasers, and passive components, which typically reflect in the overall price of the module. For systems that are cost constrained or require moderate amounts of capacity, the CWDM solution is an efficient way to scale bandwidth. On the contrary, an enterprise or carrier deploying ultra-high capacity backbone links will typically select DWDM and invest the extra money upfront for the 96 or more channels and distance (reaching a total of >80 km).

Imagine CWDM channels like wide lanes on a highway with limited options that are easy to manage, while DWDM lanes are fit tightly to maximize the number of vehicles. Both the 10G CWDM SFP+ module and the DWDM SFP module inhabit the same realm but are designed to satisfy different technical conditions.

When it comes to CWDM versus DWDM, it is a question of cost versus capacity versus distance—factors that are all critical in assessing the performance of optical transceivers compared and metrics to consider in planning a network.

WDM Network Design and Selection for 1G to 100G Deployments

Additional consideration in selecting WDM technology is centered around the scale of the network, data rates, budget, and a roadmap for future scaling. For the smaller, budget-conscious, 1G or 10G network, armed with budget fiber, and constrained by the complexity of installing infrastructure, CWDM technology may be the better option. CWDM infrastructure simplifies design and deployment; therefore, CWDM technology generally can be deployed in metropolitan areas or for enterprise access layer one applications.

As data consumption increases and long-haul interconnects become necessary, DWDM technology can serve as a key player. For 25G, 40G, or 100G channels over a DWDM fiber backbone, reliability and capacity are assured. EDFAs can amplify faint signals over long distances, while DCMs mitigate compensating mode dispersion associated with the characteristics of the fiber optics. This sophisticated ecosystem allows service carriers and data center applications that require high throughput and low latency to exist.

A newer WDM technology called LWDM, or LAN-Wavelength Division Multiplexing, is emerging for applications in data centers where interconnects at short distances with high density dominate. LWDM provides many channels and is “densely packed” like DWDM, but it reduces the environmental impact concerns with fiber cable under the classical CWDM/DWDM models used in metropolitan and long-haul applications.

Effective design for a CWDM network and DWDM network planning appropriately balances your business investment with your operational goals. You may realize the use of long-distance fiber solutions will rely heavily on the capabilities of DWDM for capacity and distance, while LWDM optical modules allow you to unlock new efficiencies on the inside of the network. This smart choice is scalable for your growth across a fairly broad range of speeds from 1G to 100G+.

WDM Module Troubleshooting: A Diagnostic Guide for Practical Admins

While these are advantages to WDM modules, you will find WDM modules have their own challenges to troubleshoot. Channel crosstalk is when the data from the raster of wavelengths next to it interferes with the data delivery, causing data corruption and a decrease in link performance. Drift is when the laser emissions vary plus or minus a small amount from the assigned wavelength frequency. For the best performance, it is imperative to troubleshoot both.

In order to take full advantage of using CWDM modules, part of the work to troubleshoot modules is described as routine monitoring of module health. The network management system will constantly report module status and report any anomaly. Checking optical power can detect if under-powered or over-powered situations are adversely impacting the link quality. In addition, the wavelength ID commands will ensure the correct channel is assigned to avoid the hazards of a wavelength mismatch.

Just like with any other piece of hardware, through routine examination and maintenance, a network operator can increase the life expectancy and performance of a WDM module. Cleaning the fiber connectors will eliminate any loss or degradation of signal resulting from contamination, and physical inspection will help discover any obstructions that may impact module performance.

Routine firmware upgrades can also be beneficial. Firmware should be upgraded on a regular basis, even if this means simply running the routine recommendations. Keeping the transceivers operational with the latest feature sets and bug fixes will keep your applications optimal.

By carefully isolating those common issues, the goal for a network administrator is to minimize downtime and maintain a consistently steady diagnosis on your optical transceiver despite the irregular requests from a complicated WDM install.

Frequently Asked Questions

• Is it possible to use CWDM and DWDM modules on the same fiber?
  In short, no! Using the two types of optical transceiver on the same fiber in any way will cause interference. Worse yet—if the connection becomes an uptime priority, it can lead to complete loss of service due to the different channel spacing requirements. It is strongly recommended to provide dedicated fiber or the correct mux/demux equipment in place.
• Are there different fiber types required for WDM modules?
  A typical standard single-mode fiber will work for both CWDM and DWDM transceivers, but you may find that there is an optimized low-loss or dispersion-managed cabling option that enhances performance over long-haul distances, especially on DWDM fiber networks.
• What is the difference between LWDM and CWDM/DWDM?
  LWDM is most similar to DWDM in the number of wavelengths used, as both are dense, two common technologies that have been developed, but they are better applied using LWDM for short-distance and high-density data center scenarios. CWDM and DWDM will be better suited for metropolitan and backbone wide-area applications.
• How do I find out how many WDM channels my equipment can support?
  You will find the supported wavelengths and the number of wavelength channels supported in either the equipment specification sheets or management software. You will also need to know this number if you plan to cross-reference and use them for your network—be careful of the network requirements.

These straightforward answers should help provide clarity to some commonly asked wavelength division multiplexing questions to make better decisions around optical transceiver networking components. In many cases, users of these types of modules who find themselves in certain edge-case scenarios find that a simple product manual will help clarify their capacity and compatibility.

Empower Your Network Future with WDM Technology

Wavelength division multiplexing technology, or WDM technology, is one of the foundational technologies required for optical networks that are low-cost, scalable, and provide bandwidth. Whether you are using 1G CWDM SFP modules for expansion and cost reasons, or you are using 10G DWDM SFP+ devices for backbone high data capacity, if you use it in a strategic manner, you can unlock bandwidth without additional fiber cables. There are also advanced device options for DWDM optical transceivers that will allow for future-proofing as your traffic habits grow. The idea of enabling everyone and customers to be able to explore product catalogs or reach out to experts for advice are valid approaches for constructing a scalable fiber optic network solution based on your business needs.
