| Specification | Description |
|---|---|
| Product Name | Customized OM3 Multimode Simplex Fiber Patch Cable |
| Fiber Type | OM3 Multimode |
| Cable Structure | Simplex, 2.0mm Tight-Buffered |
| Connector Types | LC, SC, FC, ST, MU available |
| Polish Type | UPC / APC |
| Jacket Material | LSZH |
| Insertion Loss | ≤ 0.2 dB |
| Return Loss | ≥ 50 dB |
| Ferrule Material | High-quality ceramic, Grade A |
| Durability | > 1000 mating cycles |
| Operating Temperature | -20°C to 85°C |
| Tensile Strength | 70N (7kg) |
| Cable Color | Aqua |
| Fiber Coating | Integrated fiber coating with preform drawing technology for low splice loss |
| Reinforcement | Aramid yarn for strength and durability |
| Dust Caps | Included for protection |
| End-face Quality | High standard polishing with no scratches or defects, precise core alignment |
| Available Lengths | 0.2m (0.65ft), 0.5m (1.6ft), 1m (3ft), 1.5m (5ft), 2m (7ft), 3m (10ft), 4m (13ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft), 20m (66ft), 25m (82ft), 30m (98ft), 50m (164ft) |

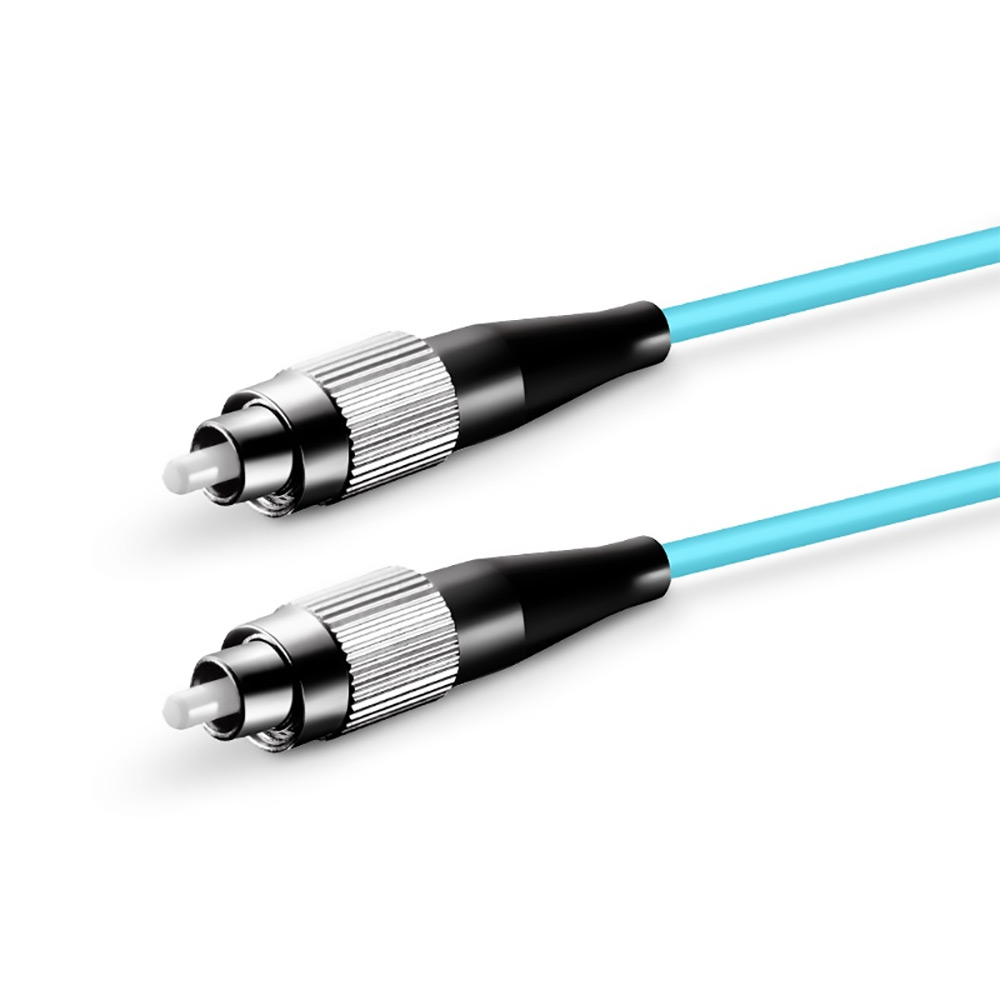

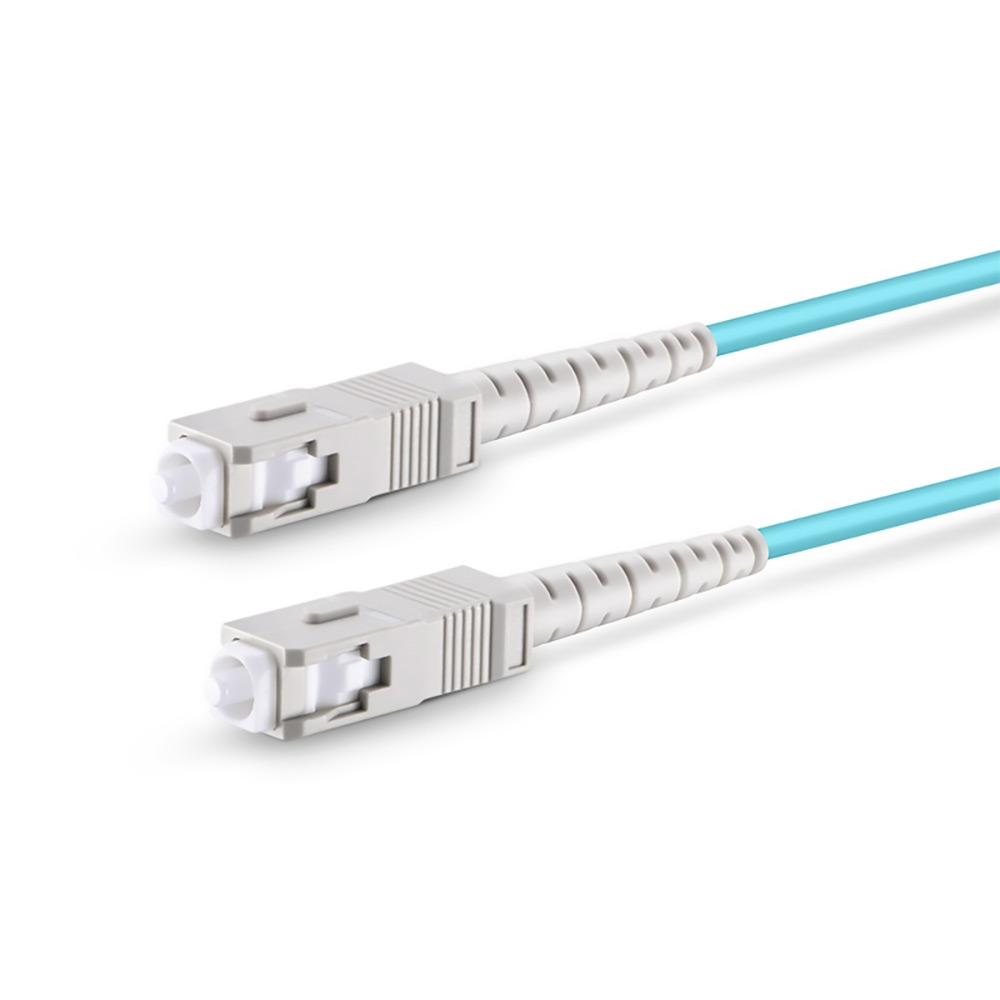

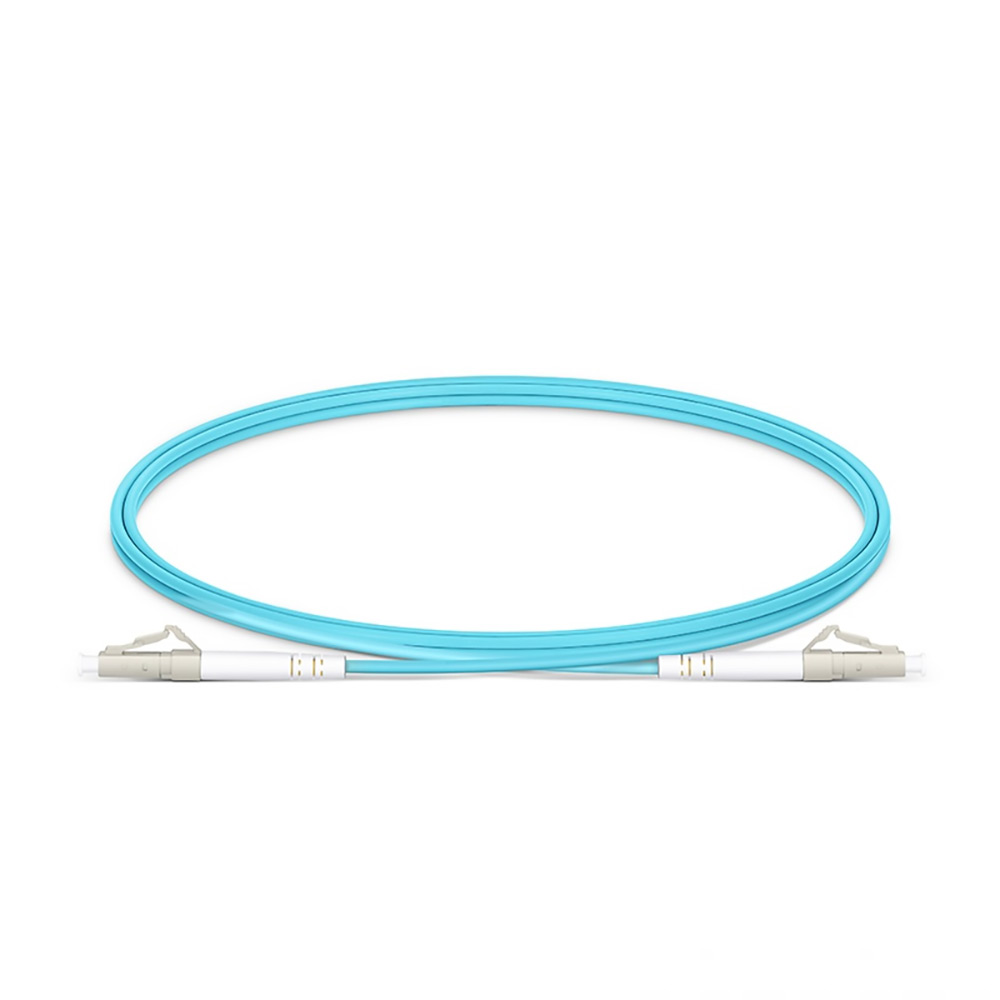

| Available Models | FC-FC OM3, SC-SC OM3, SC-FC OM3, SC-LC OM3, LC-FC OM3, LC-LC OM3 |
| Compliance | Meets industry standards for telecom-grade fiber optic patch cables |
Hot

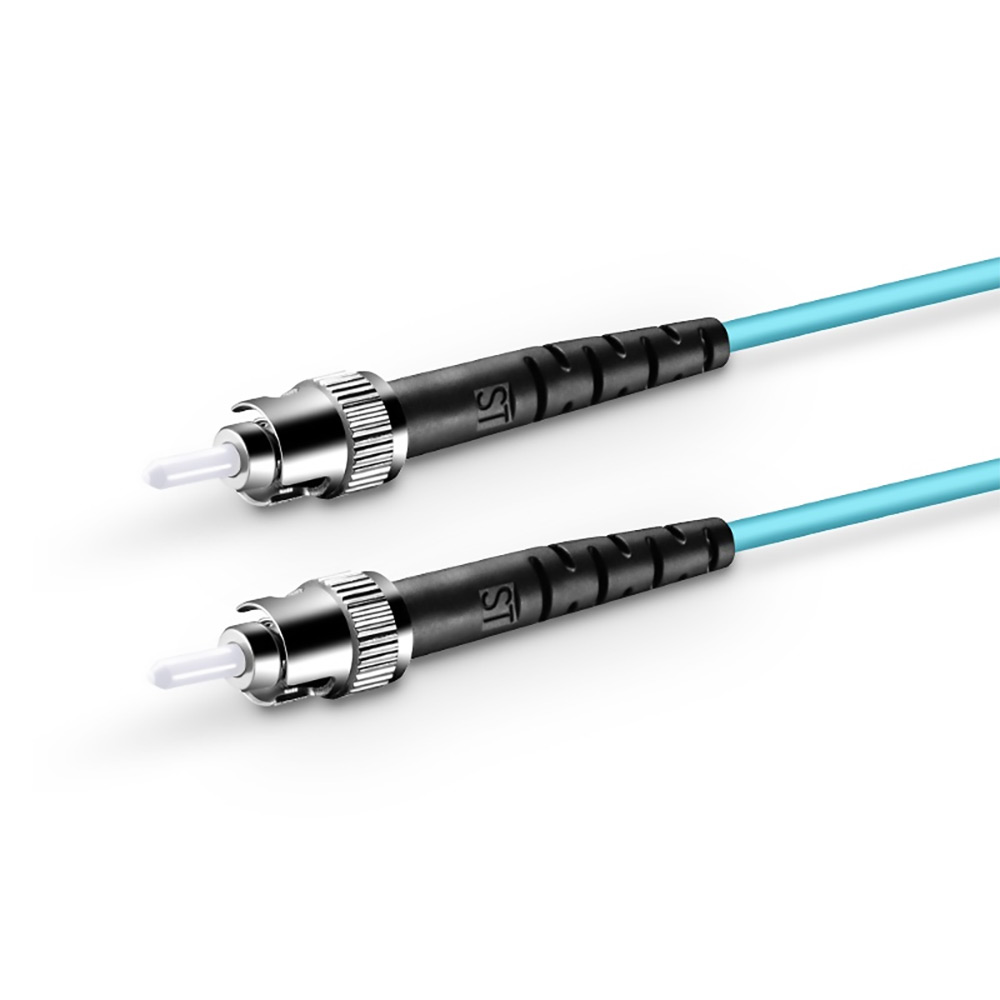

Customized OM3 Multimode Simplex Fiber Patch Cable, LC/SC/FC/ST/MU Connectors, UPC/APC Polish, 2.0mm Tight-Buffered, Aqua
- OM3 Multimode Fiber: It is engineered to transmit high-speed data while maintaining low attenuation over medium distances.
- Connector Options: It can be ordered with LC, SC, FC, ST, or MU connectors with UPC or APC polish to be usable with your network equipment.
- Tight-Buffered 2.0mm Cable: A 2.0mm cable which is easy to install, durable and flexible.
- Low Insertion Loss ≤0.2dB & High Return Loss ≥50dB: This guarantees stable signal quality and minimal signal loss.
- High Quality Ceramic Ferrule: Precise alignment and lasting reliability, rated for more than 1000 plug cycles.
- LSZH Jacket: Low smoke, halogen free material for safety and compliance.
- Rugged Construction: Constructed with fiber coating, reinforced with aramid yarn, designed with high tensile strength (~7kg) to prevent damage under normal wear and tear.
- Available in Multiple Lengths: Can be customized in lengths from 0.2m (0.65ft) to 50m (164ft).
- Multiple Combination Connectors: Are available in a multitude of OM3 connector variations: FC-FC, SC-SC, SC-FC, SC-LC, LC-FC, LC-LC.
