| Parameter | Specification |
|---|---|
| Model | Customized Fiber Optic Breakout Cable |
| Fiber Type | OM1 Multimode |
| Core/Cladding Diameter | 62.5/125μm |
| Construction | Simplex, Tight-Buffered |
| Fiber Count | 1, 4, 6, 8, 12, or 24 fibers (customizable) |
| Jacket Material | Flame Retardant PVC (OFNR, Riser Rated) |
| Outer Jacket Color | Orange |
| Outer Diameter | 3.0mm (typical) |
| Operating Wavelength | 850nm / 1300nm |
| Attenuation @850nm | ≤ 3.5 dB/km |
| Attenuation @1300nm | ≤ 1.5 dB/km |
| Minimum Bend Radius | 10x cable diameter (installation), 5x cable diameter (operation) |
| Maximum Tensile Strength | 600N (installation), 300N (operation) |
| Flame Rating | OFNR (UL 1666 Riser Rated) |
| Application Environment | Indoor |
| Temperature Range | -20°C to +70°C |
| Standards Compliance | ISO/IEC 11801, ANSI/TIA-568, RoHS, UL Listed |
| Connector Type | Bare fiber or customizable (LC/SC/FC/ST upon request) |
| Custom Lengths | Available |

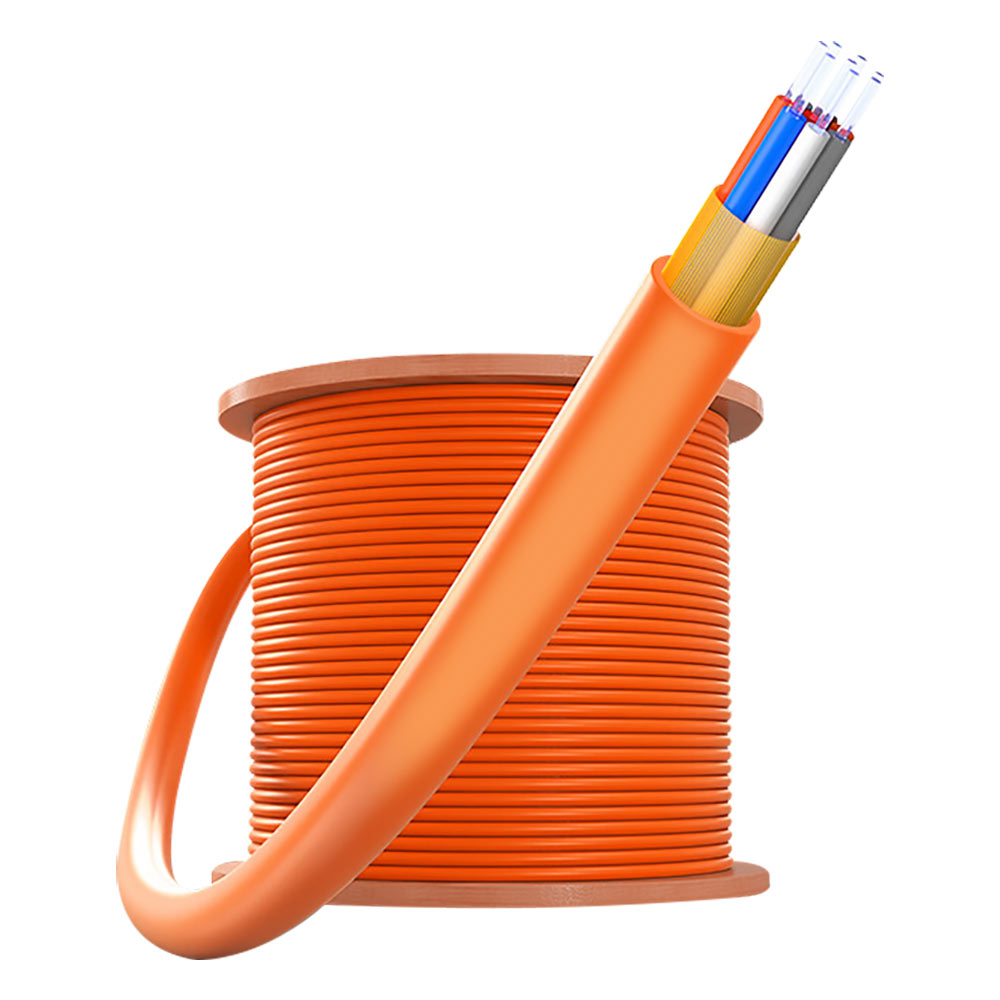

| Packaging | Spool or coil, as required |
Customized OM1 Multimode Simplex Fiber Optic Breakout Cable, 62.5/125μm, OFNR, Indoor, Tight-Buffered
- Fiber Count Options: Available in 4, 6, 8, 12 or 24 fibers for a variety of network designs

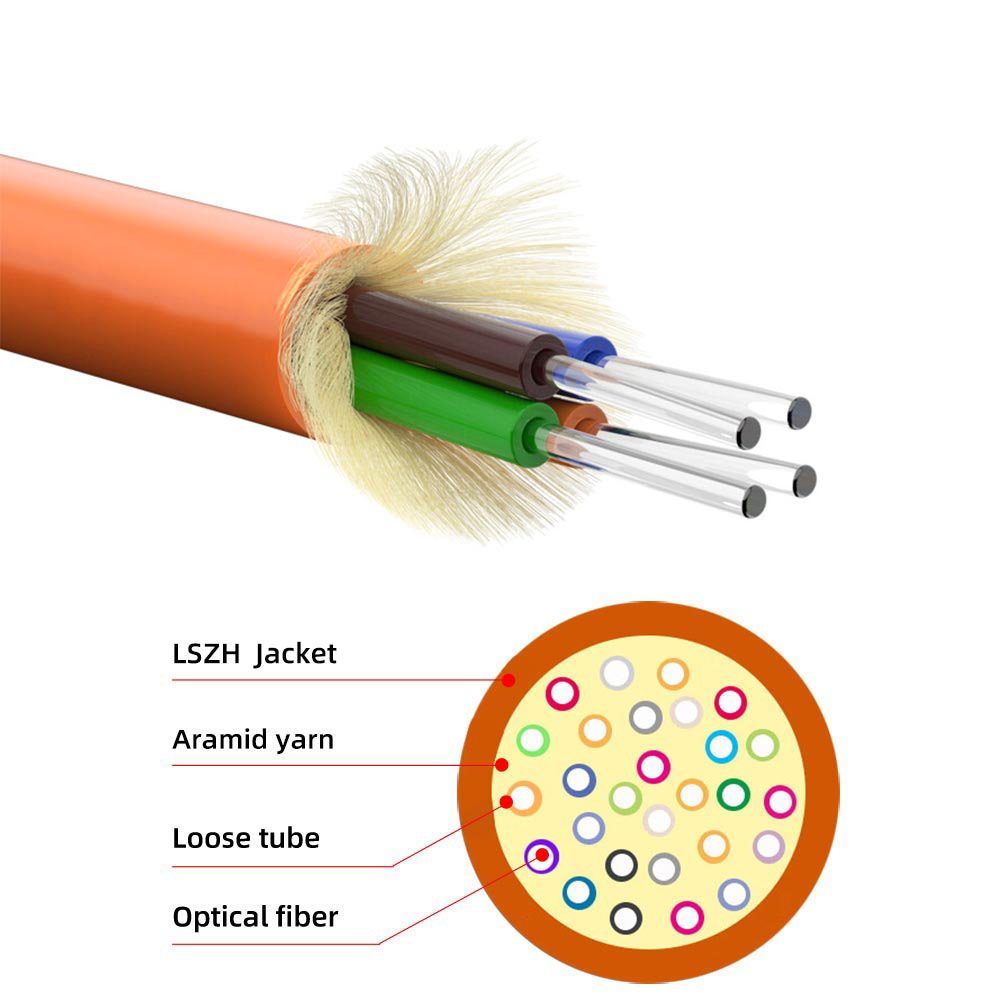

- Dual Flame-Retardant Options: Choice of OFNR (Riser) or LSZH (Low Smoke Zero Halogen) jackets for additional fire protection and low smoke.
- Quality Core: 62.5/125μm OM1 multimode fiber offers reliable, high data transmission speed.
- Tight Buffered: Provides cable strength and flexibility for easy installation of a fiber optic cable in tight places.
- Simplex Design: One fiber cable provides simple installation and is suitable for point-to-point connections.
- Custom Lengths: Order only what is needed for your project in order to reduce excess and cost.
- Universal Compatibility: Compatible with standard multimode connectors.
- Easy to Identify: Bright orange jacket color for quick identification and organization.
- Rugged Protection: 3.0mm outer diameter protects fibers from physical damage.
- Suitable for: Ideal for LAN, data centers, and backbone cabling in an indoor setting.
