The Customized Multimode OM3 Fiber Optic Patch Cord is crafted for optimum data transfer within data center and enterprise networks, conforming to a high standard that applies throughout the industry. It has a 50 µm core diameter, functions at the 850/1300 nm wavelength and supports bandwidths of up to 2000 MHz·km and distances up to 300 meters at 10 Gbps. The fiber patch cord has a duplex cable structure for simultaneous bidirectional communication. The patch cord has the following connector options: LC, SC, FC, ST, and MU, with a UPC or APC polish for low insertion loss (≤ 0.3 dB), and a high return loss (UPC ≥ 50dB, APC ≥ 60 dB). The LSZH jacket also minimizes smoke emission and toxic gas in case of fire. The patch cord is also offered in custom lengths and a reliable build for the most challenging network environments.
| Specification | Details |
|---|---|
| Fiber Type | Multimode OM3 |
| Core Diameter | 50 µm |
| Wavelength | 850 nm / 1300 nm |
| Bandwidth | 2000 MHz·km @ 850 nm |
| Max Data Rate | Up to 10 Gbps |
| Max Distance | Up to 300 meters @ 10 Gbps |
| Cable Structure | Duplex |

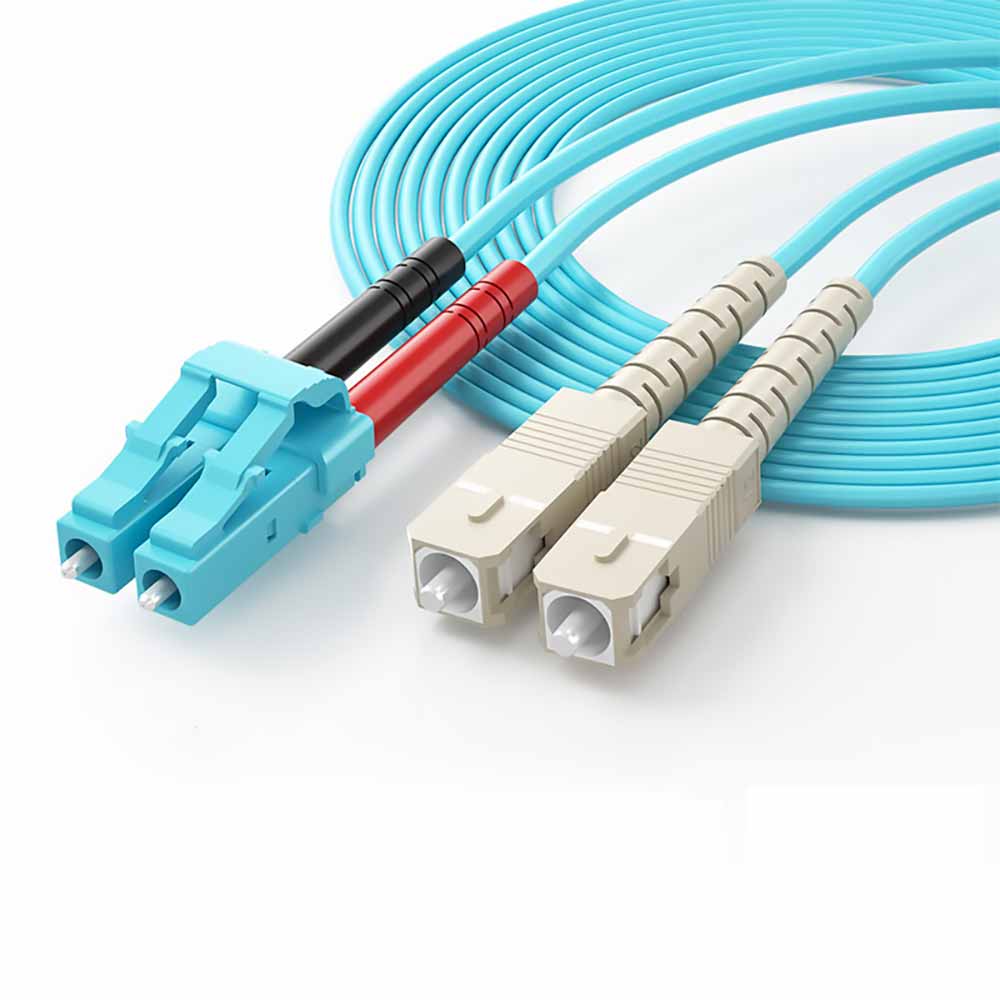

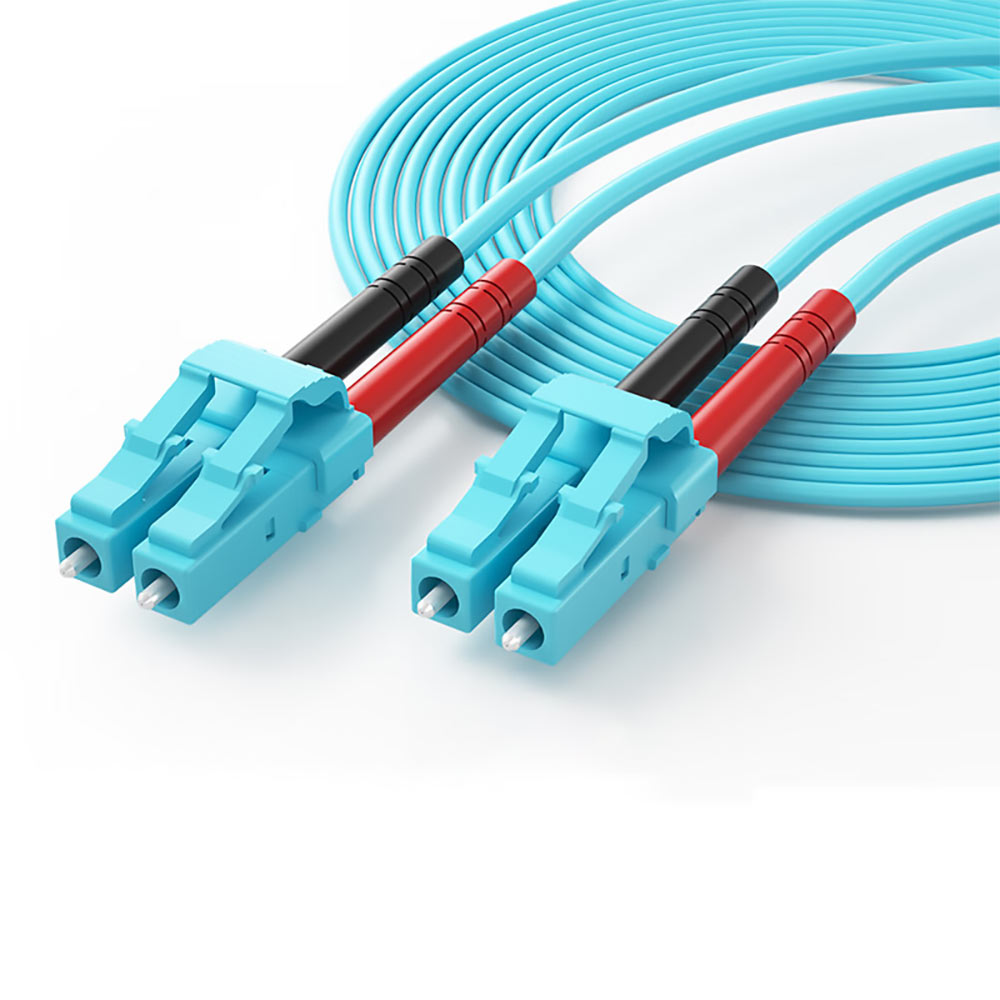

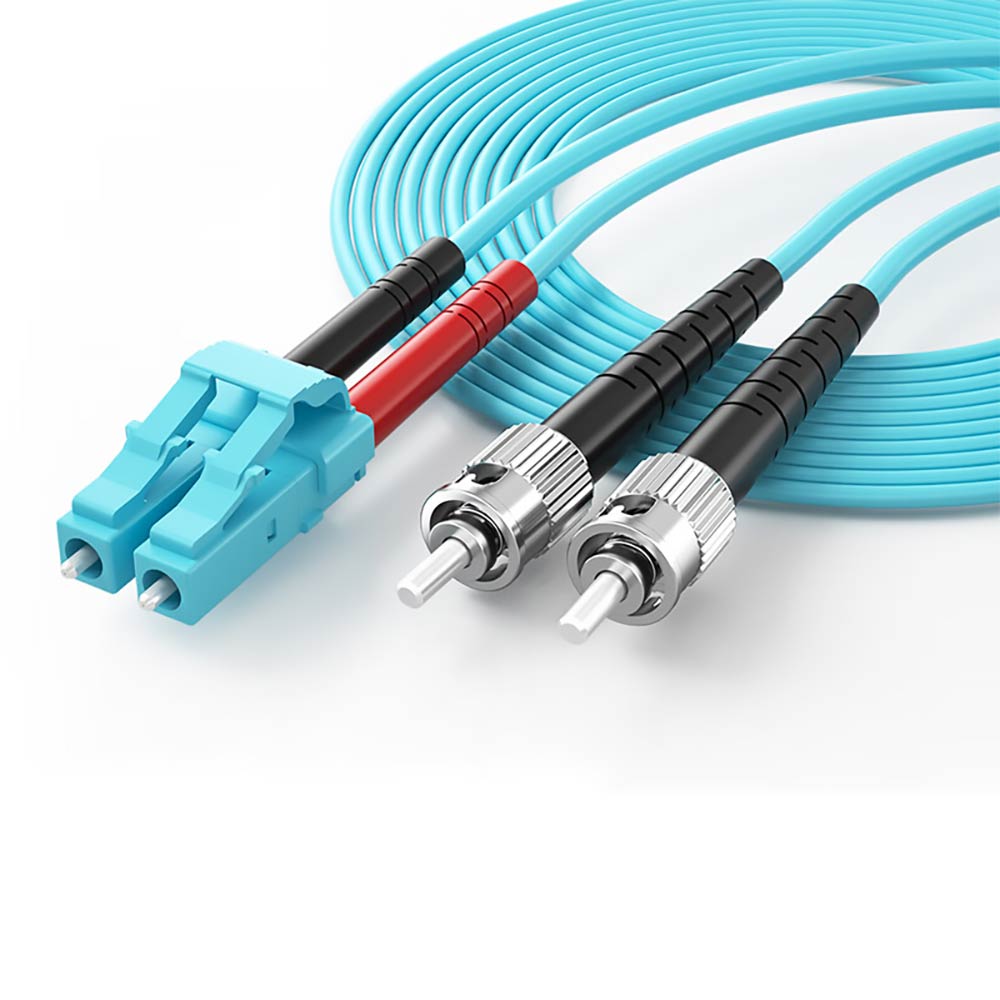

| Connector Types | LC, SC, FC, ST, MU |
| Connector Polish | UPC, APC |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC: ≥ 50 dB; APC: ≥ 60 dB |
| Jacket Material | LSZH |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance Standards | IEC 60793-2-10, TIA/EIA-568-C.3 |
| Customization Options | Cable length, connector type, polish type |
| Application | Data centers, enterprise networks, SANs, telecommunications |
