| Specification | Description |
|---|---|
| Fiber Type | Fiber Optic Cables Single Mode OS2, 9/125μm |
| Connector Types | LC, SC, FC, ST, MU, MTRJ (customizable) |
| Cable Structure | Duplex |
| Ferrule Material | Precision Zirconia |
| Jacket Material Options | Riser (OFNR), LSZH, Plenum (OFNP), PVC |
| Cable Diameter | 2.0mm or 3.0mm |
| Polish Type | UPC or APC |
| Insertion Loss | Typically ≤0.3dB (varies by connector, tested per industry standards) |
| Return Loss | UPC ≥50dB, APC ≥60dB |
| Flame Rating | OFNR, LSZH, OFNP compliant |
| Standards Compliance | TIA-604 (FOCIS), IEC, RoHS |
| Polarity | Maintained by duplex clip |
| Testing | 100% factory tested for insertion loss, return loss, end-face quality |
| Customization | Length, connector type, jacket material, polish, and color |
| Application Scenarios | Data centers, telecom networks, enterprise cabling, high-speed data transmission |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Plug & Play | Pre-terminated for fast installation |
Hot

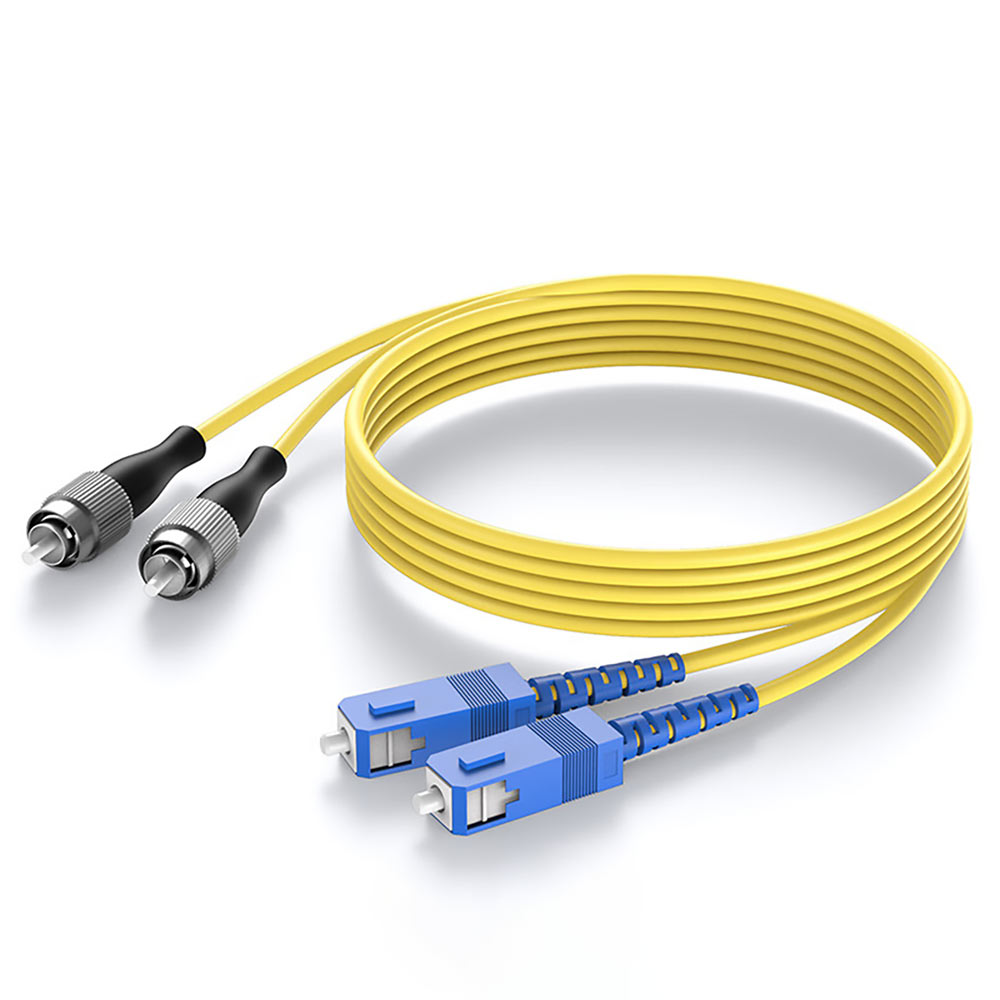

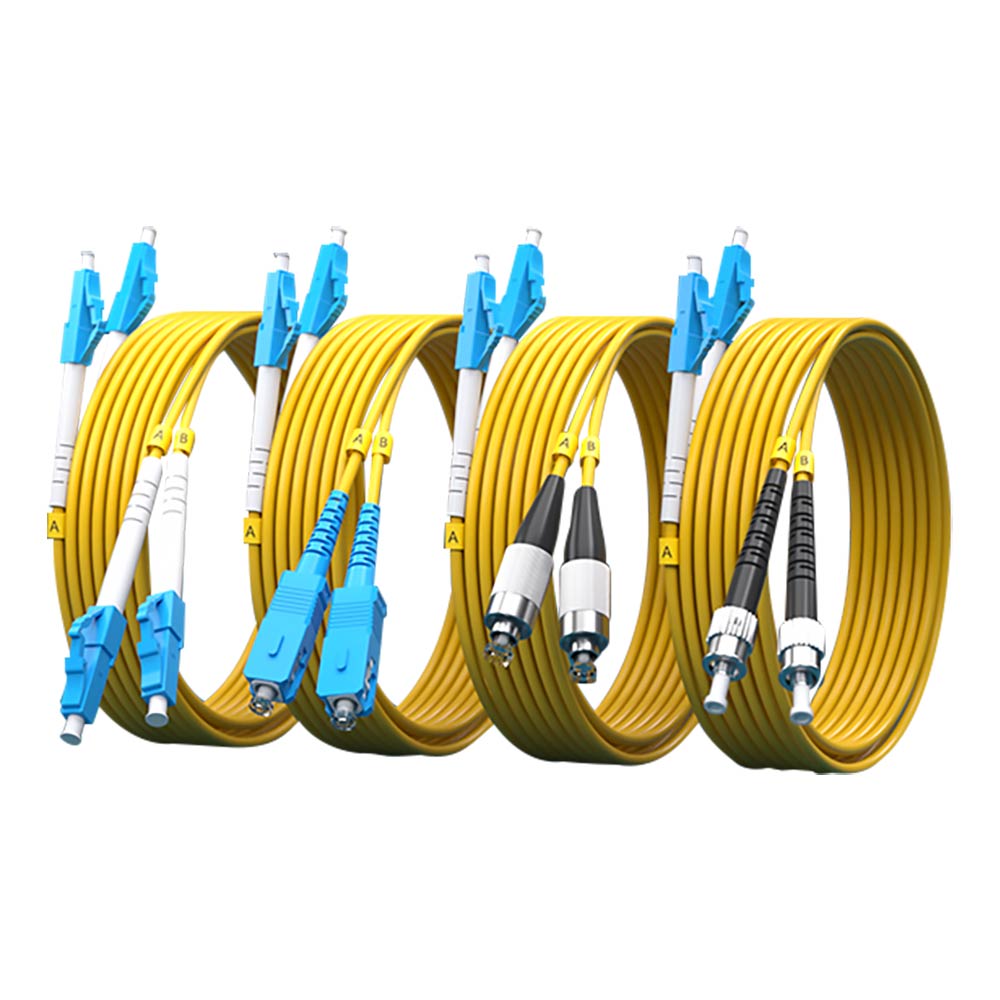

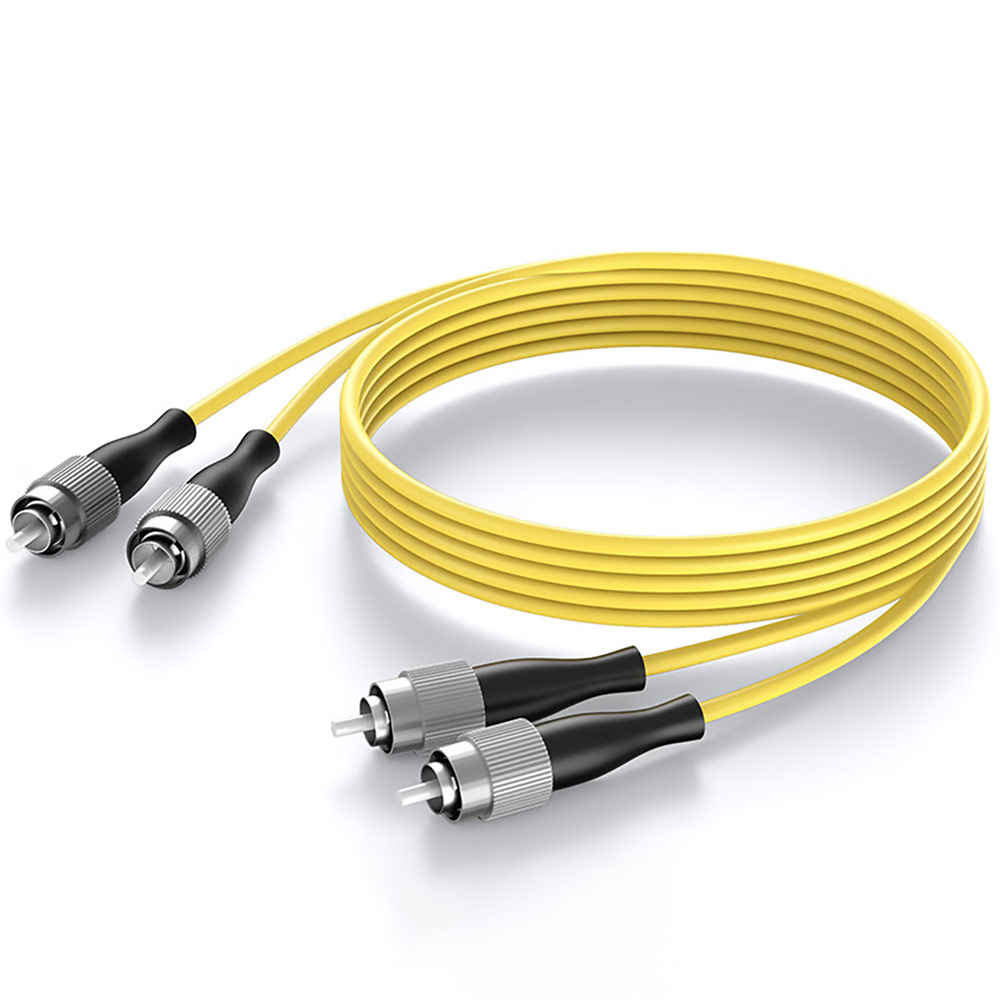

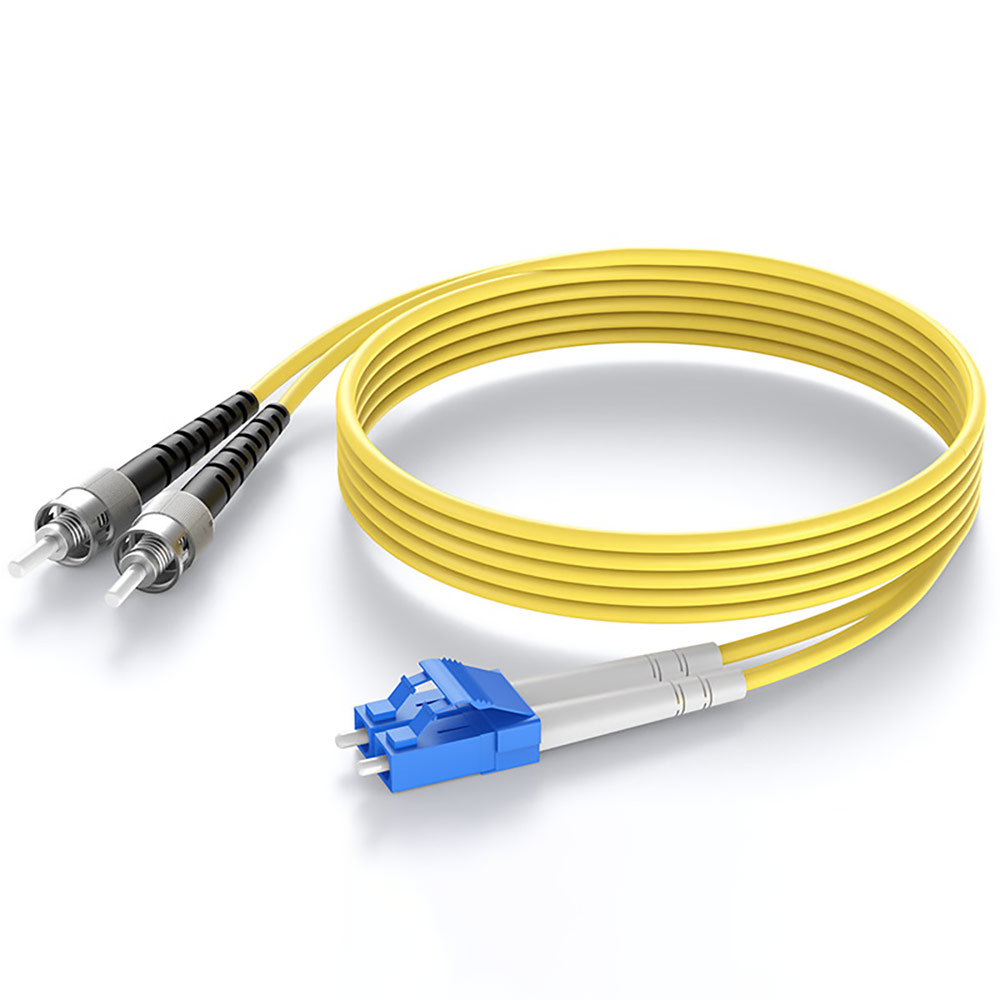

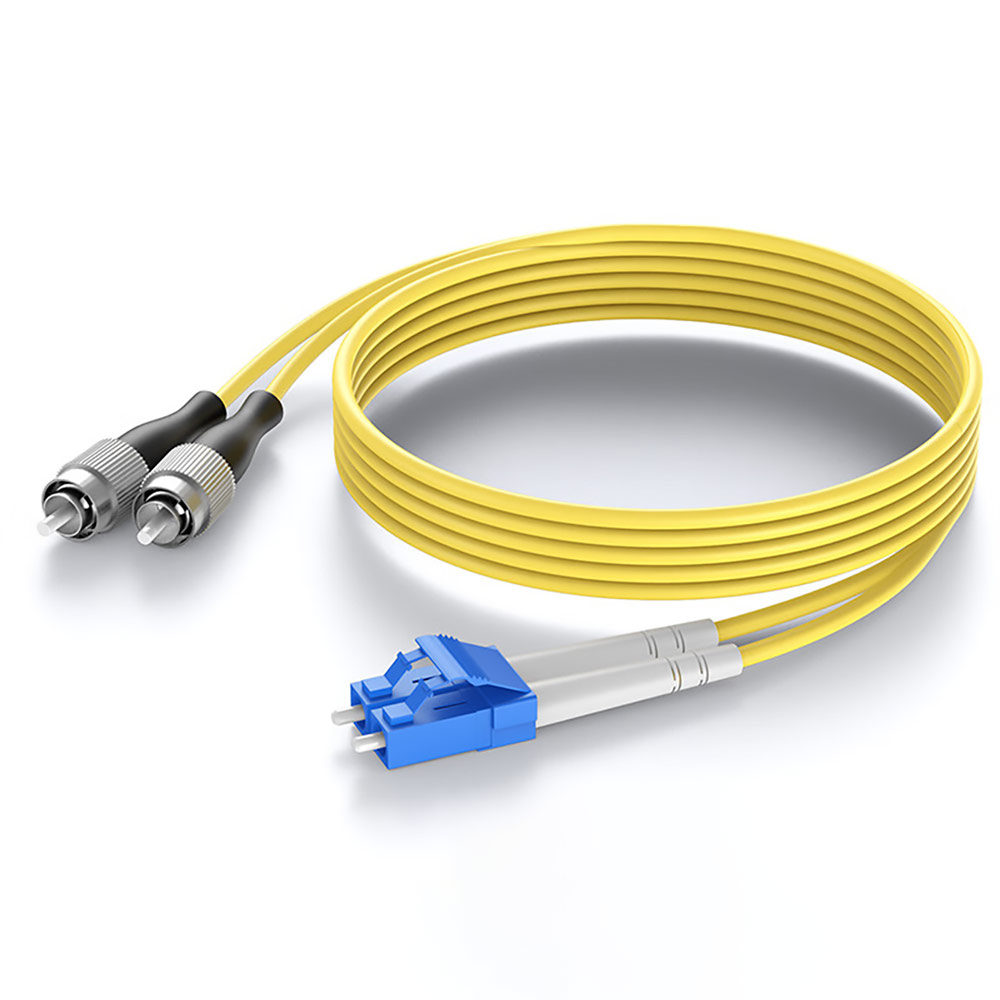

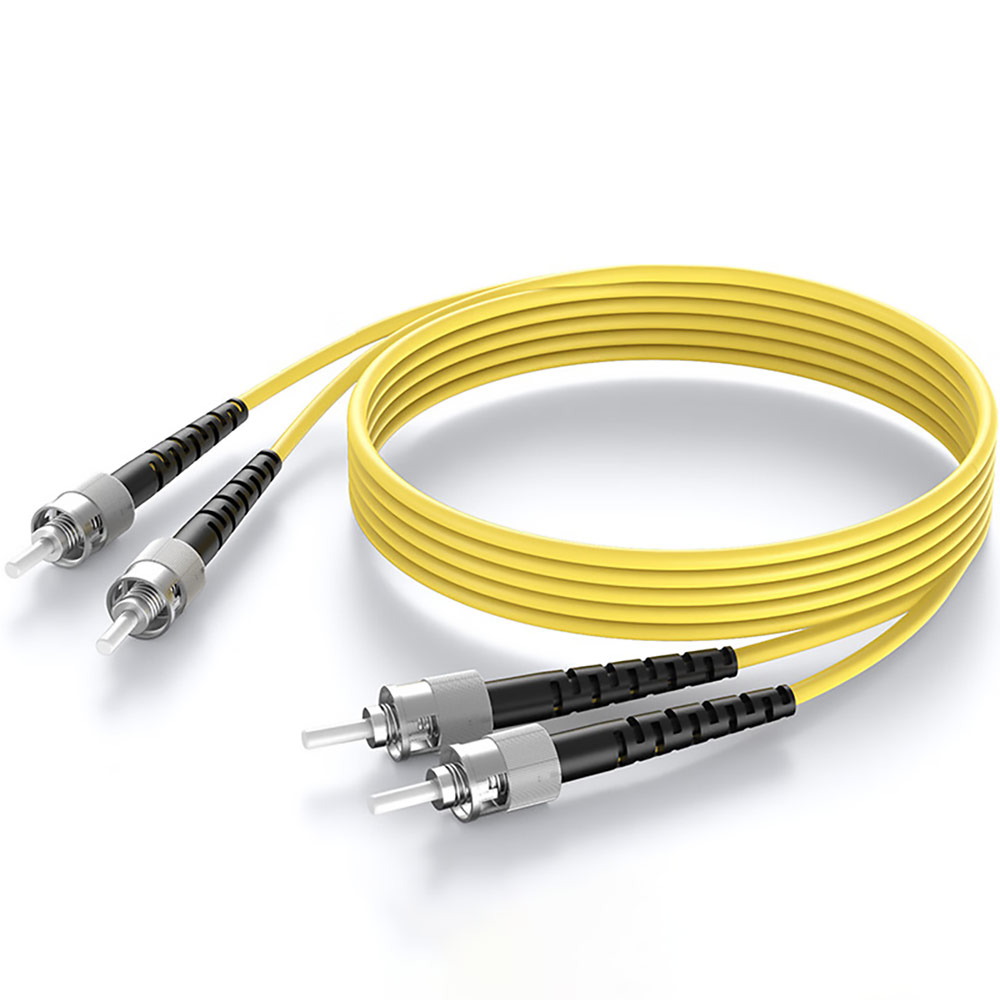

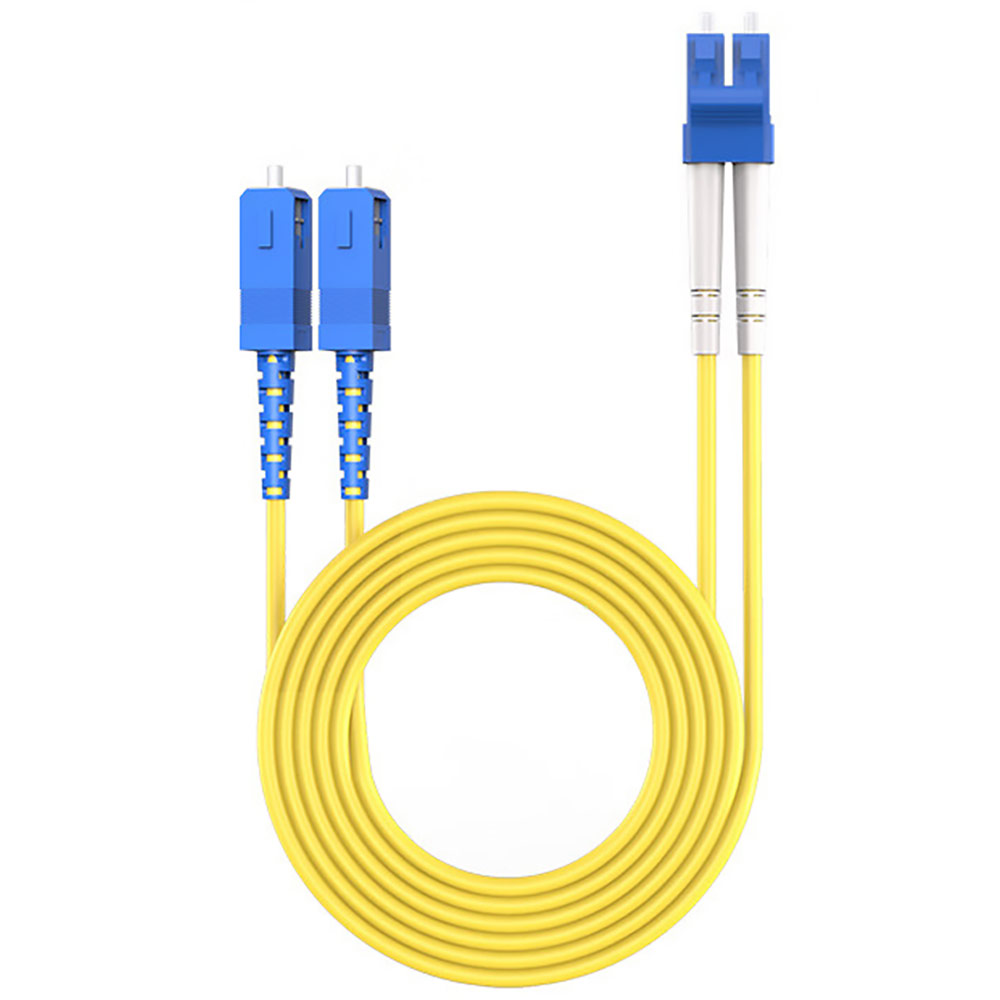

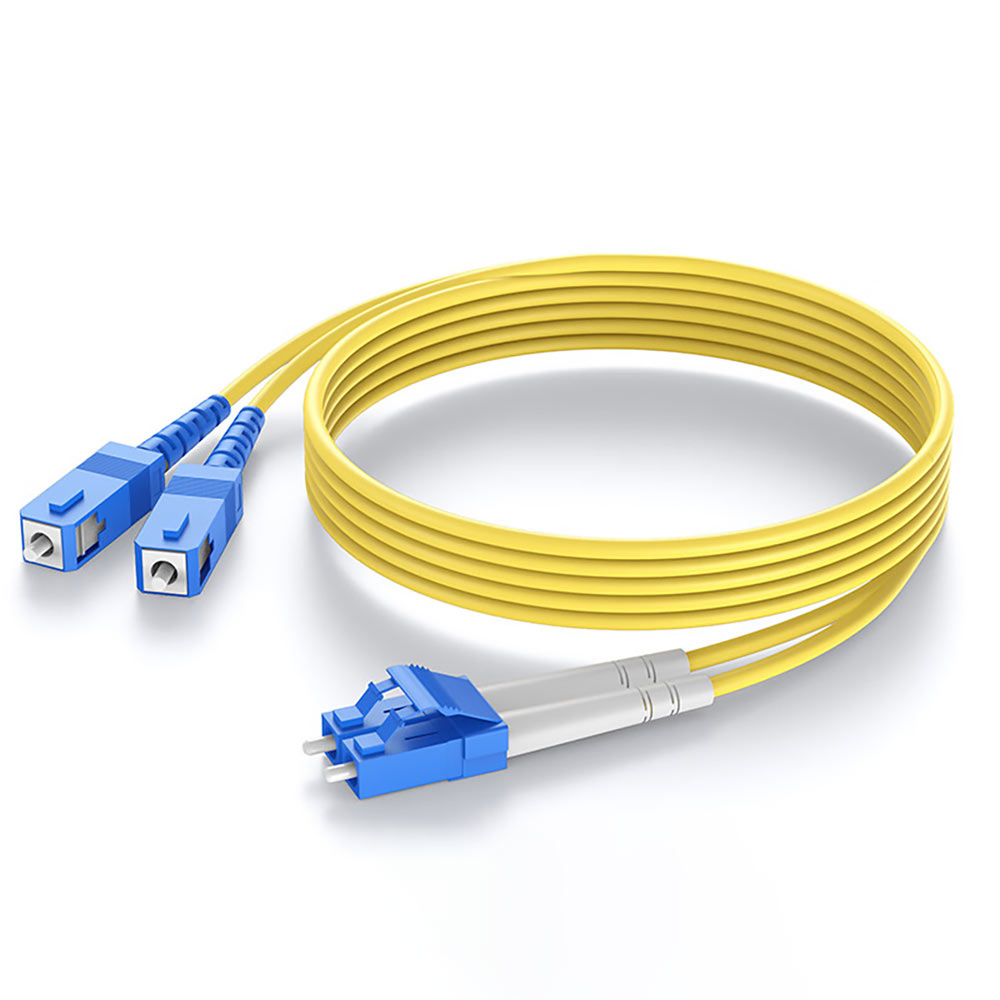

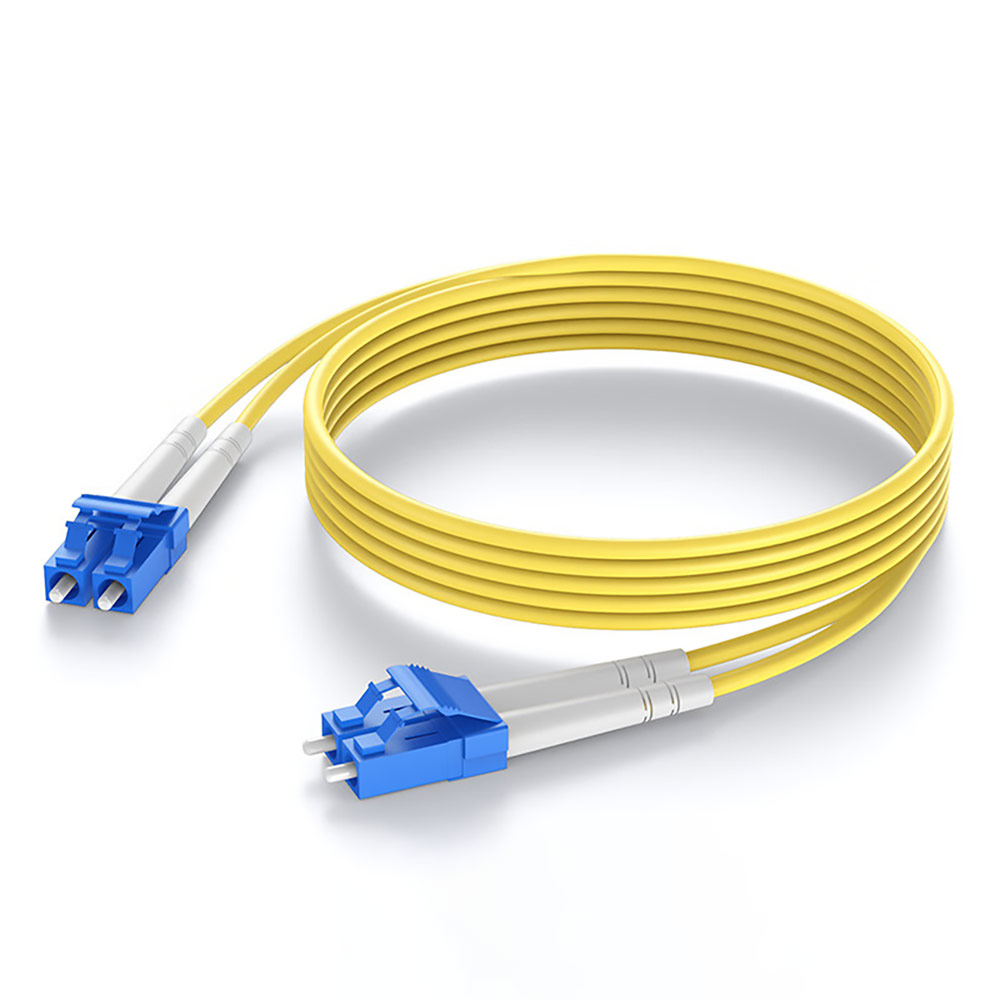

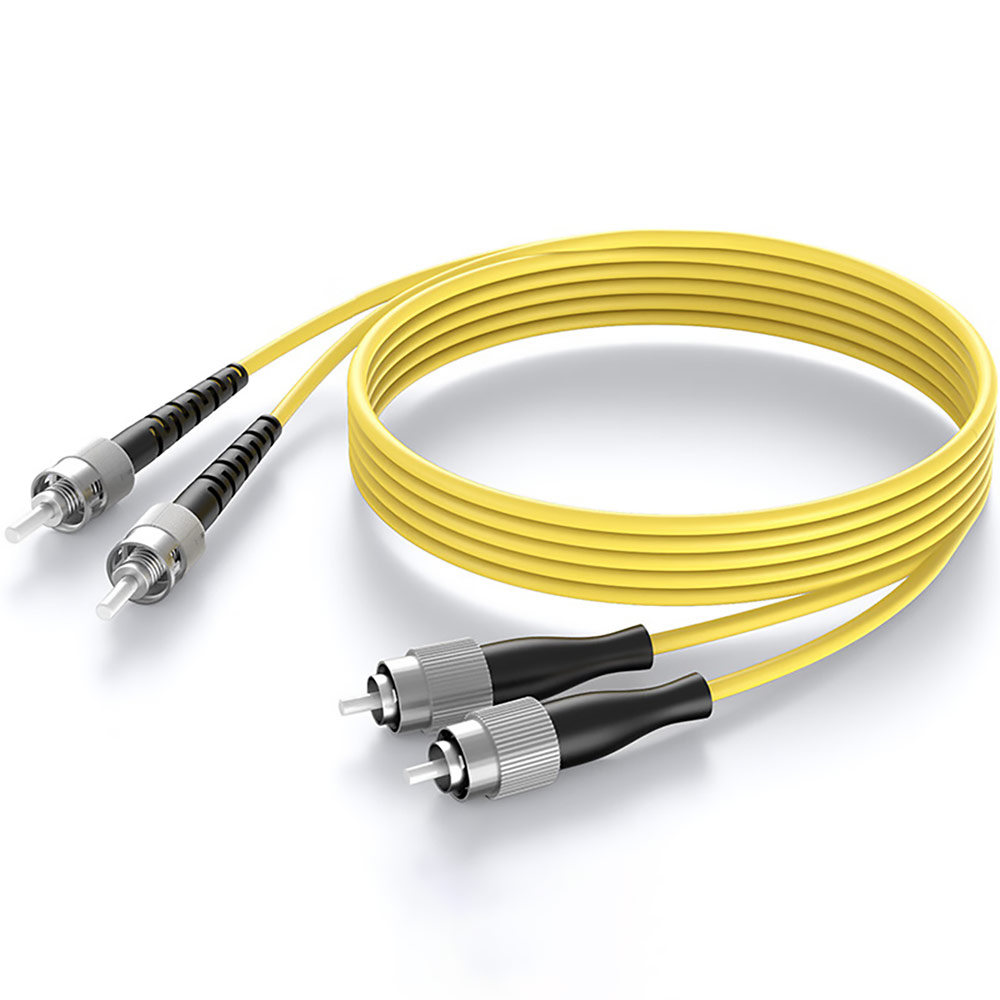

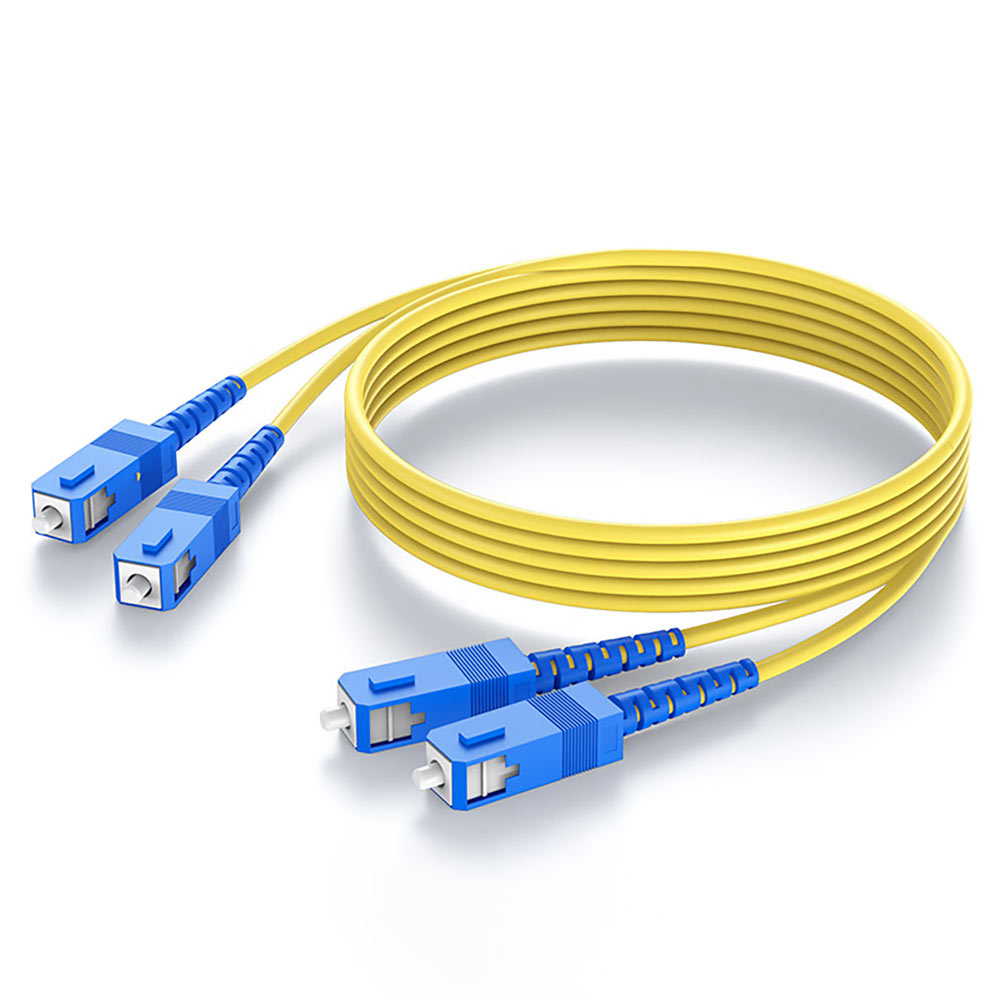

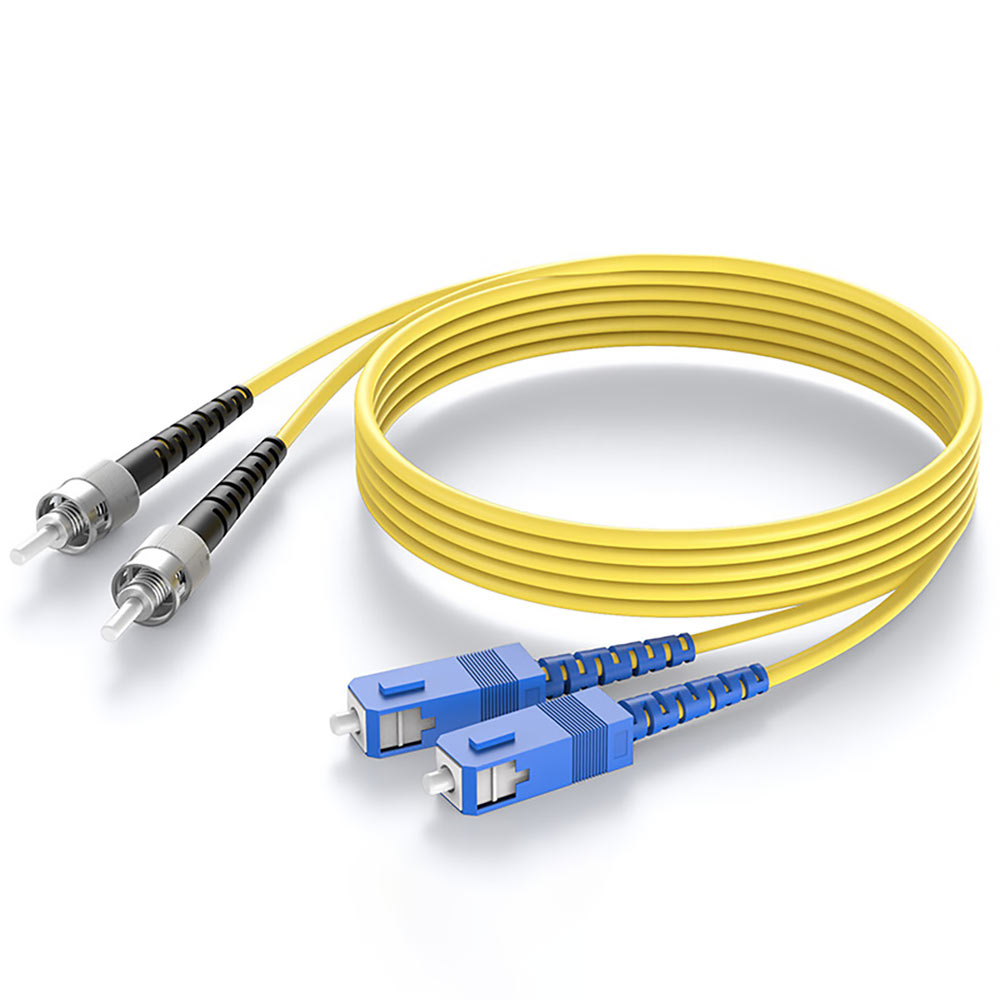

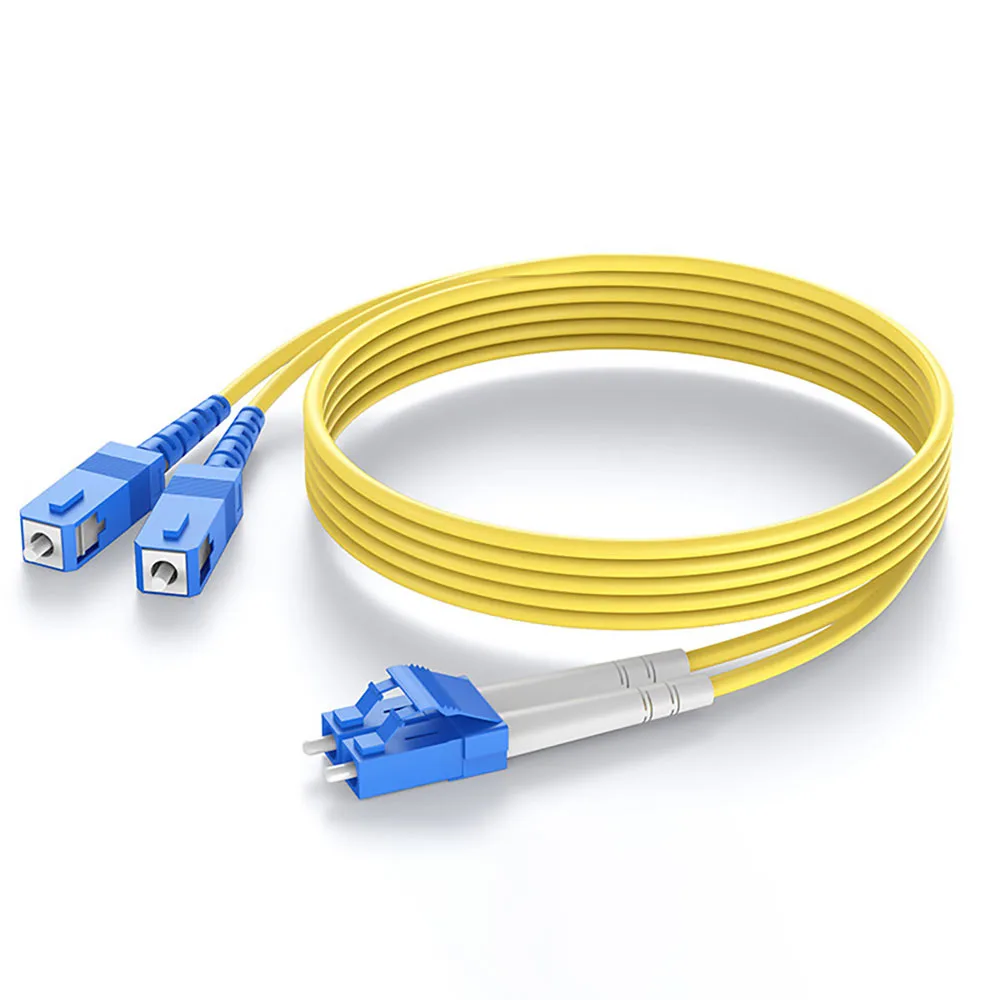

Custom Fiber Optic Cables, LC/SC/FC/ST/MU/MTRJ Connectors, Duplex Single Mode OS2, 9/125μm

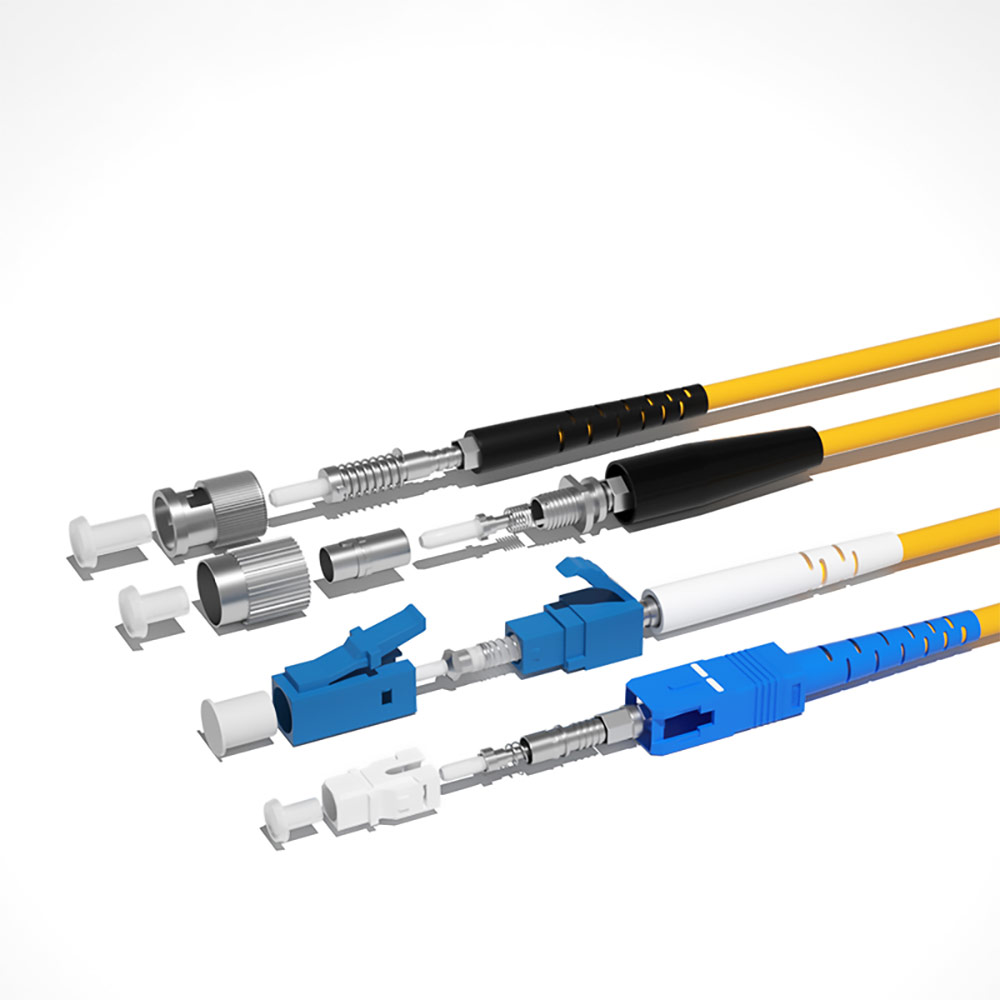

- Compatible with LC, SC, FC, ST, MU, and MTRJ connectors for flexible deployment.
- The duplex clip stabilizes fiber alignment and guarantees accurate polarity.
- Flame retardant jacket options are available: Riser (OFNR), LSZH and Plenum (OFNP) to meet safety requirements.
- Precision zirconia ferrule connectors for low insertion and high return loss.
- Pre-terminated to allow for quick, plug and play installation.
- 100% compliant to TIA-604 (FOCIS) industry standard.
- Every product is 100% factory tested for insertion loss, return loss and end face quality.
- Cables are offered with various diameters and jacket materials (PVC/LSZH).
- Supports long distance low loss transmission of the data.
- Lengths and connectors can be custom made for your network requirements.
