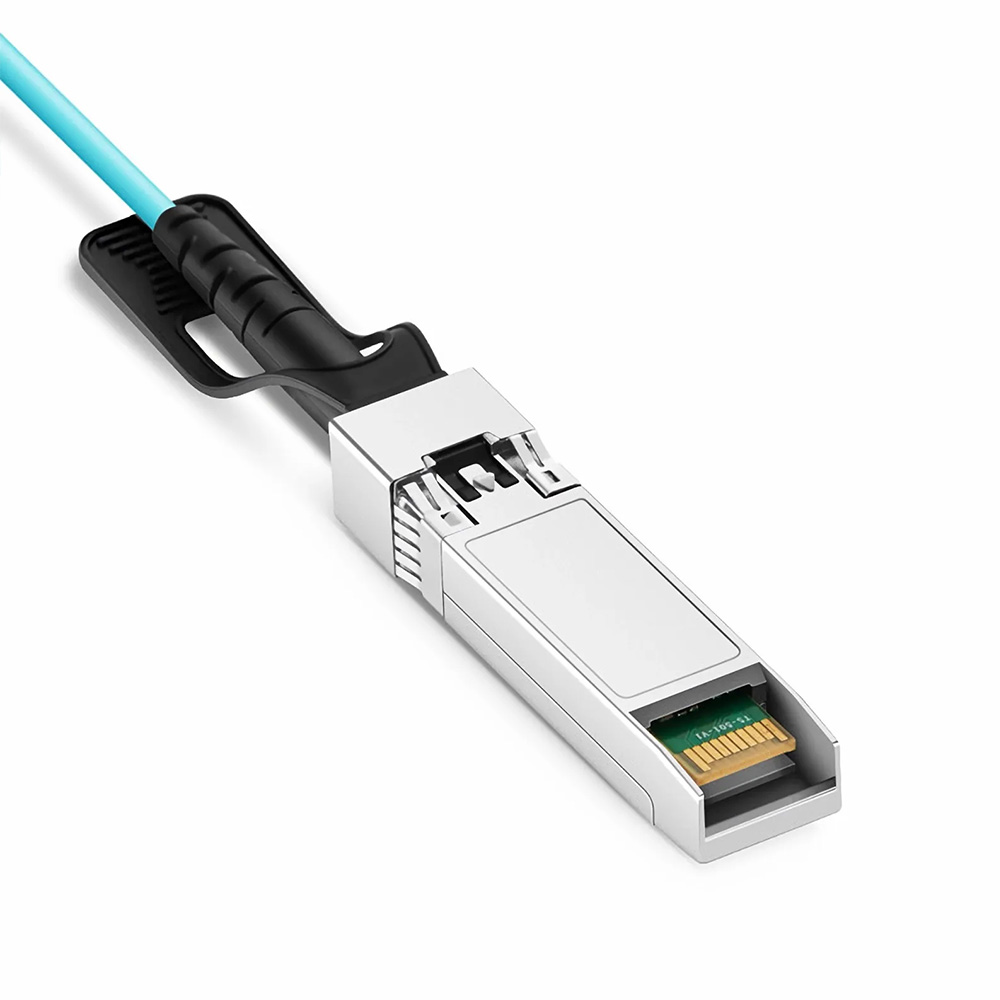

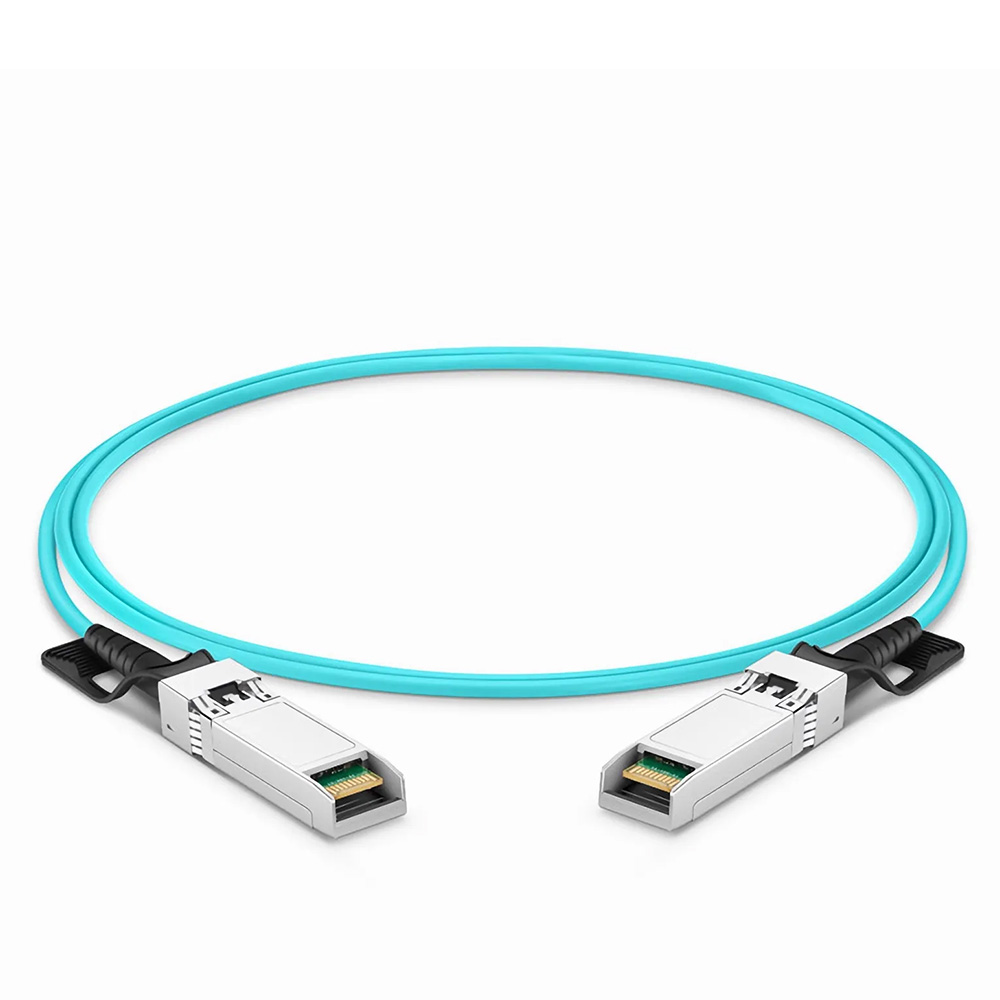

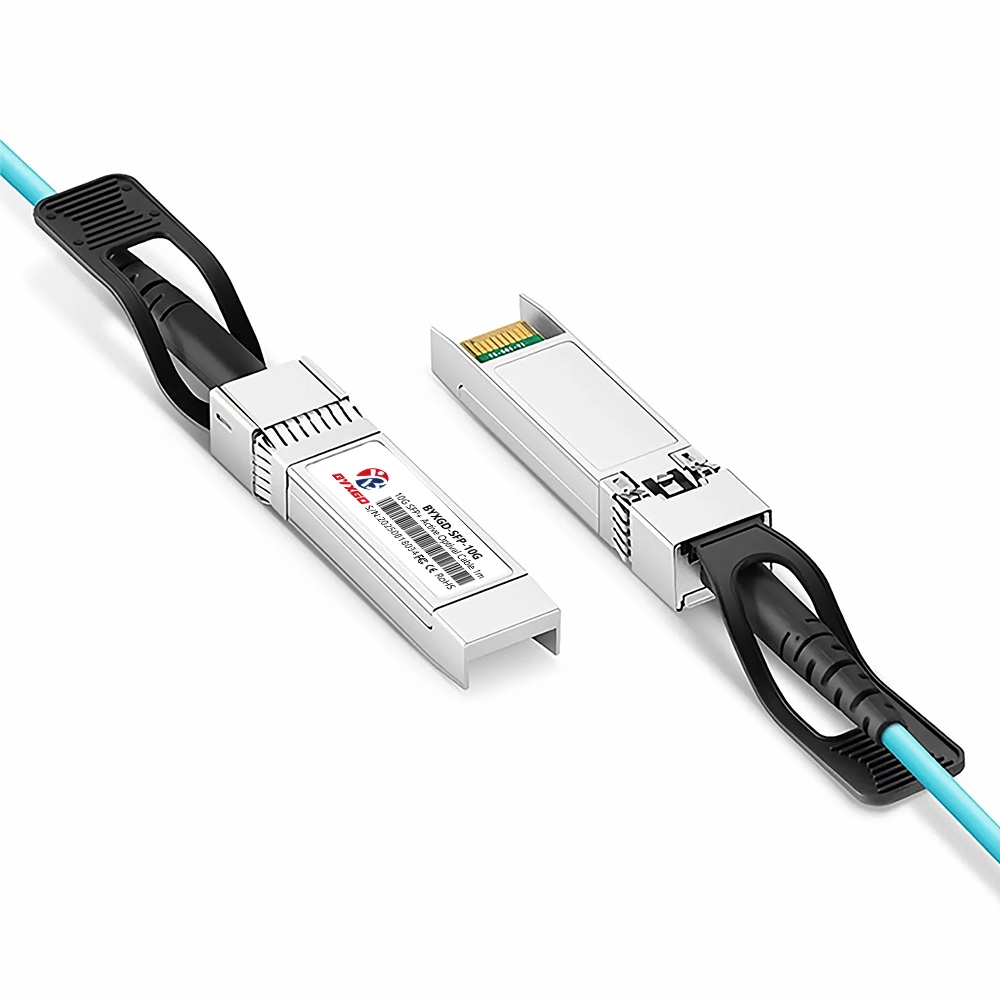

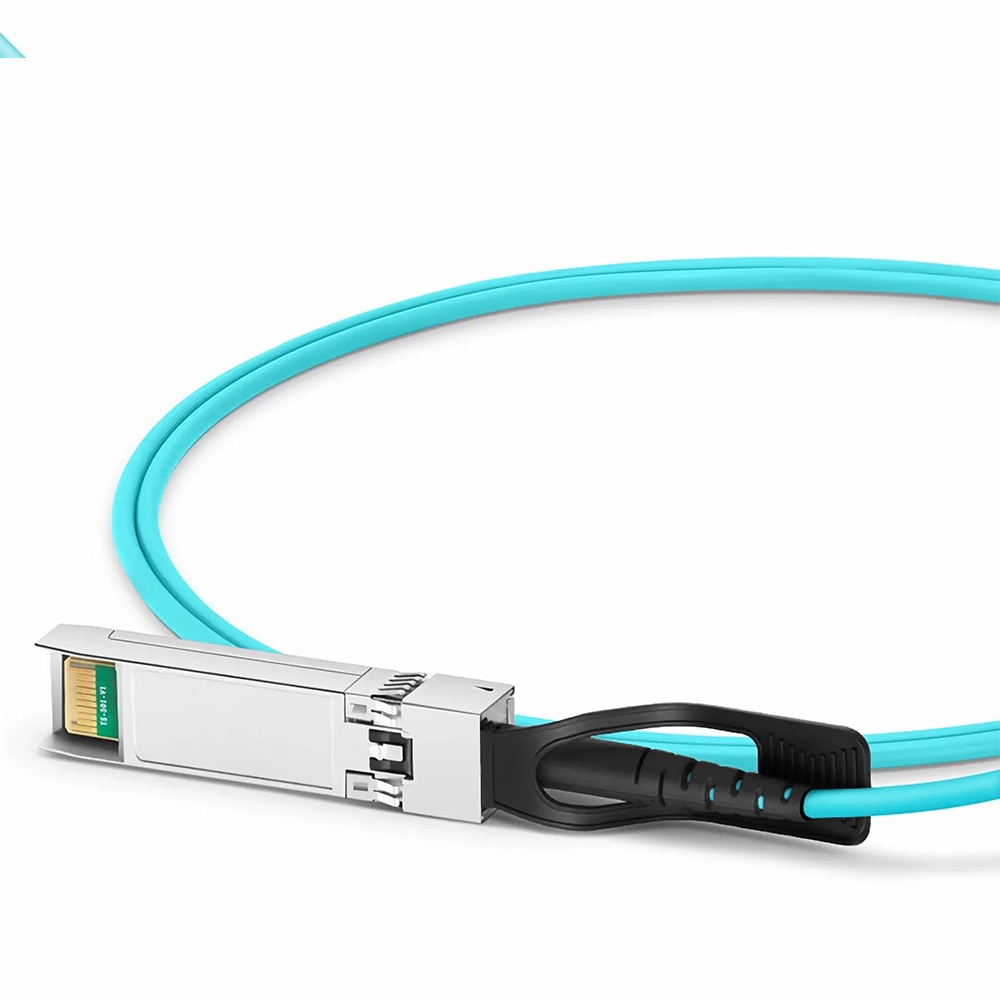

Cisco SFP-10G AOC1M Compatible 10G SFP+ Active Optical Cable (1 m, SFP+ to SFP+) from BYXGD is constructed with OM3 multimode fiber with SFP+ optics integrated within. Each end of the cable has an SFP+ connector, making this a full-duplex link for communications between devices up to 1 m. The operating wavelength is 850 nm, using VCSEL for transmitting and PIN for receiving optical signals. The cable supports 10GbE, Fibre Channel 4x/8x, InfiniBand SDR/DDR/QDR, and complies with SFF-8431 electrical specifications and SFF-8432 mechanical specifications. The power supply consists of 3.3 V, and the power consumption varies between 0.2 and 0.8 W. Temperature, Vcc voltage, Tx power, and Rx power readings can be obtained via DDM/DOM over I2C. OM3 MMF cables utilize LSZH jackets and have a minimum bend radius of 25–30 mm.
BYXGD has coded this cable to work with both Cisco SFP-10G-AOC1M and Ubiquiti UF-SFP-10G-AOC so that the switching devices (e.g., switches, routers, servers, NICs, NAS, firewalls, media converters) that recognize these codes can correctly identify the cable. The 1 m assembly is designed for short-distance connections between racks. The use of a single assembly eliminates the need for separate SR optics and patch cords, enabling connectivity to multiple types of networks (e.g., Ethernet, Fibre Channel, InfiniBand) to be shared by storage, compute, and GPU nodes. The sealed optical path of this cable is achieved without the use of LC connectors, which minimizes contamination and wear to the connectors, resulting in reduced insertion loss over the length of the cable.
Specifications
| Brand | BYXGD |
| Product Type | 10G SFP+ Active Optical Cable (AOC) |
| Connector Type | SFP+ to SFP+ (male‑to‑male) |
| Form Factor | SFP+ AOC |
| Connectivity Technology | Active optical fiber cable |
| Max Data Rate | 10 Gb/s |
| Supported Protocols | 10 Gigabit Ethernet; 4GFC/8GFC Fibre Channel; 1x InfiniBand QDR/DDR/SDR; SFP+ MSA; IEEE 802.3; SFF‑8431; SFF‑8472; SFF‑8636 |
| Cable Type | OM3 multimode fiber |
| Cable Length Range | 1 m to 100 m |
| Nominal Cable Length Example | 1 m (3.28 ft) |
| Minimum Bend Radius | 25–30 mm (cable) |
| Jacket Material | LSZH (low smoke zero halogen) |
| Alternative Jacket Rating | OFNP (per given spec) |
| Shape | Round |
| Unit Count | 1 piece per package |
| Digital Diagnostic Monitoring | Supported (temperature, voltage, optical power monitoring) |
| Wavelength | 850 nm |
| Supply Voltage | 3.3 V |
| Typical Power Consumption | < 0.8 W |
| Operating Temperature | 0 to 70 °C (32 to 158 °F) |
| Storage Temperature | −40 to 85 °C |
| Indoor/Outdoor Usage | Indoor / outdoor |
| Compatible Devices | Servers, switches, routers, storage, host bus/host channel adapters, NICs |
| Application Scenarios | 10GbE links; 4G/8G Fibre Channel; InfiniBand HPC clusters; connections between servers, switches and storage |
| Special Feature | Plug and play, hot‑pluggable SFP+ |
| Compliance | SFP+ MSA; SFF‑8431; SFF‑8472; IEC/EN 61000‑4‑2; MIL‑STD‑883E; RoHS |
| Specification Met | IEEE 802.3 |
| Package Type | Standard packaging |
| Weight | 0.1 kg (1 m) / 0.16 oz |
| Package Dimensions | 0.01 x 0.01 x 0.01 in |
| Warranty | 1 years |
