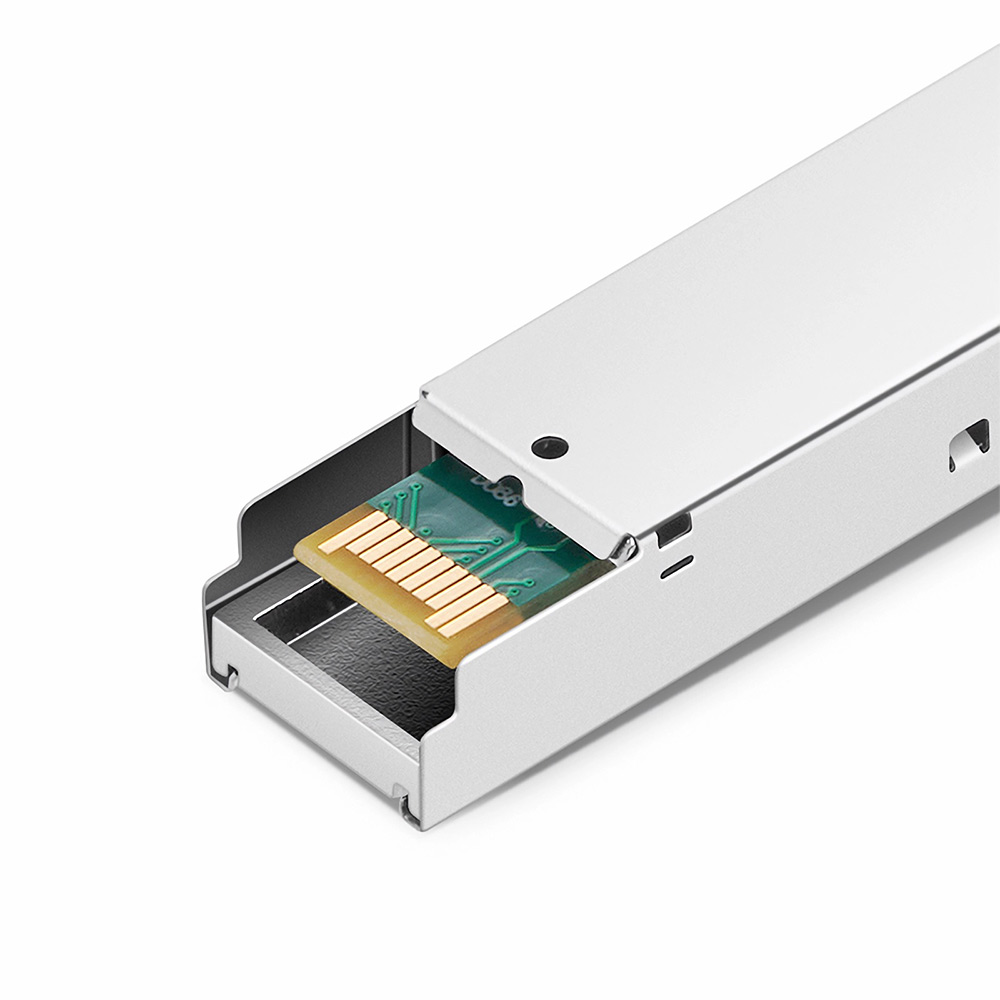

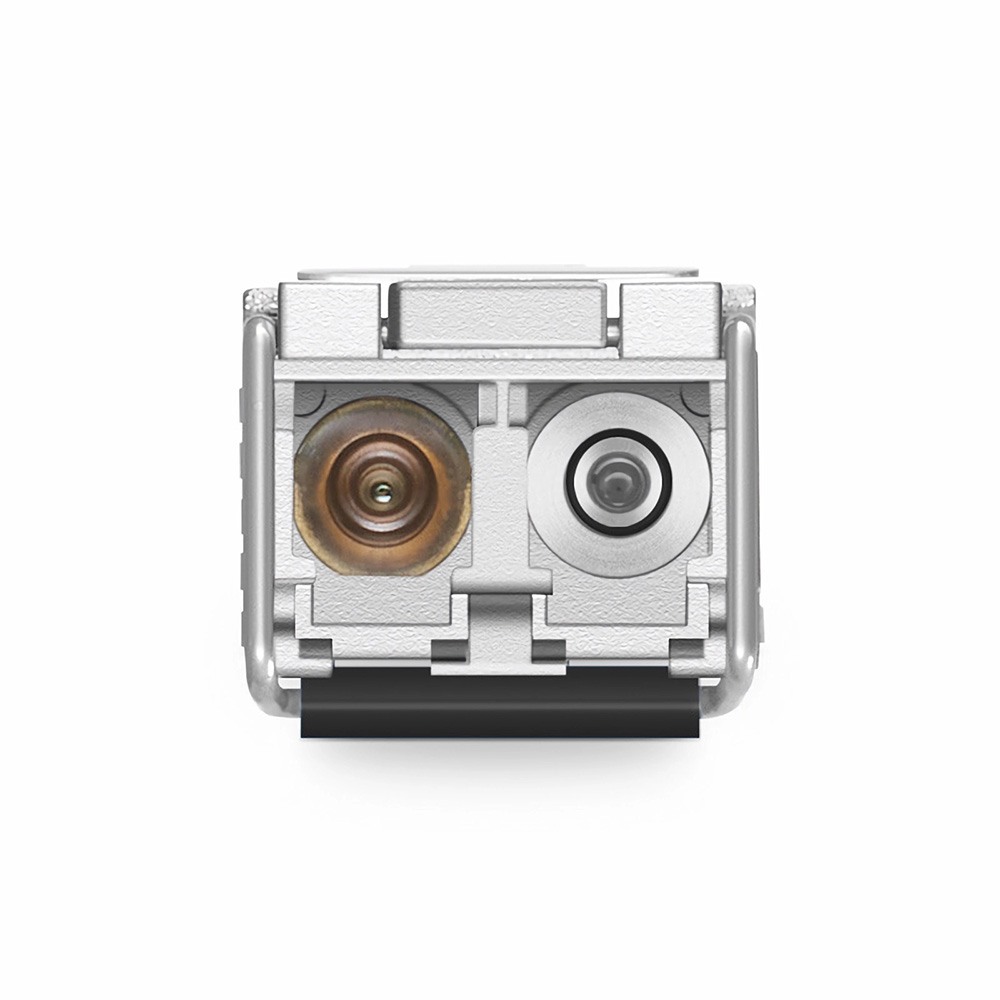

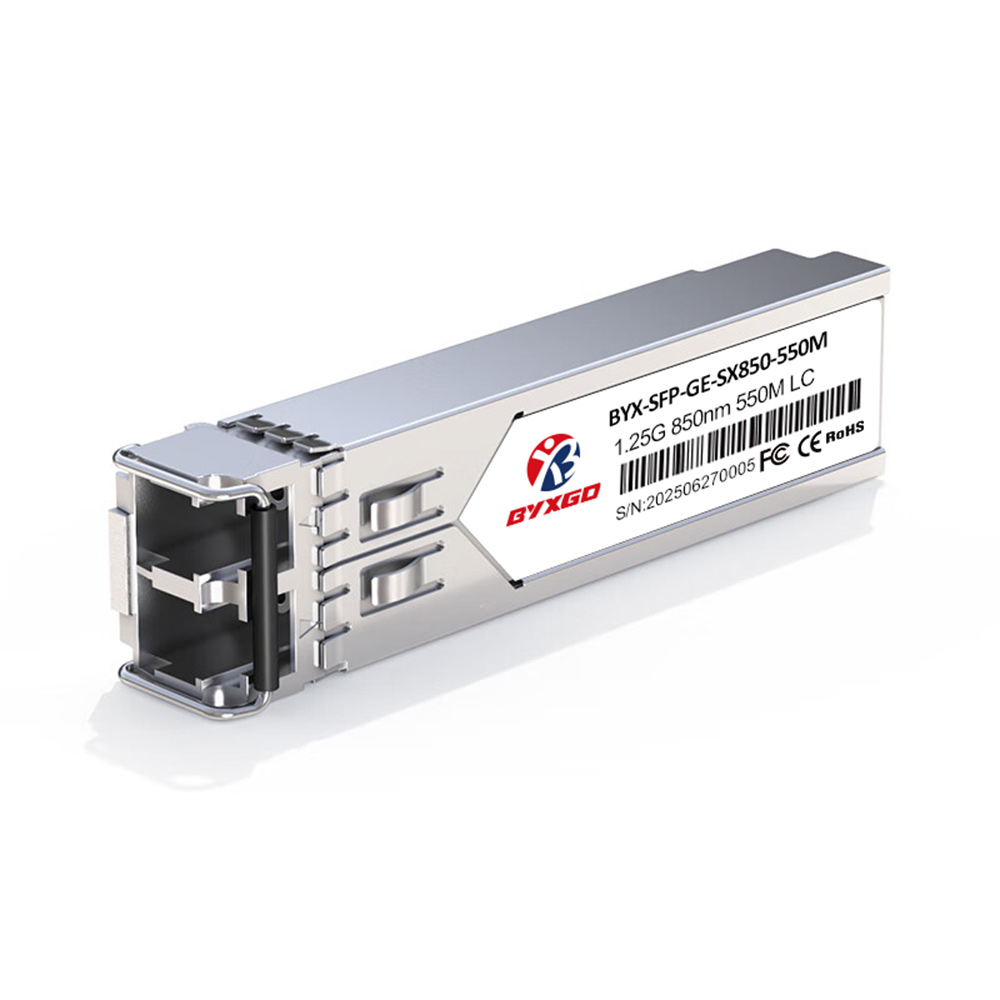

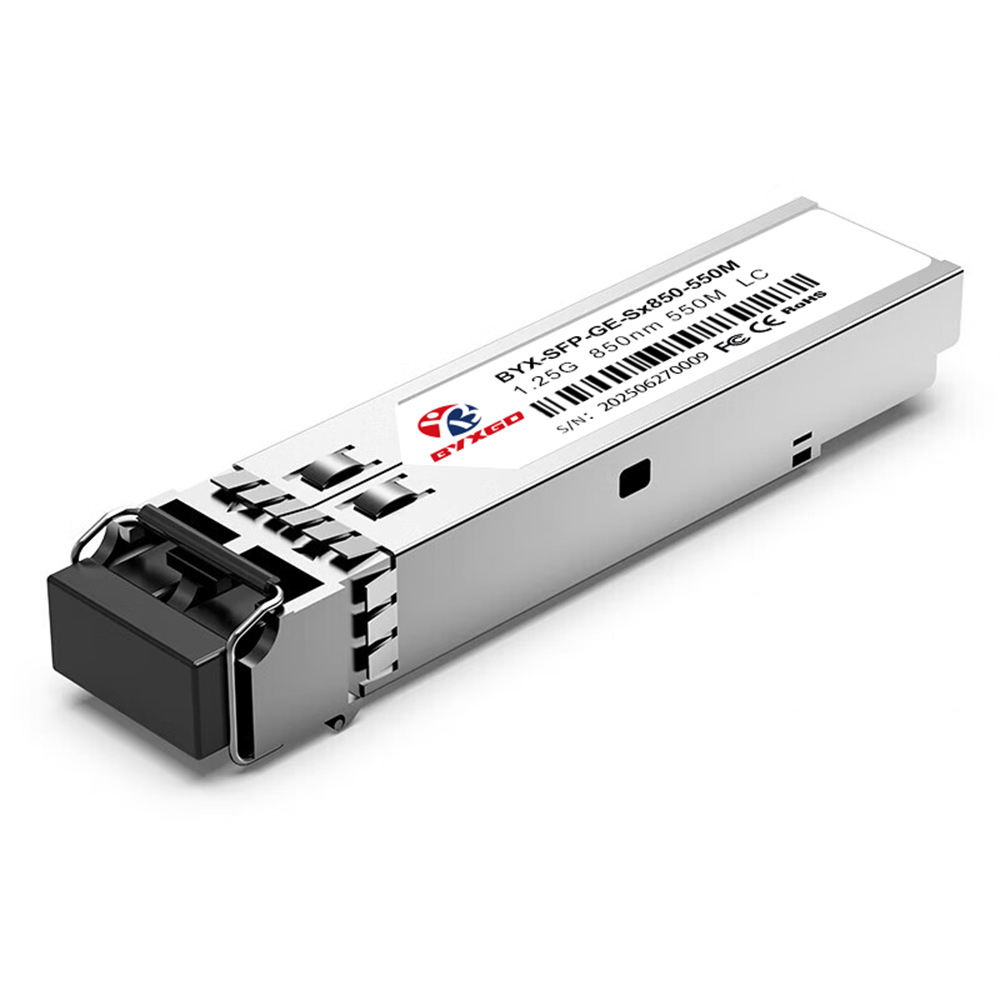

Cisco Compatible 1000BASE-SX SFP Module 550m 850nm Duplex LC/UPC MMF for Mikrotik HPE TP-LINK HP Juniper

Cisco compatible 1000BASE-SX SFP module operates at a speed of 1.25 Gbps over standard multimode fiber using a basic 850 nm VCSEL transmitter and duplex LC/UPC type connector and can run up to 550 m depending on OM2, OM3, or OM4 fiber cable specifications. The SFP module is fully compliant with both the SFP MSA and IEEE 802.3z standards, uses a single 3.3 V supply and hot-swap feature, and typically draws up to 0.8 W of power. The SFP module has a digital diagnostics feature based on SFF-8472 to report temperature, voltage, laser bias, and TX/RX Optical Power. The operating temperature is specified from 0-70°C; the optical safety is Class 1, and the SFP module is made from RoHS compliant materials. The receiver sensitivity specification and transmitter output specification meet the standard 1000BASE-SX link budgets.

Compatibility includes all the common platforms and part numbers to be found on the market today, including: Juniper EX-SFP-1GE-SX, Arista SFP-1G-SX, Brocade E1MG-SX-OM, HPE ProCurve J4858C/J4858D, H3C JD118A/SFP-GE-SX-MM850-A, Dell 320-2881, Extreme I-MGBIC-GSX, HW SFP-1.25G-SX, NETGEAR AGM731F, Fortinet FG-TRAN-SX, D-Link DEM-311GT, Adtran 1184561PG3, F5 F5-UPG-R, Avaya/Nortel AA1419048-E6, Alcatel-Lucent SFP-GIG-SX, Allied Telesis AT-SPSX, Calix 100-01660, SMC SMC1GSFP-SX, and TRENDnet TEG-MGBSX.

Specifications
