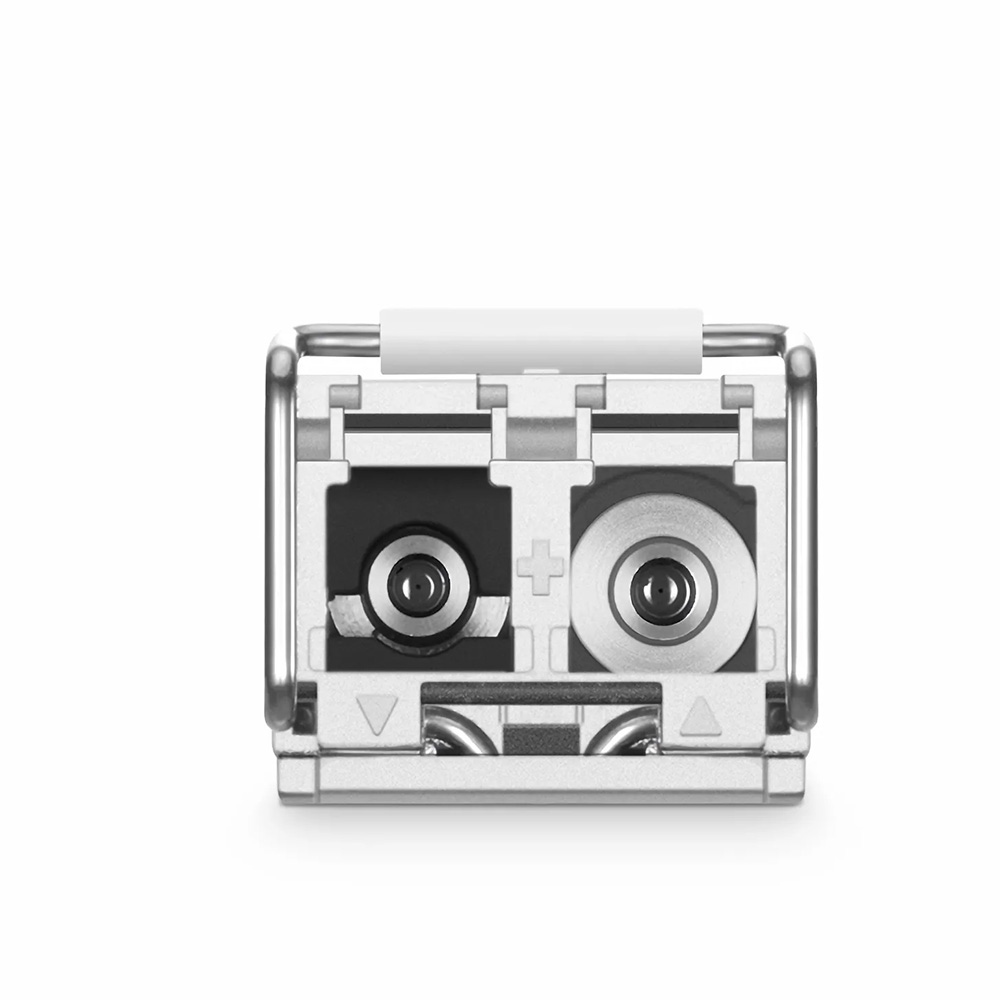

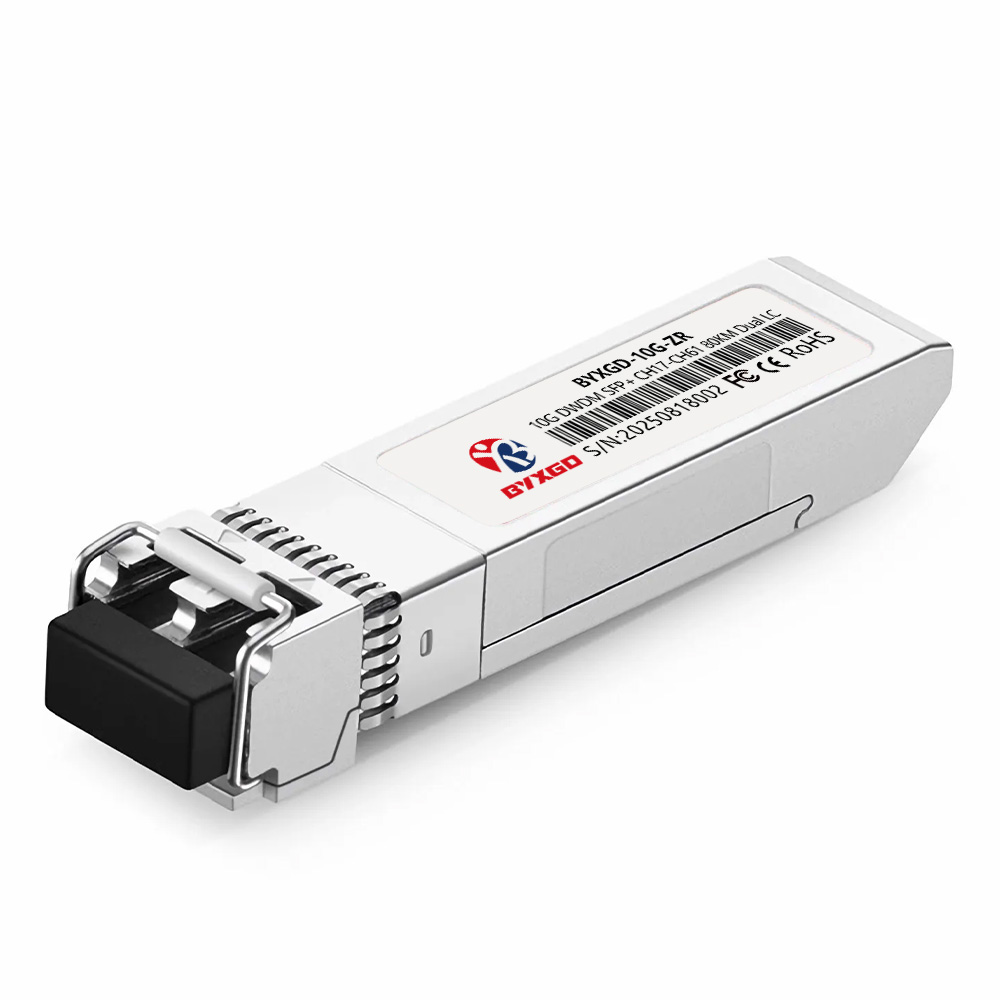

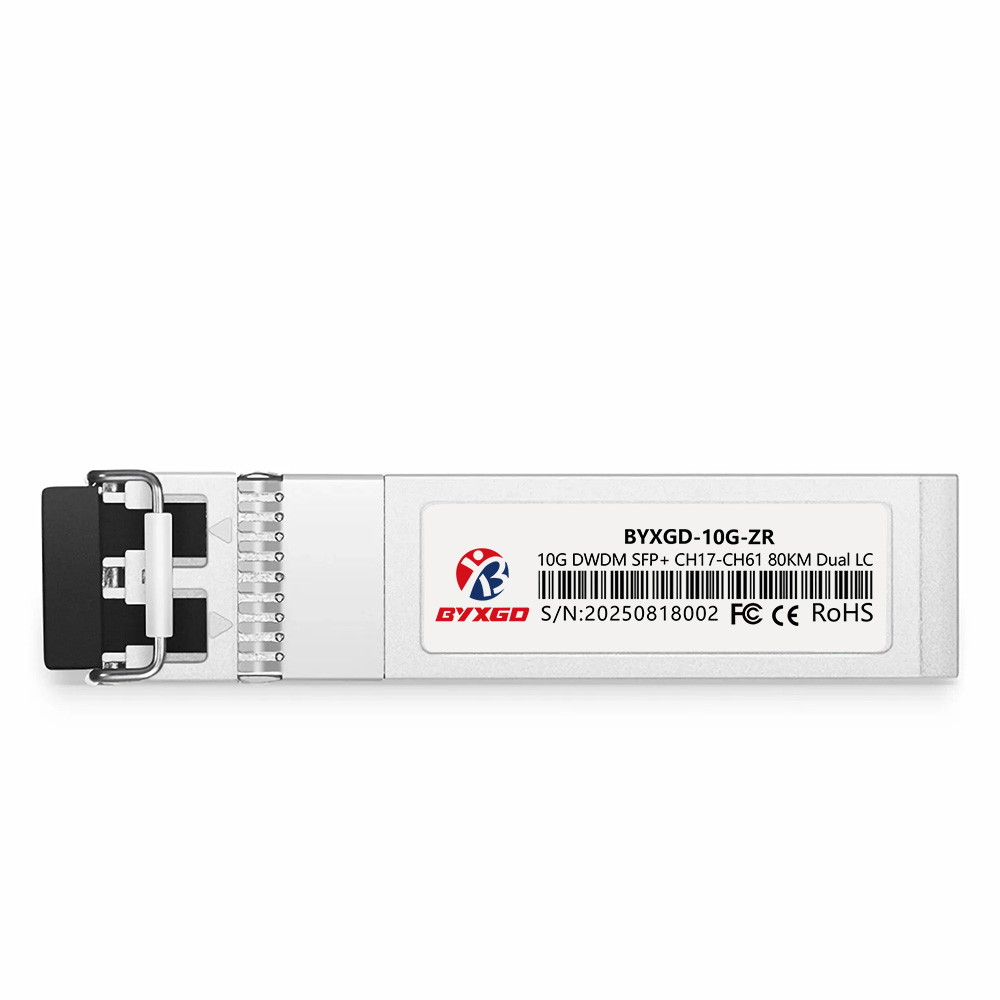

BYXGD SFP-10G-DWDM-ZR is a 10G DWDM SFP+ transceiver that operates within a C17-C61 ITU-T 100 GHz grid and supports a maximum line rate of 10.5 Gb/s and a reach of 80 km on G.652/655 (single-mode) fiber via a duplex LC/UPC interface. The device employs an EML transmitter with an APD receiver and has a 24 dB optical power budget to work with DWDM channels ranging from 1528.77-1563.86 nm for long-distance (ZR) links. Users can monitor the SFP-10G-DWDM-ZR module using Digital Diagnostic Monitoring (DDM/DOM) via a 2-wire interface, providing real-time information on module temperature, supply voltages, bias currents, and optical output powers. Compliance with SFP+ MSA, SFF-8431, SFF-8432, SFF-8472, IEEE 802.3ae, and RoHS is established for the SFP-10G-DWDM-ZR; the device can be replaced without powering down related systems, with a nominal power draw below 1.6 watts.
The BYXGD SFP-10G-DWDM-ZR transceiver is intended for use in 10G DWDM ZR applications, including 10GBASE-DWDM connections, in metro, regional, and long-haul networks with DWDM MUX/DEMUX over a single pair of fiber. The SFP-10G-DWDM-ZR works in conjunction with other optics of the DWDM-SFP10G-C and SFP-10G-DWDM-ZR series and can be used in 10G switches, routers, line cards, DWDM transport platforms, and over 100 other types of equipment.
Specifications
| Brand | BYXGD |
| Form Factor | SFP+ |
| Maximum Data Rate | 9.95 to 11.3 Gbps |
| Wavelength Range | 1528.77 nm – 1563.86 nm (C17–C61) |
| Channel Spacing | 100 GHz |
| Maximum Transmission Distance | 80 km over G.652/655 Single Mode Fiber (SMF) |
| Optical Components | EML Transmitter, APD Receiver |
| Transmitter Power | 0 to +5 dBm |
| Receiver Sensitivity | < -24 dBm |
| Receiver Overload | > -7 dBm |
| Optical Power Budget | 23 to 24 dB |
| Extinction Ratio | > 8.2 dB |
| Connector Type | Duplex LC |
| Power Consumption | < 1.6 W |
| Modulation Format | NRZ |
| Digital Diagnostic Monitoring | Supported (SFF-8472 compliant) |
| Compliance | SFF-8431, SFF-8432, IEEE 802.3ae, RoHS, IEC/EN 61000-4-2, FDA 21CFR 1040.10/11, GR-253-CORE |
| Operating Temperature Range | 0°C to 70°C (Commercial), -40°C to 85°C (Industrial) |
| Storage Temperature Range | -40°C to 85°C |
| Media Type | Single Mode Fiber (OS2 SMF, 9/125 µm) |
| Bit Error Ratio (BER) | 1E-12 |
| Electromagnetic Compatibility (EMC) | Supported |
| MTBF | 1,000,000 Hours |
| Weight | 0.025 kg |
| Application Scenarios | 10GBASE-ZR/10GBASE-ZW DWDM Ethernet, 10G Fibre Channel, 10G Data Center Switches and Routers, 10G Network Interface Cards, Other DWDM Optical Networks |
| Warranty | 5 years |
BYXGD Compatible Vendors (10G SFP+ DWDM 80km)
| Category | Vendors |
|---|---|
| Core Networking | Cisco, Arista Networks, HPE, HPE H3, Juniper, Brocade, Alcatel-Lucent, Nokia, ZTE, Huawei, Dell Networking, Dell EMC, Extreme, F5 Networks, Force10 |
| Data Center/Storage | IBM, Intel, Supermicro, NetApp, QLogic, QNAP, Synology, Nutanix, Oracle, Emulex, Chelsio, Mellanox |
| Security/Firewall | Palo Alto Networks, Fortinet, Checkpoint, Sonicwall, Watchguard, FireEye, McAfee, Symantec, Sophos, Pulse Secure |
| Wireless/Access | Aruba Networks, Ruckus Networks, Ubiquiti Networks, EnGenius, MikroTik, TP-Link, Tenda, Netgear |
| Industrial/Edge | Moxa, Hirschmann, Red Lion/Sixnet/N-Tron, Antaira, Korenix, ORing, CTC Union, Lantech, Planet |
| Optics/Transport | Ciena, Infinera, Transmode/Infinera, Calix, MRV, Evertz, Gigamon, Spirent |
| Servers/Appliances | Lenovo, H3C, Ruijie, Supermicro, Asus, Sony, Panasonic |
