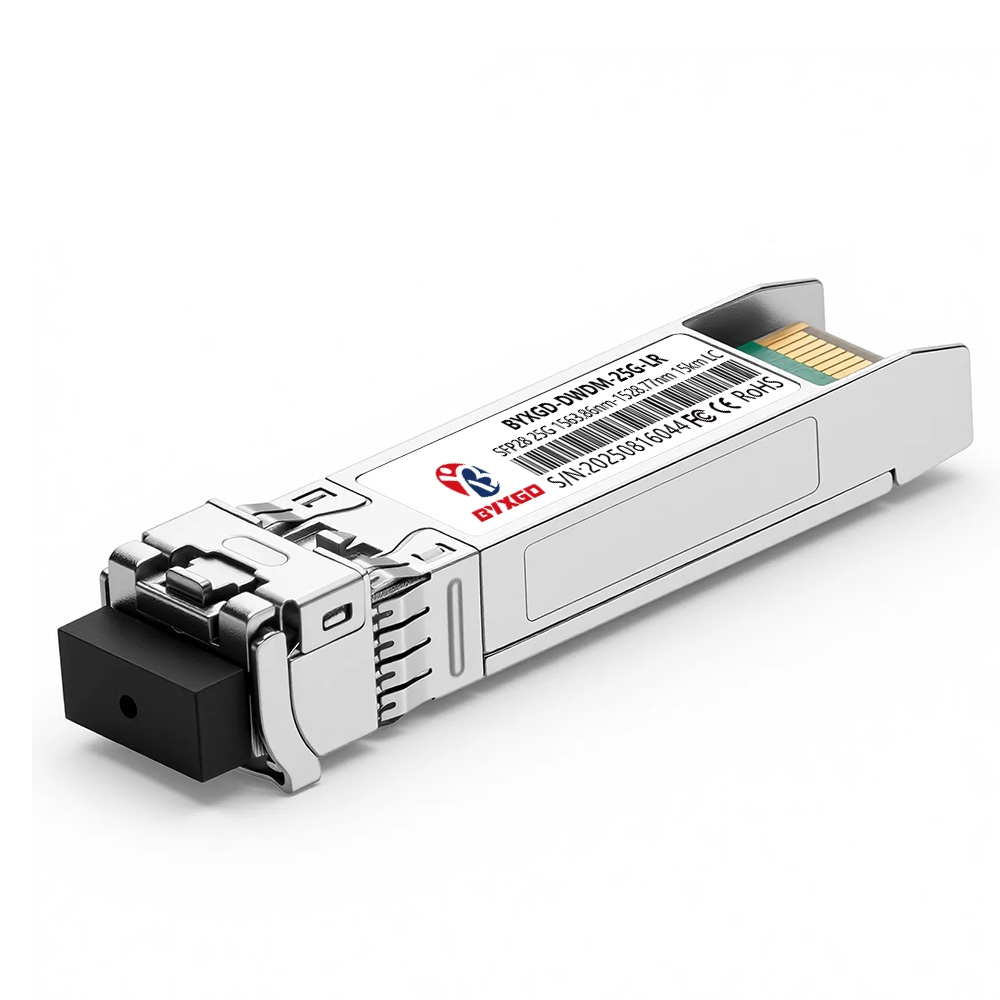

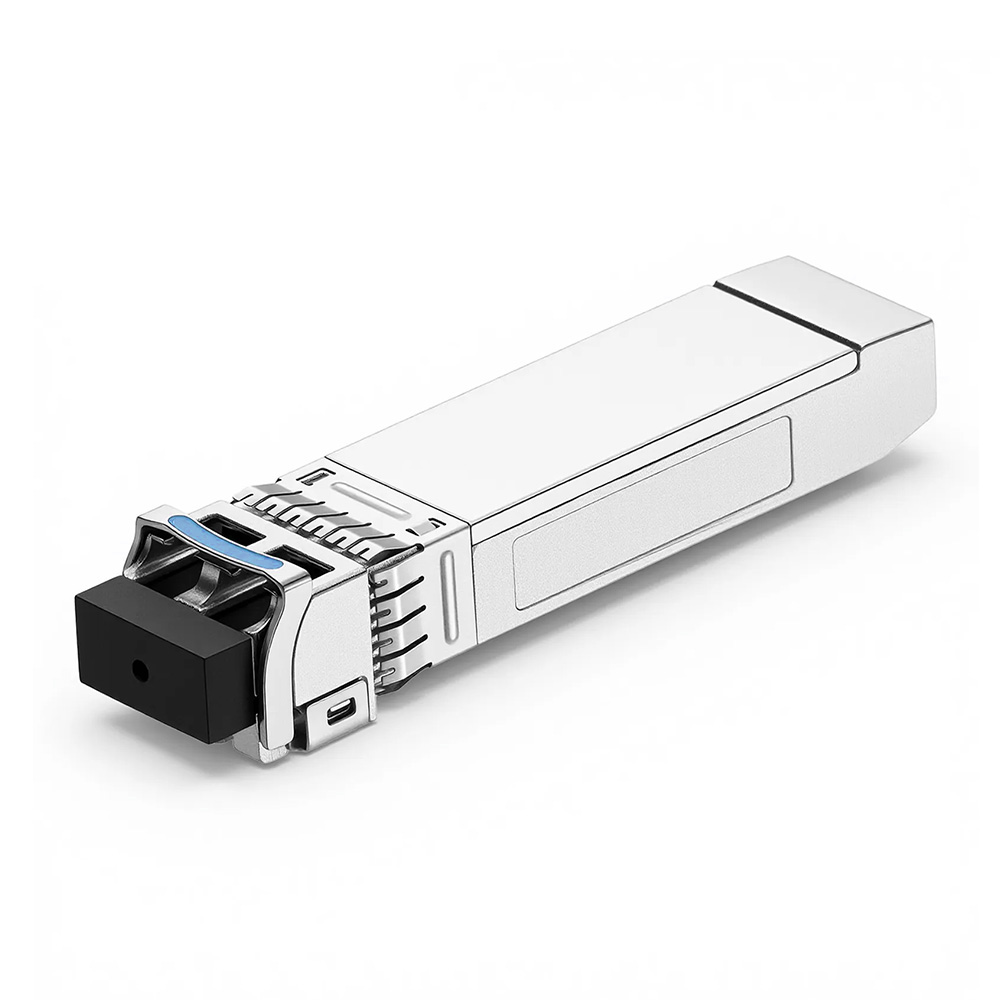

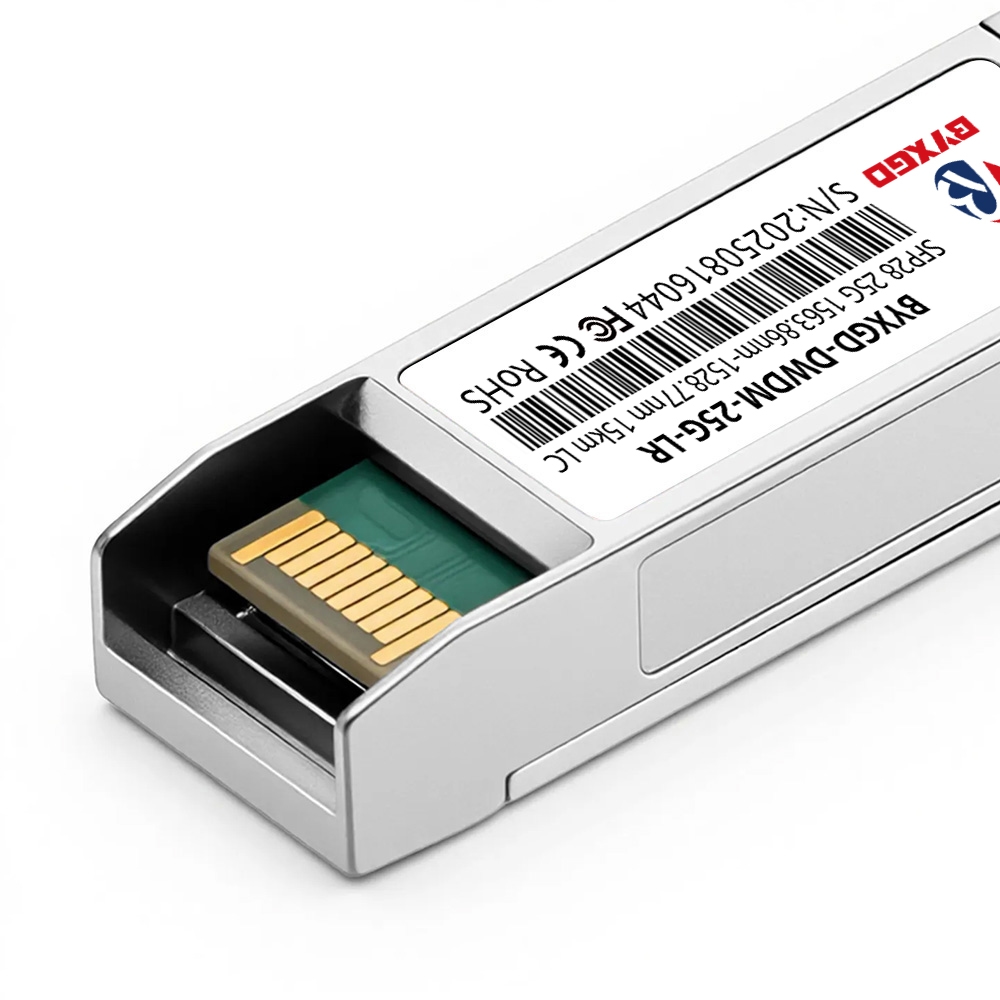

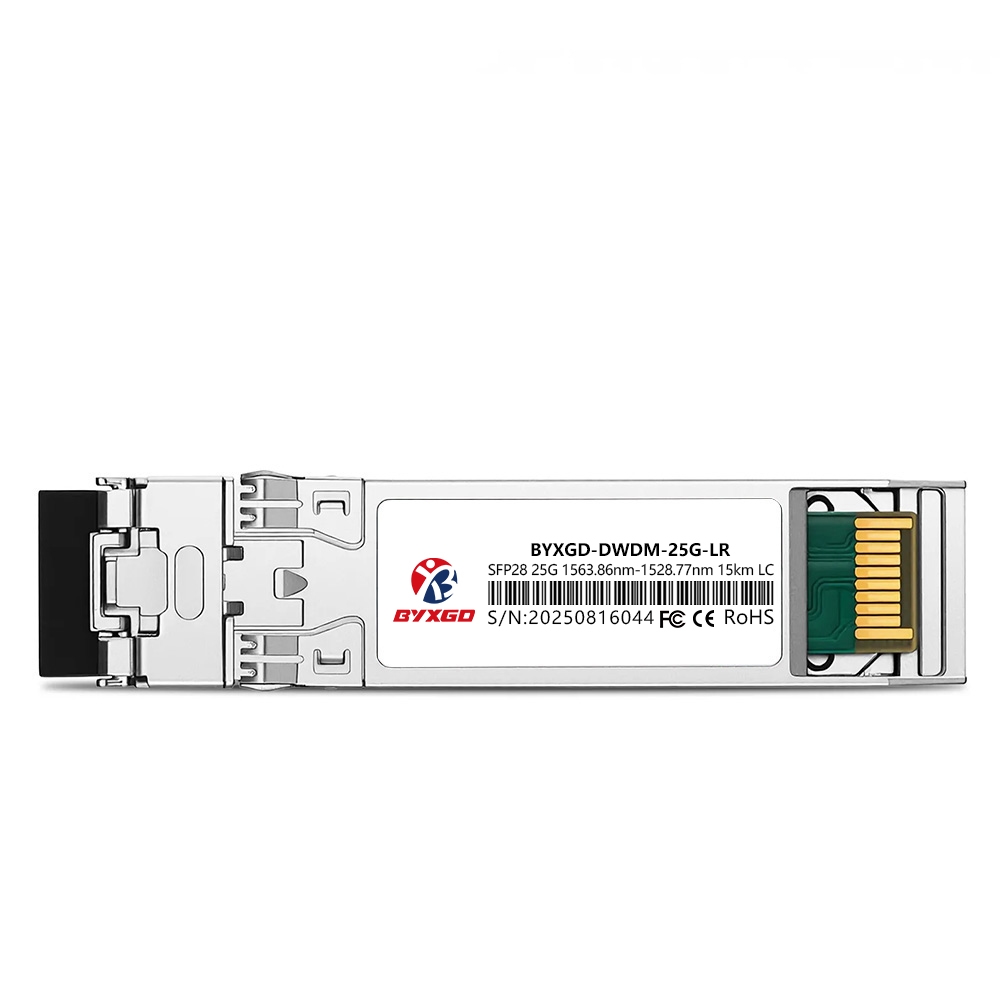

BYXGD C17–C61 25G DWDM SFP28 100 GHz, 15 km LR, DDM Duplex LC/UPC Single-Mode Optical Transceiver Module was developed to support the use of 25G Ethernet and CPRI/eCPRI links via single-mode fiber up to 15 km in length, with an operational frequency range based on the ITU-T G.694.1 C Band between channels C17 through C61 (1563.86–1528.77 nm), separated by 100 GHz.
This module contains a cooled DWDM EML laser along with a high-sensitivity APD receiver developed to deliver data rates between 8.5 and 28.1 Gbps. It also has a link budget with a maximum of 11.3 dB without FEC or 14 dB with FEC, achieving optimally efficient performance for long-range optical connectivity, while the integrated Clock Data Recovery (CDR) within both transmit and receive signals provides low jitter, high signal integrity, reliability, and fast high-speed rates.

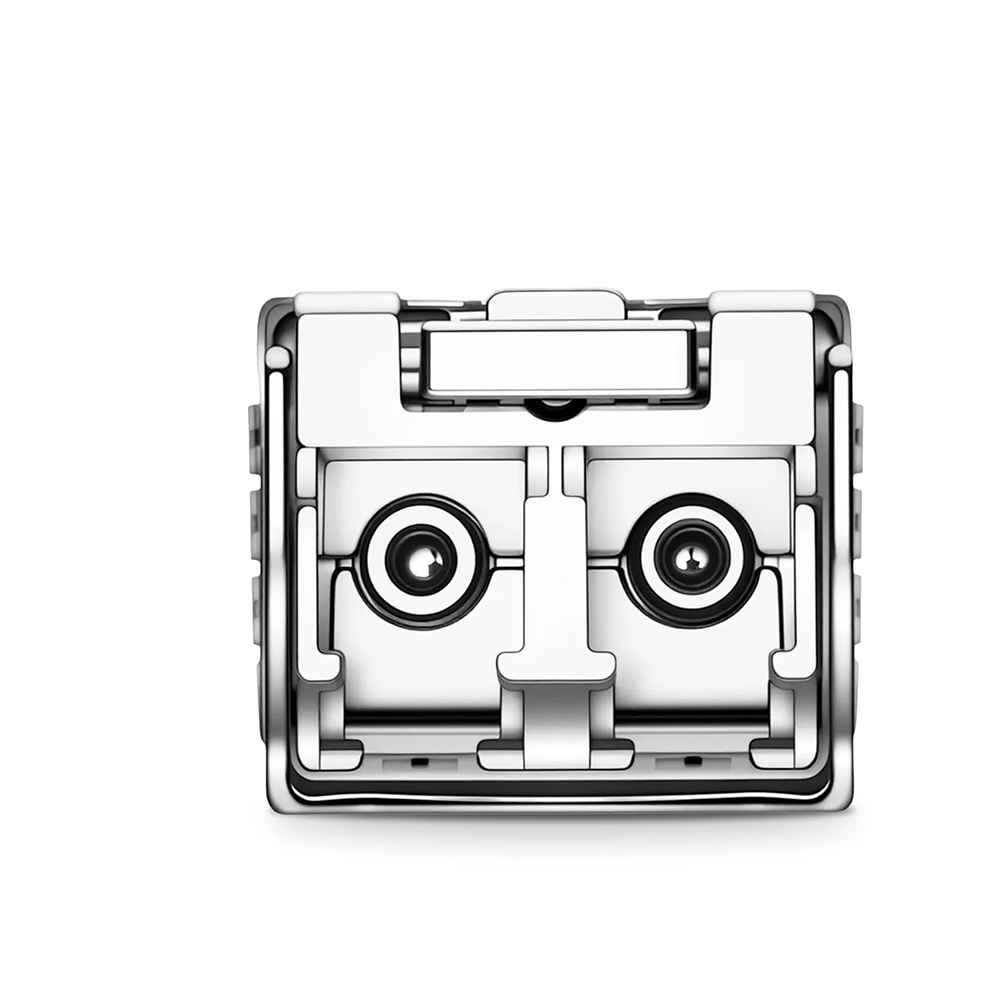

The integrated Digital Diagnostic Monitoring (DDM) is available for tracking optical performance in real time. In addition, it has a standard duplex LC/UPC connector and is powered from a single 3.3 V supply. The transceiver module is manufactured from a metal housing that offers protection against EMI and is operational within the temperature range of 0–70 °C. The module complies with the SFF-8431, SFF-8472, and IEEE 802.3by standards.
Specification
| Form Factor | Hot-pluggable SFP28 |
| Data Rate | 25G Ethernet(25.78 Gbps), 10G Ethernet(10.31 Gbps) |
| Wavelength | ITU-T G.694.1 DWDM 100GHz C-band grid, C17-C61 (1563.86nm to 1528.77nm) |
| Media Type | Single-Mode Fiber (SMF) |
| Distance | 15km |
| Optical Budget | 11.3dB w/o FEC, 14 dB with FEC |
| Transmitter Type | Cooled DWDM EML laser |
| Tx Wavelength Bandwidth | 0.8 nm (100 GHz) |
| Avg Launch Power | 0 to 5 dBm |
| Extinction Ratio | 6 dB |
| Receiver Type | APD |
| Rx Sensitivity | < -14.5 dBm |
| Receiver Overload | > -2.0 dBm |
| Connector | Duplex LC/UPC |
| DDM/DOM | Supported |
| FEC | Host FEC supported |
| Power Supply | Single +3.3V |
| Power Consumption | ≤2W |
| Operating Temp Range | 0°C to 70°C |
| Humidity | 5% ~ 85% |
| Compliance | SFF-8431, SFF-8432, SFF-8472, IEEE 802.3, 25GBASE-LR, CE, RoHS, SFP28 MSA, IEC-60825, FDA 21CFR 1040.10 and 11 |
