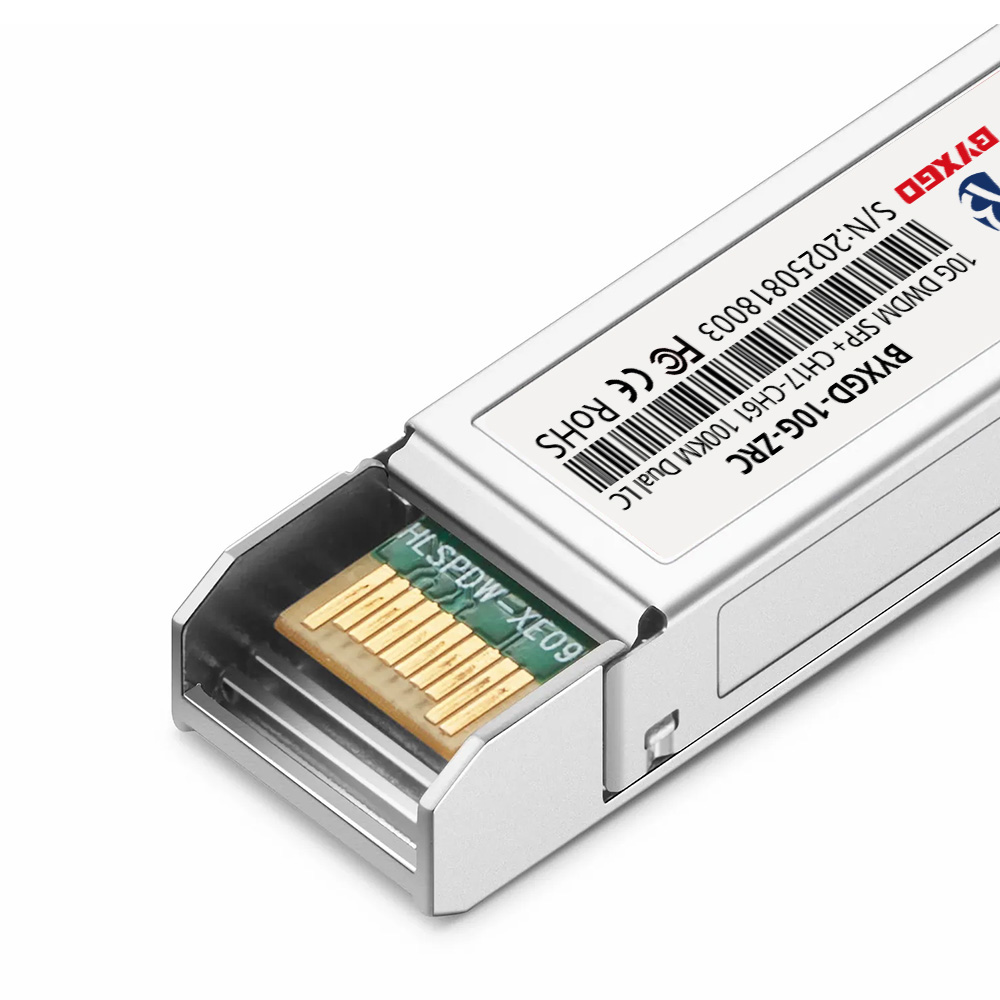

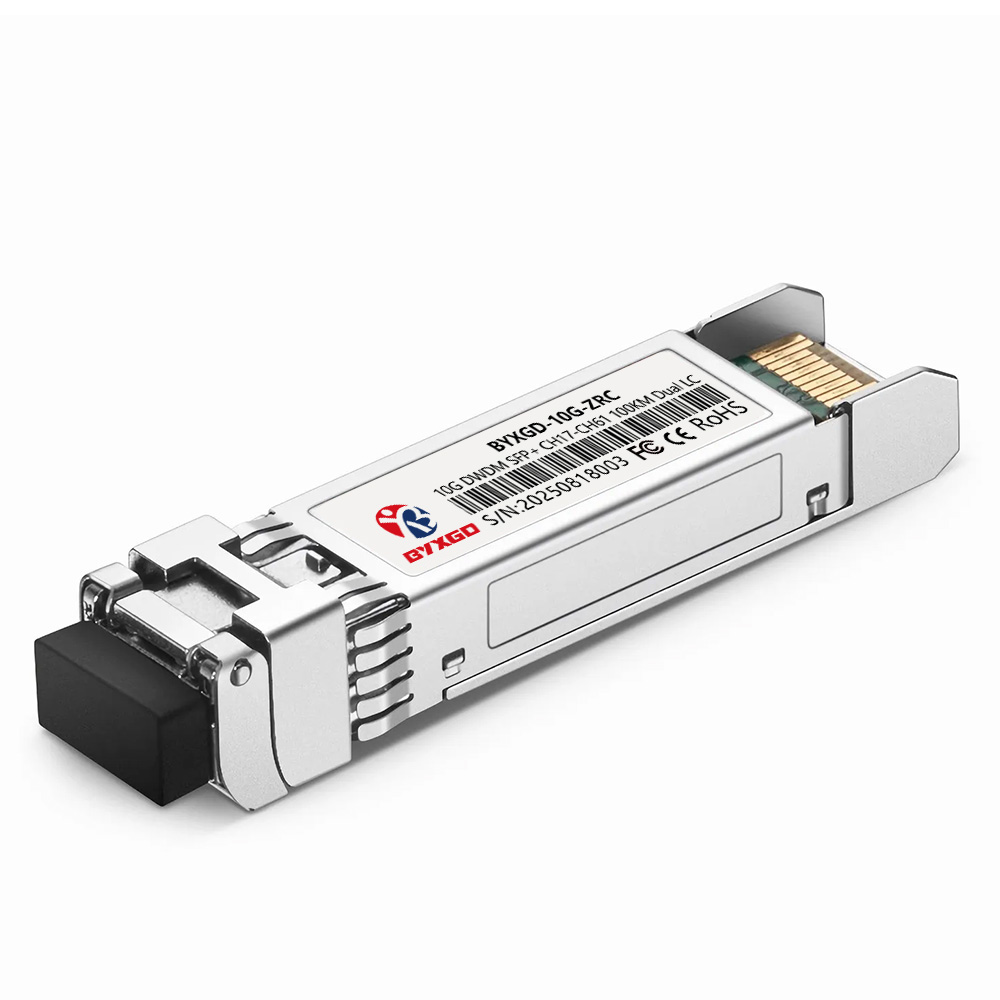

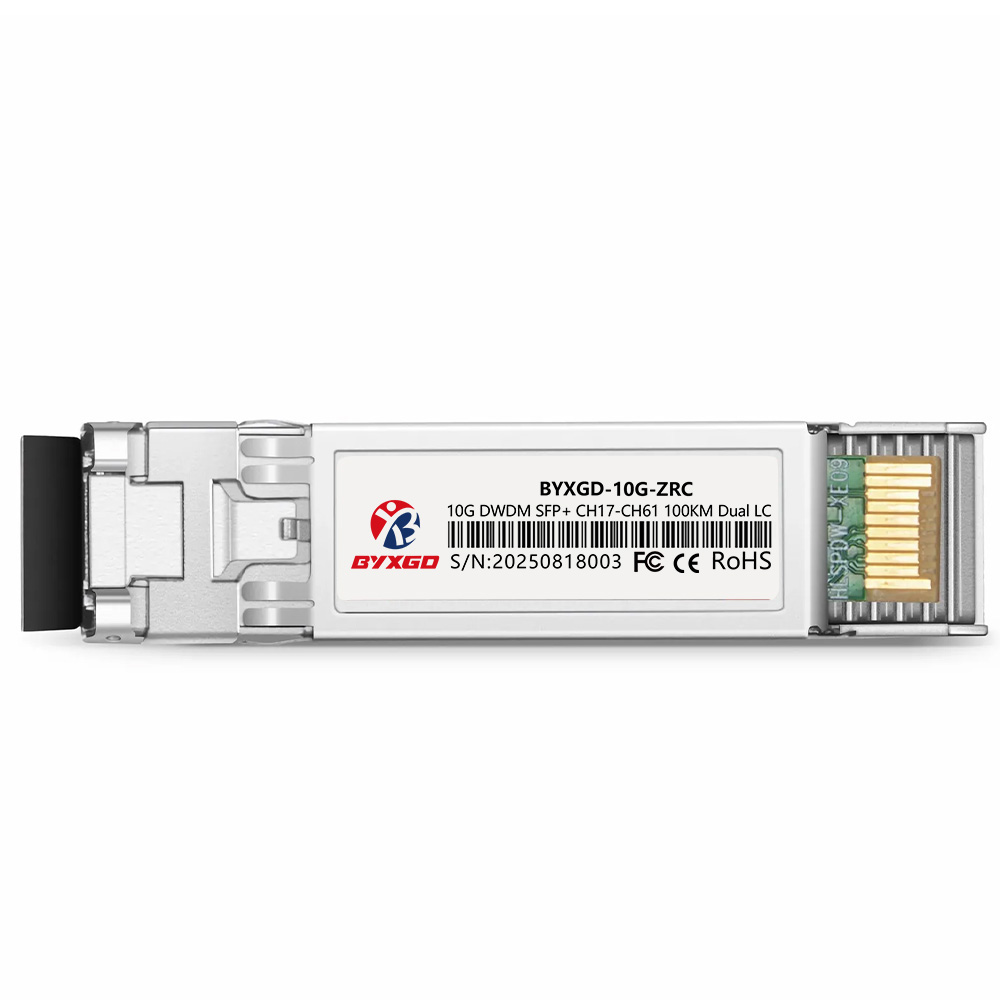

C17-C61 10G DWDM SFP+ 100GHz BYXGD transceiver supports speeds from 9.95-11.32 Gbps (10G Ethernet, STM-64, ODU2, ODU2e, OTU2, OTU1f, OTU2f, OTU1e, and OTU2e) using an EML laser transmitter at ITU-T 100 GHz (C-band) channels 17-61, with an APD photodiode receiver and duplex LC connector. With a minimum optical budget of 26 dB, the transceiver supports transmission of up to 100 km using single-mode fiber (SMF). Data can be monitored via SFF-8472 DDM in real-time; the parameters monitored include voltage, bias current, temperature, and TX and RX power. The device is hot-pluggable SFP+ and complies with SFF-8419 MSA and IEEE 802.3ae 10GBASE-ZR. It has an operational temperature range of 0-70 °C. CE/RoHS certifications are provided, and the EEPROM has been factory-tested on DWDM switches and routers. This part number is a third-party compatible version of SFP-10G-DWDM-EZR-xx.xx. The device requires a DWDM multiplexer/demultiplexer (Mux/Demux) to operate and is compatible with customized DWDM systems, working across major platforms.
Specifications
| Brand | BYXGD |
| Form Factor | SFP+ |
| Data Rate | 9.95-11.32 Gbps (Max 11.3 Gbps) |
| Wavelength Range | 100 GHz ITU-T DWDM Grid, C17-C61 (1528.77-1563.86 nm) |
| TX Wavelengths | C17 (1563.86 nm), C18 (1563.05 nm), C19 (1562.23 nm), C20 (1561.42 nm), C21 (1560.61 nm), C22 (1559.79 nm), C23 (1558.98 nm), C24 (1558.17 nm), C25 (1557.36 nm), C26 (1556.56 nm), C27 (1555.75 nm), C28 (1554.94 nm), C29 (1554.13 nm), C30 (1553.33 nm), C31 (1552.52 nm), C32 (1551.72 nm), C33 (1550.92 nm), C34 (1550.12 nm), C35 (1549.32 nm), C36 (1548.52 nm), C37 (1547.72 nm), C38 (1546.92 nm), C39 (1546.12 nm), C40 (1545.32 nm), C41 (1544.53 nm), C42 (1543.73 nm), C43 (1542.94 nm), C44 (1542.14 nm), C45 (1541.35 nm), C46 (1540.56 nm), C47 (1539.77 nm), C48 (1538.98 nm), C49 (1538.19 nm), C50 (1537.4 nm), C51 (1536.61 nm), C52 (1535.82 nm), C53 (1535.04 nm), C54 (1534.25 nm), C55 (1533.47 nm), C56 (1532.68 nm), C57 (1531.9 nm), C58 (1531.12 nm), C59 (1530.33 nm), C60 (1529.55 nm), C61 (1528.77 nm) |
| RX Wavelength | ITU-T DWDM Grid 100 GHz C-Band |
| TX Wavelength Bandwidth | 100 GHz (0.8 nm) |
| Max Distance | 100 km |
| Fiber Type | Single-Mode Fiber (SMF, 9/125 µm) |

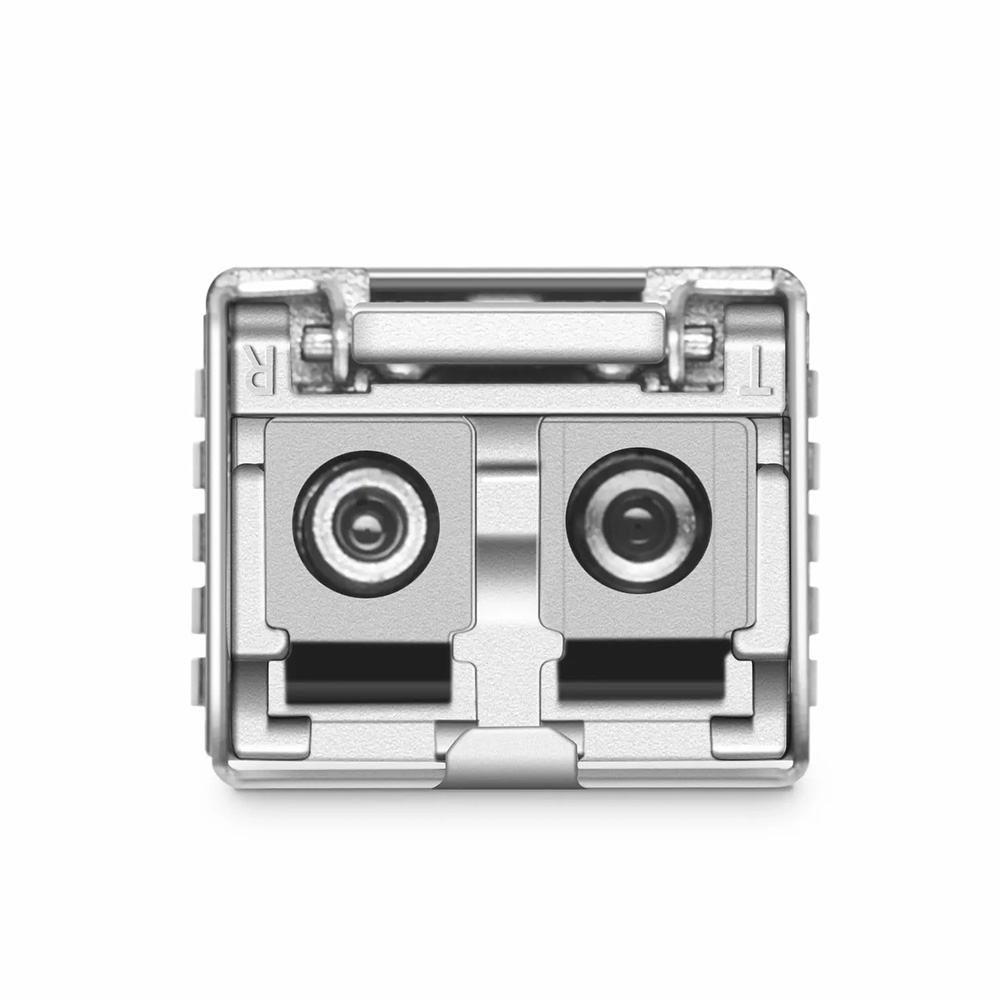

| Connector | Duplex LC/UPC |
| Transmitter Type | EML Laser |
| Receiver Type | APD Photodiode |
| TX Power | +1 to +5 dBm (Min +1 dBm, Max 5-7 dBm) |
| Receiver Sensitivity | <-25 dBm |
| Receiver Overload | -7 to -8 dBm |
| Optical Budget | 26 dB |
| Dispersion Tolerance | 2000 ps/nm |
| Extinction Ratio | >8.2-9.0 dB |
| DDM/DOM | Yes (SFF-8472) |
| Power Consumption | ≤1.5 W (+3.3V single supply) |
| Temperature Range | Operating: 0 to 70°C; Storage: -40 to 85°C |
| Weight | 0.025 kg |
| Applications | 10GBASE-ZR/ZW DWDM Ethernet (10.31 Gbps), 10G/8G Fiber Channel (10.52/8.5 Gbps), STM-64 (9.95 Gbps), ODU2 (10.037 Gbps), ODU2e (10.399 Gbps), OTU2 (10.70 Gbps), OTU1f (11.27 Gbps), OTU2f (11.32 Gbps), OTU1e (11.049 Gbps), OTU2e (11.095 Gbps), 10G Data Center Switches/Routers/NICs, DWDM Optical Networks |
| Compliance | SFP+ MSA (SFF-8431/SFF-8419), IEEE 802.3ae, SFF-8472, CE/RoHS, IEC/EN 61000-4-2, IEC-60825, FDA 21CFR 1040.10/1040.11, Class 1 Laser Safety |
