Basic Fiber Optic Splicer Tool with Power Meter

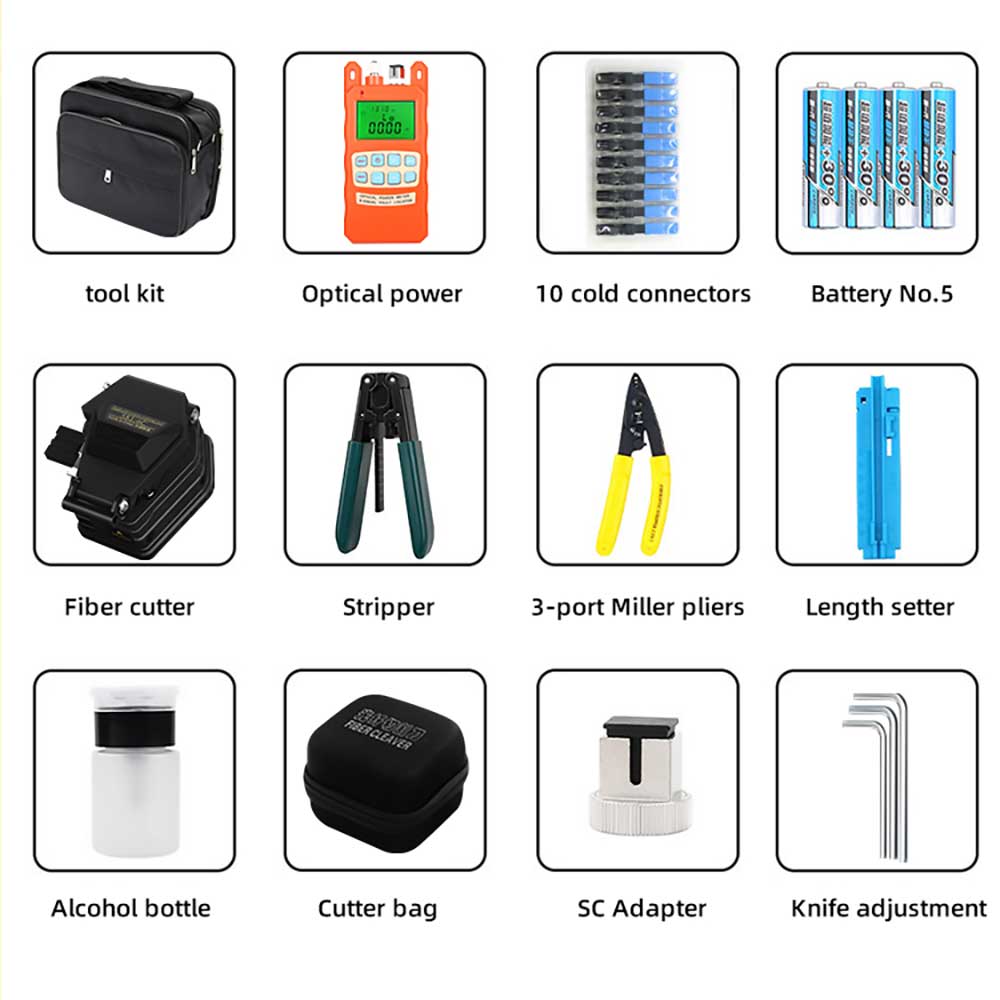

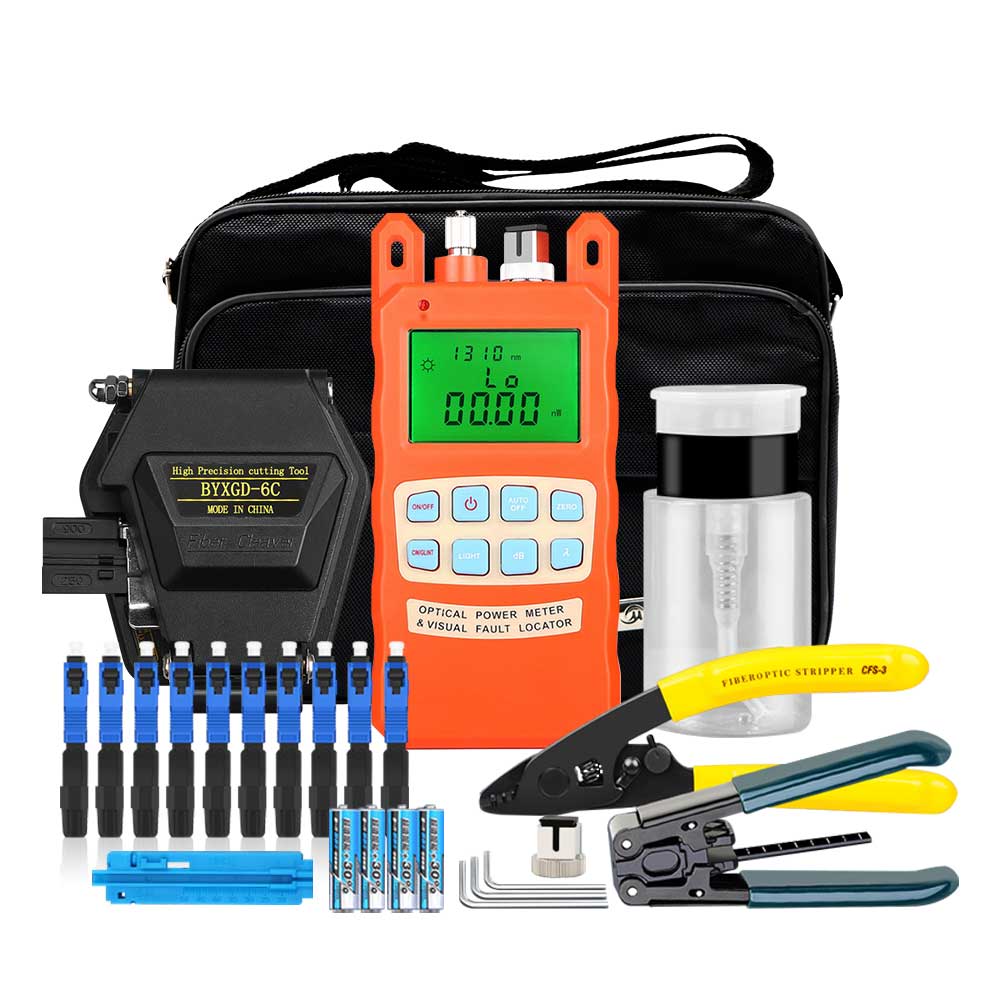

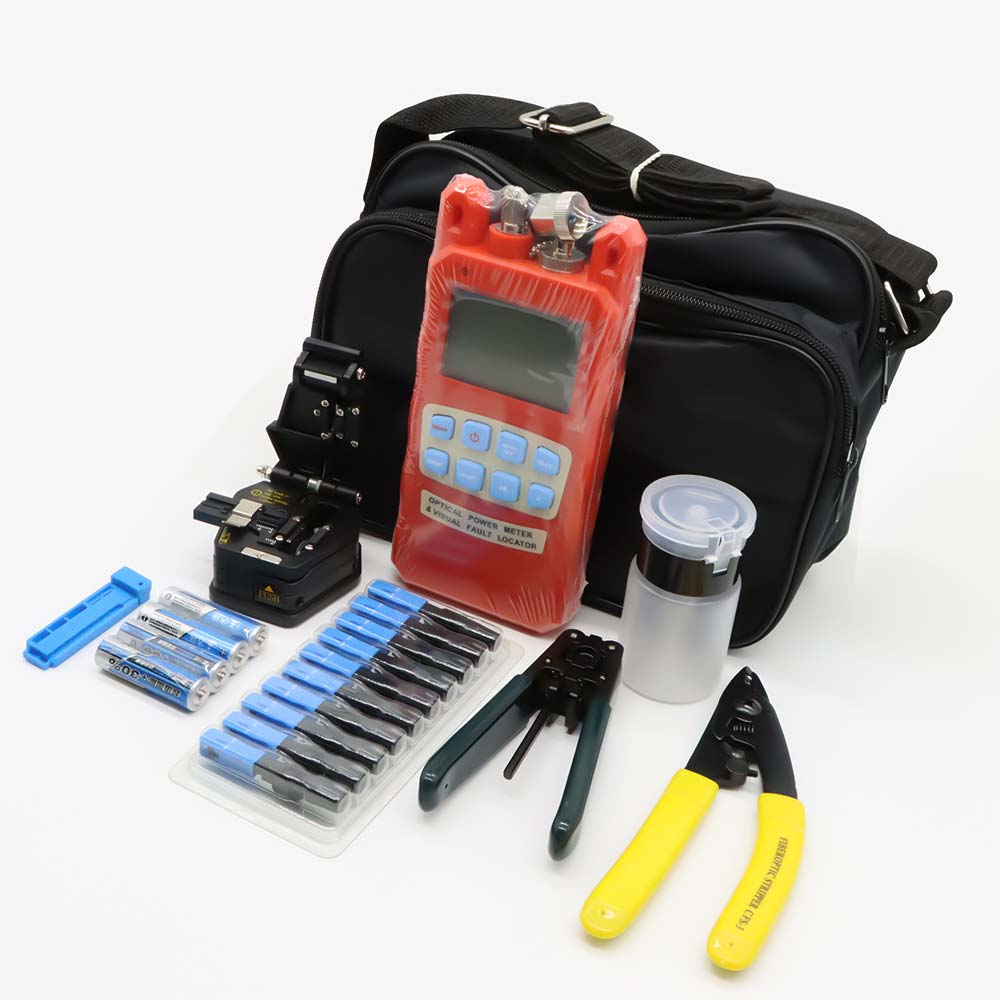

Complete Tool Set: The kit includes an optical power meter & visual fault locator, fiber cleaver, fiber stripper (CFS-3), fiber cutter with tungsten steel blade, 3-port Miller pliers, length setter, alcohol bottle, cutter bag, SC adapter and 10 SC cold connectors for telecommunication-grade splicing.
Optical Power Meter & Visual Fault Locator: The optical power meter measures optical power from -70 to +10 dBm over 10 wavelengths and includes 500 data storage capacity and backlit display. The visual fault locator emits a red laser light ≥10mW for fiber fault detection.
High-Precision Fiber Cleaver & Cutter: The cutter includes a tungsten steel blade with automatic rebound and fiber breaking prevention technology to ensure smooth and flat cuts that achieve optimal quality splicing.
Safe & Efficient Fiber Stripping: The CFS-3 fiber stripper accurately removes coatings without damage to fibers and is designed for 1-2 core fibers with 3.0 x 2.0 mm dimensions.
Flexible DIY Usage: The tools can be used separately or in combination allowing technicians to be more flexible in their usage according to project needs.
Portable & Durable Design: Small size, waterproof fabric bag with braided shoulder strap makes it easy to transport and use on-site.
Accessories: Includes cutter adjustment tool, alcohol bottle for cleaning, battery (No.5 x4) and cutter bag.

Optical Power Meter & Visual Fault Locator
Test Range	-70 dBm to +10 dBm
Wavelengths	10 test wavelengths including 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm
Detector Type	InGaAs
Resolution	0.01 dB
Data Storage	500 data points
Display	Backlit LCD
Connector Interface	2.5 mm universal SC, FC, ST
Low Battery Indicator	LED blinking warning
Visual Fault Locator Output	Red laser light ≥10 mW for fiber fault detection

Fiber Cleaver
Blade Material	Tungsten steel
Applicable Fiber Diameter	260 µm to 900 µm coated fibers
Features	Automatic rebound, fiber breaking prevention, high-quality slide rail, dust bin for fiber ends

Fiber Optic Stripper
Fiber Core Support	1-2 cores
Coating Size	3.0 mm x 2.0 mm
Stripping Precision	High precision without fiber damage
Additional Use	Can cut leather thread and metal

Wire Stripper (3-Port Miller Pliers)
Stripping Range	125 µm to 3 mm
Features	Precise aperture, no damage to optical fiber, segmental fiber stripping, high frequency blade quenching, sharp blade

Alcohol Bottle
Type	Press type
Features	Corrosion resistant, thickened bottle body

Additional Accessories
SC Cold Connectors	10 pieces
SC Adapter	Included
Cutter Bag	Included
Cutter Adjustment Tool	Included
Batteries	4 x No.5 (AA) batteries included
Carrying Case	Waterproof fabric with braided shoulder strap

Kit Dimensions
Size (approx.)	18 cm x 10 cm x 24 cm
Weight	Portable and lightweight

Fiber Optic Fusion Splicer Specifications

Parameter	Specification
Applicable Fiber Types	SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Fiber Diameter	Wrapping: 80-150 µm; Coating: 0.1-3 mm
Typical Splice Loss	0.02 dB (SMF), 0.01 dB (MMF), 0.04 dB (DSF/NZDSF)
Alignment Method	Core and cladding alignment
Focus Method	Six-motor auto focus
Splicing Method	Automatic/manual
Splicing Time	8 seconds (typical for SMF)
Heating Time	0-60 seconds; typical heating time 18 seconds
Heating Sleeve Length	Supports 20mm, 30mm, 40mm, 50mm, 60mm heat shrinkable sleeves
Weld Voltage	1979 mV (example from MM mode)
Pre-weld Voltage	990 mV
Weld Time	1300 ms
Pre-weld Time	1000 ms
Clean Voltage	200 mV
Clean Time	200 ms
Weld Overlap	1380 (unit as per device calibration)
Angle Limit	5.0 degrees
Loss Limit	0.10 dB
Reinforce Voltage	1000 mV
Reinforce Time	1000 ms
Return Loss	Better than 60 dB
Image Display	Capacitive 5.5 inch touch LCD screen
Splicing Record Storage	300 records (X/Y), 150 records (X/Y synchronize), 100 groups cloud storage (K5S model)
Power Supply	Battery type and capacity not specified in attachment
Dimensions (L x W x H)	19 cm x 11.7 cm x 14.6 cm
Visual Fault Locator (VFL)	Red light ≥ 10 mW, supports flashing (2 Hz) and constant light modes
Local Optical Power Meter	Range: -70 dBm to +3 dBm; wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm; uncertainty ±0.5 dB
