| Parameter | Specification |
|---|---|
| Connector Type | FC/UPC Fiber Optic Attenuator |
| Gender | Male to Female |
| Fiber Mode | Singlemode |
| Attenuation Range | 1dB ~ 25dB (adjustable) |
| Attenuation Accuracy | 1-10dB: ±0.5dB; 11-25dB: ±10% |
| Operating Wavelength | 1260nm ~ 1610nm |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥50dB |
| Ferrule Type | Zirconia Ceramic |
| Maximum Optical Input Power | 200mW |
| Polarization Dependent Loss | ≤0.2dB |
| Operating Temperature | -40°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
| Humidity | 95% RH |
| Compliance | RoHS Compliant, Bellcore GR910 |
| Applications | Telecom, CATV, DWDM, LAN, MAN, WAN, Test Equipment |

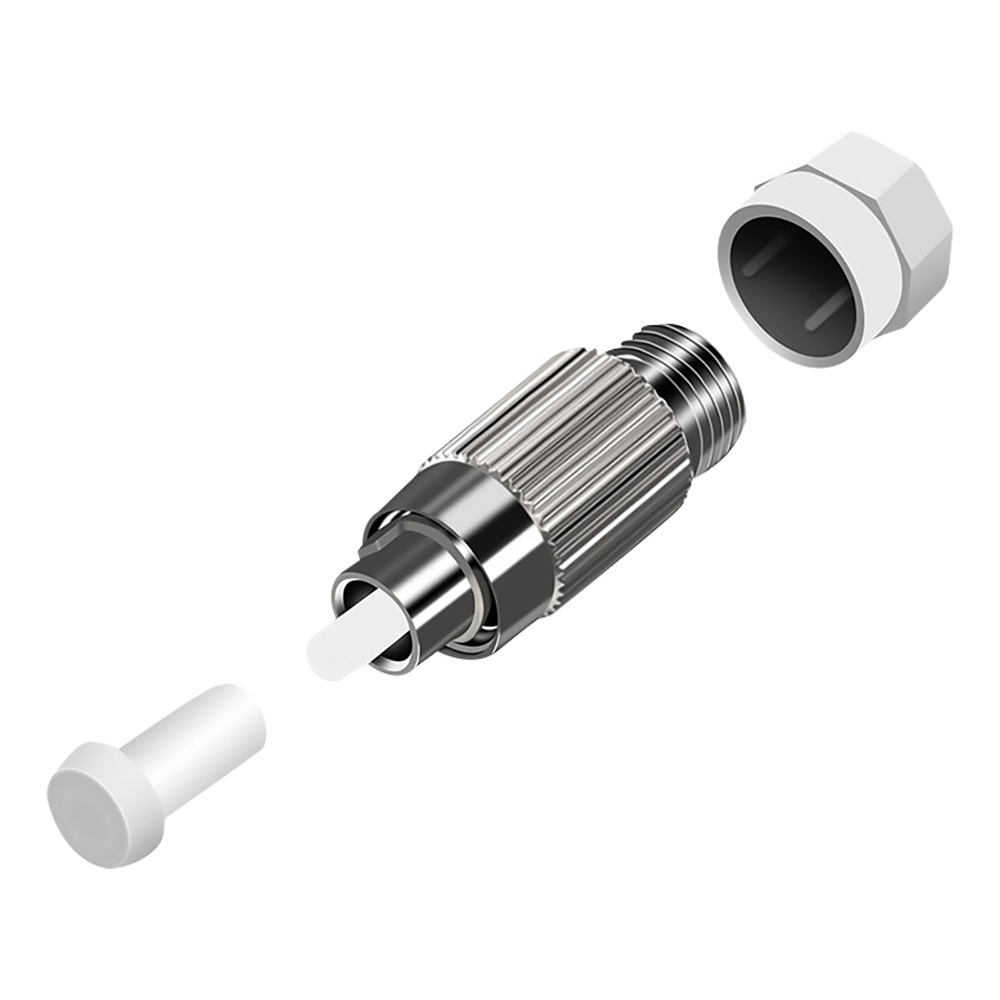

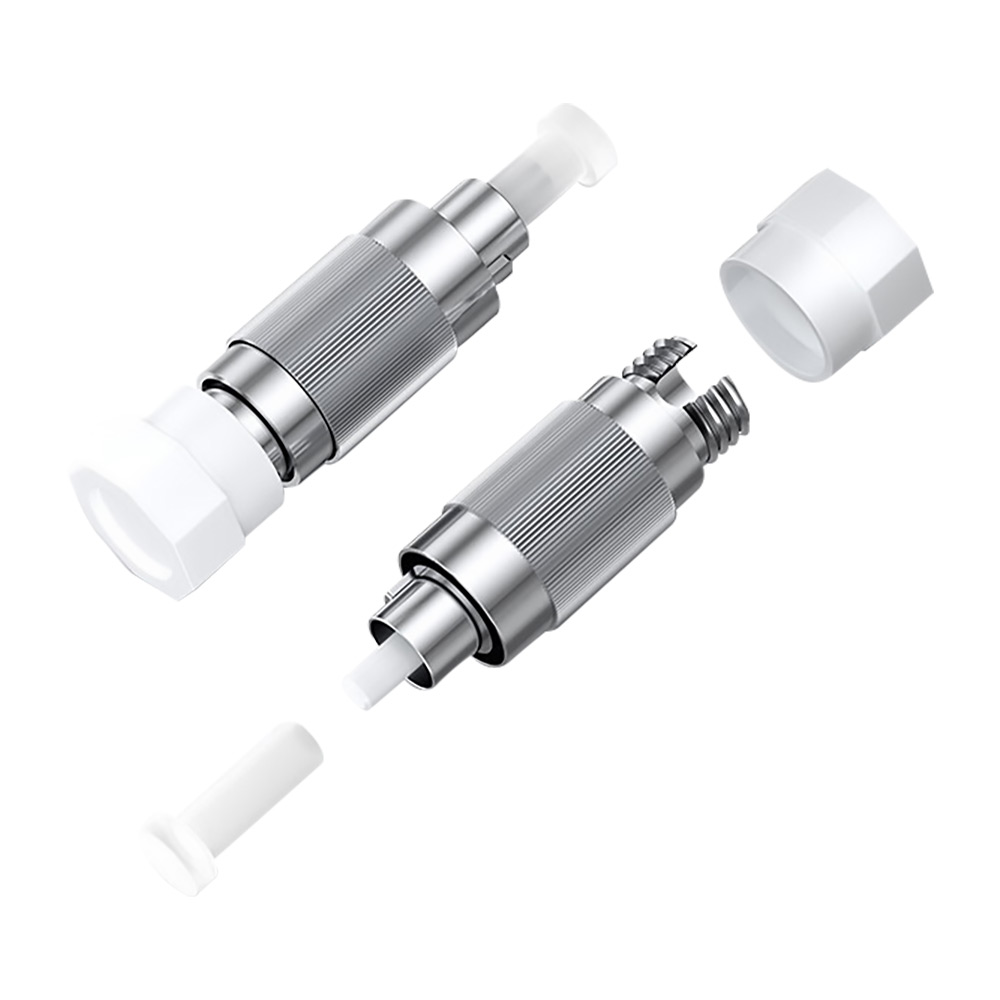

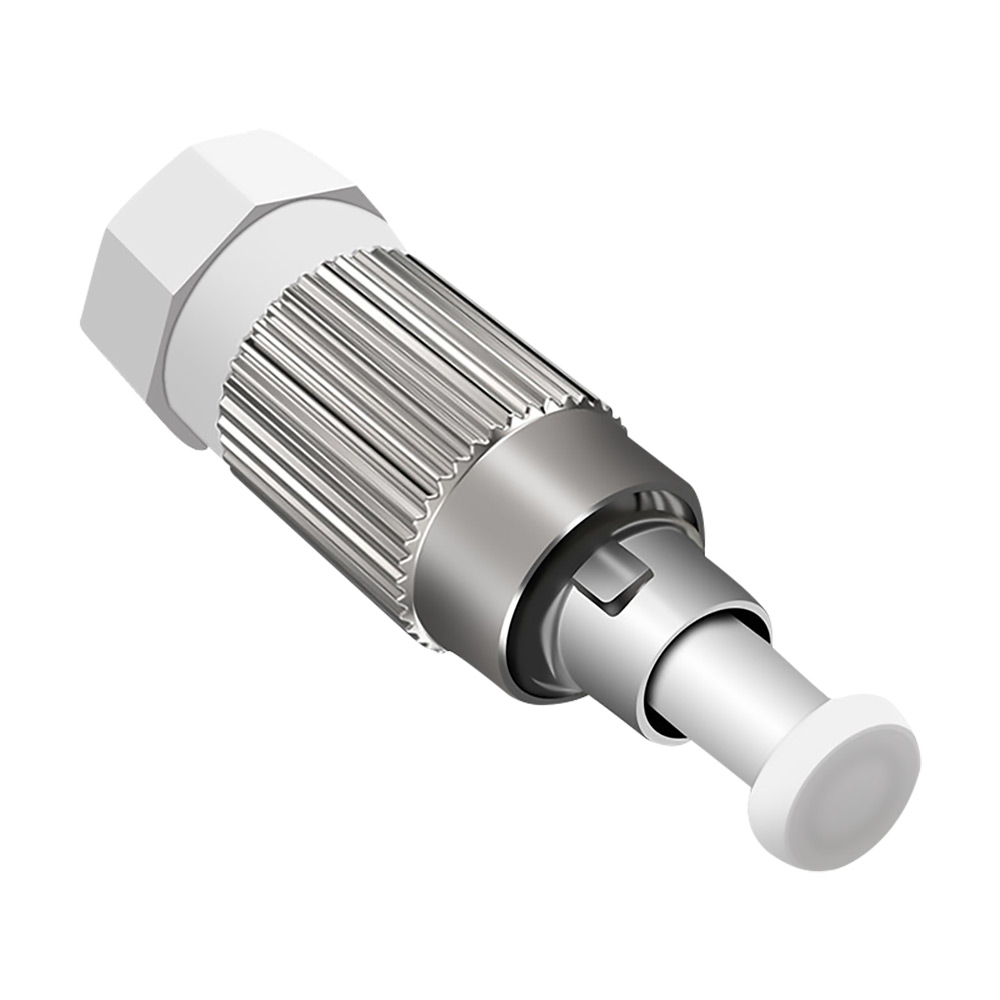

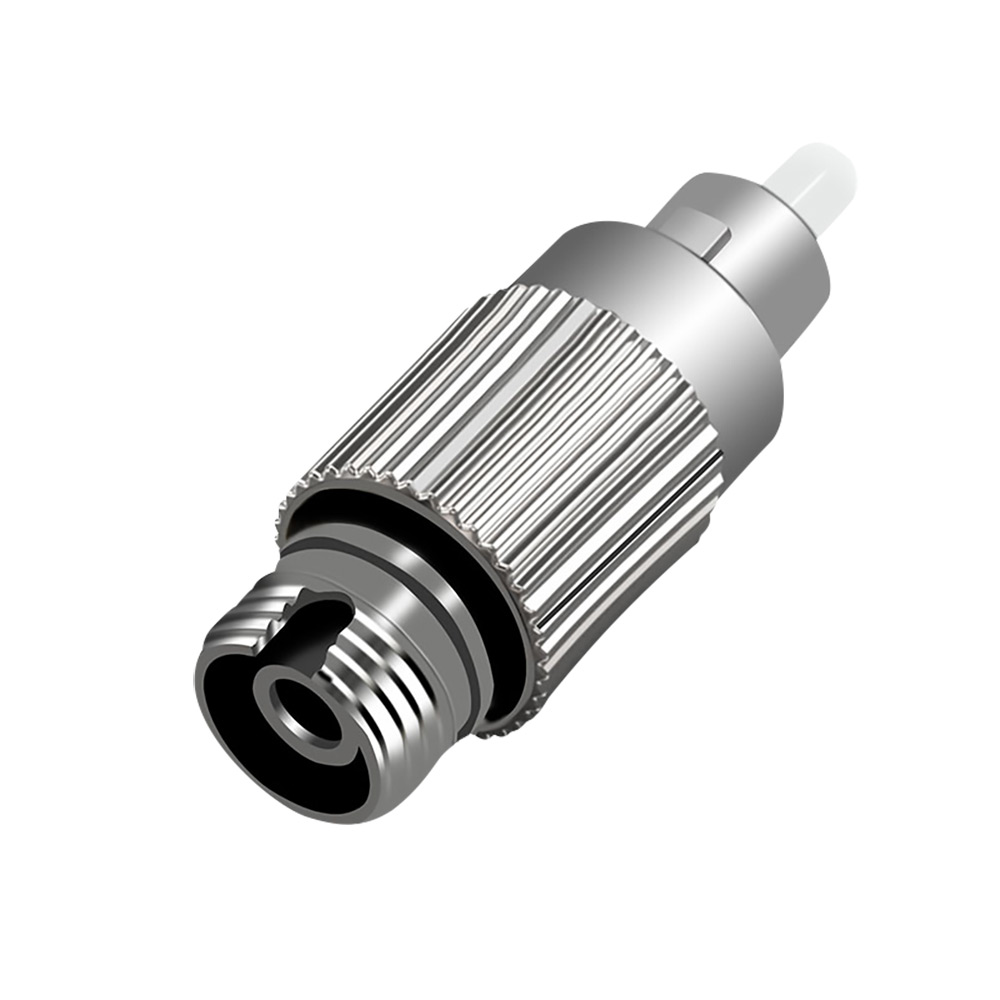

Adjustable FC/UPC Fiber Optic Attenuator 1-25dB Male to Female Adapter
- Adjustable Attenuation: It provides precise signal attenuation from 1 dB to 25 dB, allowing you to be flexible with optical power management.
- FC/UPC Compatibility: Standard FC/UPC connectors make this device fully compatible with nearly all fiber optic systems.
- Male-to-Female Configuration: Lets you plug-and-play the device between patch cords and equipment quickly and easily.
- High Return Loss: Provides high return loss (≥ 65 dB) to minimize back reflection and maintain high signal integrity and transmission performance.
- Low Insertion Loss: It minimizes signal distortion while transferring signals to produce stable and efficient data transmission.
- Wide Wavelength Range: The device operates from 1260 nm to 1620 nm and can be used in many fiber optic applications.
- Durable Construction: Using a metal housing with a ceramic ferrule improves durability and long-term performance for the device.
- Accurate Attenuation: Stable, repeatable attenuation values maintain consistent performance level.
- Wide Temperature Range: The device will operate reliably from -40 °C to +75 °C and is suitable for even the harshest environments.
- Dust Cap Protection: There are dust caps to cover each connector and help prevent contamination and ensure optimal performance over time.
Price range: $0.30 through $4.00
