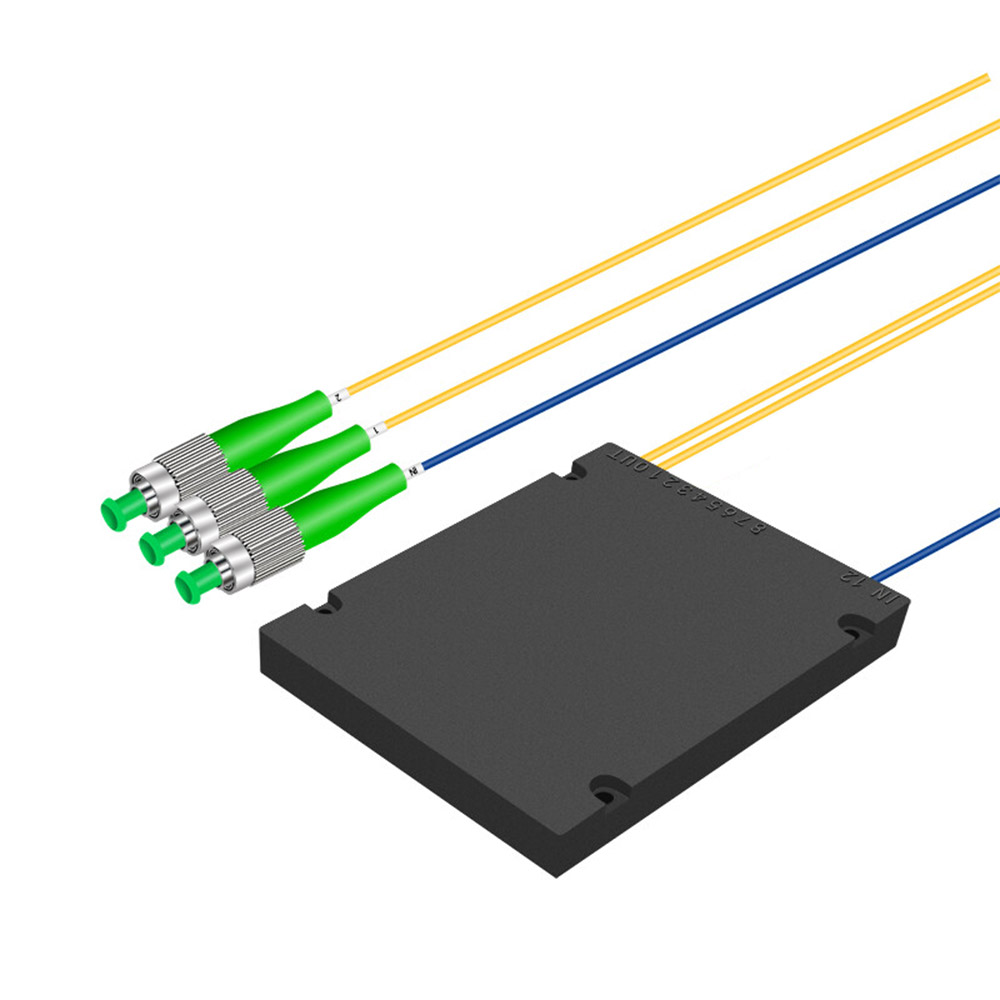

ABS Box Fiber PLC Splitters with FC/APC Connectors – 1×2 to 1×64 Configurations

Wide Configuration Range: Offers splitting options from 1×2 to 1×64. This allows flexibility to configure network scales based on customer needs.
Low Insertion Loss: Insertion loss is minimized for high quality transmission (e.g., ≤4.0 dB for 1×2).
High Uniformity: Ensures uniform optical power across all output ports with low loss variation.
Low Polarization Dependent Loss (PDL): Keeps signal integrity according to some industry standards, PDL would typically be ≤0.3 dB.
High Return Loss: ≥50 dB reduces reflected light back to the fiber source and enhances network stability.

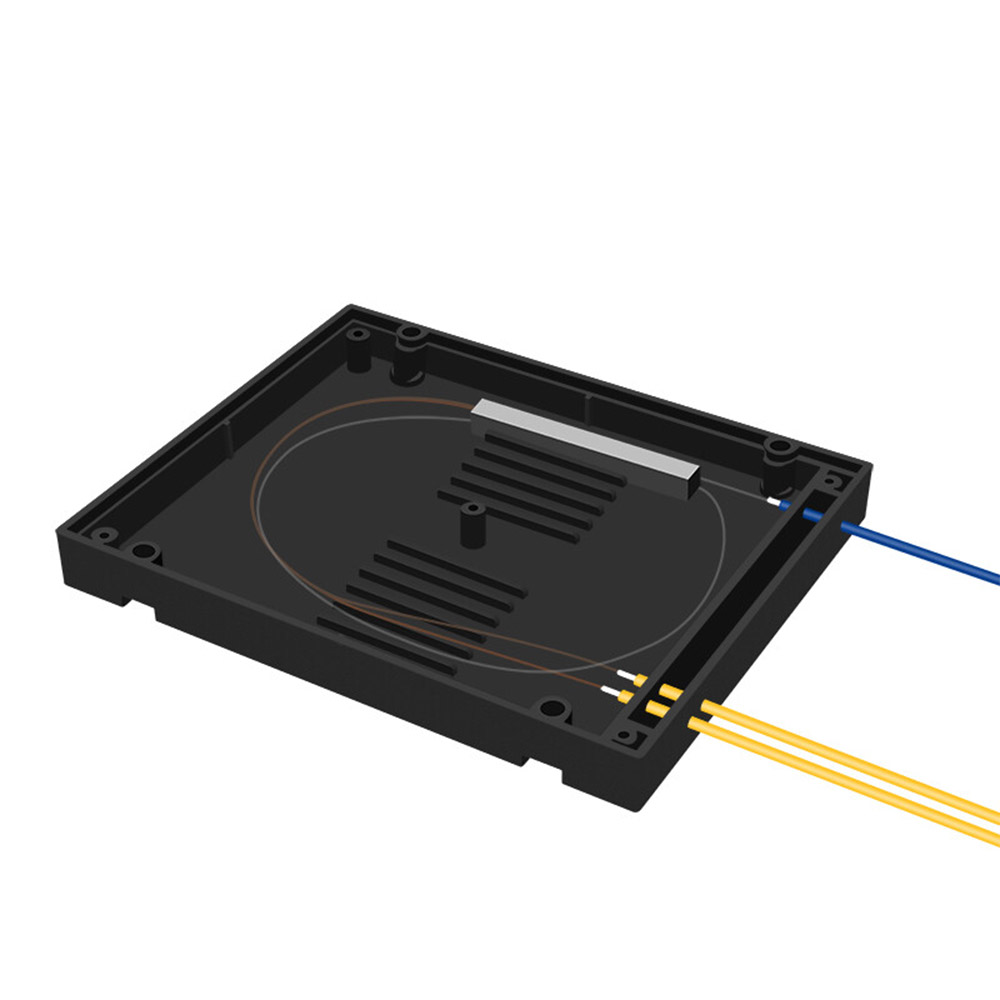

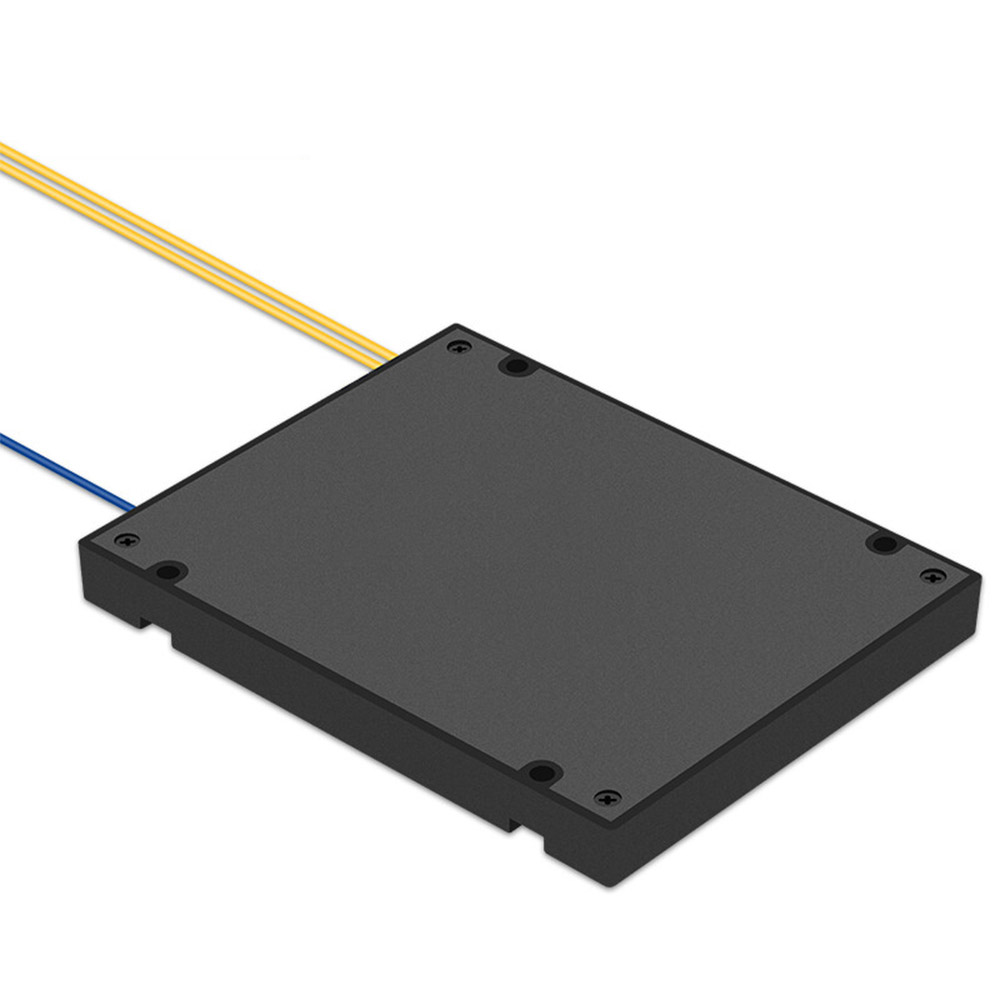

Robust ABS Housing: The enclosure protects the internal components and prevents damage to the cables. The enclosure is also intended for indoor/outdoor use.
Wide Operating Temperature: The enclosure and components can operate in temperatures ranging from -40 °C to +85 °C for extreme environments.
High-quality FC/APC fiber connectors: Ceramic ferrules (the part of the connector that holds the glass fiber core) provide low insertion loss and stable connectivity.
Compact and Lightweight Design: Updated design for faster installation, also space saving within the fiber distribution box or other cabinets.
Manufactured to Industry Standards: Such as Telcordia GR-1221 and GR-1209 meaning this box is industry standard, and telecom grade quality.

Description

This ABS Box Fiber PLC Splitter with FC/APC connectors is a high-performance solution for accurate and reliable optical signal splitting and distribution for a broad range of fiber network applications including FTTH, GPON, EPON and FTTX. This splitter is designed with planar lightwave circuit technology to provide low insertion loss, good uniformity and low polarization dependent loss without sacrificing performance.

The ABS housing is durable enough to protect the internal components and provide commercial-grade durability and high performance within a broad operation temperature of -40°C to +85°C. The available split ratios include a full range with split ratios from 1×2 up to 1×128 providing flexibility for network designs and scalable deployment options.

High return loss and directivity prevent or minimize any back reflections for a more reliable network. This splitter includes standard 2.0mm fiber pigtails with a top-tier FC/APC connector for simple and secure connections. This splitter meets many industry standards including Telcordia GR-1209/GR-1221 and IEC standards making this a seasoned, telecom-grade trusted product for optical distribution.

ABS Box Fiber PLC Splitters Parameter	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength (nm)	1260 – 1650
Fiber Type	Singlemode G.657A1/A2
Insertion Loss (Max, dB)	3.8 / 4.0	7.2 / 7.4	10.3 / 10.7	13.5 / 13.7	16.5 / 16.9	20.5 / 21.0	23.8 / 24.2
Loss Uniformity (Max, dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss (PDL, dB)	≤0.1	≤0.1	≤0.1	≤0.20	≤0.25	≤0.30	≤0.40
Return Loss (Min, dB)	≥55
Directivity (Min, dB)	≥55
Wavelength Dependent Loss (Max, dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.5	≤0.5	≤0.5
Fiber Diameter (Input/Output)	0.9mm / 2.0mm
Pigtail Length (m)	1.0 – 1.5
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85
Maximum Power Handling (mW)	500
Connector Type	FC/APC
Housing Material	ABS Plastic
Dimensions (mm)	100x80x10	100x80x10	100x80x10	140x115x18	140x115x18	140x115x18	140x115x18
