| Model | A-86S Plus Fiber Fusion Splicer |
| CPU | Industrial-grade dual CPU with quad-core architecture |
| Motors | 6 high-precision motors for core-to-core alignment |
| Fiber Alignment Technology | Core alignment, cladding alignment, and auto-focus |
| Applicable Fiber Types | BIF/UBIF (G.657), Single Mode (G.652), Multi Mode (G.651), Dispersion Shifted (G.653), NZDS (G.655) |
| Fiber Diameter Range | Cladding diameter: 80–150 μm; Coating diameter: 100 μm to 3 mm |
| Fiber Cleave Length | 5 mm to 16 mm |
| Alignment Modes | Auto-focus, manual, and automatic alignment |
| Welding Modes | Multiple preset welding modes, customizable |
| Heating Modes | Multiple preset heating modes, customizable |
| Average Splicing Loss | 0.02 dB (Single Mode), 0.04 dB (Multi Mode, DSF, NZDSF) |
| Splicing Time | 6 seconds |
| Heating Time | 15 seconds |
| Storage Capacity | Stores up to 10,000 splicing records |
| Image Magnification | 380 times magnification on 5-inch LCD screen |
| Screen | 5-inch high-quality digital touch LCD screen |
| Screen Lighting | Built-in high beam lighting for low-light environments |
| Power Supply Input | AC 100–240V (50–60Hz) input; DC output 10–13.5V |
| External Interface | USB interface for data export and software upgrades |
| Tensile Strength Test | Fiber tensile strength testing between 1.96 N and 2.25 N |
| Heat Shrinkable Sleeve Size | Compatible with sleeves from 10 mm to 60 mm |
| Battery Capacity | 7800 mAh lithium battery supporting 300 splicing and heating cycles |
| Electrode Lifetime | Tungsten electrodes with service life of 3000 to 5000 splices |
| Operating Conditions | Altitude 0–5000 m; Wind speed up to 15 m/s; Temperature -10°C to +50°C; Humidity 0–95% RH |
| Environmental Resistance | Dust-proof, shock-proof, and water-resistant design |
| Storage Conditions | Temperature -20°C to +50°C; Humidity 0–95%; Battery storage -20°C to +30°C |
| Dimensions and Weight | 144 mm (L) × 142 mm (W) × 151 mm (H); Weight 2 kg |
| Application Scope | Optical fiber, petrochemical, railway, electric power, military, telecommunications |
| Typical Projects | FTTH (Fiber To The Home) projects |
| Network Technology Support | 5G base stations |
| Security Applications | Security monitoring |
| Other Uses | Scientific research |
A-86S Plus Fiber Optic Fusion Splicing Machine 6 Motors, Core Alignment 6s Splicing 5″ Touchscreen, 3in1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS

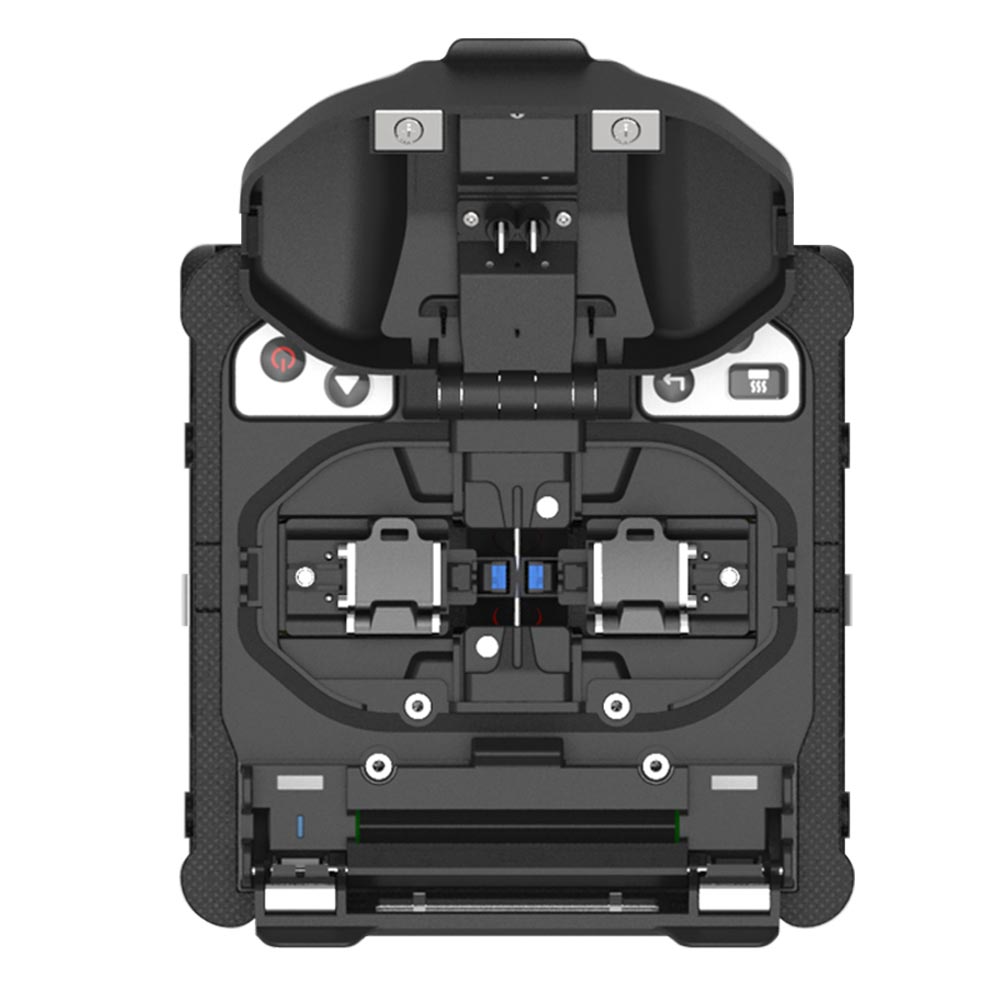

- 6 High Precision Motors: To provide low-loss, high-quality splicing, core-to-core alignment accuracy is assured.
- Fast Splicing and Heating: Splicing completed in 6 seconds and heating in 13 seconds. Work efficiency is improved greatly.
- 3-in-1 Fiber Holder: Works with many fiber types including SM, MM, DS, NZDS, UI, BUI and EDF fibers covering any applications.

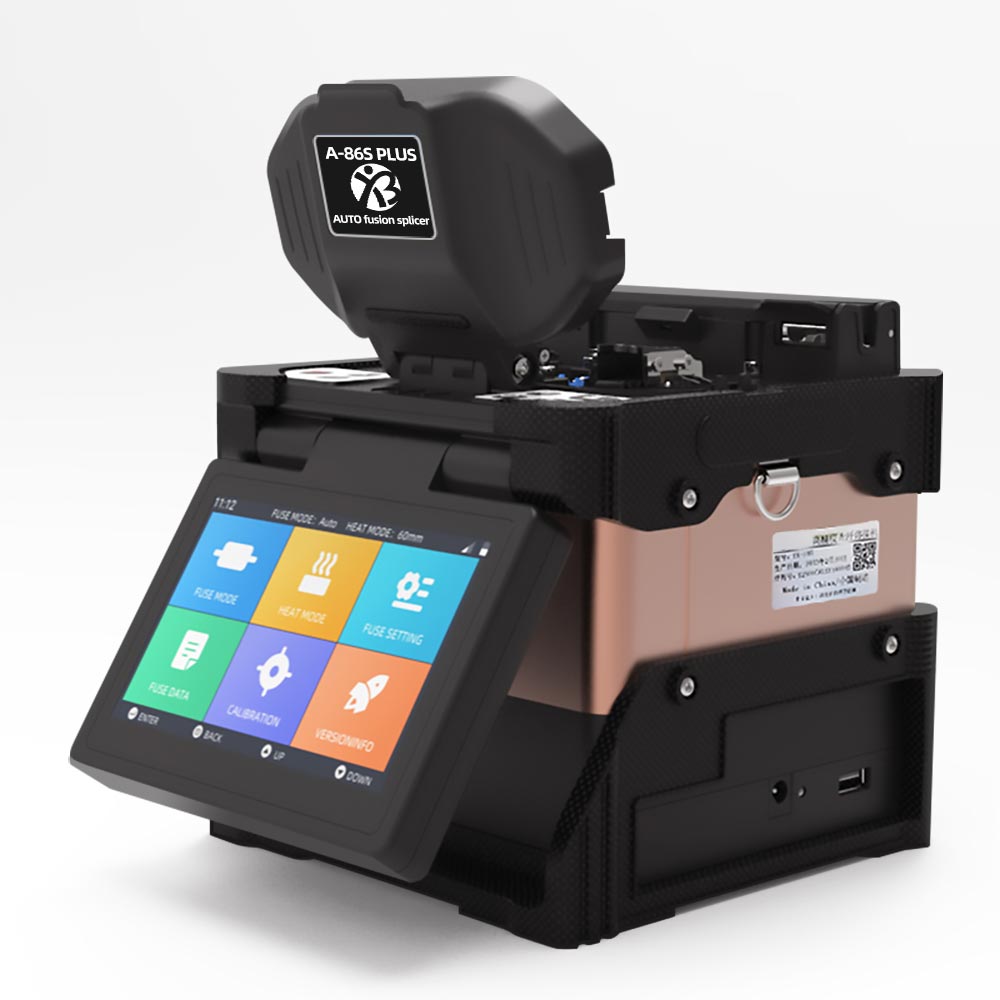

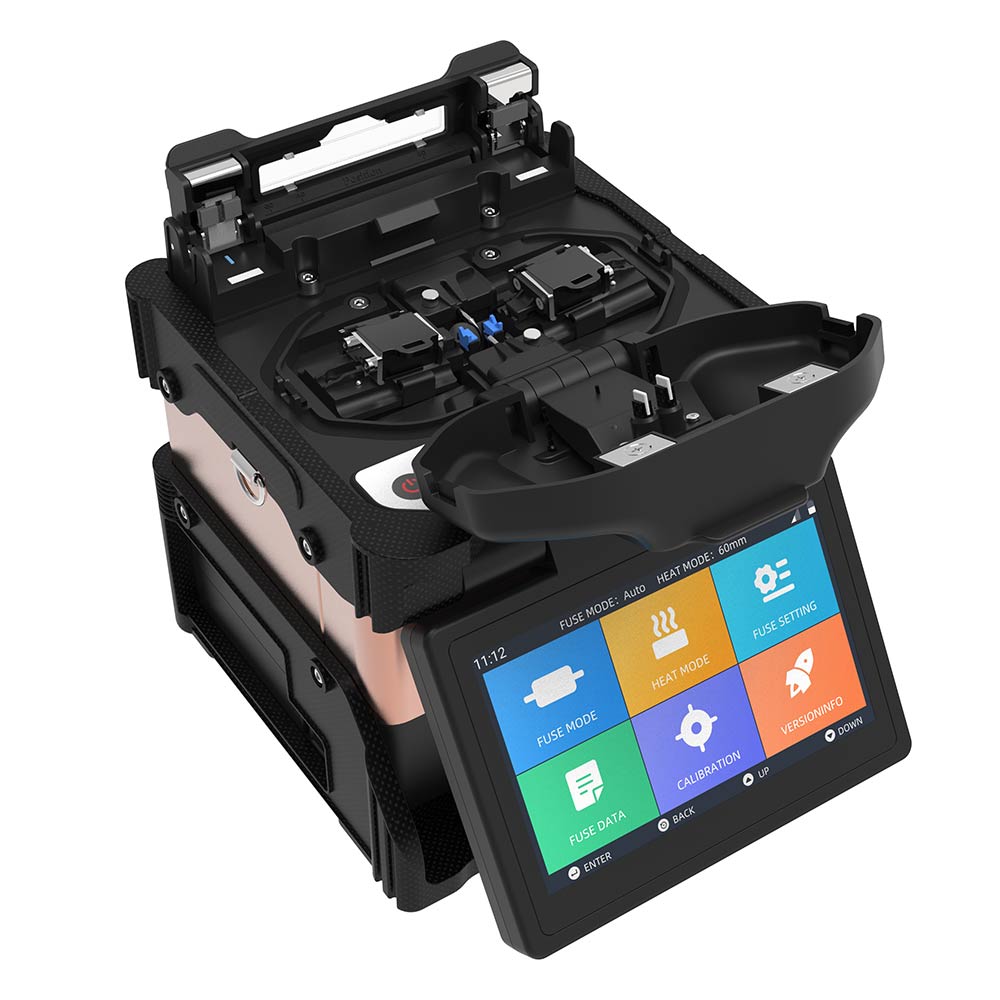

- 5 Inch Color Touchscreen: Multiple display options available with 1100x to easily inspect fiber cores.

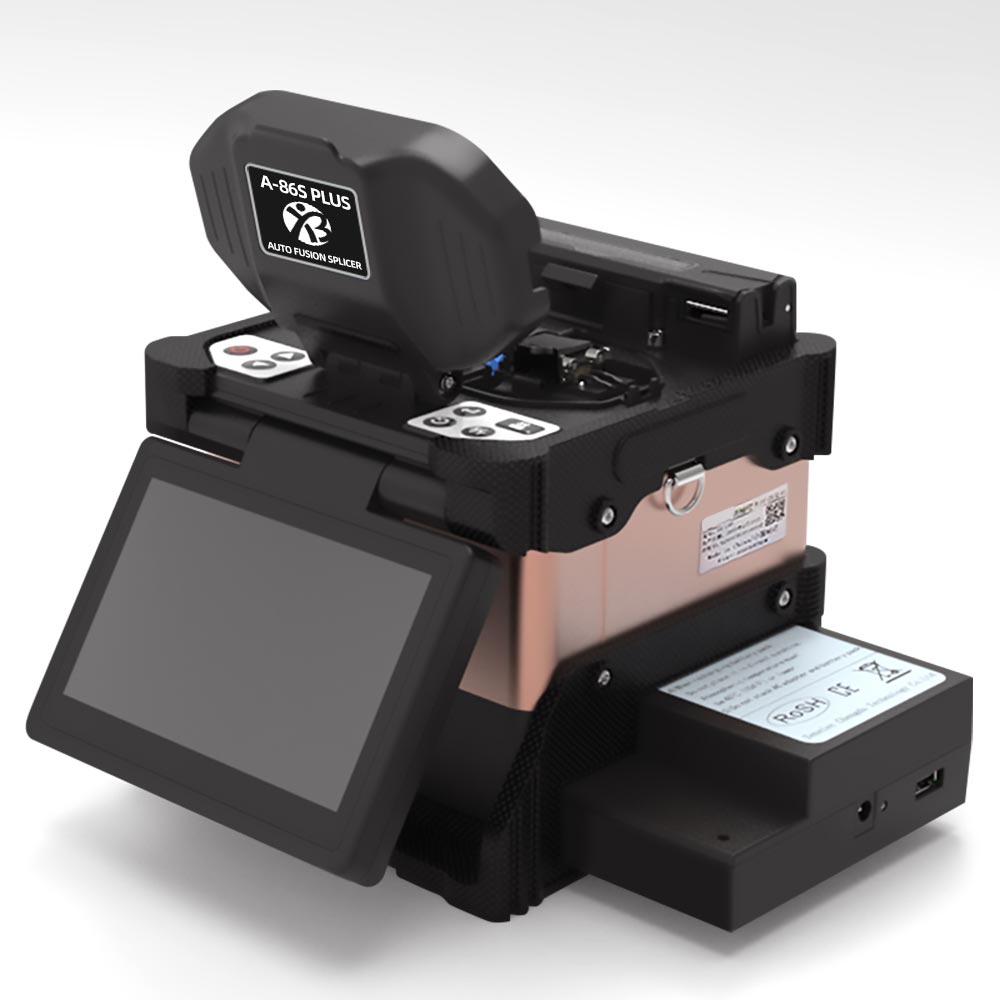

- Battery Life: 7800 mAh rechargeable battery providing over 260 splicing and heating cycles on one charge.
- Rugged Design: Durable ABS and PC construction. Dustproof, shockproof, and rated for extreme environments.
- User Friendly: Easy to use controls with bright LED lighting for when working in dark or low light conditions.

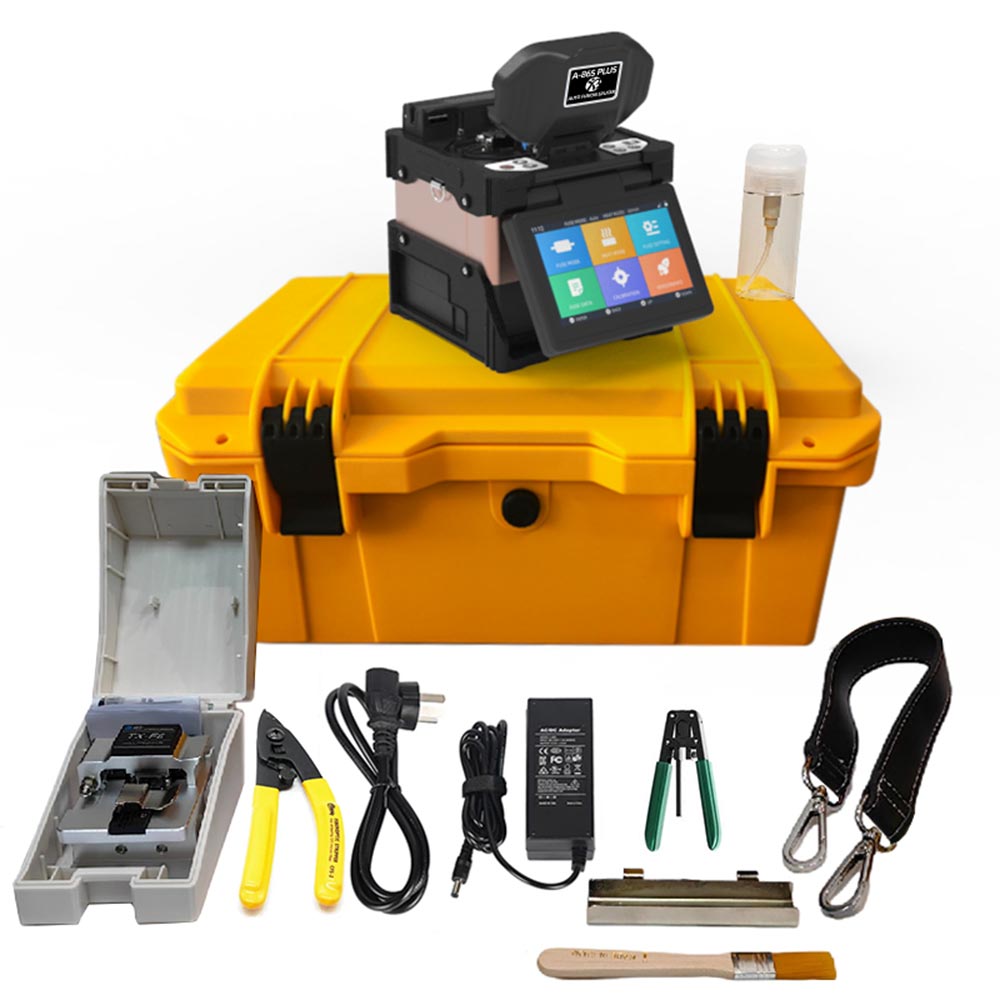

- Complete Kit: Included is the fiber cleaver, stripper, cooling tray, and all other needed accessories.
A-86S Plus is designed for the professional fiber optic installations, FTTH, telecom, and data networks that bring speed, accuracy, and reliability.
