| Model | A-86S |
| Alignment Types | Fiber core alignment, cladding alignment |
| Applicable Fiber Types | SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655), and self-defined fiber types |
| Splicing Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS) |
| Return Loss | Over 60 dB |
| Typical Splicing Time | 9 seconds |
| Typical Heating Time | 26 seconds (configurable) |
| Cladding Diameter | 80 – 150 µm |
| Coating Diameter | 100 – 1000 µm |
| Cutting Length | Coating ≤250 µm: 8–16 mm; Coating 250–1000 µm: 16 mm |
| Tension Test | Standard 2 N (optional) |

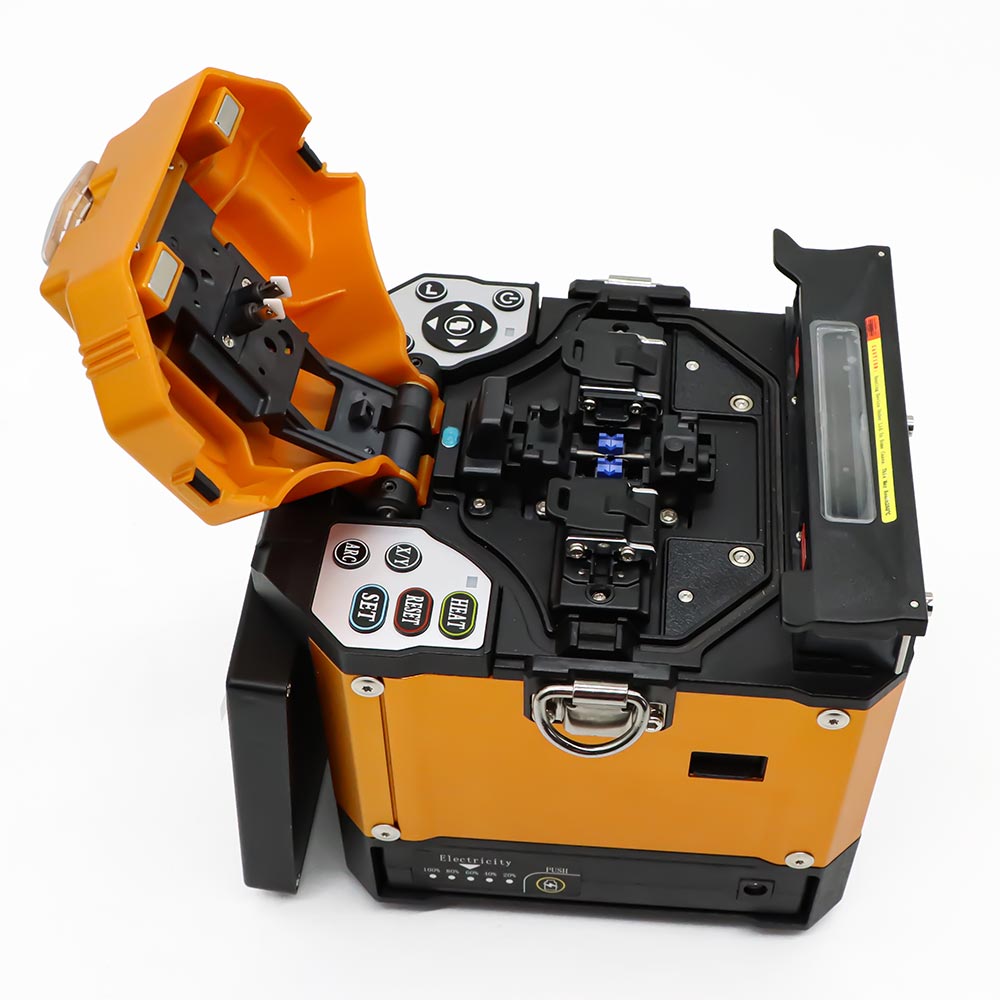

| Fiber Clamp | Multi-function clamp for bare fiber, tail fiber, jumpers, leather line; compatible with SC and other connectors |
| Amplification Factor | 400× (X or Y axis) |
| Heat Shrink Tubing Sizes | 60 mm, 40 mm, and a series of micro shrinkable tubing |
| Display | 5.0-inch TFT color LCD, reversible for bi-directional operation |
| External Interface | USB interface for data download and software upgrade |
| Splicing Modes | 17 groups |
| Heating Modes | 9 groups |
| Splicing Loss Storage | Stores latest 5000 splicing results |

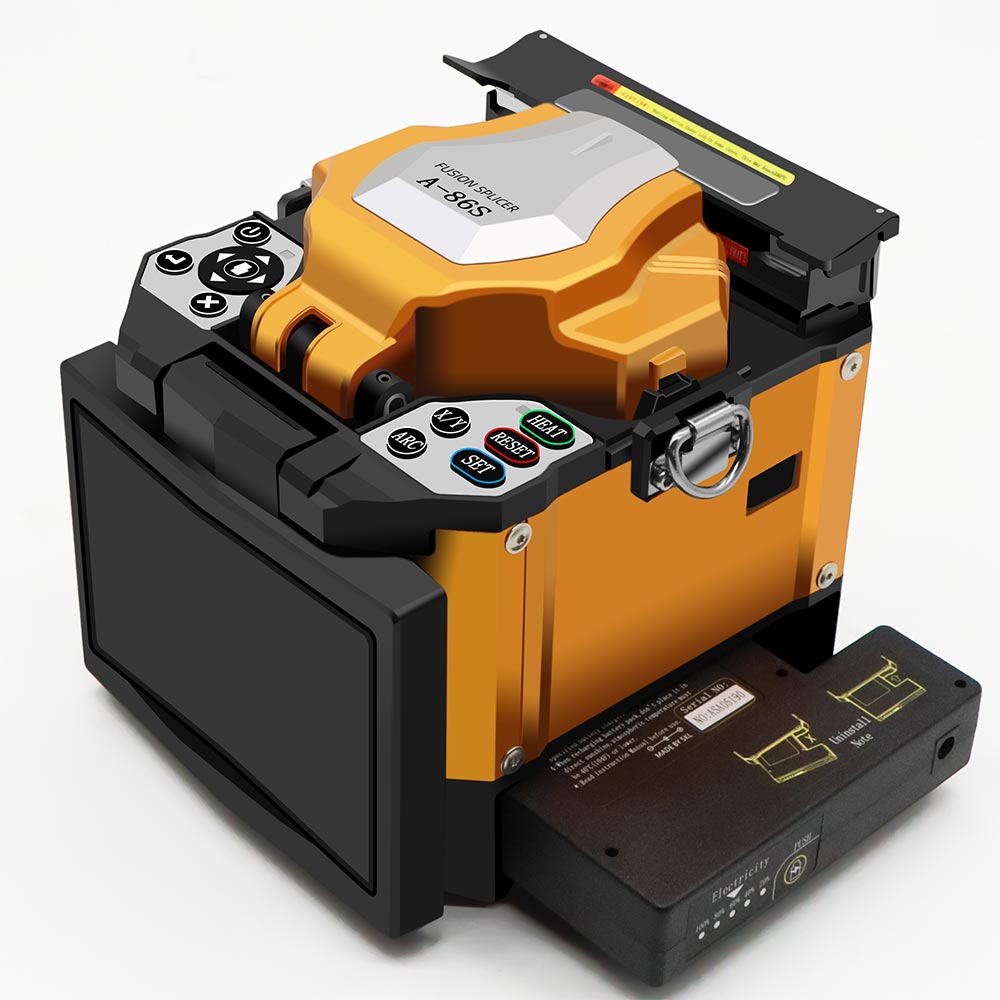

| Built-in Battery | 11.8 V lithium battery supporting ≥200 continuous splice and heat cycles |
| Charging Time | ≤3.5 hours |
| Adapter Input Voltage | AC 100–240 V, 50/60 Hz |
| Adapter Output Voltage | DC 13.5 V, ≥4.81 A, center positive |
| Power Saving | Saves approx. 15% battery power in typical environment |
| Operating Temperature Range | -10 °C to +40 °C |
| Operating Humidity | Below 95% RH (non-condensing) |
| Max Wind Speed | 15 m/s |
| Operating Altitude Range | 0 – 5000 m |
| Dimensions | 158 mm (L) × 130 mm (W) × 156 mm (H) |
| Weight | 2.14 kg (including battery) |
| Lighting | Night light for fiber installation |
| Protective Features | Automatic windproof cover, automatic fiber clamps |
-27%

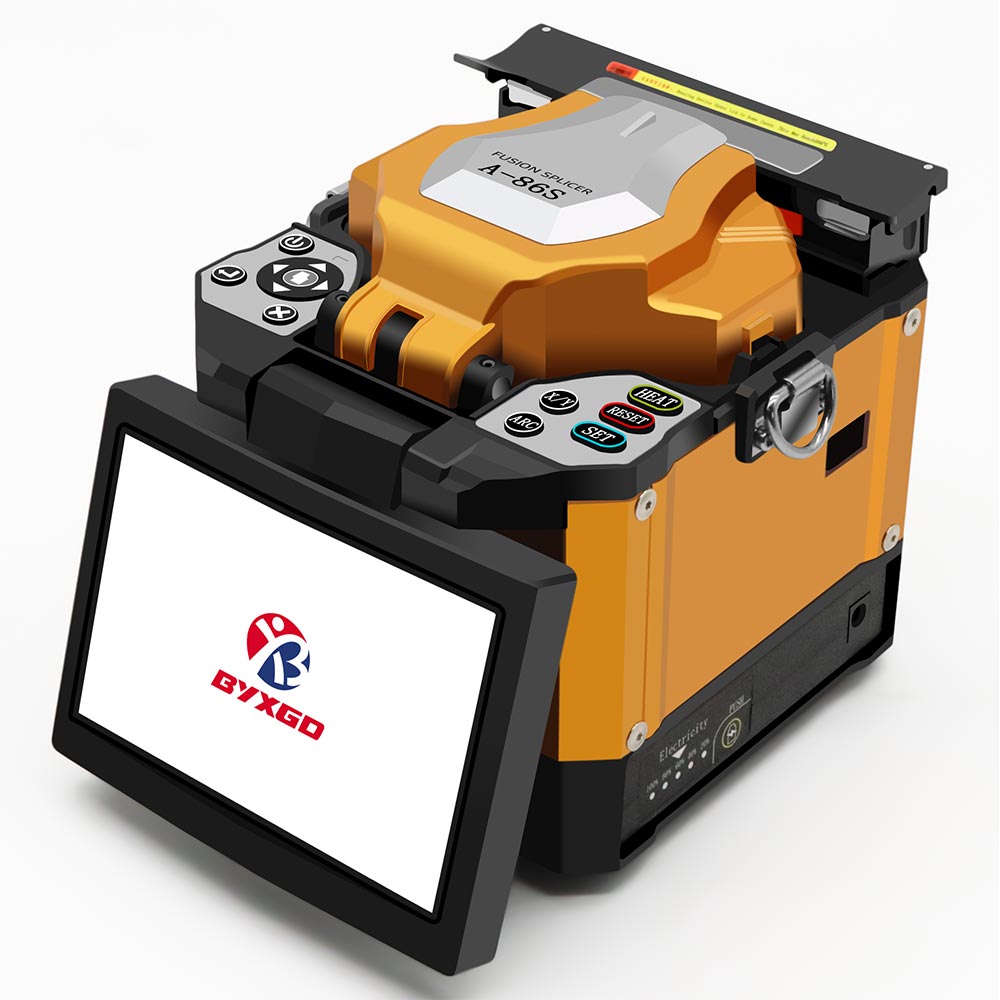

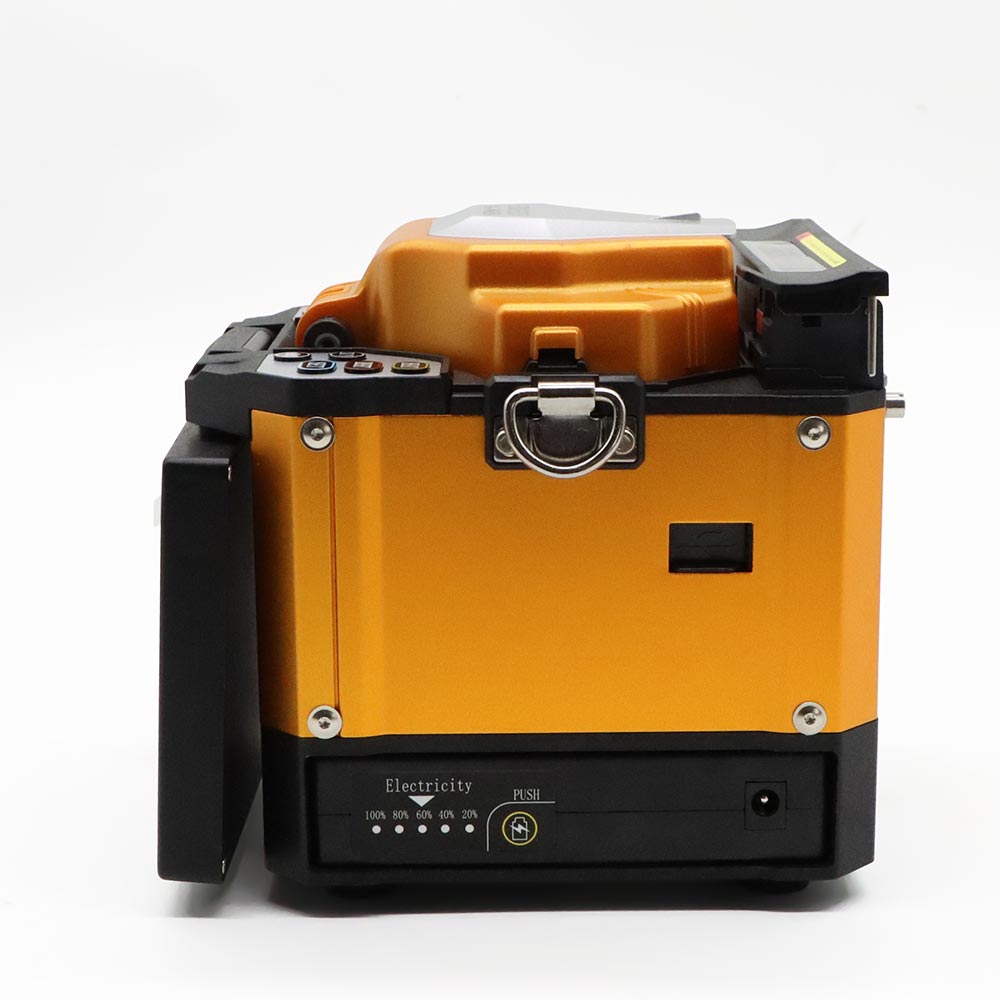

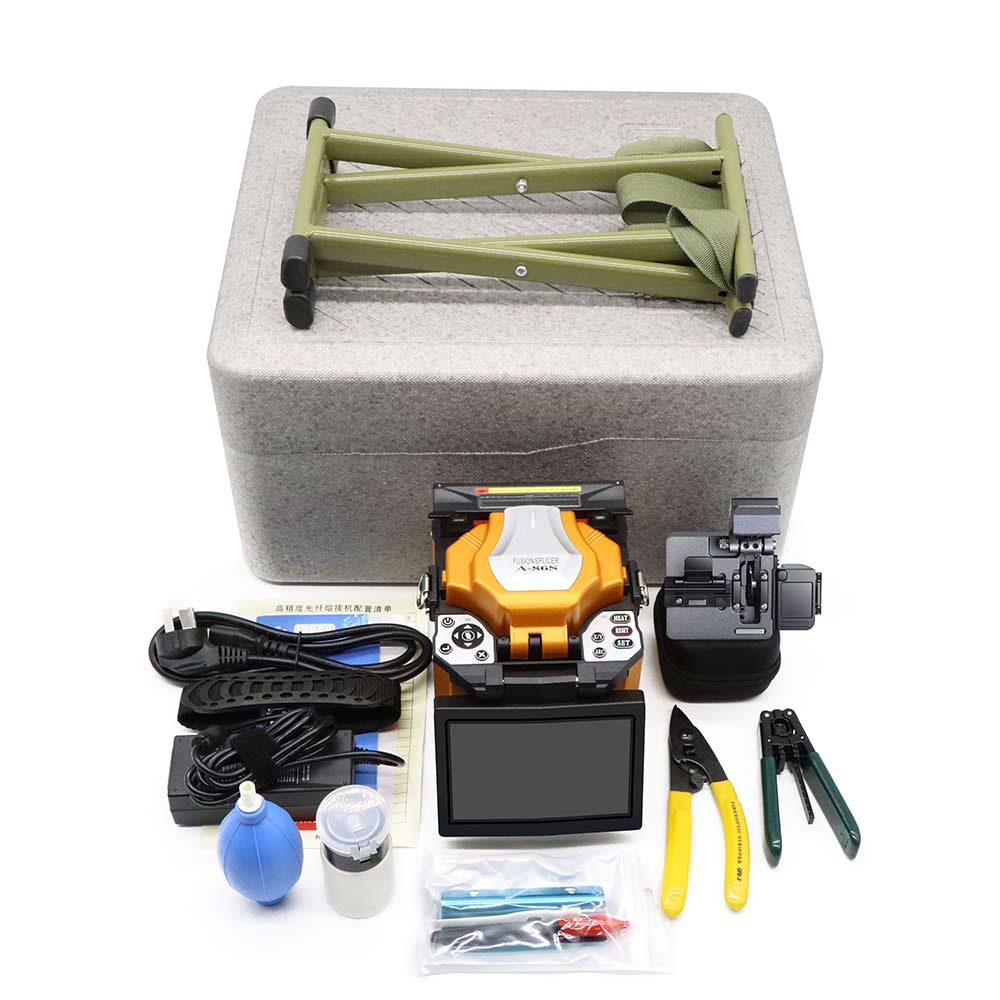

A-86S Automatic Fiber Optic Splicer Kit & Fiber Cleaver Kit 4 Motors
High-Precision Fiber Alignment: Uses alignment of fiber core and cladding to achieve ultra-low splice loss in both single-mode fiber and multimode fiber.
Quick and Efficient Splicing Process: Achieves fusion splicing in about 9 seconds, with a configurable heat-up time of about 26 seconds, which maximizes field efficiency.
Multi-Mode Fiber Compatibility: Works with every type of fiber including SM (G.652 & G.657), MM (G.651), DS, NZDS, and custom fibers with cladding diameters between 80 and 150 μm.
Rugged and Portable Design: Lightweight (2.14 kg (4.7 lbs) with battery) and compact, with a rugged design to support demanding environments. Operates in temperatures from -10°C to +40°C and humidity of up to 95%.
Long Battery Life: Built-in lithium battery provides a minimum of 200 splicing and heating operation cycles per charge (quick charge time: ≤ 3.5 hours).

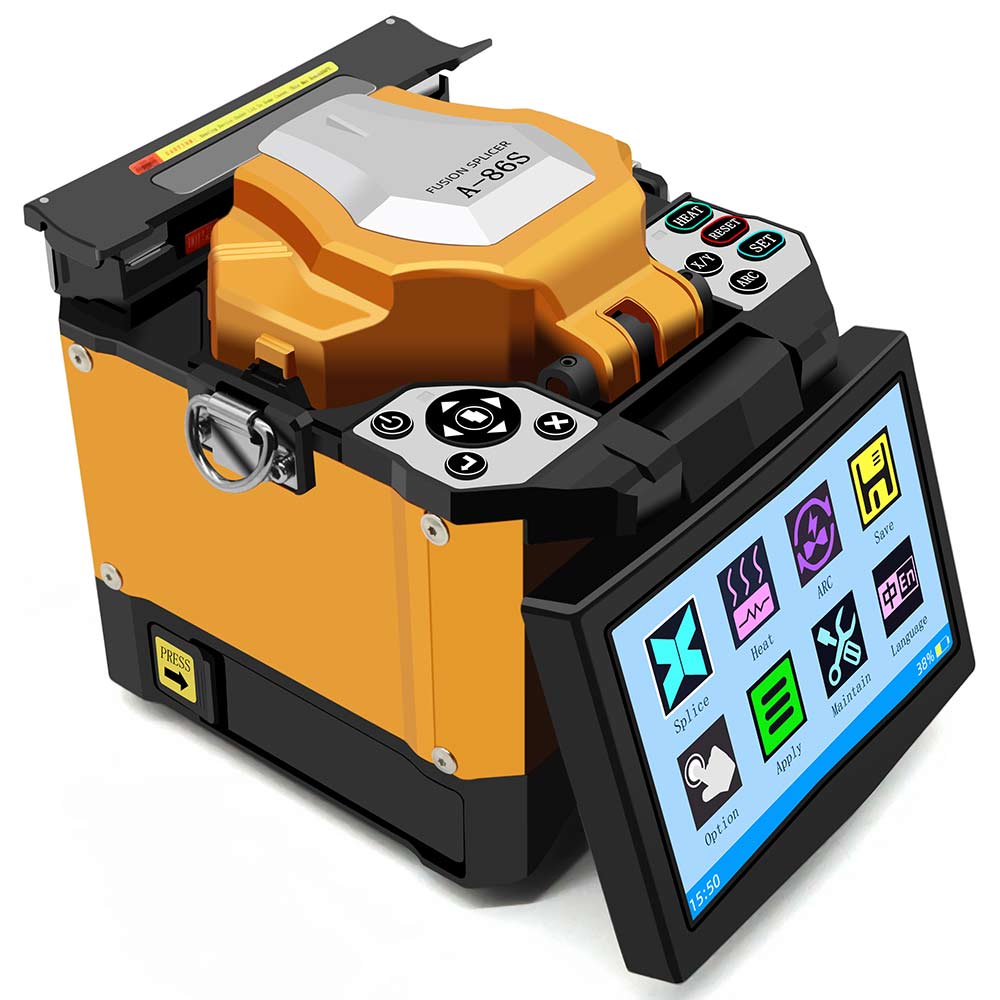

Easy to Use: 5.0″ reversible color TFT screen display with a USB interface to download data and upgrade software.
Operation Modes: 17 operation modes for splicing and 9 operating modes for heating sleeves, increasing flexibility and capability.
Automatic and Manual Operations: Designed for full automatic operations, and equipped for step-by-step manual operations.
Maintenance Features: Built-in storage for 5,000 splicing records, electrode lifespan tracking, and a cleanable design; ensuring reliability for continued functionality.
Original price was: $550.00.$399.00Current price is: $399.00.
