| Product Model | 9C+ High Precision Fiber Cleaver |
| Fiber Material | Quartz fiber |
| Cutting Fiber Length | 7–16mm |
| Cutting Angle | ≤0.5° |
| Blade Life | 48,000 times |
| Blade Material | Tungsten steel |
| Number of Blade Cutting Surfaces | 24 |
| Applicable Fiber Cores | 0.25mm & 0.9mm |
| Universal Bare Fiber Core Diameter | 125μm |
| Product Weight | 330g |
| Overall Dimensions (WDH) | 64mm x 81mm x 60mm |
| Fixture Type | 3-in-1 fixture |
| Supported Fiber Types | Leather cord, patch cord pigtail fiber, bare fiber |
| Fixture Compatibility | No replacement needed for different fiber types |
| Blade Size | Ø22 x 2mm |
| Fiber Holder | Single core fiber holder |
| Trash Bin | Regular scrap collector |
| Construction Material | Aviation aluminum alloy |
| Surface Treatment | Anodic oxidation |
| Blade Processing | Nanoscale grinding |
| Automatic Blade Rotation | Yes |
| Automatic Return Function | Yes |
| Waste Fiber Box | Integrated, keeps workspace clean |
| Non-slip Pressure Pad | Yes, for stable and flat cutting |
| Rubber Pressure Gasket | Yes, for anti-fiber break design |
| Aluminum Alloy Cutter Body | Yes |
| Aluminum Alloy Knife Cover | Yes |
| Magnets | Yes |
| Blade Slider | Yes |
| Fiber Optic Platen Cover Lever | Yes |
| Cleaving Method | Cold cut / hot melt compatible |
| Average Cleave Angle | ≤0.5° |
| Application | Suitable for FTTH, telecom, data center installations |
| Maintenance | Long blade life, minimal maintenance required |
Hot

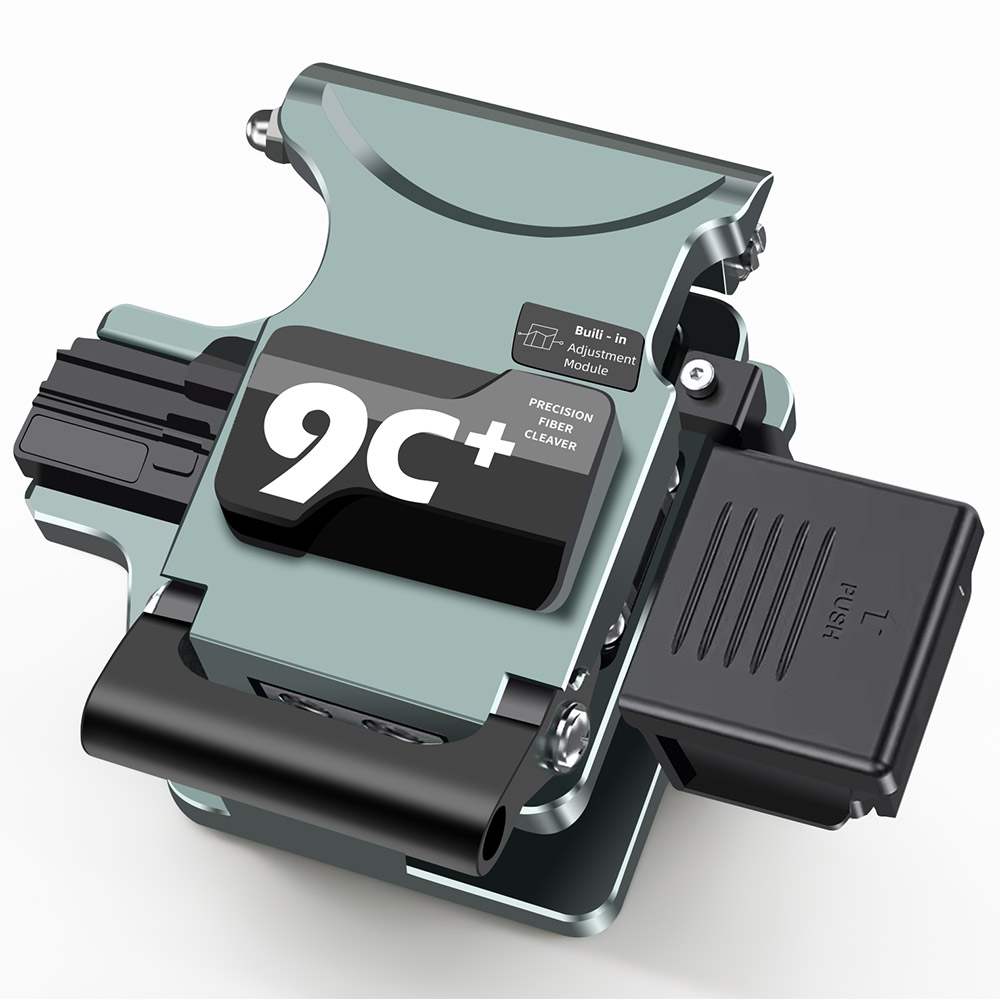

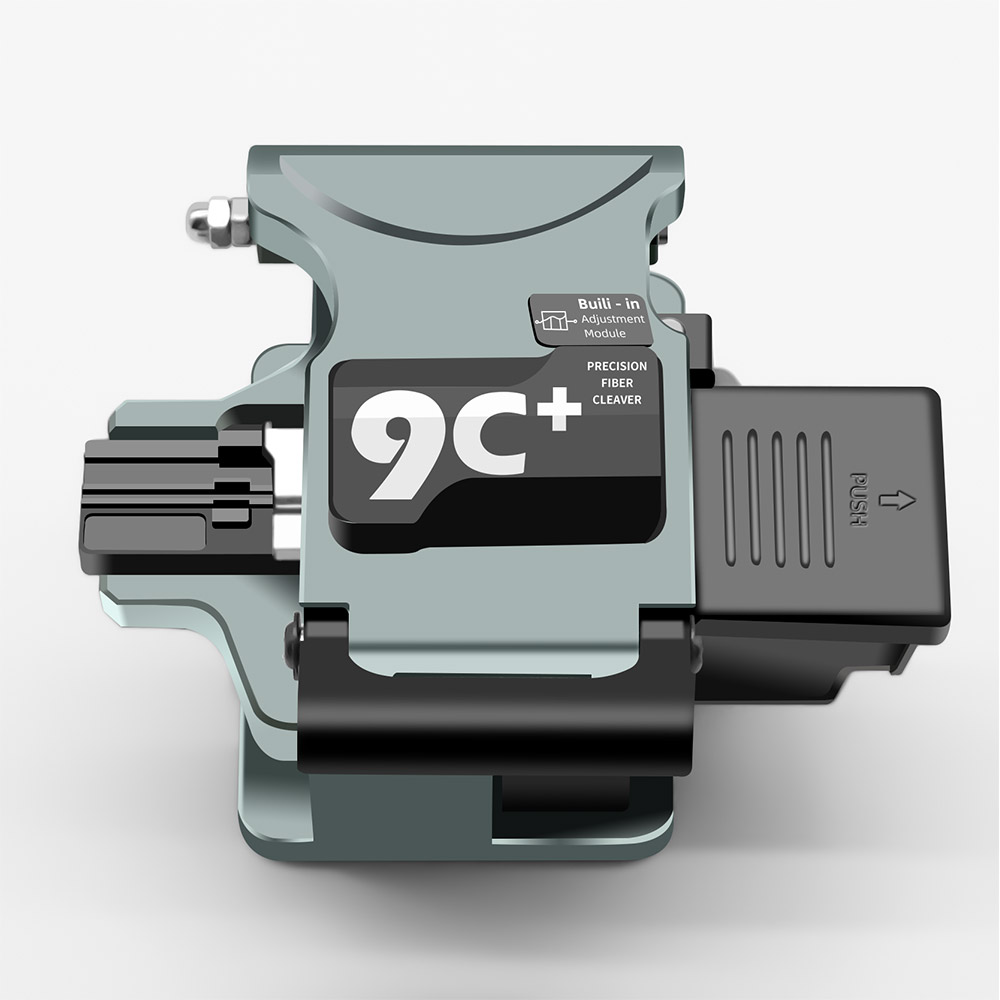

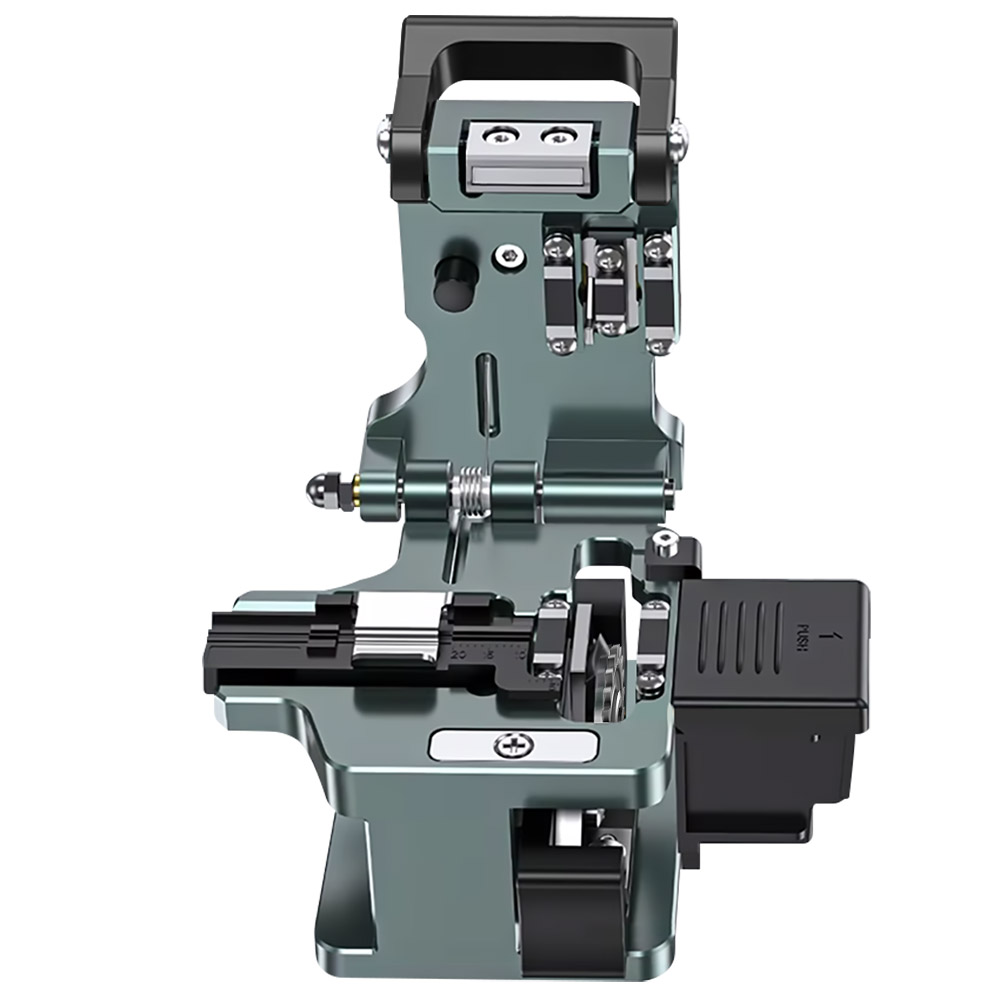

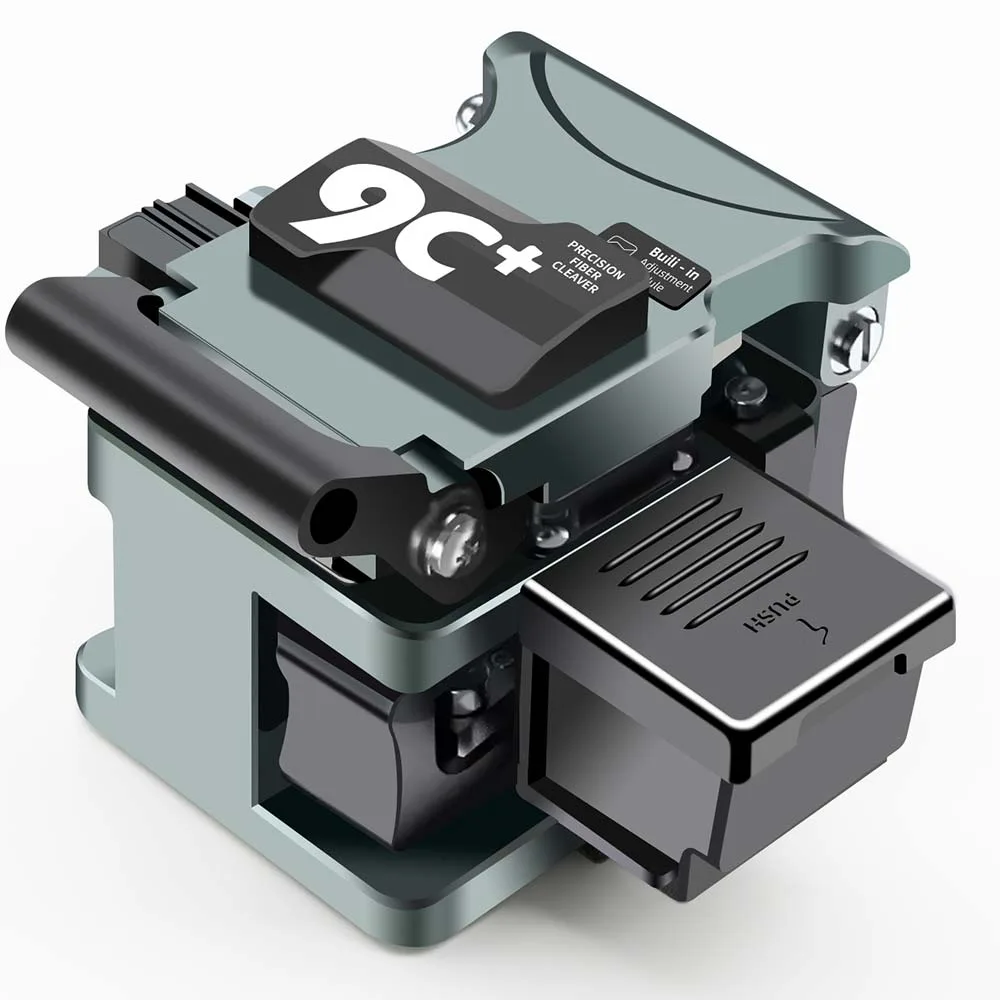

9C+ High Precision Fiber Cleaver Tool with Automatic Blade Rotation & 3-in-1 Fiber Holder for Low Loss Cutting
- Precise Cleaving – The Ultra will cleave at a typical cleave angle of ≤0.5°, producing a high-quality, low-loss termination.
- Long Life Tungsten Steel Blade – Offers durability, with up to 48,000 cleaves from 24 usable cutting surfaces.
- Automatic Blade Rotation – Automatically rotates to a fresh blade edge after each cleave to minimize blade wear.

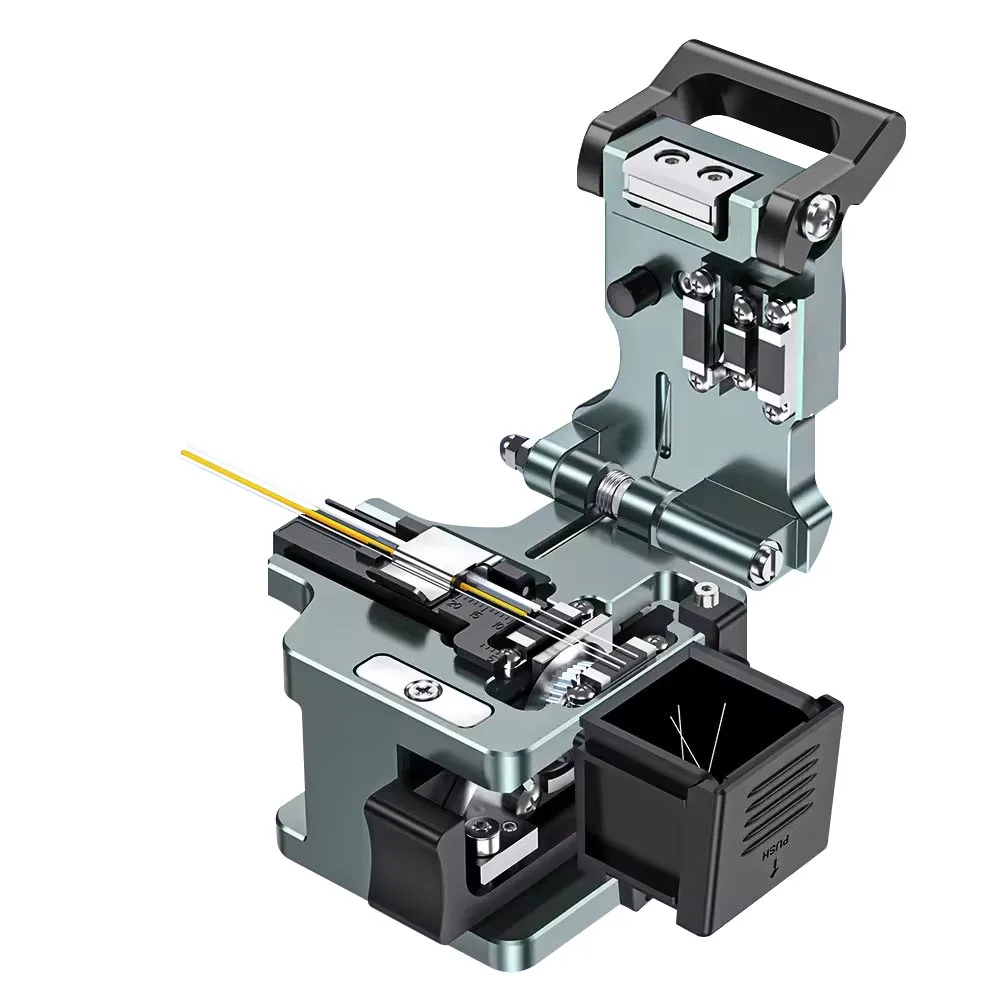

- 3-in-1 Fixture – Cleave leather cord, patch cord pigtail fiber, and bare fiber (0.25mm & 0.9mm) without changing fixtures. Each of the fixtures folds flat for portability and versatility.
- Aviation Aluminum Alloy Body – One-piece metal body with anodic oxidation treatment provides durability, light weight, and incomparable hand-feel.
- Stable & Flat Cleaving – Anti-fiber break rubber pressure pads and unique non-slip pressure pad design provide the fiber stability and support for clean and unaffected cleaves.
- Efficient Waste Management – Integrated waste fiber box keeps the work area clean and organized.
- Compact & Lightweight – Compact size (64x81x60mm) and light weight (330g) makes it convenient for in-field use and transport.
- Automatic Return Function – Automatically returns the blade after cleaving, simplifying the workflow and improving efficiency.
- Consistent Cleaving Results – High-precision engineering and nano-grinding will give you professional, repeatable cleaving performance for FTTH, telecom, and datacenter uses.
