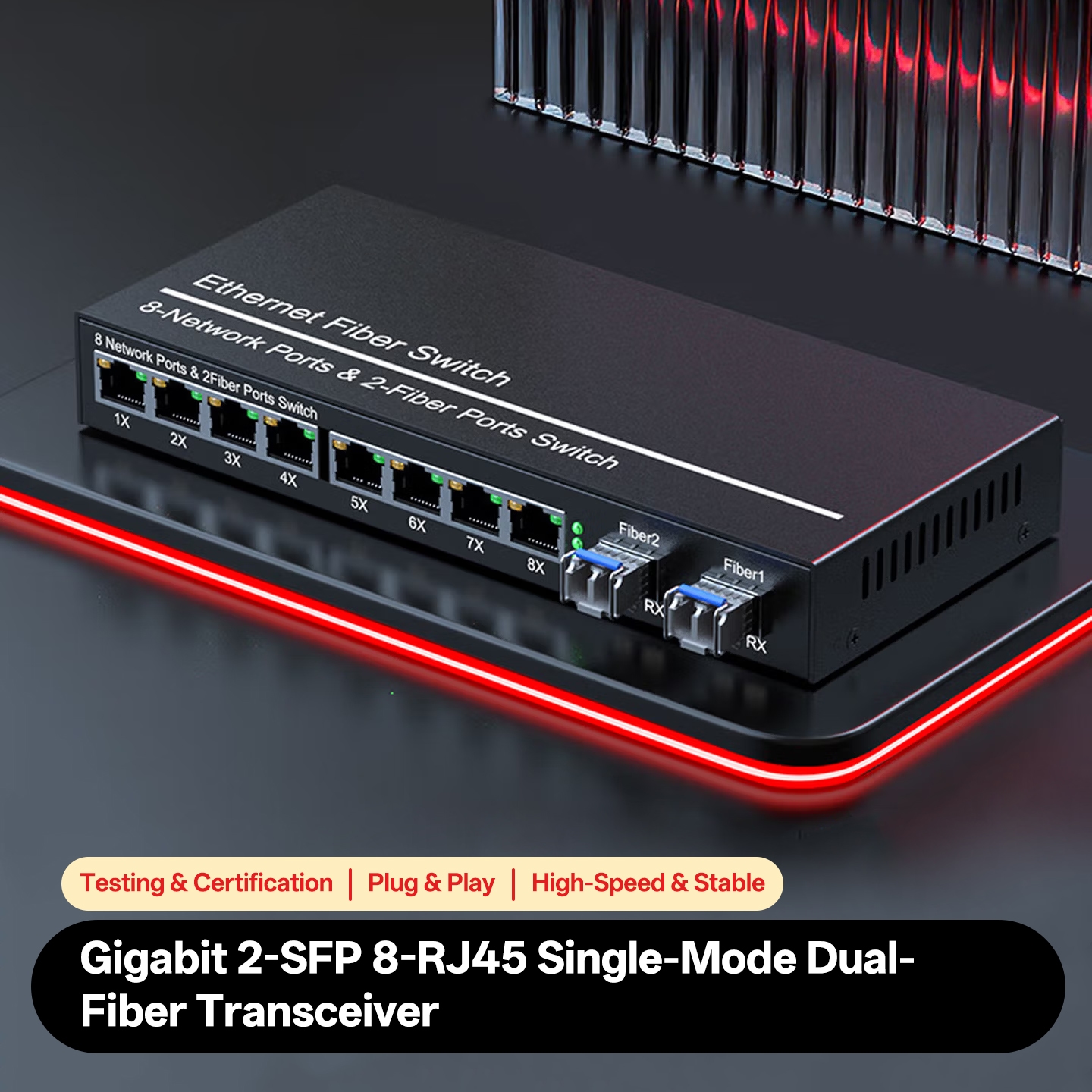

The 8xRJ45 to 2xSFP Power over Ethernet Fiber Media Converter is designed to provide power and data using one Ethernet cable for a flexible and robust network system. As a Fast Ethernet Optical SFP Media Converter, it allows for easy integration of copper and fiber networks while providing up to 10/100/1000Mbps total data transmission at an adaptive speed for fast and long-range connection.
This converter meets the IEEE 802.3af/at standard and provides a total power budget of 96W by delivering up to 30W per port. This product is an excellent choice for providing power to many high-consumption devices (PTZ), dual-networking APs, and IP phones, all powered using this converter without the need for additional power wiring.
Reliable Performance and Design

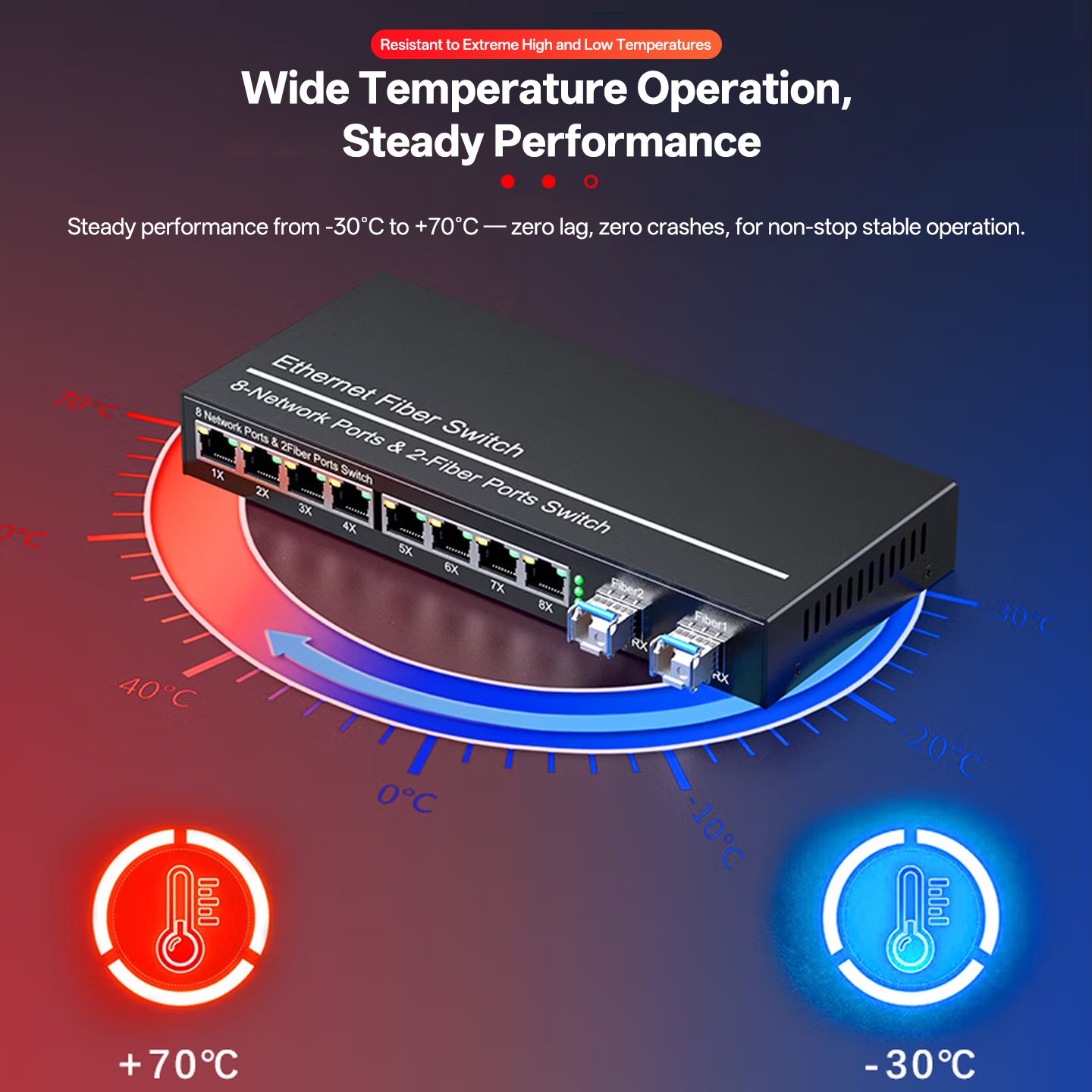

The converter is powered by high-performance switching chipsets, providing gigabit backplane bandwidth of 20Gbps and packet forwarding at 14.9Mpps, enabling fast and reliable network connectivity even under heavy utilization. The converter is constructed with a full metal aluminum housing and features a sophisticated design for convection heat dissipation to prevent performance degradation during long-term operation. With a broad temperature range from -30°C to +70°C, it allows for installation in harsh locations such as outdoor cabinets and industrial facilities.
It is also equipped with 2000V surge protection against lightning strikes, transient voltages, and unstable power sources. Together with CE, FCC, RoHS, and CCC certification, this guarantees the converter will provide safe and reliable operation for the long term.
Power Efficiency and Intelligent PoE Distribution
The PSE Smart Detection technology utilized by this product allows it to automatically detect connected devices through the use of PoE, provide the correct voltage to these devices, and safeguard against the accidental burning out of these connected devices or damaging any of the connected equipment. The overall system’s design has a maximum budget of 96 watts of power, offering enough power to operate several connected devices at full capacity. In addition to reducing the need for multiple wiring connections between the power and data sources, having only one cable will result in significant savings on maintenance costs.
This module includes Auto-Negotiation, Auto MDI/MDIX, and Flow Control, which allow for a high level of compatibility between this unit and most of the popular types of switches and routers on the market today. It can be used in many IP surveillance applications, as well as in FTTH and FTTX implementations, and in extending the range of wireless networks.
Easy and Versatile Deployment

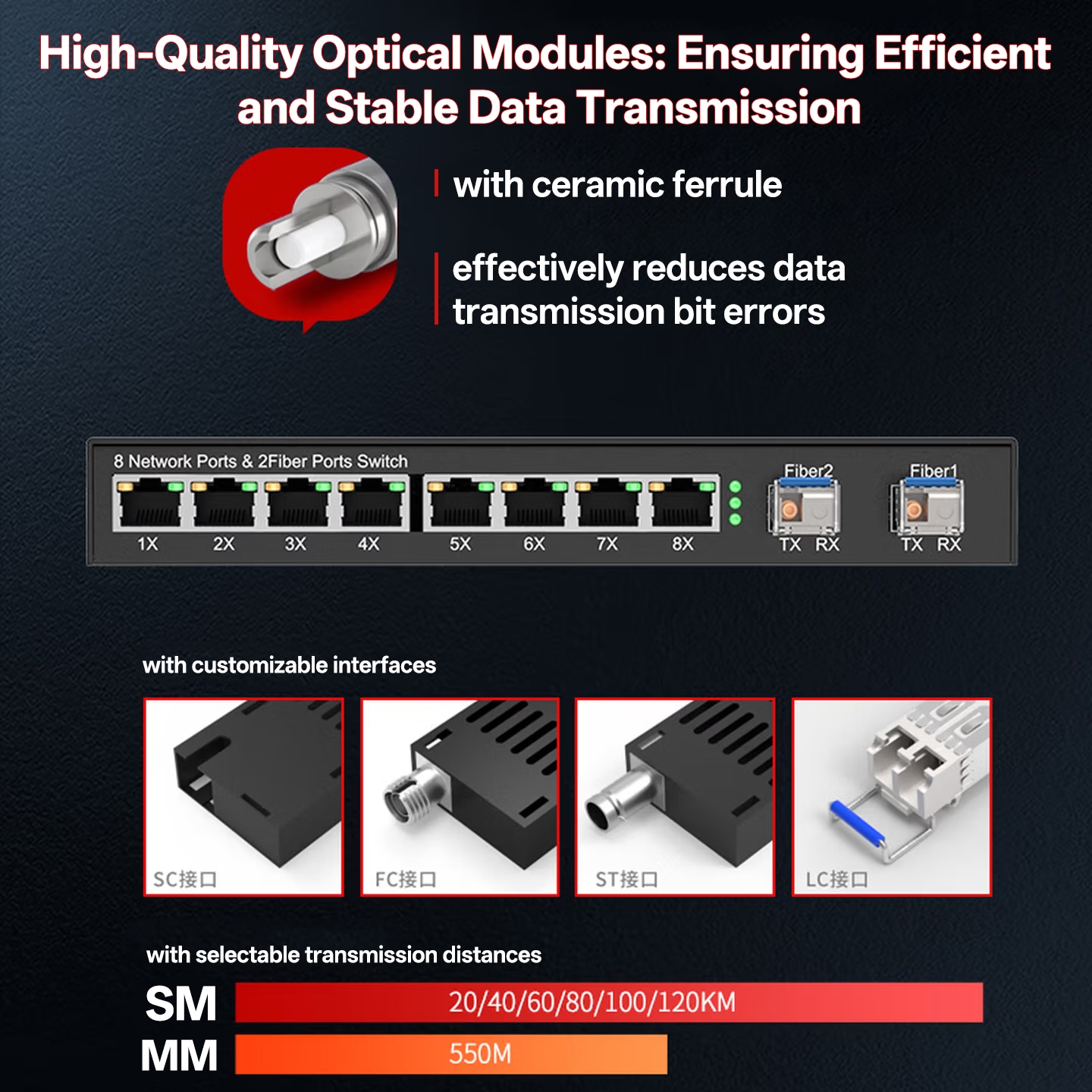

The Converter’s plug-and-play design enables easy installation and simplifies setup time. The Converter can easily be integrated into an existing or new network infrastructure, connecting Power over Ethernet (PoE) cameras, access points (APs), and IP phones via copper, and extending fiber optic links to 120 km with single-mode fiber and 550 m with multi-mode fiber. The Converter is designed to work with SC or FC interfaces, thus providing maximum flexibility when connecting to different types of network topologies.
The Converter supports both fiber to the home (FTTH), fiber to the building (FTTB), and fiber to the rest (FTTX) applications and can be used in enterprise buildings, public security systems, or data networks.
Specifications
| Item | Description |
| Model | 8 × 10/100/1000M RJ45 (PoE) + 2 × 1000M SFP |
| Type | Fiber Optic Media Converter |
| Brand Name | BYXGD or OEM |
| Place of Origin | Guangdong, China |
| Power Protocol | IEEE 802.3af/at, 48V Standard PoE |
| Transmission Rate | 10/100/1000Mbps adaptive |
| Ports | 8 × RJ45 (PoE) + 2 × SFP |
| Fiber Modes Available | Single-mode (20/40/60/80/100/120KM) / Multi-mode (550M) |
| Wavelength | 1310nm / 1550nm |
| Optical Speed | 1.25G |
| Transmission Distance | Up to 120KM (customizable) |
| PoE Output Power | 15.4W (IEEE802.3af) / 30W (IEEE802.3at) |
| Total PoE Power Budget | Up to 96W |
| Backplane Bandwidth | 20Gbps |
| Packet Forwarding Rate | 14.9Mpps |
| Lightning Protection | 2000V Surge Resistant |
| Working Temperature | -30°C ~ +70°C |
| Working Humidity | 5% ~ 90% |
| Power Input | DC 52V |
| Total Power Consumption | 65W / 96W (depending on power configuration) |
| Casing Material | Metal Aluminum Alloy |
| Dimensions | 205 × 95 × 30 mm |
| Certifications | CE, RoHS, FCC, CCC |
| Power Adapter Standards | UK / US / BR / AU Plug (as requested) |
| Warranty | 3 Years |
| Packaging | Single item, 20 × 10 × 5 cm, 1.0 kg gross weight |
Application Scenarios
The PoE fiber media converter is an ideal product for many applications, including video surveillance, wireless access, and VoIP systems. This device can be utilized to provide power to multiple PoE cameras, wireless access points, and IP telephones over long fiber optic links. In order to power non-PoE devices, a conventional PoE splitter can simply be used to separate the power and data.
Due to the significant flexibility of the PoE fiber media converter’s design, which allows it to support various transmission distances, interface types (SC/FC), and connections for campus networks, buildings’ automated control systems, and large-scale monitoring systems, this converter is extremely beneficial for building and maintaining networks today. By providing an exceptional level of durability, low latency, easy manageability, and the ability to easily grow into future technologies, this appliance is one of the truly reliable solutions available for today’s cutting-edge network needs.
