| Specification | Description |
|---|---|
| Fiber Type | 50/125µm Multimode OM3 Fiber Patch Cable |
| Cable Type | Duplex Multimode Fiber Patch Cable |
| Connector Type | FC UPC to FC UPC Duplex |
| Jacket Material | LSZH |
| Cable Jacket Color | Aqua |
| Cable Diameter | 2.0mm |
| Bandwidth | Laser Optimized for 10Gbps Ethernet |
| Maximum Distance | Up to 300 meters at 850nm wavelength |
| Insertion Loss | Factory tested to meet or exceed industry standards |
| Return Loss | High back reflection loss, factory tested |
| Compliance & Standards | Complies with EIA-455-171, FOPT-171, NECA-FOA-301, IEC 61280-4-5, NEC 770, AS9100D, ITAR |
| Available Cable Lengths | 0.2m (0.65ft), 0.5m (1.6ft), 1m (3ft), 1.5m (5ft), 2m (7ft), 3m (10ft), 4m (13ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft), 20m (66ft), 25m (82ft), 30m (98ft), 50m (164ft) |
| Other Connector Options | SC-SC OM3, SC-FC OM3, SC-LC OM3, LC-FC OM3, LC-LC OM3 |
| Typical Applications | Data centers, enterprise networks, telecommunications, high-speed 10G Ethernet links |
| Cable Jacket Rating | LSZH for enhanced safety in fire scenarios |
| Polish Type | UPC (Ultra Physical Contact) |

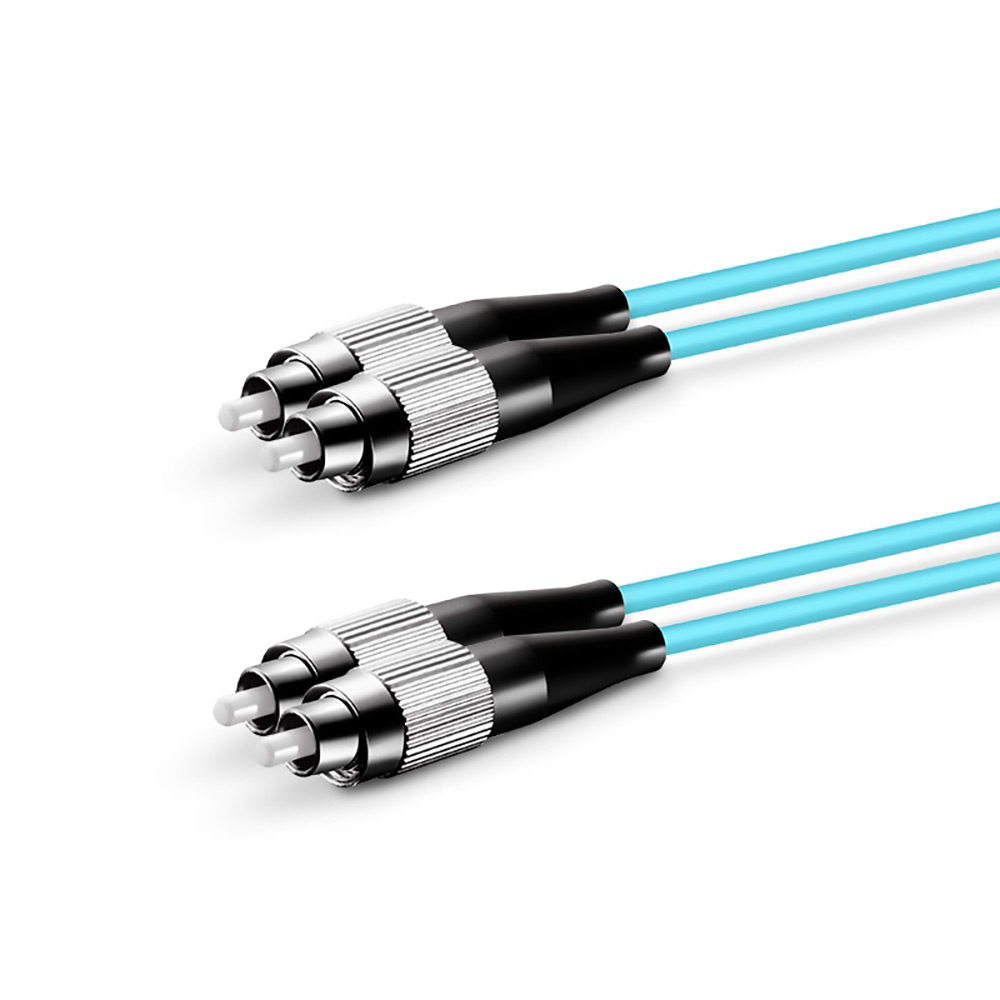

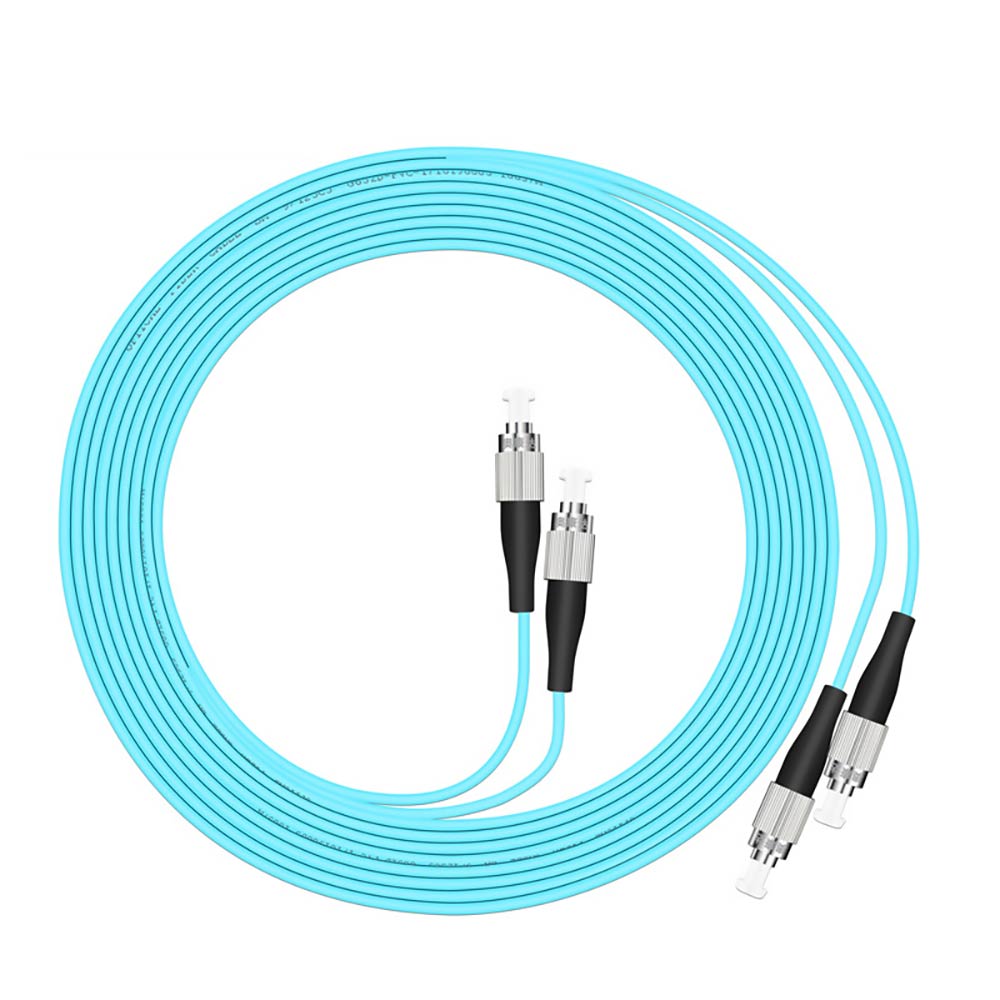

50/125µm Multimode OM3 Fiber Patch Cable, FC UPC to FC UPC Duplex, 10Gb, LSZH
- Laser-optimized 50/125 OM3 multimode fiber provides a high bandwidth of 10Gbps over 300 meters at 850nm wavelength.

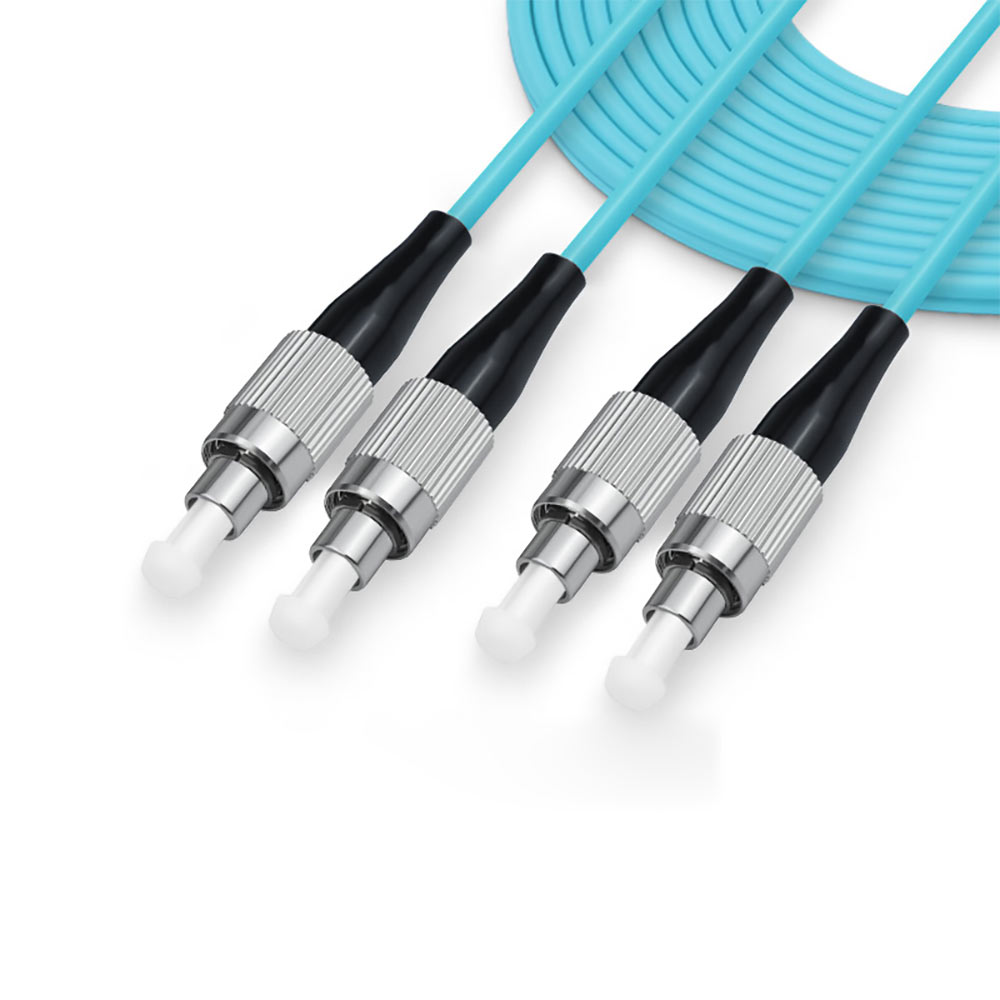

- Duplex FC UPC connectors provide a secure connection with low loss and an excellent return loss performance.

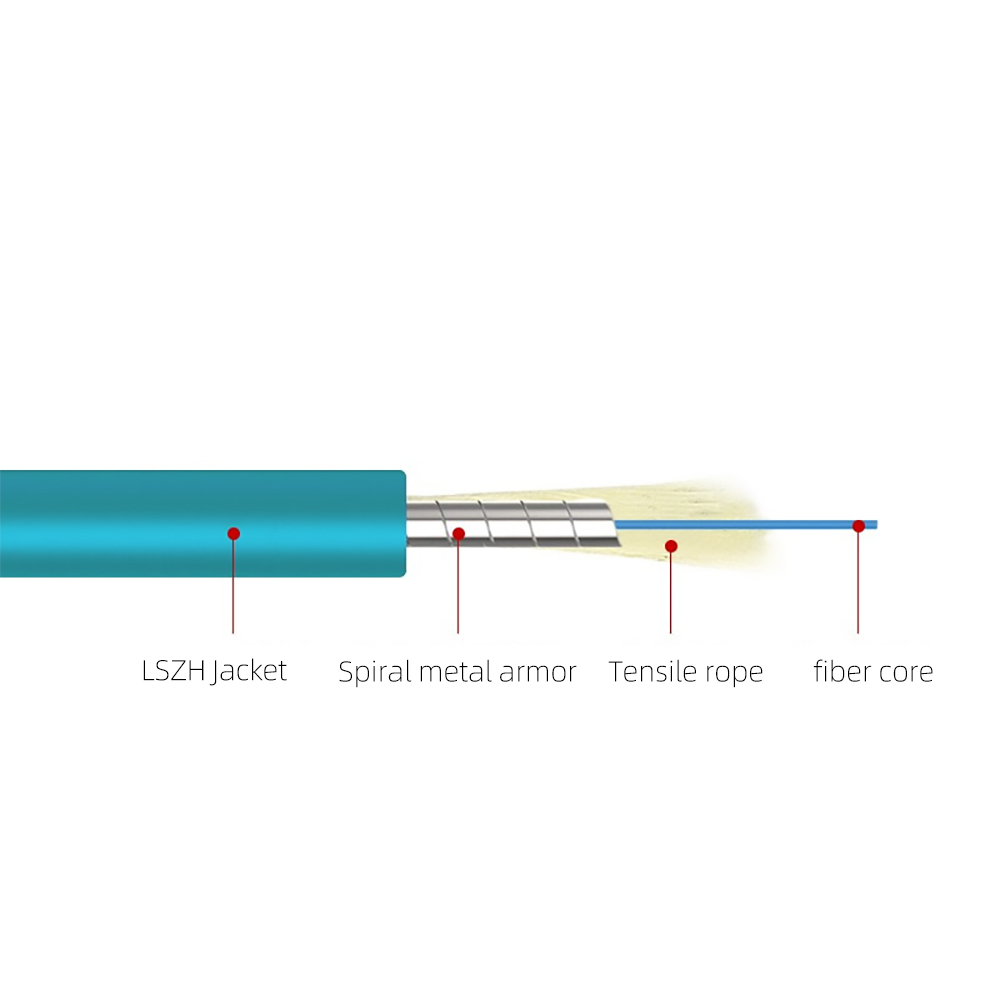

- The LSZH jacket offers an enhanced degree of safety by reducing toxic smoke and halogen emissions in case of fire.
- The Aqua-colored cable jacket is 2.0 mm which makes identification easy and keeps it in compliance with industry standards.
- Factory tested for insertion loss, return loss, and quality of the end-face to deliver a product that exceeds expectations and standards.
- Compatible with an existing LED and VCSEL optics allowing a seamless upgrade from a legacy multimode cabling system.
- The mechanical design is robust and allows for high durability and stable optical performance for harsh environmental conditions.
- The fiber is perfect for high speed data centers, enterprise networks, and telecommunication applications that require reliable 50/125µm OM3 multimode fiber connectivity.
- This fiber is backward compatible with legacy fiber systems that have lower speed networks, allowing the network to expand freely without hesitation.
