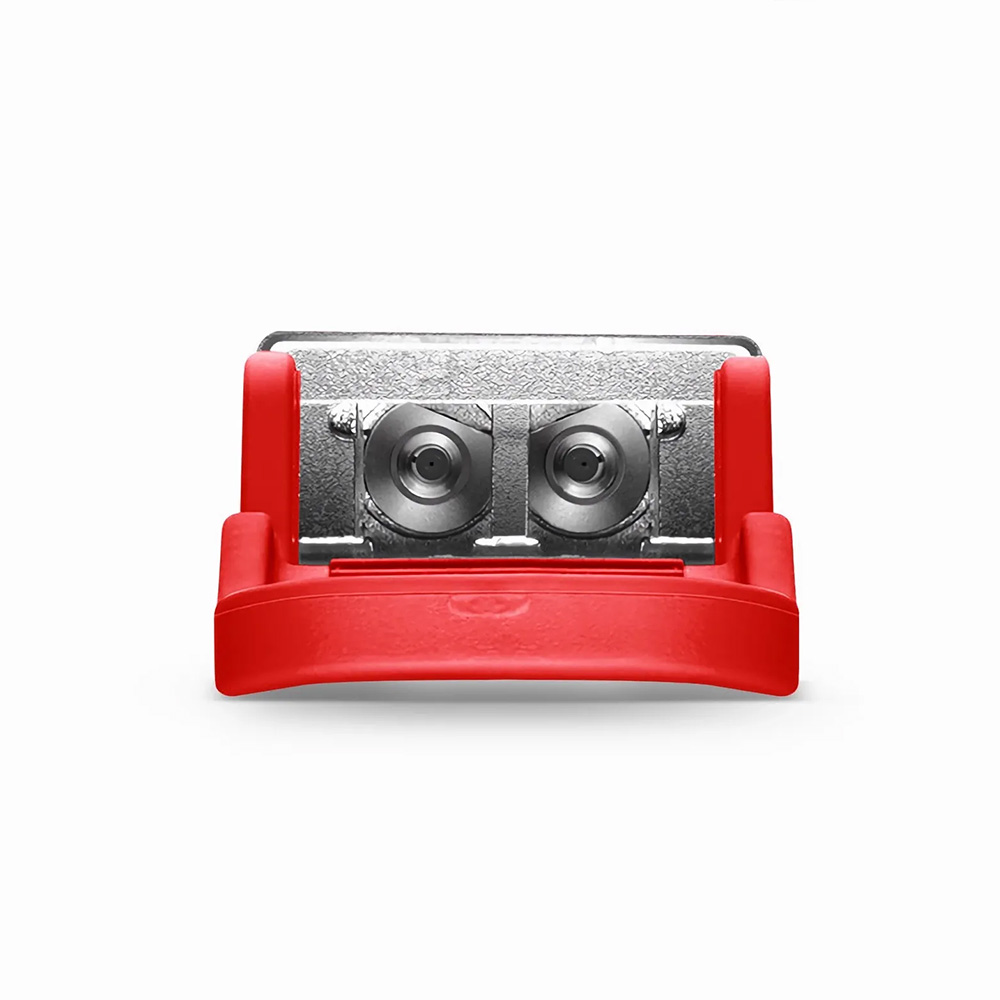

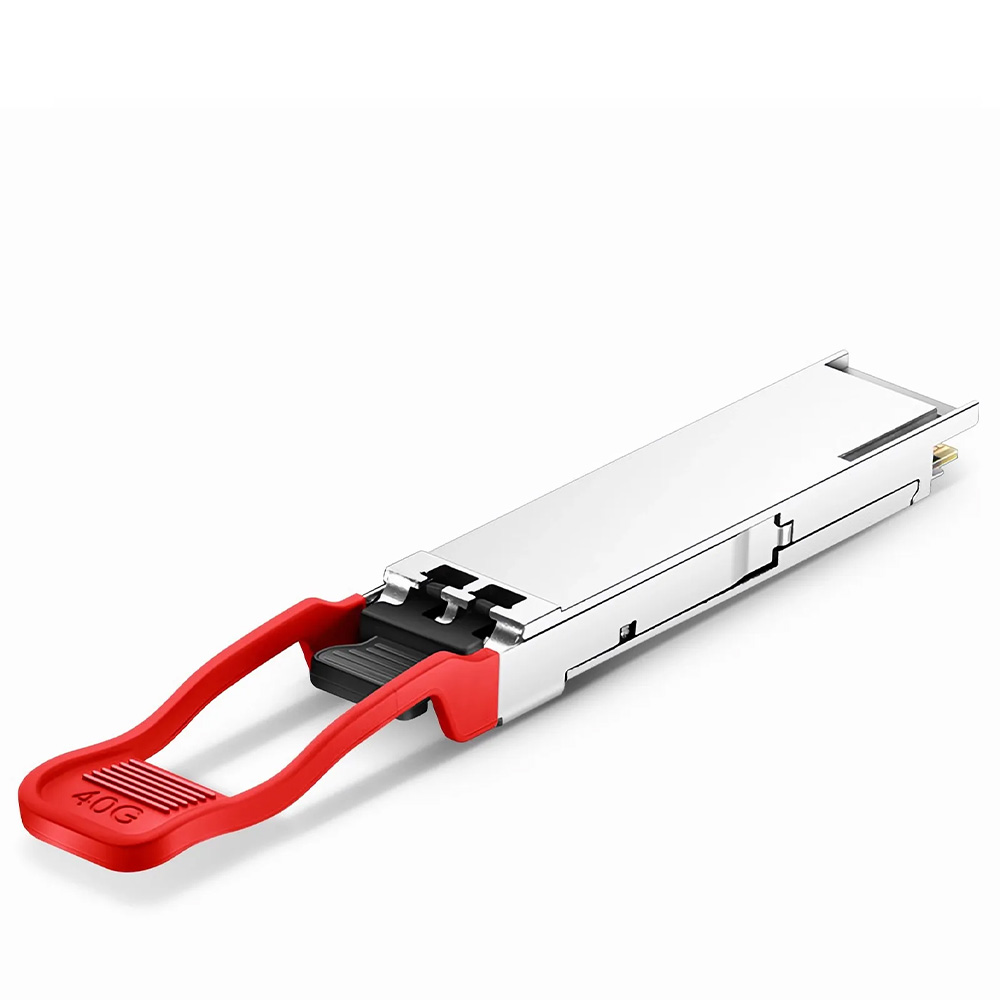

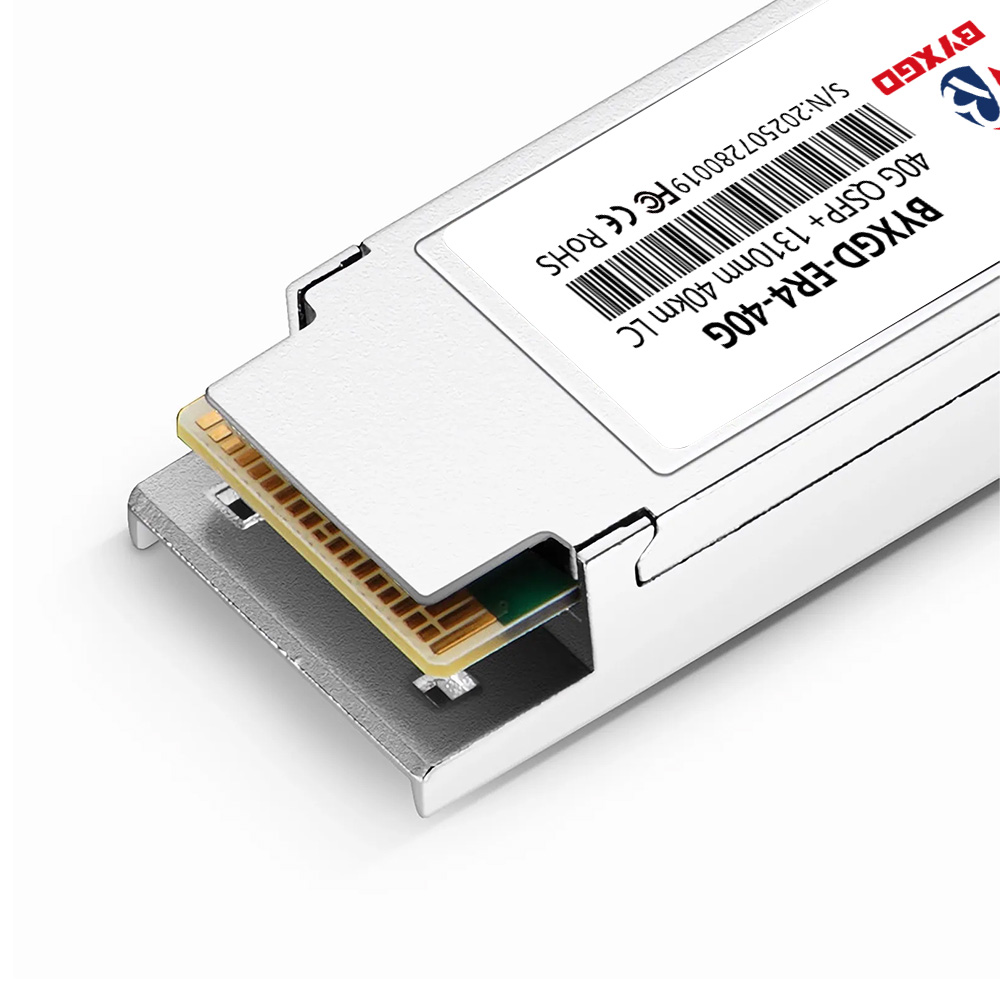

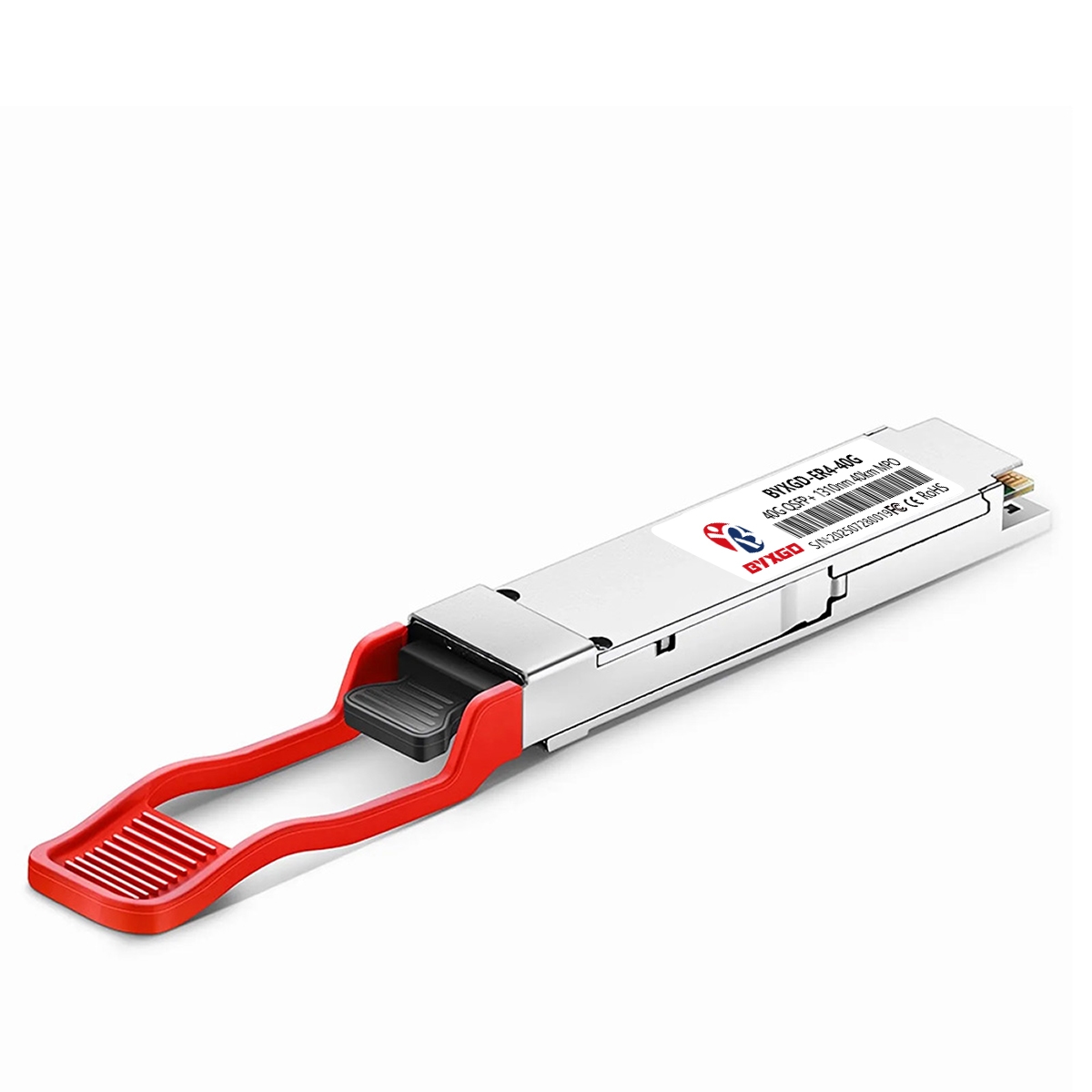

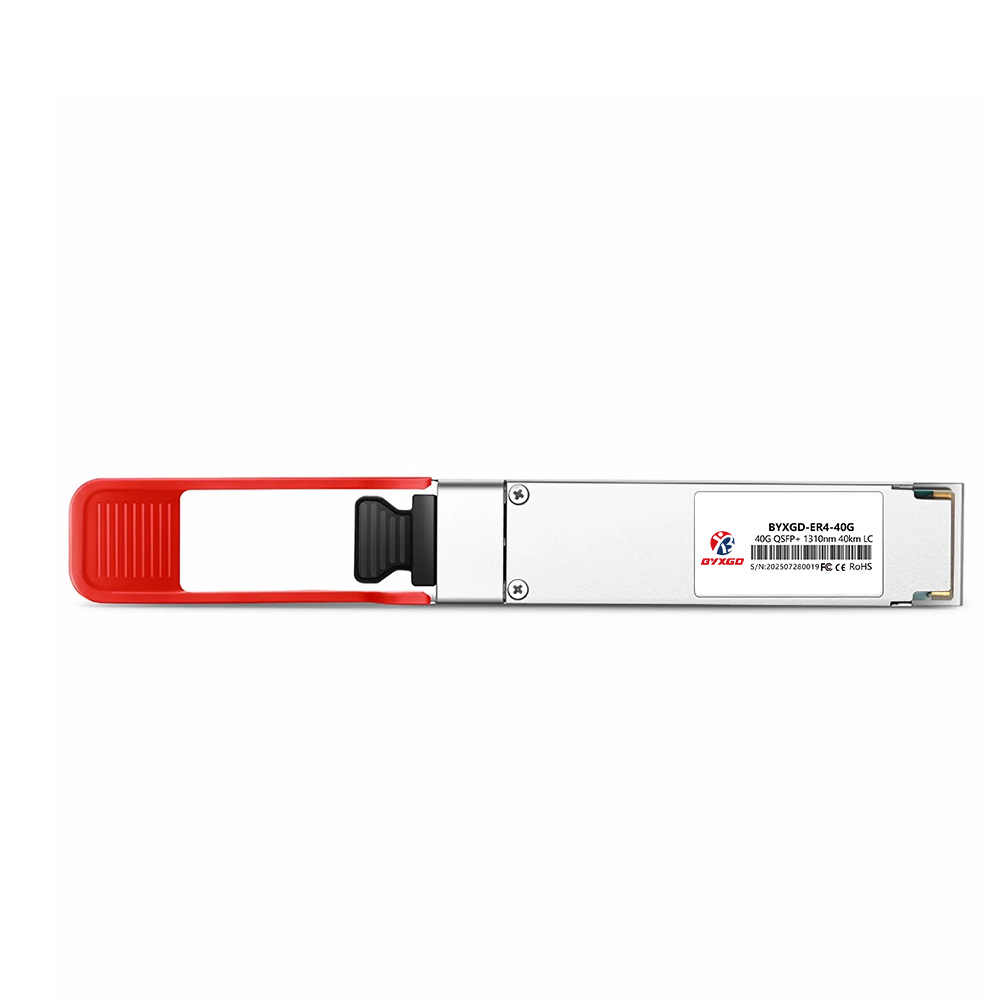

Cisco QSFP-40G-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km Duplex LC/UPC SMF Optical Transceiver Module allows for a 40GbE connection of up to 40km on OS2 single-mode fiber (SMF) using duplex LC connectors operating at the 1310nm wavelength. This module supports digital diagnostics (DDM) and is compliant with the QSFP+ MSA, IEEE 802.3ba/802.3bm 40GBASE-ER4, and OTU3 standards.
This is an alternative third-party module that can be used as a direct replacement for an original manufacturer transceiver, designed to meet or exceed OEM specifications, and 100% application compatible. This module is hot-swappable, has a low power consumption design (<3.5W), and has been tested against many of the major brands and models of network devices for compatibility with switches, routers, and NICs.
Supported OEM brands and part numbers: Cisco QSFP-40G-ER4, Dell 430-4917-40, HPE H3C JL306A, Extreme 10335, NVIDIA/Mellanox MC2210511-ER4, H3C QSFP-40G-ER4-SM1310, HPE Aruba Q9G82A, Intel E40GQSFPER, MRV QSFP-40GD-ER, ZTE QSFP-40GE-S40K, Mikrotik Q+31DLC40D, Edge-Core PAN-40G-QSFP-ER4, Ciena QSFP-ER4, Chelsio SM40G-ER, Avaya AA1404003-E6, Allied Telesis QSFPER4, F5 Networks F5-UPG-QSFP+ER4, Fortinet FG-TRAN-QSFP+ER, D-Link DEM-QX40Q-ER4, Check Point CPAC-TR-40ER-SSM160-QSFP-C, high-performance computing, enterprise core layer or distribution layer networks, and all data centers.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP+ |
| Max Data Rate | 44.6 Gbps (4x 11.2 Gbps) |
| Wavelength | 1310nm |
| Max Cable Distance | 40 km |
| Connector | Duplex LC |
| Fiber Type | OS2 Singlemode (SMF) |
| Transmitter Type | DFB CWDM |
| Receiver Type | APD |
| TX Power | -2.7 ~ +4.5 dBm |
| Receiver Sensitivity | < -21.2 dBm |
| Power Budget | 18.5 dB |
| Receiver Overload | -4.5 dBm |
| Power Consumption | ≤3.5W |
| Extinction Ratio | >5.5 dB |
| Modulation Format | NRZ |
| DDM (Digital Diagnostics) | Supported |
| Host FEC | Supported |
| Bit Error Ratio (BER) | 1E-12 |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 0% to 85% |
| Weight | 0.09 kg |
| Protocols Supported | OTN OTU3, 40G Ethernet, SATA/SAS3, Infiniband, QSFP+ MSA, SFF-8436, IEEE 802.3ba, IEEE 802.3bm |
| Digital Diagnostic Monitoring | Yes |
| Power Supply | +3.3V |
| Application | 40G switch and router, data aggregation, backplane, proprietary protocol, high-density applications, data center, HPC, enterprise core/distribution |
| Compliance | RoHS, SFF-8436, IEC/EN 61000-4-2, IEC-60825, FDA 21CFR 1040.10, 1040.11, IEEE802.3ba |
