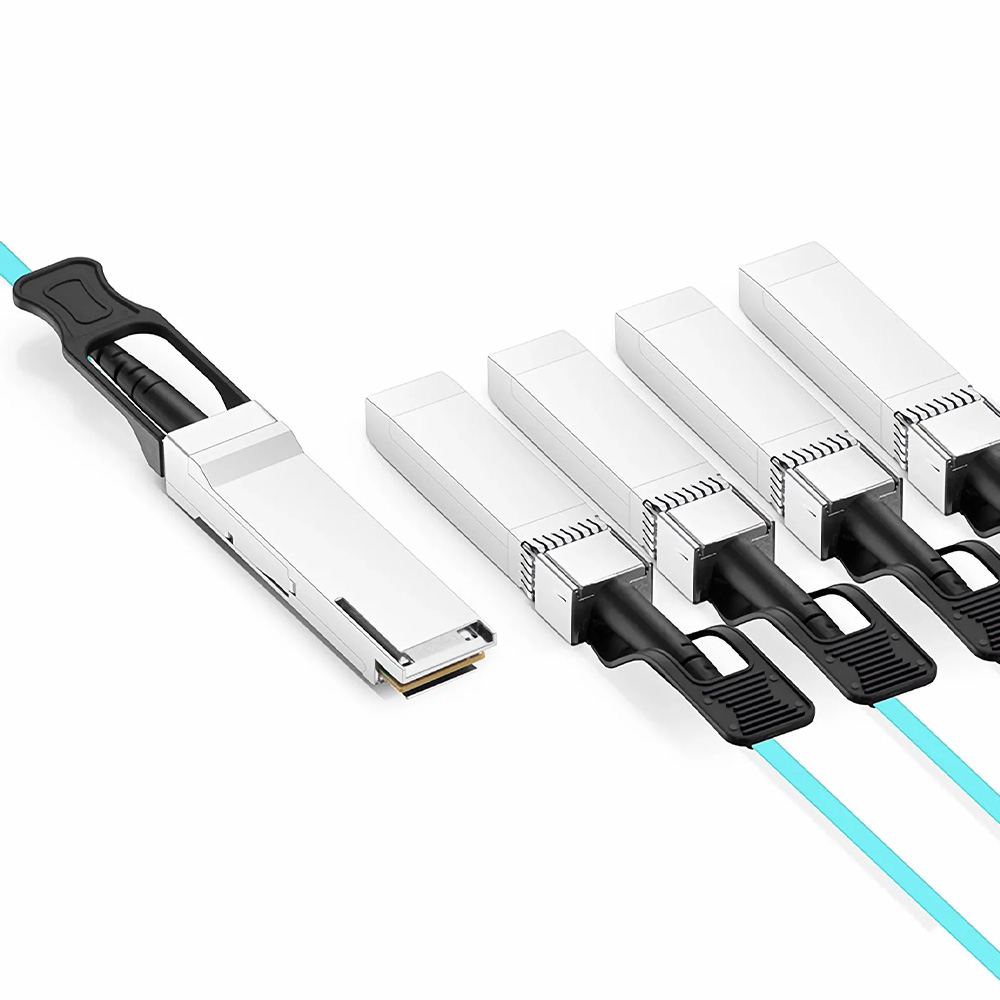

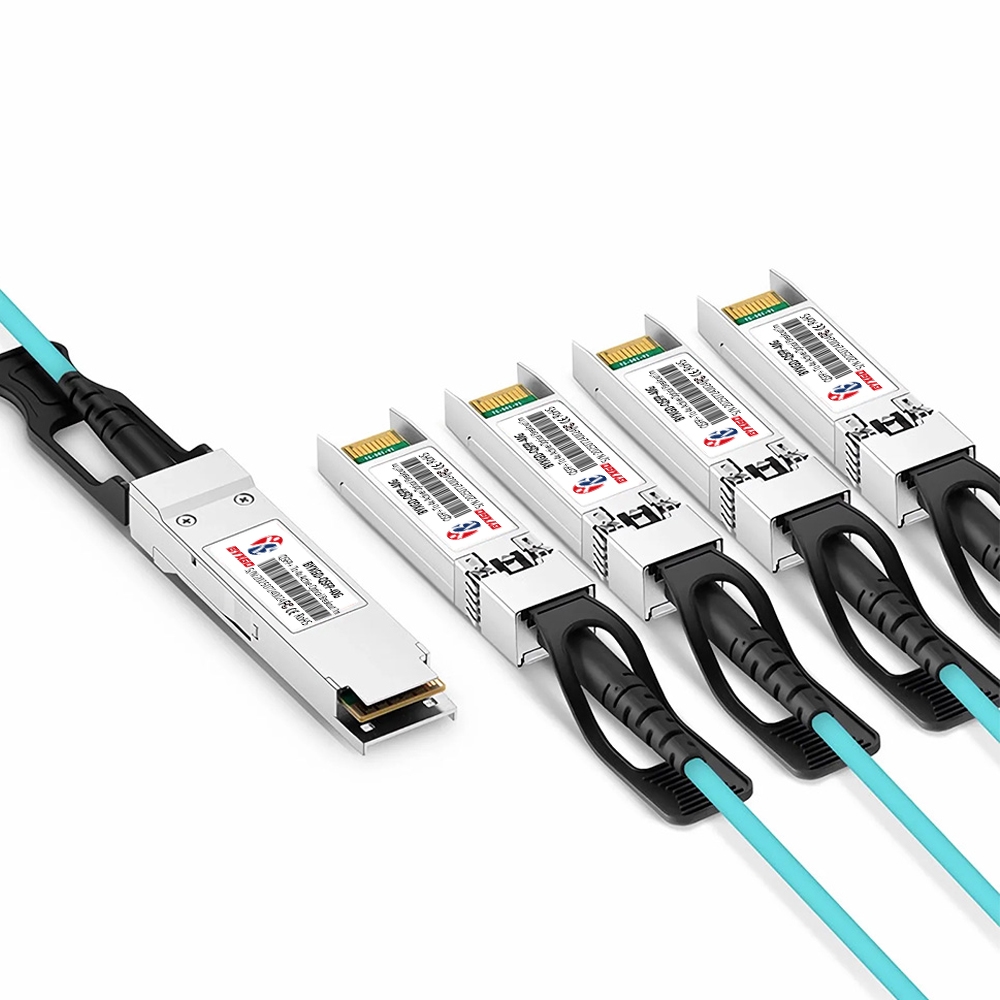

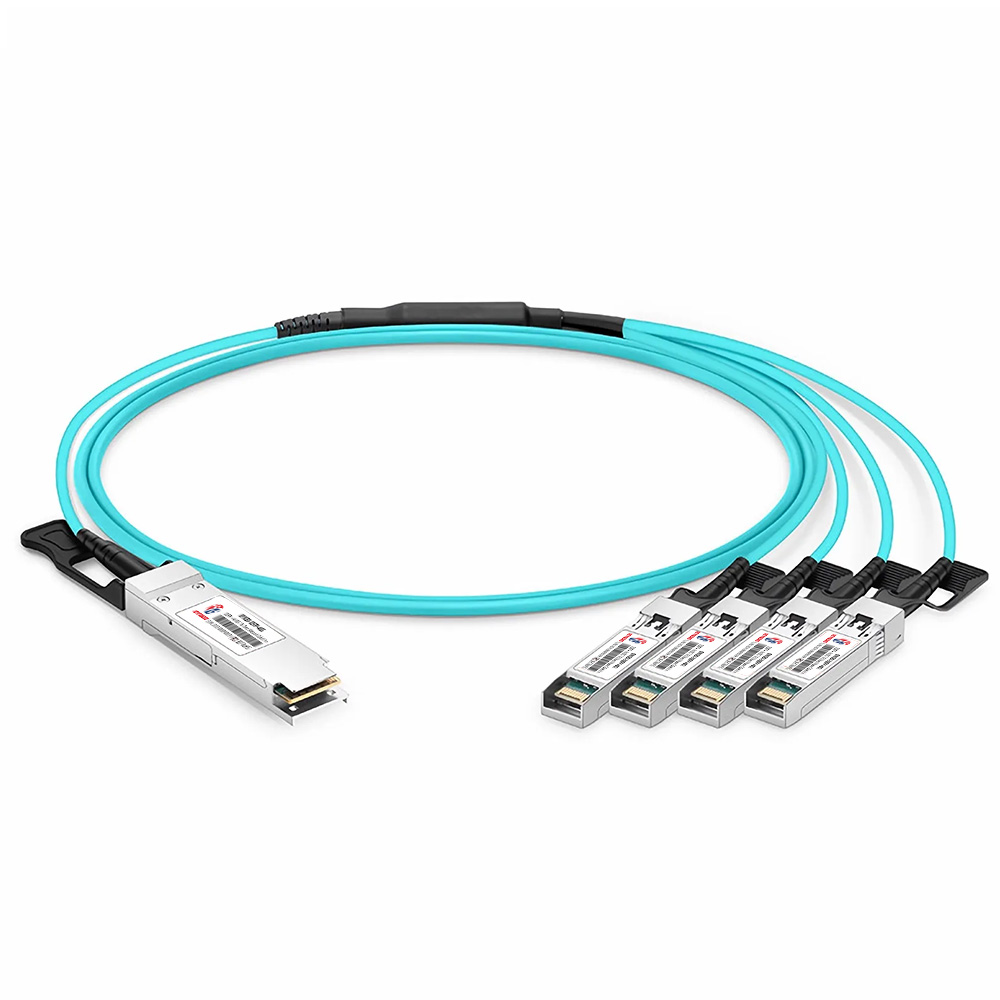

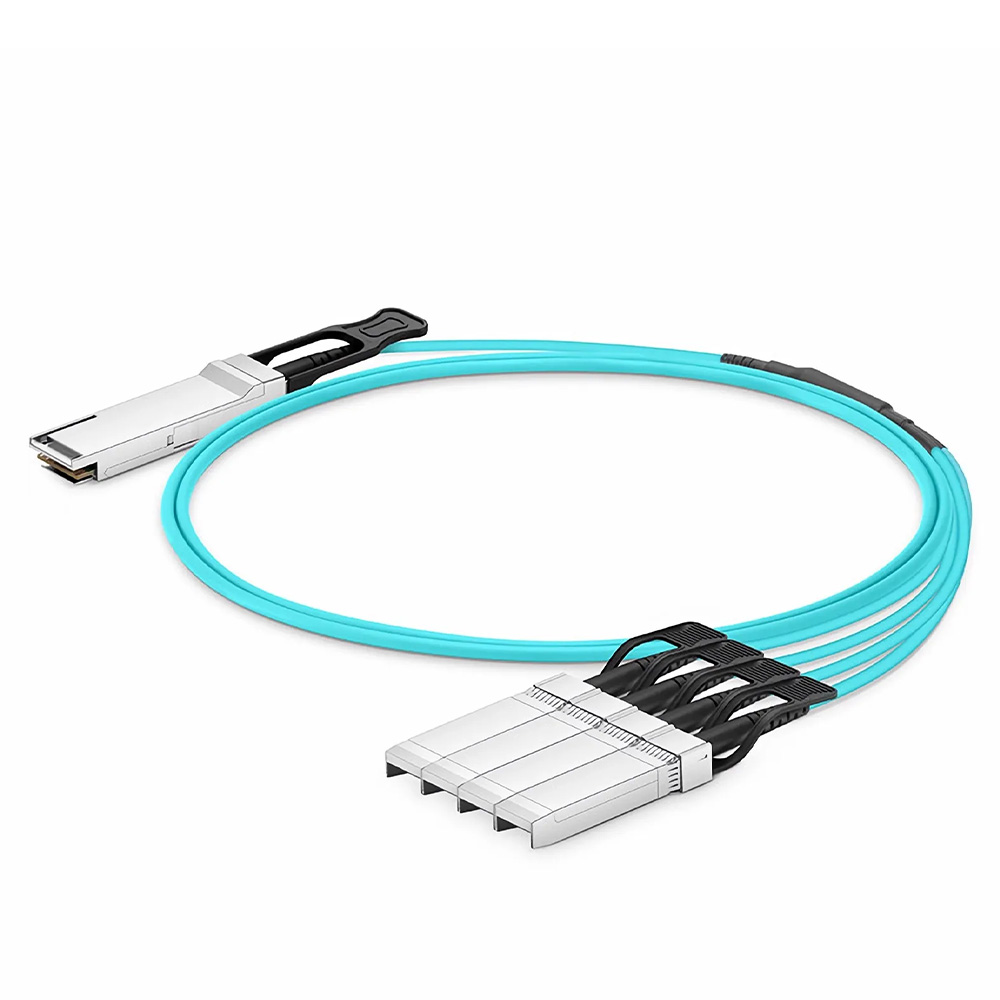

BYXGD custom-length Cisco QSFP-4X10G-AOC1M Compatible 40G QSFP+ AOC to 4x10G SFP+ Active Optical Breakout Cable features a multimode fiber cable that connects a QSFP+ module (for example XC-QSFP6810) on one end to four SFP+ (for example XC-SFP6820) modules on the other end.
BYXGD Active Optical Cable is fully compliant with the following standards: SFF-8436, SFF-8431, QSFP+ MSA, and SFP+ MSA. Therefore, it is ideal for installing within racks, racks side-by-side, or rack-mount systems designed for the 40 Gbps-to-4x10G interconnection within a rack. This cable supports all storage, data center, and high-performance computing interconnect solutions. Low latency, low power consumption, reduced weight, and the ability to manage a large number of fibers using a small bend radius are just some of the benefits of using this cable.
All BYXGD Active Optical Cables are designed, assembled, tested, and certified to be local, regional, and national Cisco QSFP-4X10G-AOC1M compatible for use with Cisco switches, routers, and servers. Custom cable lengths are available to meet individual needs.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP+ to 4x SFP+ Breakout AOC |
| Connector Type | QSFP+ to 4 SFP+ |
| Data Rate | 40 Gb/s (10.5 Gb/s per lane) |
| Wavelength | 850 nm |
| Fiber Type | OM3 MMF |
| Cable Length | 1m to 30m (3.28ft to 98.4ft) |
| Cable Diameter | 3 mm |
| Minimum Bend Radius | 30 mm |
| Cable Jacket | LSZH / OFNP |
| Wire AWG | 30 AWG |
| Supply Voltage | 3.3 V |
| Digital Diagnostic Monitoring | Yes |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Storage Temperature | -40 to 85°C |
| Protocols | 10G/40G Ethernet, Fibre Channel, 40G InfiniBand QDR, 10G InfiniBand SDR |
| Applications | 40G/10G Ethernet switches, routers, servers, high-speed data centers |
| Compliance | RoHS, QSFP+ MSA, SFP+ MSA |
| Warranty | 1 Year |
| Weight | 0.2 kg |
