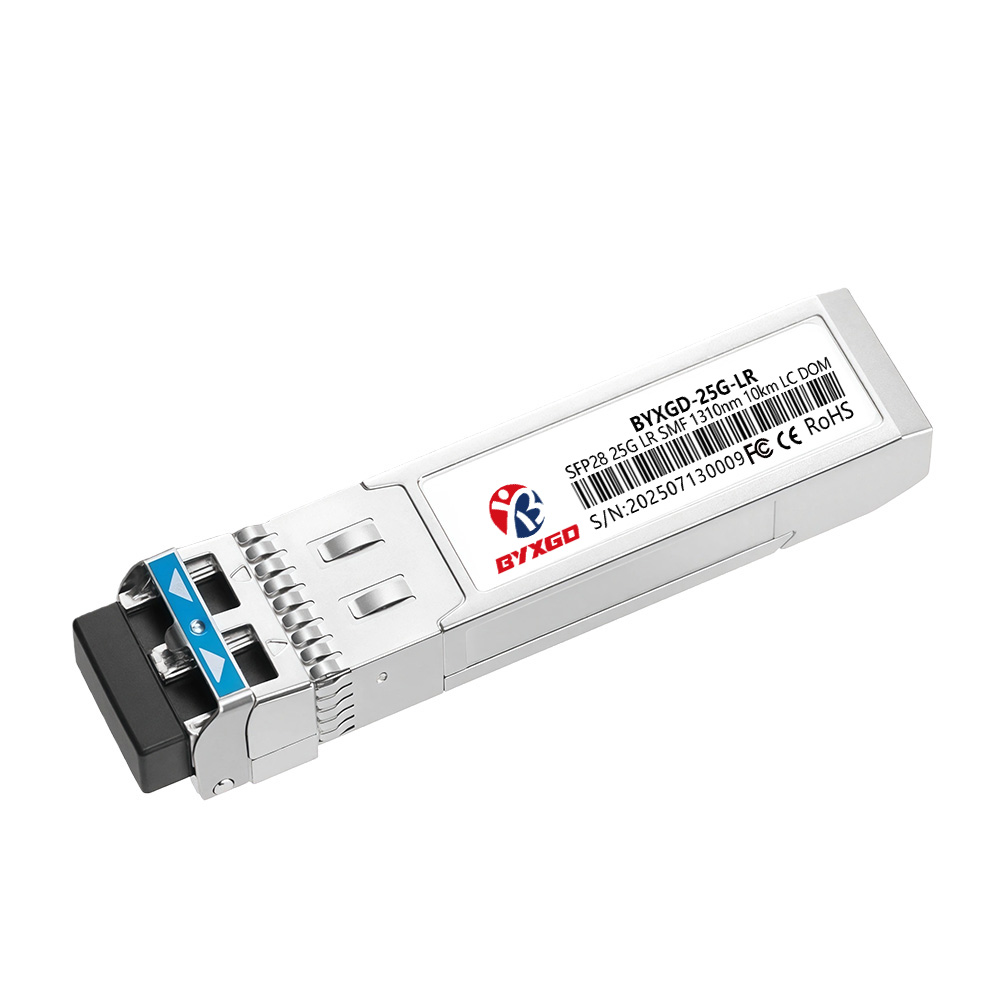

Cisco SFP-25G-LR-S compatible 25GBASE-LR SFP28 transceivers offer economics for short and long data center connections. The SFP28 transceiver operates at 25 Gbps over OS2 SMF with a distance of 10km at 1310nm through an LC-duplex connector. This hot-pluggable module is suitable for data center switches, enterprise routers, and server NIC applications in 25G Ethernet, telecom, and data center networks. The 25GBASE-LR features a 1310nm DFB (Distributed Feedback Laser) transmitter with an integrated receiver using a PIN (Positive-Intrinsic-Negative) photodiode. The 25GBASE-LR has a design that has proven to be stable and provides long-reach optics for dependable performance on G.652 SMF. The low power consumption, monopoly-compliant SFP28 electrical interface, and standard management features for the SFP28 are all acceptable for current applications. Standards related to the Cisco SFP-25G-LR-S compatible SFP28 are SFP28 MSA, IEEE 802.3by and IEEE 802.3cc 25GBASE-LR, SFF-8472 diagnostics, and common vendor coding for host identification and link training. This module operates in the commercial temperature range as defined by the SFF-8472 diagnostic and has an LC/UPC connector for physical performance.
Supported Brand and Model Identifiers: Cisco SFP-25G-LR, Juniper Networks JNP-SFP-25G-LR, Arista SFP-25G-LR, Mellanox / NVIDIA MMA2L20-AR, Dell AA094688, Brocade 25G-SFP28-LR, Extreme Networks 25G-SFP28-LR, MikroTik XS+31LC10D, Intel E25GSFP28LR, HPE Aruba JL486A, Fortinet FG-TRAN-SFP28-LR, Palo Alto Networks PAN-SFP28-25GBASE-LR, H3C SFP-25G-LR-SM1310, etc.
Specifications
| Parameter | BYXGD Specification |
| Form Factor | SFP28 |
| Max Data Rate | 25.78 Gbps |
| Wavelength | 1310 nm |
| Max Distance | 10 km on OS2 SMF |
| Connector | Duplex LC/UPC |
| Media | SMF (G.652) |
| Optical Components | DFB 1310 nm transmitter / PIN receiver |
| TX Optical Power | -7 to 2 dBm |
| Receiver Sensitivity | < -14 dBm |
| Receiver Overload | 2 ~ >3 dBm |
| Power Budget | 8 dB |
| Power Consumption | < 1.2 W |
| Extinction Ratio | ≥ 3.5 dB |
| CDR | TX and RX |
| FEC | Inbuilt FEC: Yes |
| Modulation | NRZ |
| BER | 1E-12 |
| DDM/DOM | Supported |
| Protocols/Compliance | SFP28 MSA; IEEE 802.3ba/802.3cc; CPRI; eCPRI; IEC/EN 61000-4-2; IEC-60825; FDA 21CFR 1040.10/1040.11; RoHS |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Storage Temperature | -40 to 85°C |
| Humidity | 95% |
| Fiber Type | OS2 SMF |
| Core | G.652 |
| Dimensions (L × W × H) | 56.7 × 13.9 × 8.5 mm |
| Weight | 0.035 kg |
| Packaging Technology | BOX packaging |
| Applications | 25GBASE‑LR Ethernet |
| Warranty | 5 Years |
