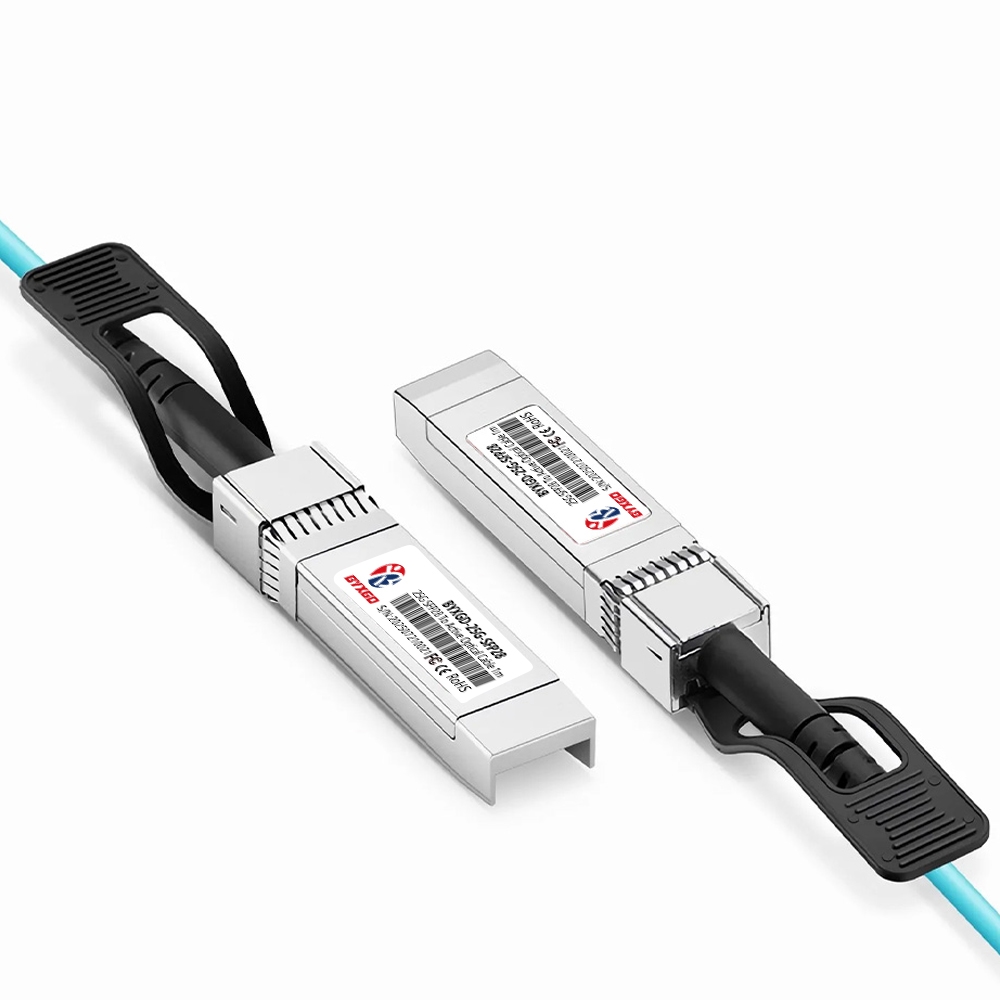

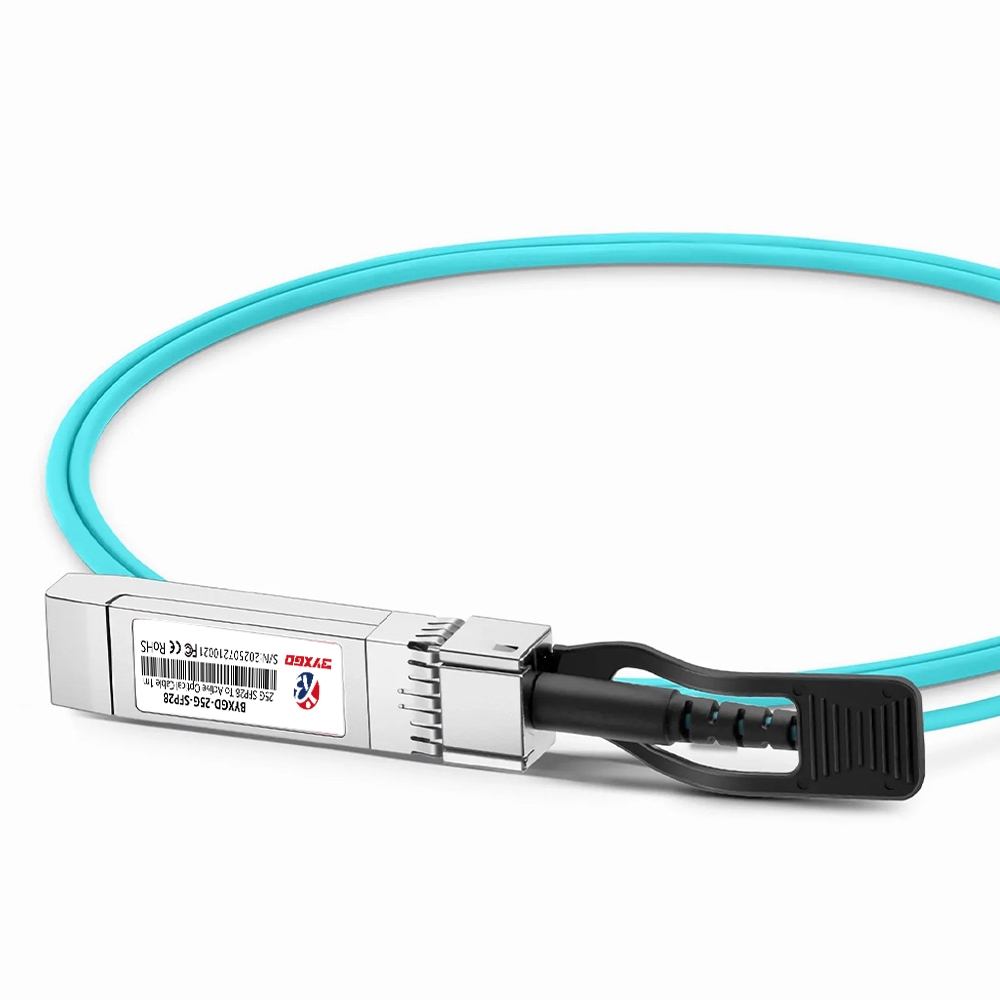

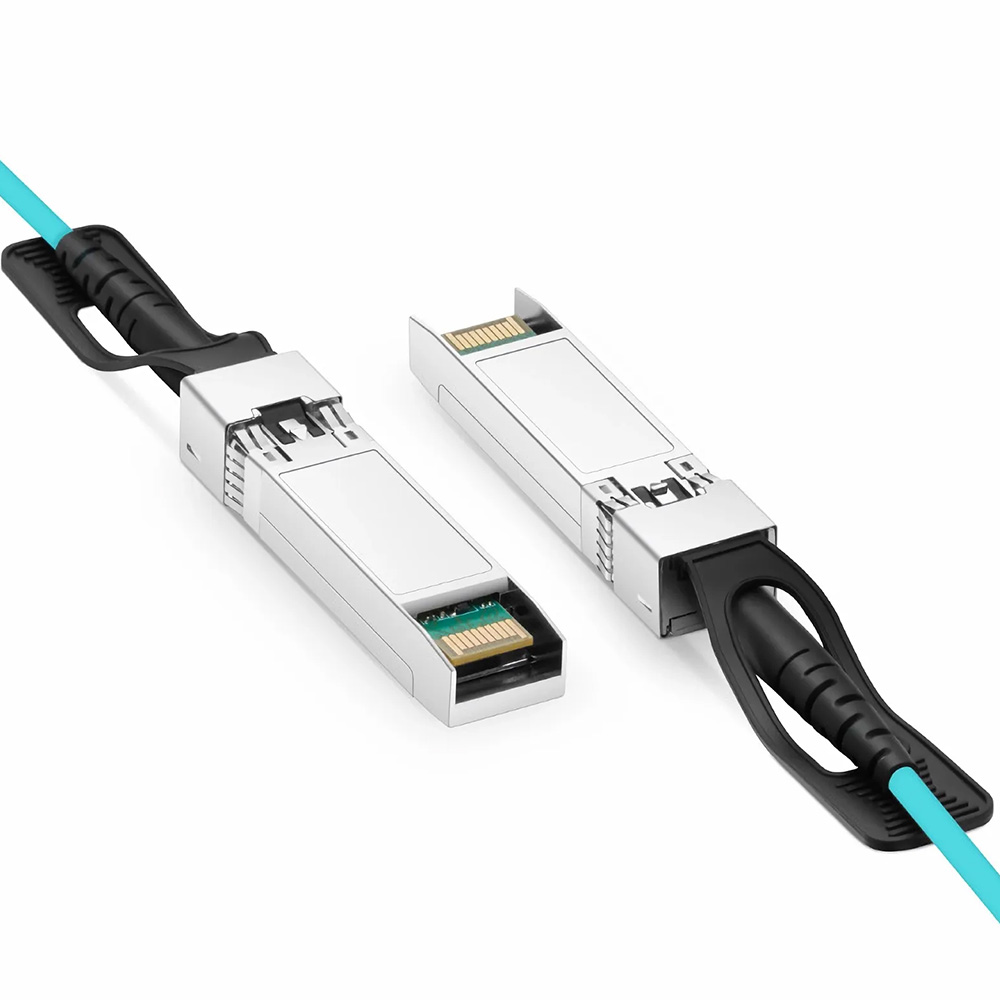

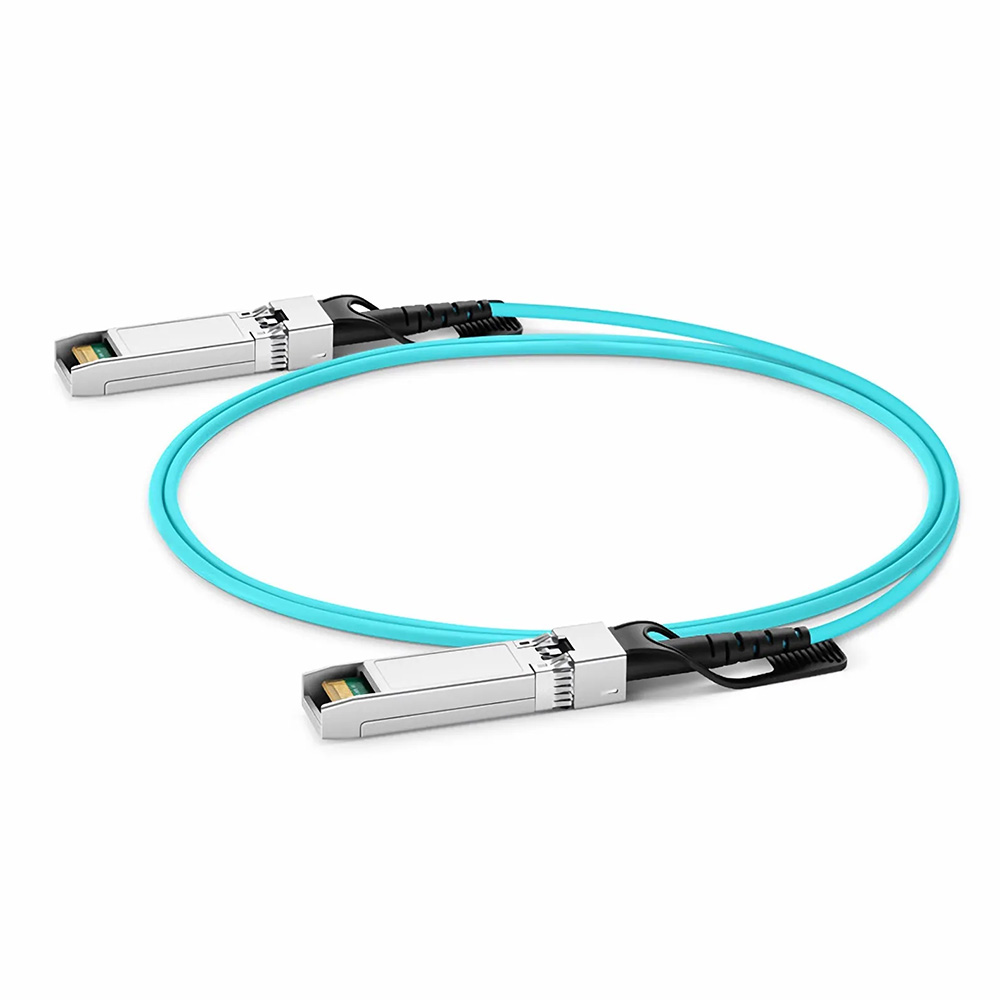

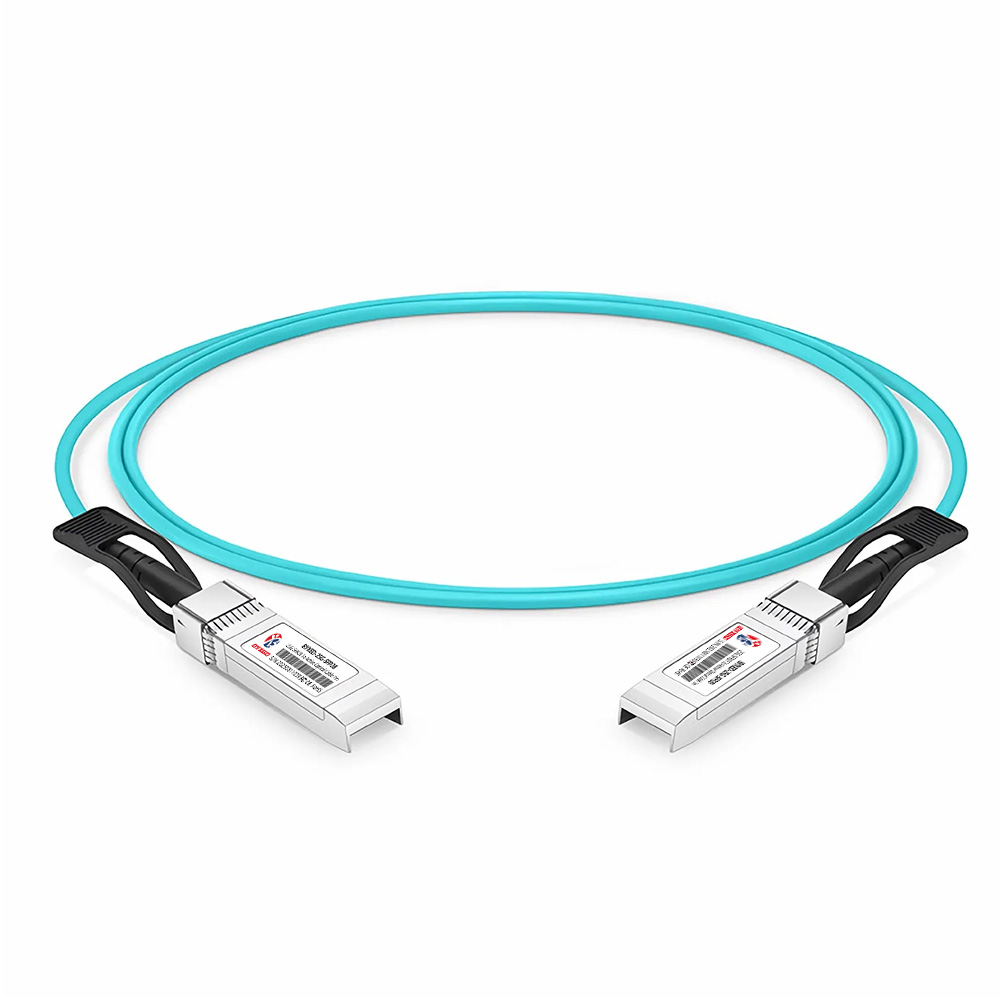

BYXGD Customized Length Cisco SFP28-25G-AOC1M Compatible 25G SFP28 Active Optical Cable (AOC Cable) contains a multimode fiber optic that consists of 850 nm VCSEL transmitters and PIN receivers. The AOC Cable is terminated with an SFP28 connector on both ends. It complies with the 25GBASE-AOC standard for data rates of 25 Gbps in full duplex. The AOC Cable can be customized for lengths up to 1 meter and has a 3.0 mm diameter, a minimum bend radius of 30 mm, and utilizes the LSZH jacket to allow flexible short-distance routing.
The required power for this device is 3.3 V for both devices connected to the AOC Cable with a maximum current draw of 0.8 W. The device also supports DDM (Digital Diagnostic Monitoring) data through I²C. An operating temperature range between 0 °C and 70 °C and a humidity range of 5–85% is acceptable for the operation of this device. The AOC Cable is designed to be hot-plug-enabled per SFP28-MSA, according to guidelines outlined in SFF-8402, SFF-8431, and SFF-8472. This configuration guarantees a bit error rate (BER) less than 1e-15 for both rack-internal and adjacent-rack applications, eliminating the need for discrete transceiver support.
Specifications
| Form Factor | SFP28 Active Optical Cable (AOC) |
| Connector Type | SFP28 to SFP28 |
| Data Rate | 25 Gbps (up to 25.7813 Gbps) |
| Wavelength | 850 nm |
| Cable Type | Aqua OM3 Multi-mode Fiber (MMF) |
| Cable Length | 1–30 m |
| Max. Distance | Up to 150 m (492 ft) |
| Minimum Bend Radius | 30 mm (7.5 mm general, >60 mm standard) |
| Cable Jacket | LSZH / OFNP |
| Wire AWG | 30 AWG |
| Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Power Consumption | <2 W (<1 W per side, 0.8 W max) |
| Digital Diagnostics | Yes (DDM/DOM) |
| Bit Error Rate (BER) | 1e-15 |
| Protocols | 25GBASE Ethernet, IEEE 802.3by |
| Compliance | SFP28 MSA, SFF-8431, SFF-8432, SFF-8472, SFF-8402, RoHS |
| Flame Rating | Low Smoke Zero Halogen (LSZH) |
| Multi-Vendor Support | Yes |
1m (3ft) Cisco SFP28-25G-AOC1M Compatible 25G SFP28 AOC Cable Transceivers type
| Compatible Brand | Transceivers Type |
| Cisco | SFP28-25G-AOC1M, SFP28-25G-AOC2M, SFP28-25G-AOC3M, SFP28-25G-AOC5M, SFP28-25G-AOC7M, SFP28-25G-AOC10M, SFP28-25G-AOC15M, SFP28-25G-AOC20M, SFP28-25G-AOC30M |
| Juniper Networks | JNP-25G-AOC-1M, JNP-25G-AOC-2M, JNP-25G-AOC-3M, JNP-25G-AOC-5M, JNP-25G-AOC-7M, JNP-25G-AOC-10M, JNP-25G-AOC-15M, JNP-25G-AOC-20M, JNP-25G-AOC-30M |
| Arista | AOC-S-S-25G-1M, AOC-S-S-25G-2M, AOC-S-S-25G-3M, AOC-S-S-25G-5M, AOC-S-S-25G-7M, AOC-S-S-25G-10M, AOC-S-S-25G-15M, AOC-S-S-25G-20M, AOC-S-S-25G-30M |
