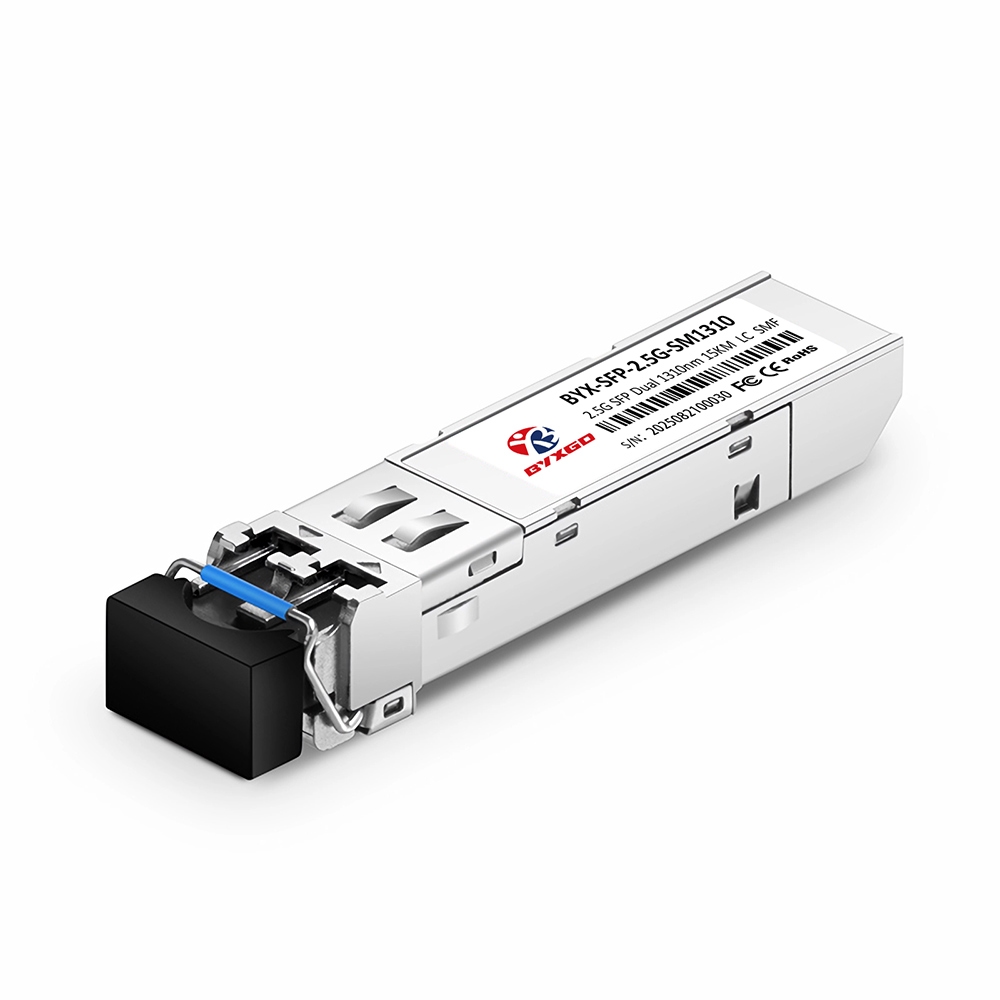

2.5GBASE-LX SFP 1310nm 15km Duplex LC/UPC SMF

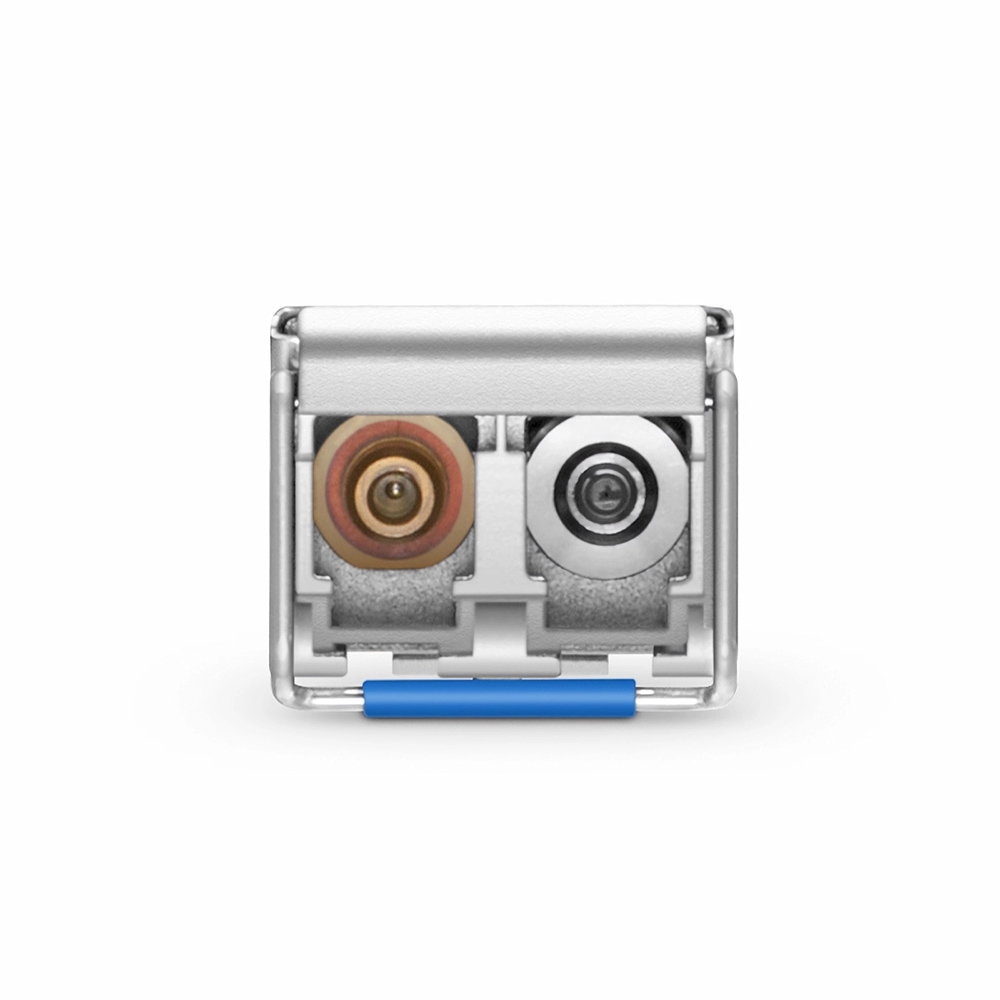

Offering exceptional long-haul operation with reliability, all in a compact, hot-pluggable form factor, the 2.5GBASE-LX SFP transceiver makes application opportunities for switch-to-switch backplanes and mid-reach fiber deployments a real option. For operation at 1310nm over 9/125µm single-mode fiber, the transceiver supports 15 km link lengths with duplex LC connectors. The transceiver utilizes a 1310nm DFB laser for optical transmission and an InGaAs PIN receiver for optical reception. Logic power for the SFP is 3.3V, with a low power dissipation specification to give the transceiver good energy efficiency. The SFP offers Digital Diagnostic Monitoring (DDM) to provide real-time visibility of its optical and electrical operating parameters, allowing the network administrator preventive maintenance and diagnostic capabilities. The transceiver provides broad interoperability and works with industry-standard interfaces and networks to support a diverse data center and enterprise working environment.

This transceiver supports the SFP Multi-Source Agreement (MSA) (INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, and SFF-8472 v9.5 standards, with robust diagnostics and management features. It supports communications for SONET OC-48 SR-1/SDH STM-16 I-16, 2x Fibre Channel applications, and switch-to-switch communications. It provides reliable long-haul performance across common carrier or enterprise deployments. The component is RoHS-compliant and lead-free and is constructed with a metal housing for durability and EMI shielding.

Specifications
