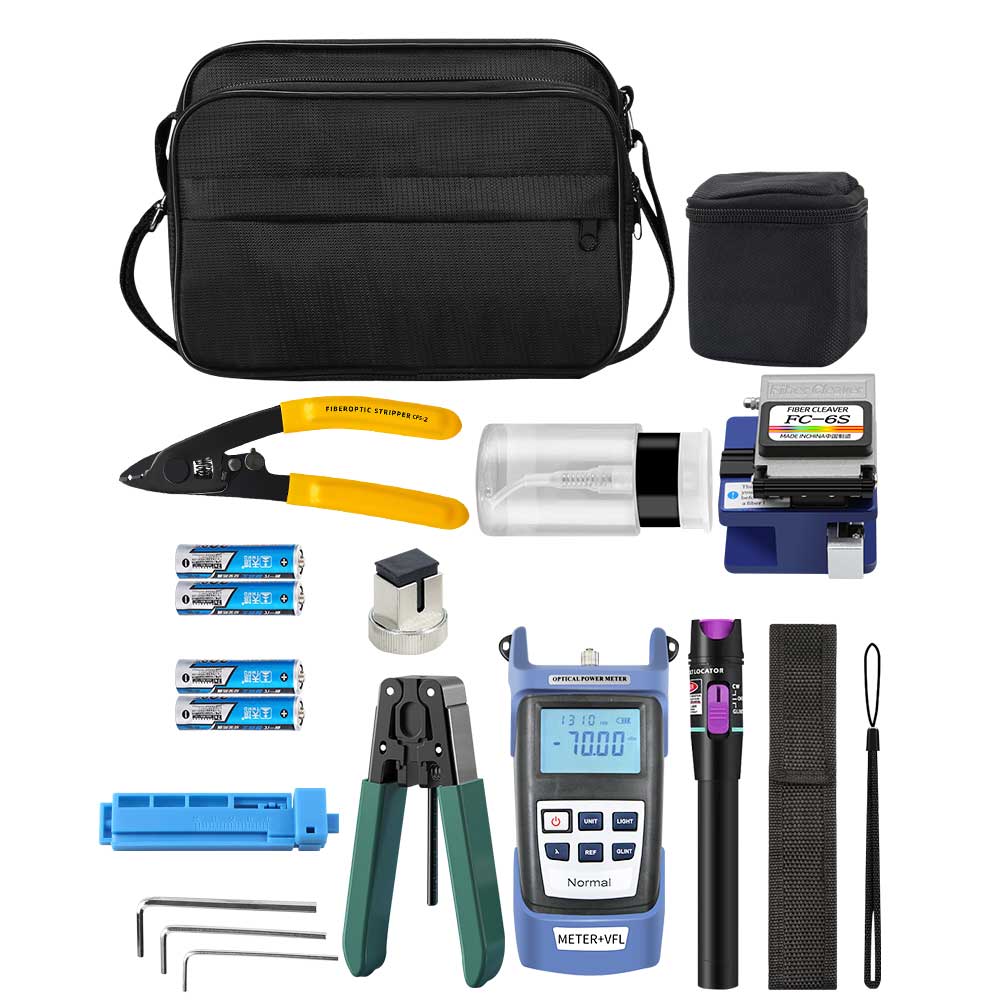

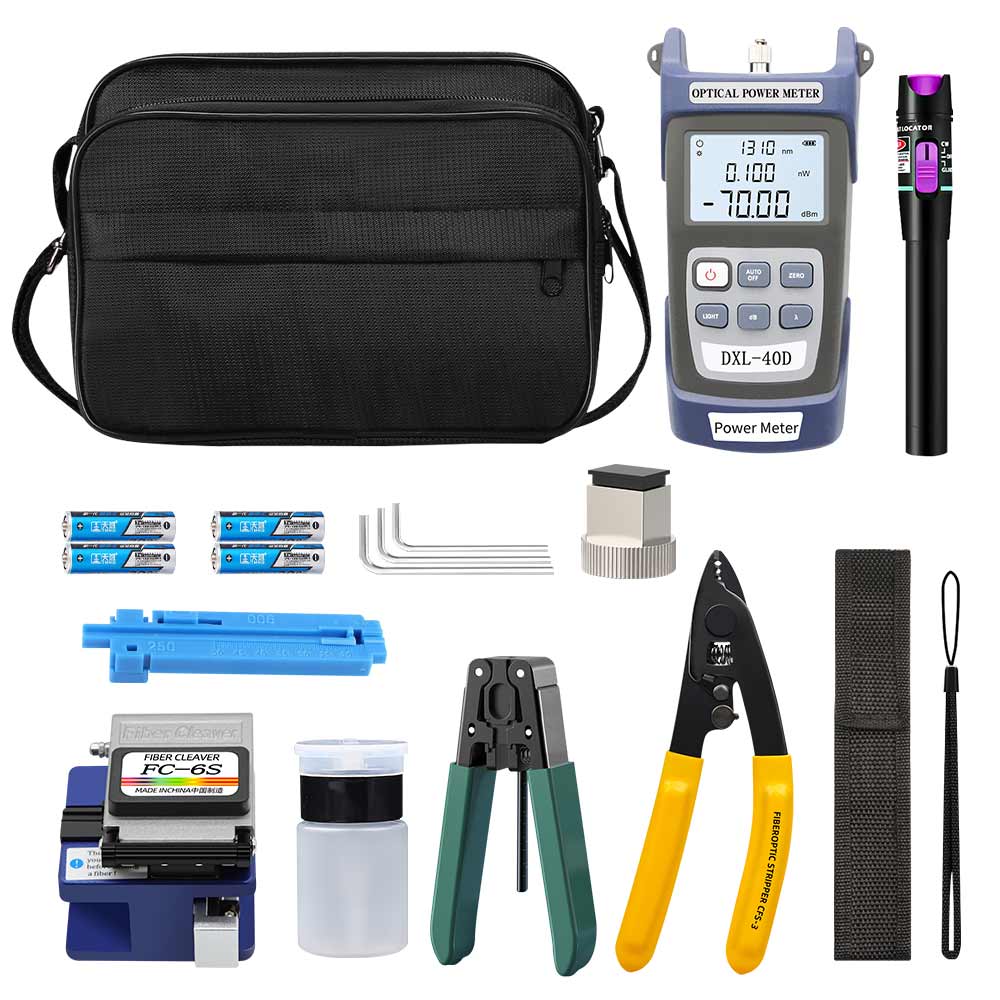

1. Optical Power Meter
Detects optical power with capability for 7 test wavelengths. Cables to connect SC, FC, and ST connectors, with backlight on/off display, LED lighting, wavelength memory, and a 2.5mm universal interface. Made for multimode fiber.
2. Visual Fault Locator (VFL)
1mW visual fault locator with strong light source, 360 degree rotating design. Great for quickly finding fiber breaks or faults with visible red light.
3. FC-6S Fiber Cleaver
Metal fiber cleaver with automatic rebound and cuts flat when making cold connections. Comes with a 3-in-1 metal fixture, length setter, knife adjusting wrench, and ceramic sleeves for precision fiber cleaving.
4. CFS-2 3-Port Fiber Optic Stripper
Can strip the coating of fiber without damaging the fiber itself. The large hole is for stripping the outer protective layer (2-3 mm), the middle hole is for stripping soft rubber layers (900-250 µm), the small hole is for stripping coating layers (250-125 µm).
5. FTTH Drop Cable Stripper
Specialized stripper designed for peeling fiber drop cables used in a FTTH installation to help prepare the cable cleanly without damaging the cable.
6. Leather Wire Stripper
Lightweight and easy to operate, it can peel 1-core or 2-core wires indoors or outdoors without damaging the fiber. Very good accessory for cold connector preparation.
7. Alcohol Bottle
Used to hold alcohol to clean fiber optic components during splicing and termination.
8. Dust-Free Paper
Lint free cleaning for fiber ends and tools to provide contamination free splicing and testing.
9. Cleaver Stripping Guide Bar
Helps aid the stripping of fiber in the cleaving process for accurate preparation.
10. Cleaver Adjusting Tools (2 of each)
Tools to adjust the cleaving blade and make sure cutting is consistent.
11. Ceramic Sleeves for VFL (2 of each)
Replacement ceramic cores to ensure even light output and make it more durable when using the visual fault locator.
12. Cleaver Bag
Protective bag with hold with fibers and the cleaver can be stored and moved safely.
13. VFL Bag
Carrying bag dedicated to VFL.

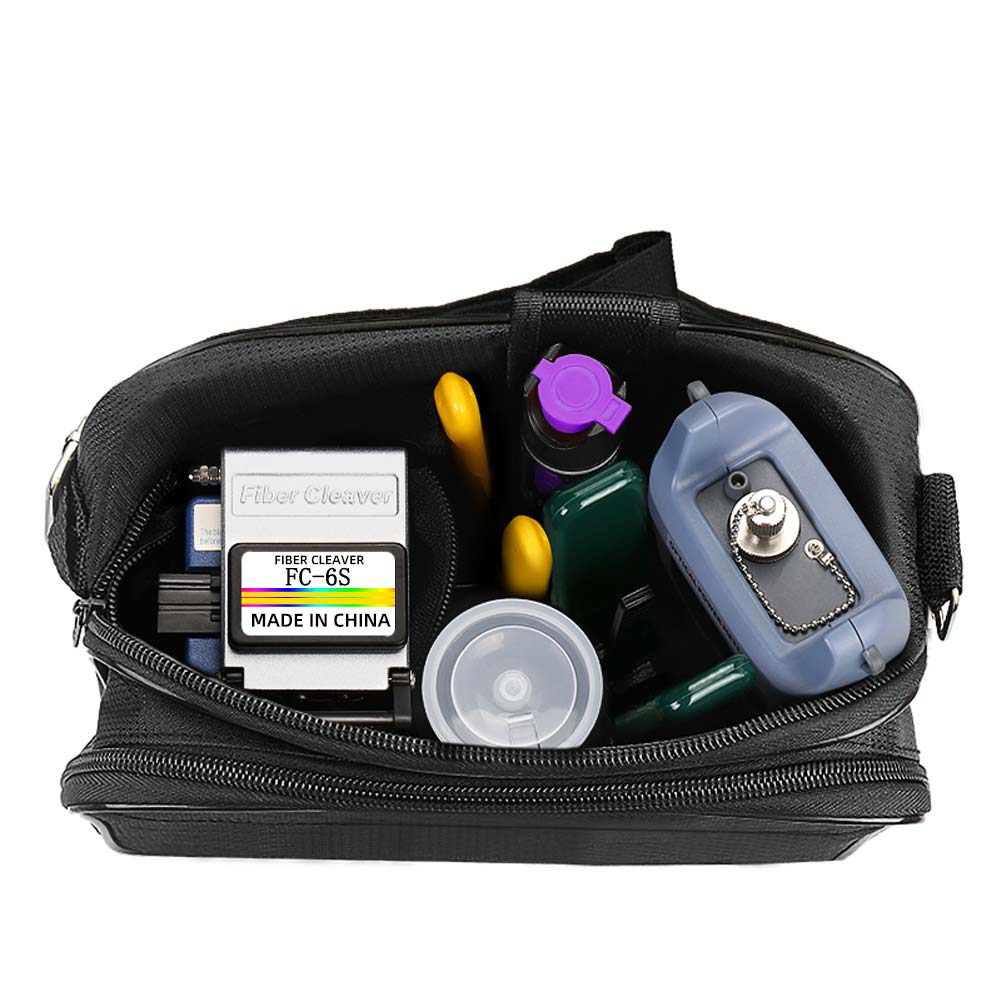

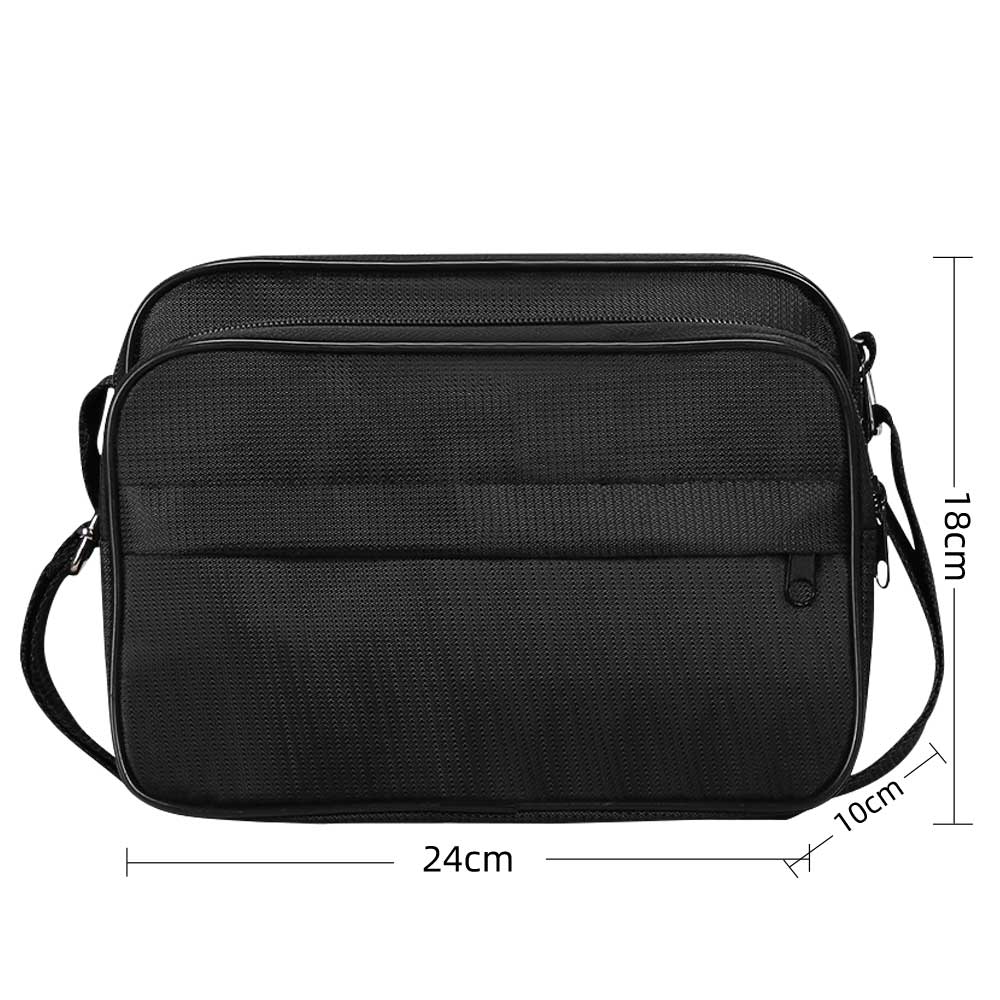

14. Toolkit Bag
Sturdy carrying bag with large and organized enough space to hold all tools and accessories and easy for transport.
15. Other Accessories
Includes a No. 5 dry cell battery, SC/FC adapter, red light pen with pen bag lanyard, pen head (ceramic core) pen, wire stripper wrench, and leather wire pliers to work with various operational fiber optic tasks.
