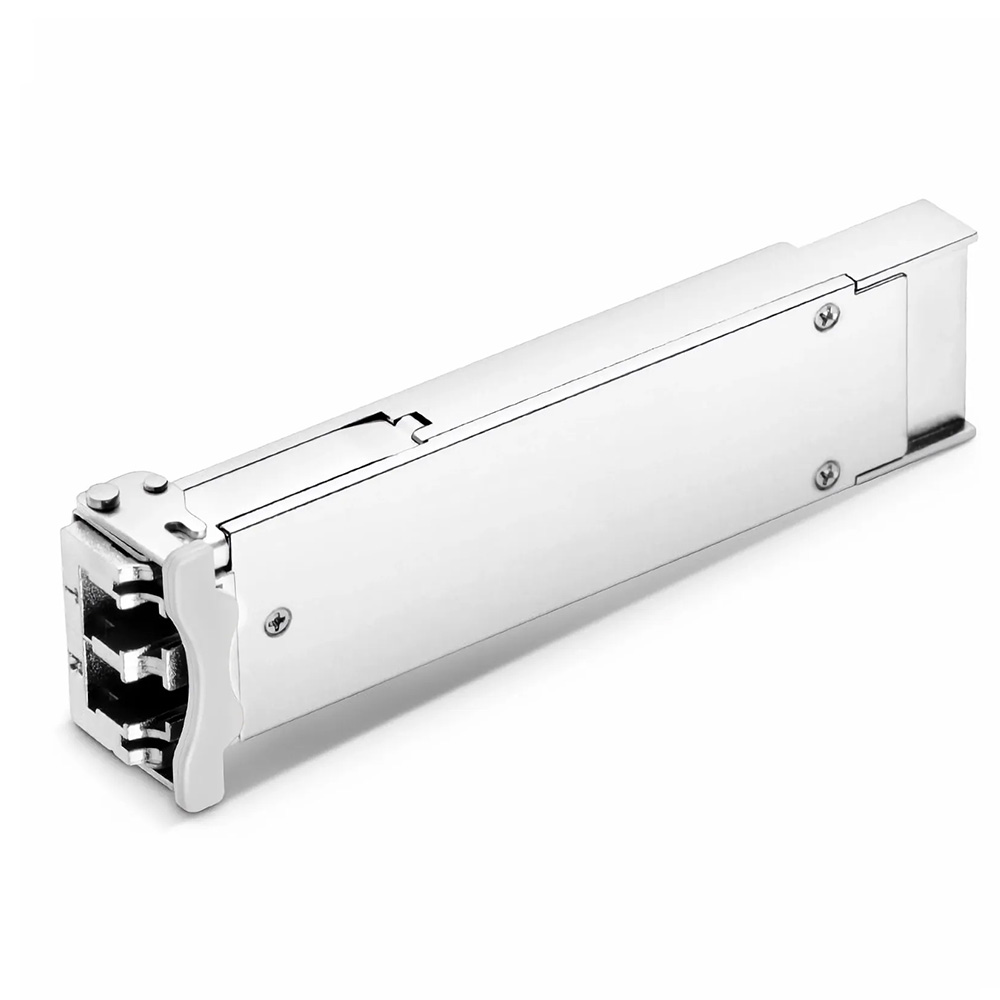

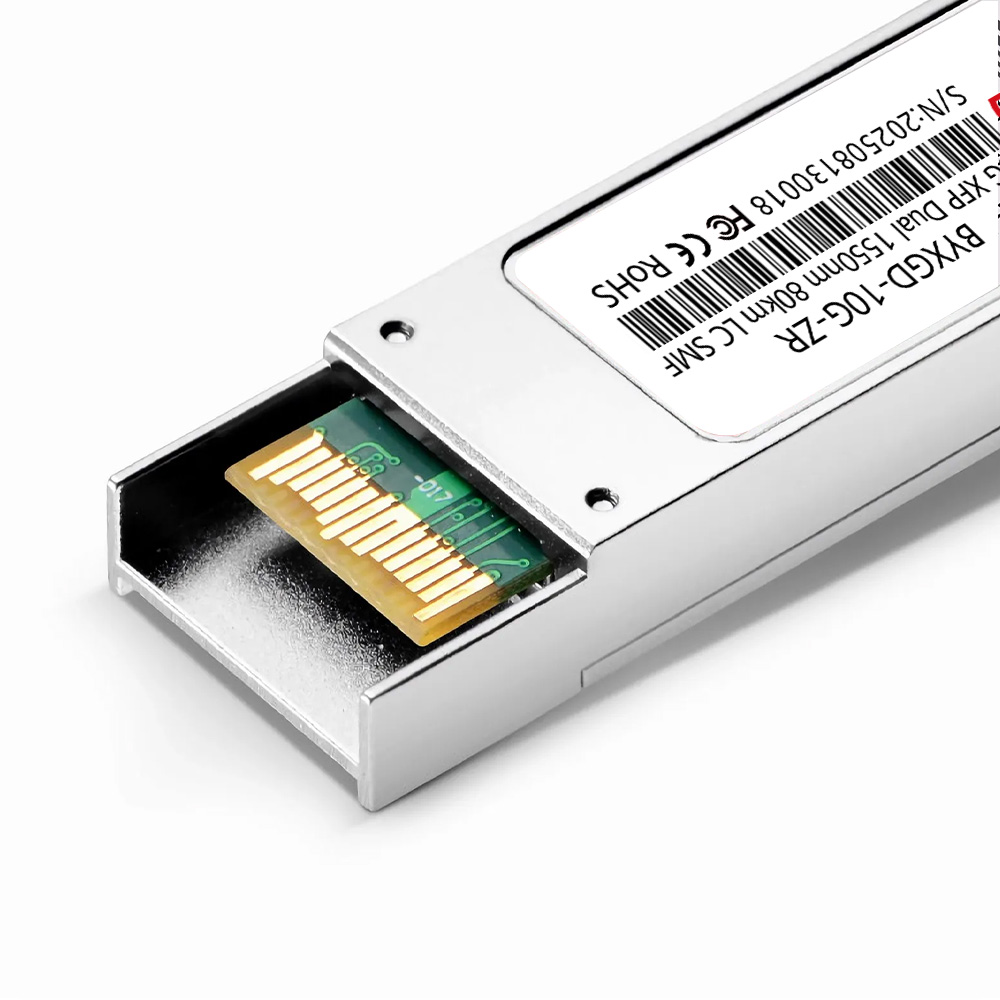

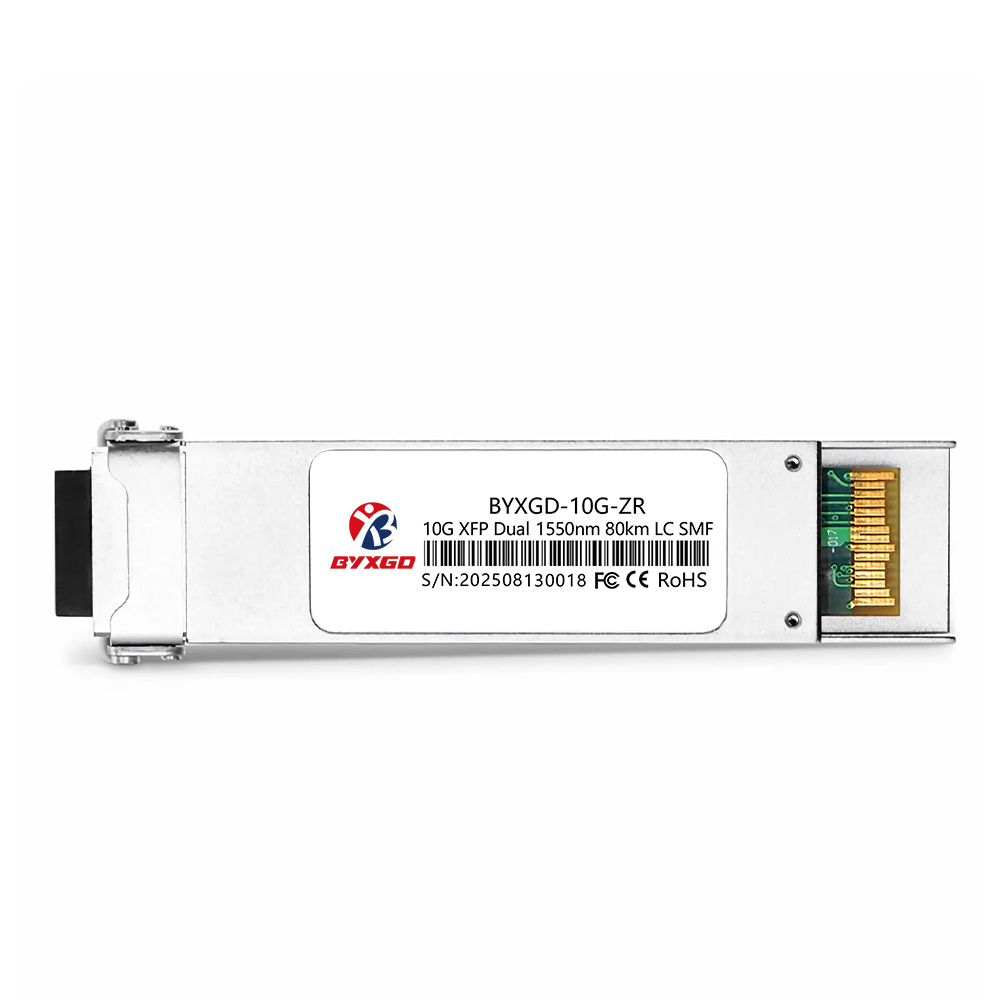

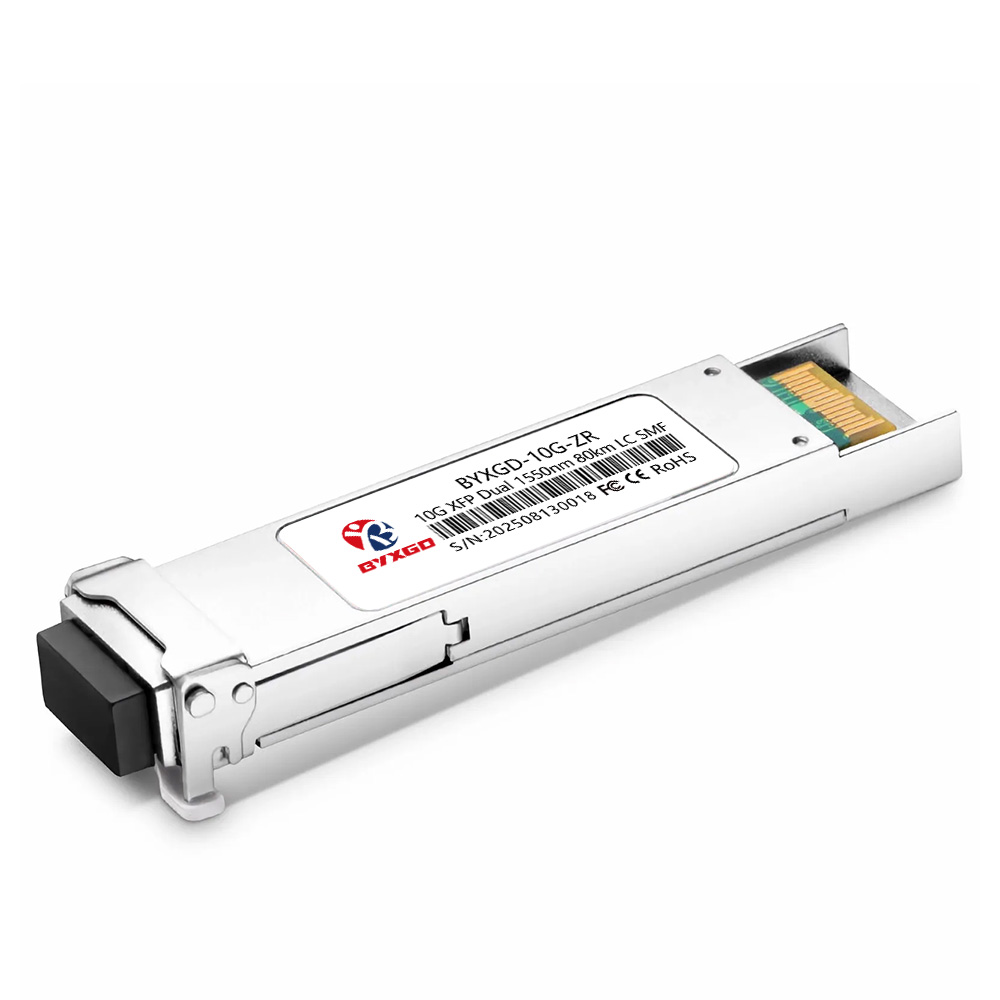

Cisco XFP-10GZR-OC192LR compatible module supports 10GBASE-ZR/ZW and OC-192/STM-64 LR-2 XFP 1550nm 80km. It is optimized for use in Telecom and Data Center deployments as a hot-pluggable module that supports 10G Ethernet, OC-192/STM-64 POS, and 10G Fibre Channel. It operates at line rates of 9.95–11.1 Gbps, with typical Ethernet LAN at 10.3125 Gbps and WAN/OC-192 at 9.95328 Gbps. The 1550 nm EML transmitter with APD receiver features a dual LC interface and OC-192/STM-64 LR-2 compliant with ITU-T G.652, using Tx wavelengths of 1530–1565 nm, Tx power of up to +4 dBm, and Rx sensitivity of down to −24 dBm to support 80km long-haul links.
Compatible with: Cisco XFP-10GZR-OC192LR, HPE JD107A, Huawei 0231A41G, Juniper Networks EX-XFP-10GE-ZR, Dell Networking XFP-10G-SM-ZR80, Brocade 10G-XFP-ZR, Extreme Networks 10G-XFP-ZR, and H3C XFP-LH80-SM1550, etc. The hot-pluggable module is compliant with IEEE 802.3ae XFP MSA, OC-192/STM-64 LR-2, DOM/DDM monitoring, Class 1 laser safety, and operates on 3.3 V within a 71 mm x 18.5 mm x 8.5 mm envelope. It is ideal for 10G Ethernet backhaul, inter-PoP links, TOR/aggregation uplinks and SAN extension in Data Centers.
Specifications
| Parameter | Value |
| Brand | BYXGD |
| Model | BYXGD XFP-10GZR |
| Form Factor | XFP |
| Dimensions | 71 × 18.5 × 8.5 mm |

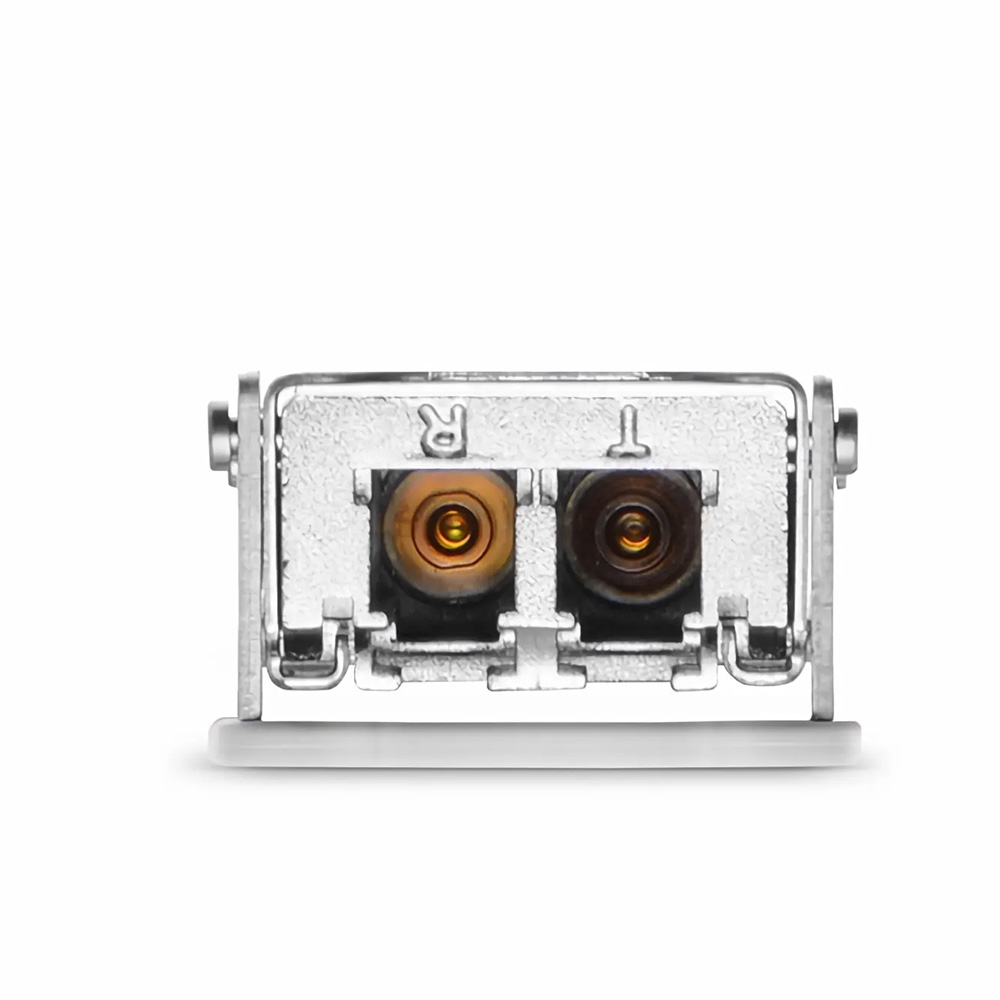

| Connector | LC Duplex |
| Fiber Type | OS2 SMF |
| Media | SMF, G.652 compliant |
| Data Rate | 10 Gb/s |
| Supported Line Rates | 9.95–11.1 Gb/s (10GE LAN 10.3125 Gb/s; WAN/OC‑192 9.95328 Gb/s; 10G Fibre Channel) |
| Center Wavelength | 1550 nm |
| Tx Range | 1530–1565 nm |
| Max Distance | 80 km @ OS2 |
| Transmitter Type | EML 1550 nm |
| Receiver Type | APD (long‑reach) |
| Optical Components | EML/APD integrated design |
| Transmit Power | 0 to +4 dBm |
| Extinction Ratio | > 7 dB |
| Receiver Sensitivity | < −24 dBm |
| Receiver Overload | > −7 dBm |
| DDM/DOM | yes |
| Supply Voltage | Single 3.3 V |
| Power Consumption | < 3.5 W |
| Operating Temp | 0°C to 70°C (32°F to 158°F) |
| Storage Temp | −40°C to 85°C |
| Protocols | XFP MSA (INF‑8077i), CPRI, eCPRI, 10GBASE‑ZR/ZW, OC‑192/STM‑64 LR‑2, 10G Fibre Channel |
| Laser/Class | IEC‑60825, FDA 21CFR 1040.10/1040.11, Class 1 |
| ESD/EMC | IEC/EN 61000‑4‑2 |
| Environmental | RoHS compliant, lead‑free |
| Applications | 10GbE Data Center Switches/Routers; Telecom POS (OC‑192); 10G Fibre Channel |
| Weight | 0.05 kg |
| Warranty | 5 Years |
