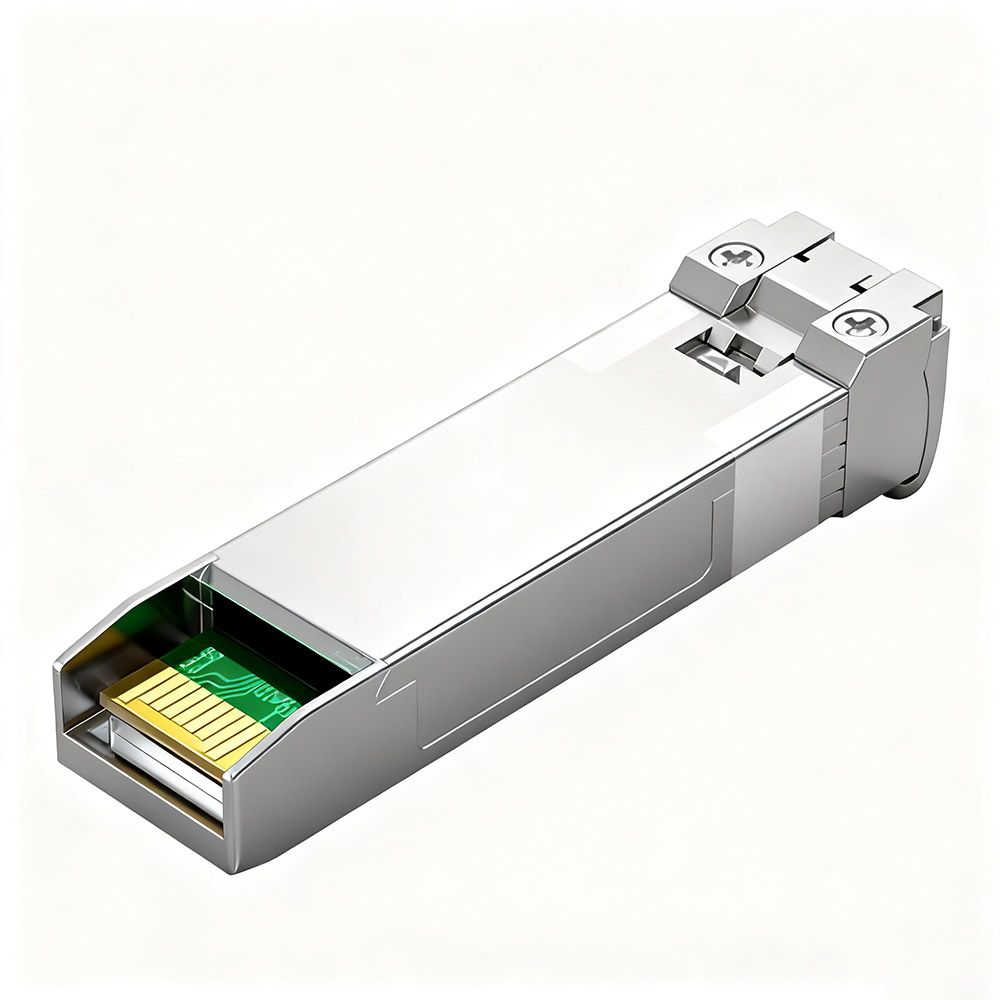

10GBASE-ZR SFP+ 1550nm 80km Simplex LC/UPC SMF Optical Transceiver Module is a 10GBASE-ZR/ZW and OTU2e SFP+ transceiver designed for up to 80 km of distance over OS2 single-mode fiber and compatible with Cisco models SFP-10G-ZR. The module operates with a 1550 nm wavelength, a cooled EML laser, and an APD receiver to provide long-distance, stable optical performance. The module has a Simplex LC/UPC connector, is hot-pluggable, operates with a 3.3V single power supply, and consumes less than 1.8W of power.
The 10GBASE-ZR SFP+ optical transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472 standards. The module provides a line rate of 10.31 Gbps for Ethernet and 9.95 Gbps for SONET/SDH applications. The unit also supports digital diagnostics monitoring via a two-wire serial interface to provide real-time information such as optical power, temperature, and voltage.
The optical transceiver module provides reliable interoperability with various network switches, routers, servers, and NICs from Cisco SFP-10G-ZR, Juniper Networks EX-SFP-10GE-ZR, Arista Networks SFP-10G-ZR, Brocade 10G-SFPP-ZR, HPE SFP-10G-ZR, Dell Networking SFP-10G-ZR, Extreme Networks 10GB-ZR-SFPP, HW LE2MXSC80FF0, Ciena 12400, Alcatel-Lucent SFP-10G-ZR, Fortinet FN-TRAN-SFP+ZR, H3C SFP-XG-LH80-SM1550, Avaya AA1403016-E6, and Netgear AXM762.
Specifications
| Parameter | Specification |
| Product Model | BYXGD 10GBASE-ZR SFP+ 1550nm 80km |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps (Ethernet), 9.953 Gbps (SONET/SDH), 11.3 Gbps (Max) |
| Wavelength | 1550 nm |
| Distance | Up to 80 km over single-mode fiber (9/125 µm) |
| Interface Type | Simplex LC/UPC |
| Media Type | SMF |
| Transmitter Type | Cooled EML |
| Receiver Type | APD |
| Modulation Format | NRZ |
| TX Optical Power | 0 to +5 dBm |
| Receiver Sensitivity | < -23 dBm |
| Receiver Overload | ≥ -7 dBm |
| Extinction Ratio | > 7 dB |
| DOM/DDM | Supported via 2-wire interface (SFF-8472 compliant) |
| Laser Safety | Class 1 FDA/IEC 60825-1 |
| Power Supply Voltage | +3.3 V |
| Power Consumption | < 1.8 W |
| EMI/ESD Protection | Excellent, compliant with EN 55032 and IEC 61000-4-2 |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Storage Temperature | -40°C to +85°C |
| Case Material | Metal enclosure for EMI shielding |
| Compliance Standards | SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472, RoHS, CE, REACH |
| Supported Protocols | 10GBASE-ZR, 10GBASE-ZW, OTU2e, Fibre Channel, CPRI, eCPRI |
| Typical Applications | Data center interconnects, 10G switches, routers, servers, NICs |
| Dimensions (L×W×H) | 56.7 × 13.7 × 8.5 mm |
| Weight | 0.03 kg |
| Warranty | 5 Years |
