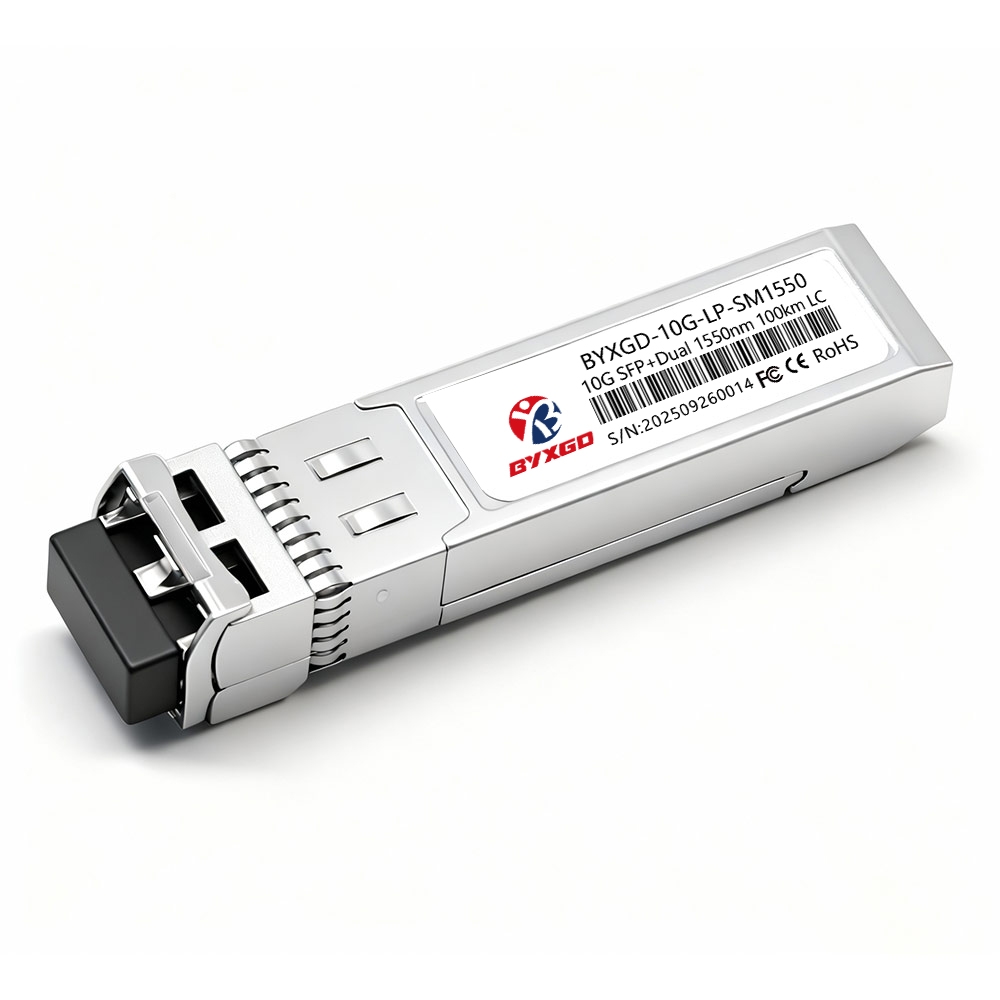

Cisco SFP-10G-ZR100 Compatible 10GBASE-ZR SFP+ 1550nm transceiver is designed for single-mode fiber and is rated for reach distances up to 100 km on a simplex LC/UPC connector at a wavelength of 1550 nm. It supports data rates from 9.95 Gbps to 10.31 Gbps and is compliant with 10GBASE-ZR and 10GBASE-ZW standards for Ethernet and SONET/SDH applications. This module features a cooled EML laser and high dynamic range APD receiver; the SFP+ module functions reliably over longer links while providing minimal jitter and signal loss.
The transceiver is SFP+ MSA compliant and IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472 standards compliant, and supports Digital Diagnostics Monitoring (DDM) data reporting through a 2-wire serial interface for real-time monitoring of optical power, temperature, voltage, and bias current. It has a power consumption of under 1.8 W and is hot-pluggable to accommodate easy installation and operation in a high-density environment.
This transceiver has functional compatibility with device models such as Cisco SFP-10G-ZR100, Juniper Networks EX-SFP-10GE-ZR100, HPE SFP-10G-ZR100, H3C SFP-XG-ZR100-SM1550, HW SFP-10G-ZR100, Arista Networks SFP-10G-ZR100, and Ciena (ex. Nortel) 12434. The transceiver is designed for a range of applications including 10G Ethernet, Fiber Channel, and data center interconnect. It provides a cost-effective long-range optical solution for enterprise, metro, and telecommunication networks.
Specifications
| Parameter | Specification |
| Product Model | BYXGD 10GBASE-ZR SFP+ 1550nm 100km |
| Form Factor | SFP+ |
| Data Rate | 9.95 to 11.3 Gbps |
| Transmission Standard | 10GBASE-ZR / 10GBASE-ZW |
| Wavelength | 1550 nm |
| Optical Interface | Simplex LC/UPC |
| Fiber Type | SMF, 9/125 µm |
| Maximum Distance | 100 km |
| Transmitter Type | Cooled EML |
| Receiver Type | APD |
| Transmitter Power | 0 to 5 dBm |
| Receiver Sensitivity | < -25 dBm |
| Receiver Overload | > -7 dBm |
| Extinction Ratio | > 7 dB |
| Optical Modulation | NRZ |
| Digital Diagnostic Monitoring (DDM/DOM) | Supported (SFF-8472 compliant) |
| Bit Error Ratio (BER) | 1 × 10⁻¹² |
| Power Consumption | < 1.9 W |
| Power Supply | 3.3 V |
| Hot Pluggable | Yes |
| Protocol | SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 |
| Additional Protocols | CPRI, eCPRI, Ethernet, Fiber Channel |
| Compliance Certifications | RoHS, CE, REACH, FDA Class 1 Laser |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions (L × W × H) | 56.7 × 13.7 × 8.5 mm |
| Weight | 0.03 kg |
| Typical Applications | 10G Ethernet, Fiber Channel, Data Centers, Metro Networks, Telecom Long-haul Links |
