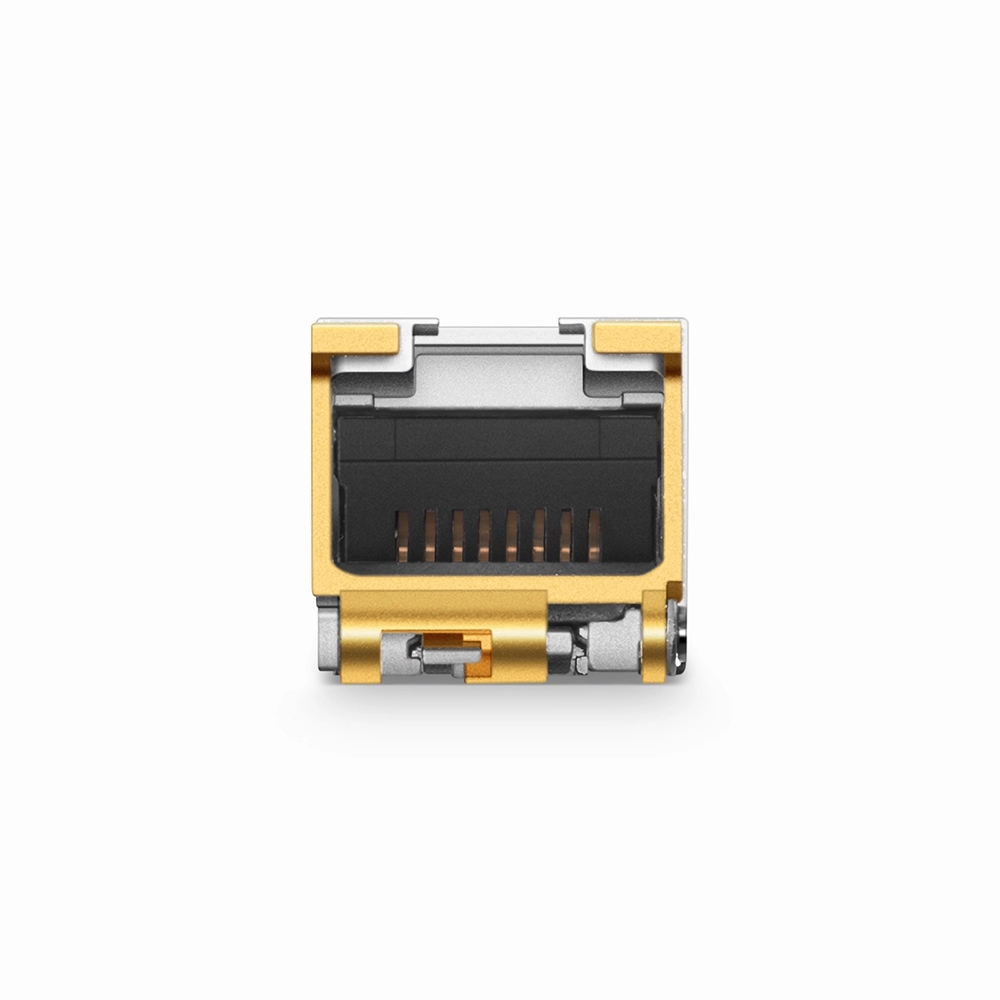

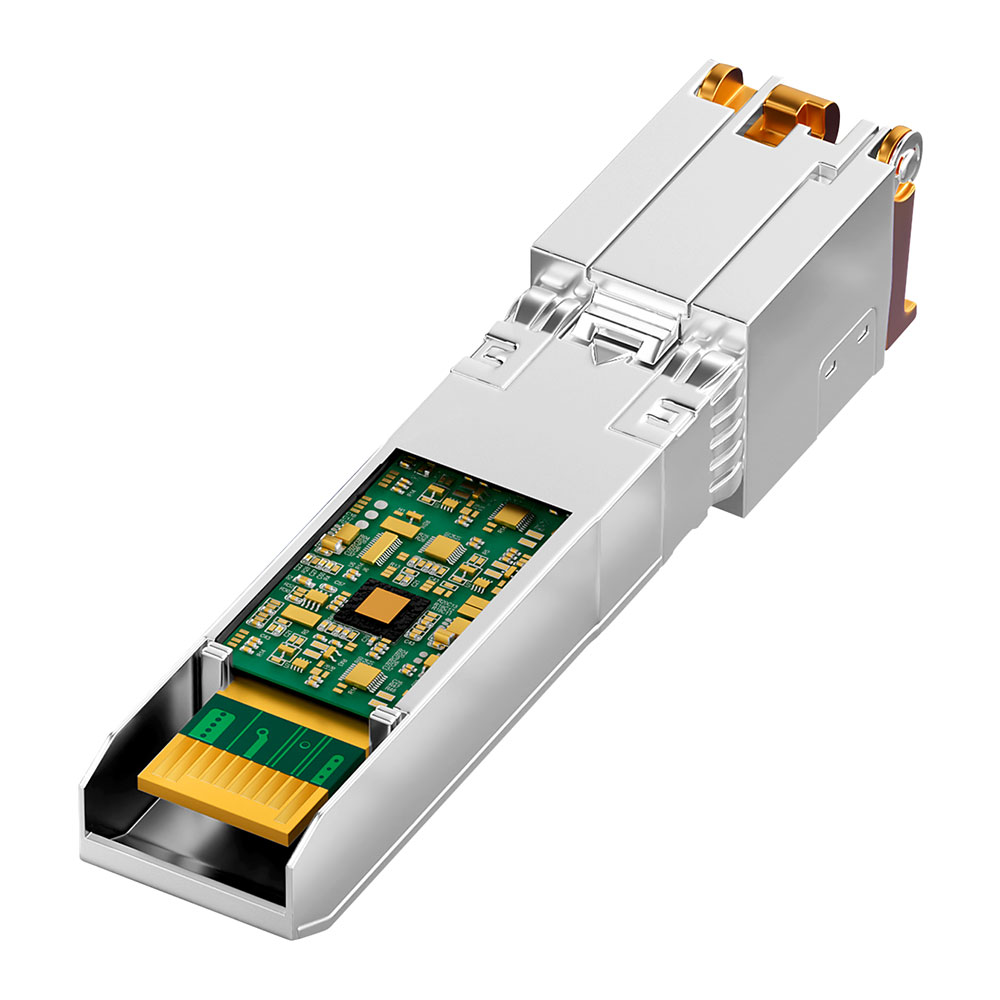

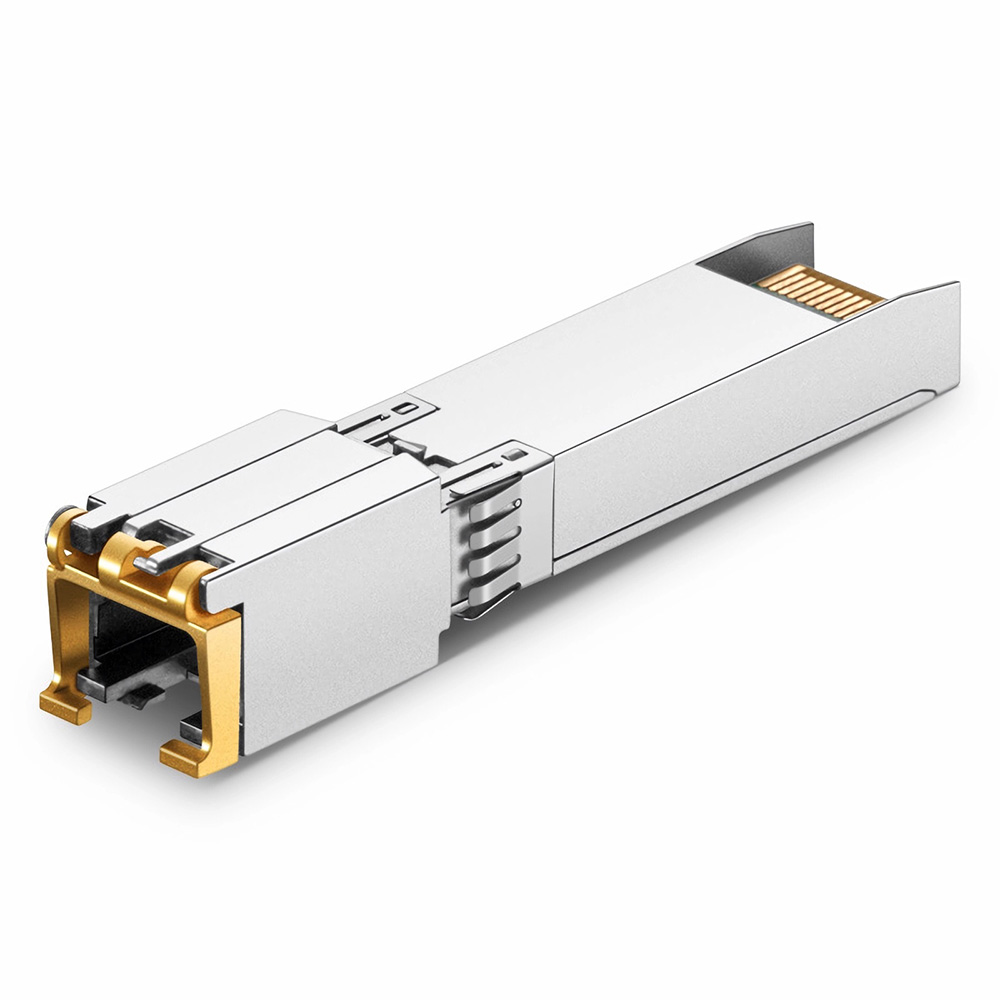

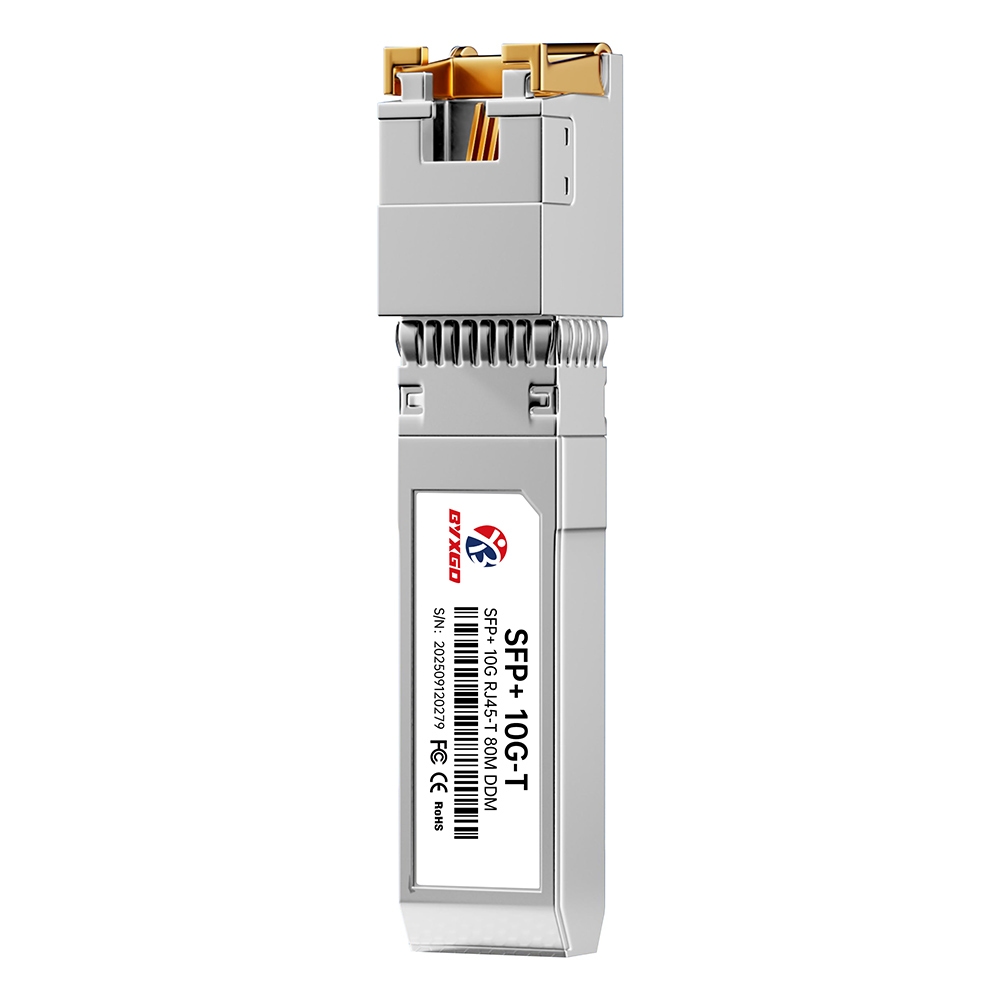

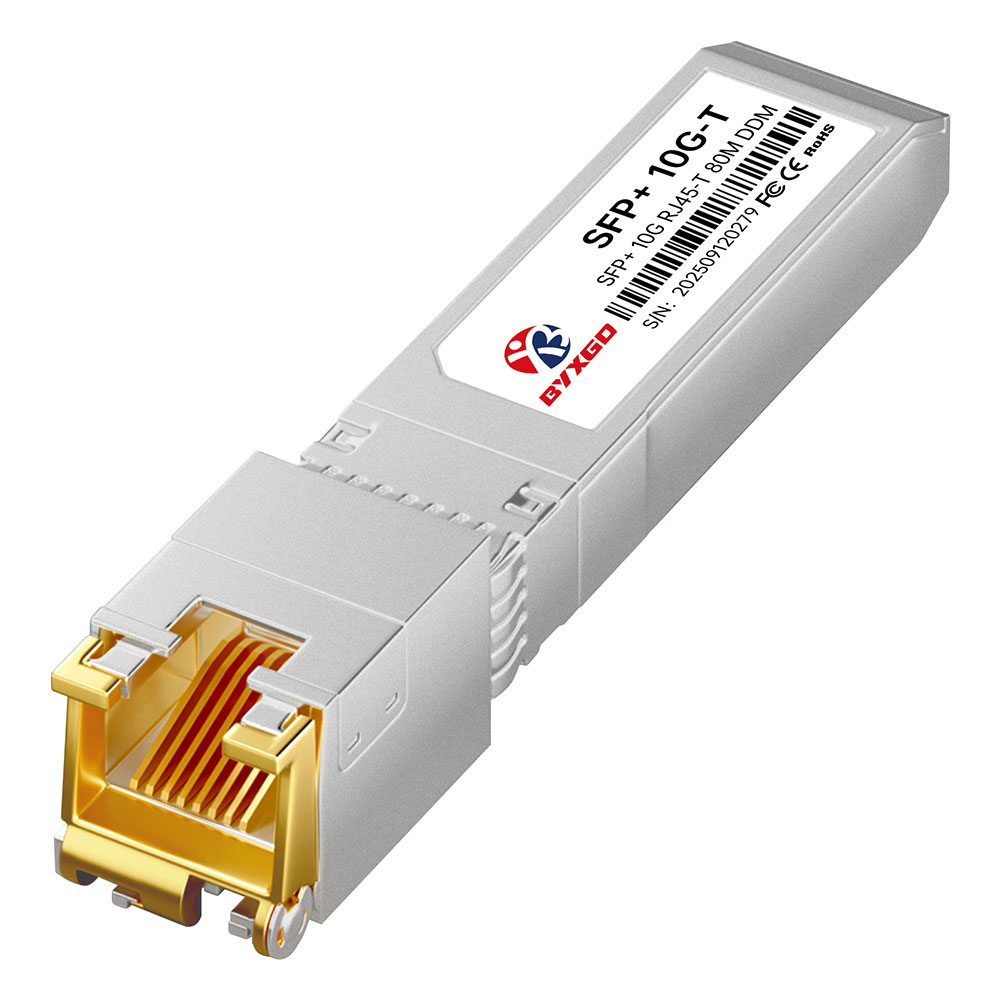

Cisco Compatible 10GBASE-T SFP+ Copper 80m RJ-45 Transceiver Module provides dependable 10 Gbps connectivity over copper cabling, supporting at least 80 meters of distance on Cat6a/Cat7 cabling. With an SFP+ form factor and standard RJ-45 connector for easy installation, the transceiver is hot-swappable on a wide range of supported switches, routers, servers, and NICs.
Designed for performance with low power usage, the transceiver takes less than 2.7 watts of power under industrial operating conditions, while providing excellent signal integrity. The transceiver is fully compliant with IEEE 802.3an, IEEE 802.3az, SFP+ Multi-Source Agreement (MSA), CPRI, and eCPRI, supporting extensive interoperability and future-proof networking deployments.
With compatibility testing to ensure stable vehicle-transceiver operation on targeted switches, compliance with electromagnetic compatibility (EMC), and a mean time between failures (MTBF) of more than 5 million hours, this reliable transceiver is well suited for enterprise and data center networking applications. The transceiver is protected with a 5-year warranty. This transceiver provides a sustainable, value-based solution for 10G networks with extended range over copper environments for high performance in commercial and industrial LAN and copper inter-rack applications.
Specification
| Specification | Details |
| Product Title | Cisco Compatible 10GBASE-T SFP+ Copper 80m RJ-45 Transceiver Module |
| Part Number | BYXGD-SFP+-10G-T-80M |
| Vendor Name | BYXGD |
| Form Factor | SFP+ |
| Data Rate | 10 Gbps |
| Cable Distance | Up to 80 m @ Cat6a/Cat7 or better |
| Power Consumption | ≤ 2.5W (Commercial), ≤ 2.7W (Industrial) |
| Connector | RJ-45 |
| DOM Support | No |
| Temperature Range | Commercial: 0 to 70°C (32 to 158°F) Industrial: -40 to 85°C (-40 to 185°F) |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| MTBF | 5,000,000 Hours |
| EMC | Supported |
| Warranty | 5 Years |
| Special Features | RX_LOS |
| Multi-rate Application | Not Supported |
Additional Part Numbers and Packaging Options:
| Part Number | Package | Data Rate | Connector Type | Distance |
| BYXGD-GE-T | Copper SFP-T | 10/100/1000 Mbps | RJ45 | 100m (UTP-5) |
| BYXGD-GE-TE | Copper SFP-T(IG) | 10/100/1000 Mbps | RJ45 | 100m (UTP-5) |
| BYXGD-10GBASE-T-30M | Copper SFP+-T | 100/1000/10000 Mbps | RJ45 | 30m (UTP-6) |
| BYXGD-10GBASE-T-80M | Copper SFP+-T | 10000 Mbps | RJ45 | 80m (UTP-6) |
| BYXGD-10GBASE-T-100M | Copper SFP+-T | 10000 Mbps | RJ45 | 100m (UTP-6) |
